Gasket Marker Light Gasket Common Application
- Hole Diameter is 0.203 inches Minimum and 0.234 inches maximum
- Overall Length is 5.109 inches Minimum and 5.141 inches Maximum
- Overall Width is 2.422 inches Minimum and 2.453 inches Maximum
- Aperture Diameter is 1.234 inches Minimum and 1.266 inches Maximum
- Outside Corner Radius is 0.469 inches Minimum and 0.500 inches Maximum
- Center to Center Distance between Bolt Holes Along Width is 0.812 inches
- Center to Center Distance between Bolt Holes Along Length is 3.875 inches
- Outside Edge to Bolt Hole Center Distance Along Width 0.625 inches
- Outside Edge to Bolt Hole Center Distance Along Length is 0.803 inches
- Material is Wool

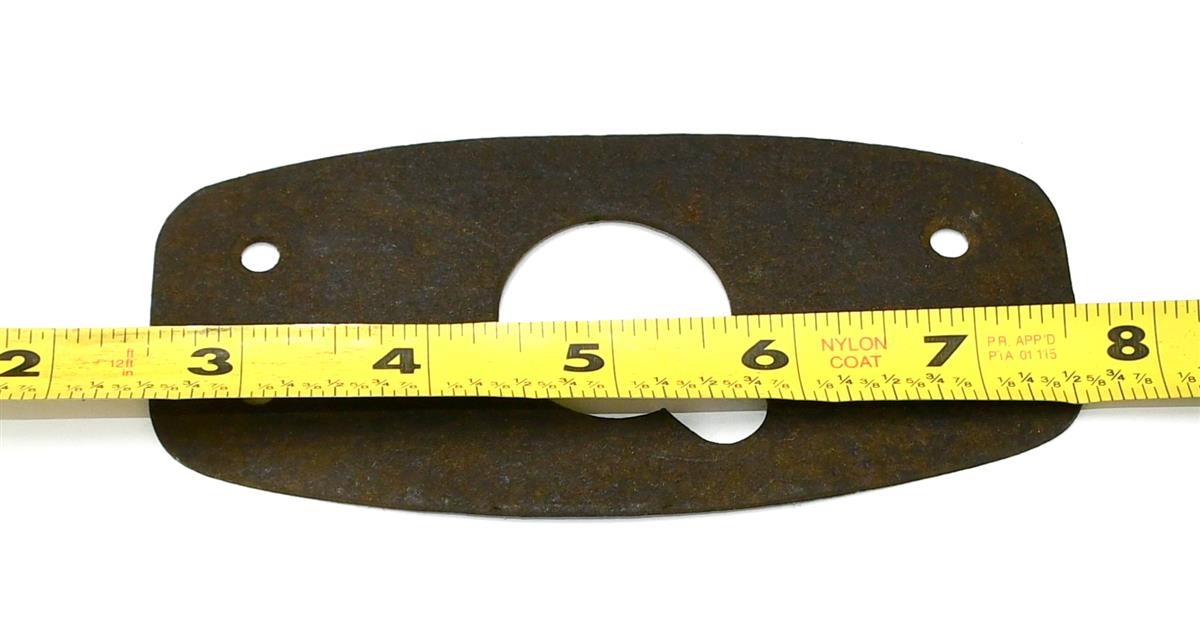

- Diagram Shown in Pictures
Click Here For Marker Light LED Amber Front Side Marker Light 24 Volt HMMWV
Click Here For Marker Light 24 Volt Red LED Side Marker Light
Click Here For Marker Light 24 Volt Amber LED Side Marker Light
Click Here For Marker Light Amber Color Orange Front Side Marker Light 12 Volt FMTV LMTV
Click Here For Marker Light With Bracket LED Amber 12V 24V Common Application
Fits:
M35 M35A1 M35A2 M35A3 M36 M36A1 M36A2 M36A3 M275 M109 M109A1 M109A3 M109A4 2 ½ Ton Trucks
M54 and variants 5-Ton Trucks
M939 M939A1 M939A2 M923 M923A1 M923A2 M925 M925A1 M925A2 M927 M927A1 M927A2 M929 M929A1 M929A2 M930 M930A1 M930A2 M931 M931A1 M931A2 M54 M809 M813 M814 M816 M817 M818 M820 5-Ton Trucks
HMMW
M1078 M1079 M1080 2 ½ Ton Trucks
M1083 M1084 M1085 M1086 M1087 M1088 M1089 M1090 M1091 M1095 M1096 5-Ton Trucks
