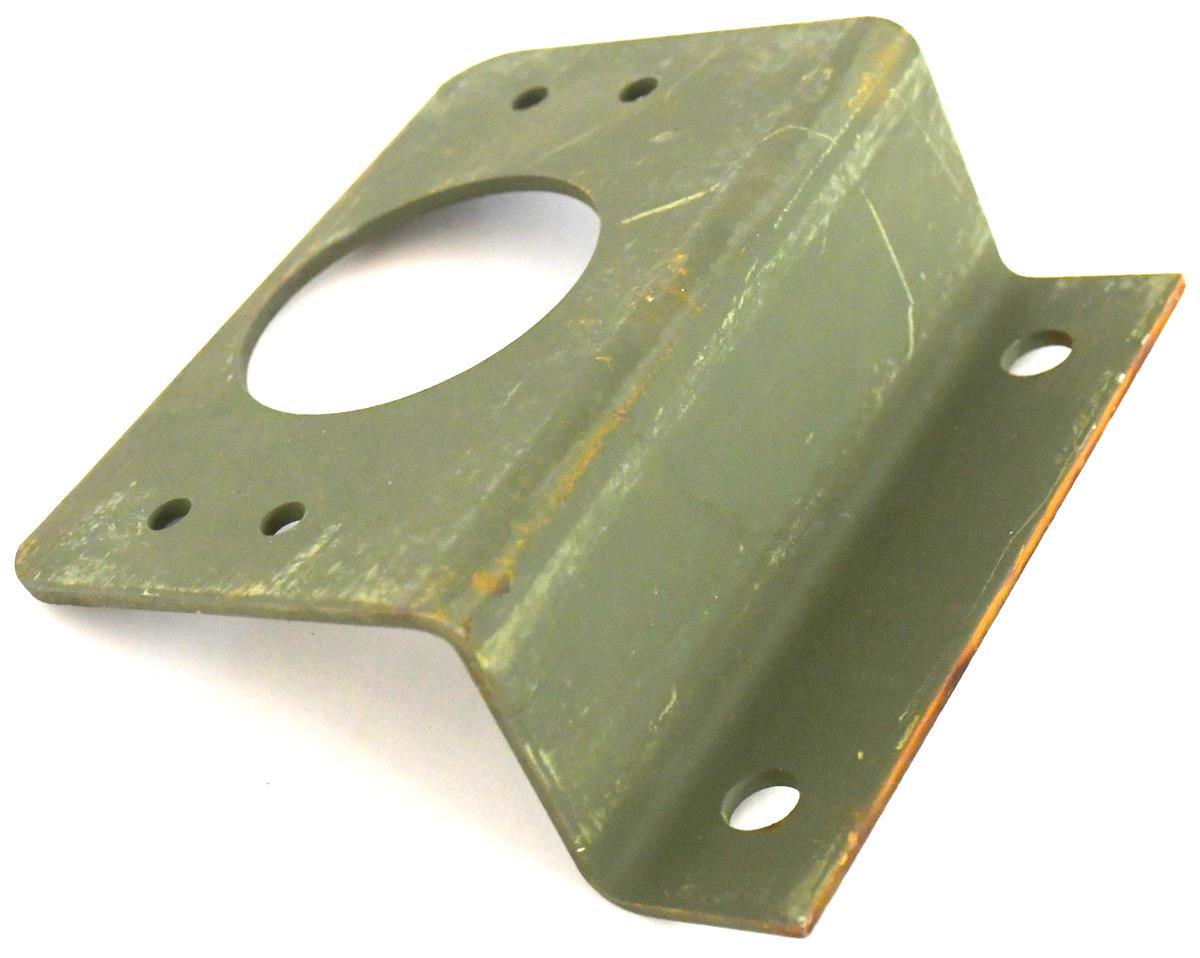

Side Marker Light Double Angle Mounting Bracket M35A2 M35A3 M54A2 M809 M939A1 M939A2
- First Leg Length - 1.250 Inches
- Second Leg Length - 3.250 Inches
- Second Leg Width - 5.120 Inches
- First Leg Hole Diameter - 0.406 Inches
- Second Leg Hole Diameter - 0.250 Inches
- Thickness - 0.120 Inches
- Center Section Height - 3.130 Inches
- Center Section Width - 2.000 Inches
- First Leg Width - 5.120 Inches
- Leg Angles - 90.0 Degrees
Item #10 in Attached Diagram
Fits:
M35A2, M49A2, M50A2, M36A2, M109A3, M275 2 ½ Ton Trucks
M35A3, M36A3, M109A4 2 ½ Ton Trucks
M54A2
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2 5-Ton Trucks
