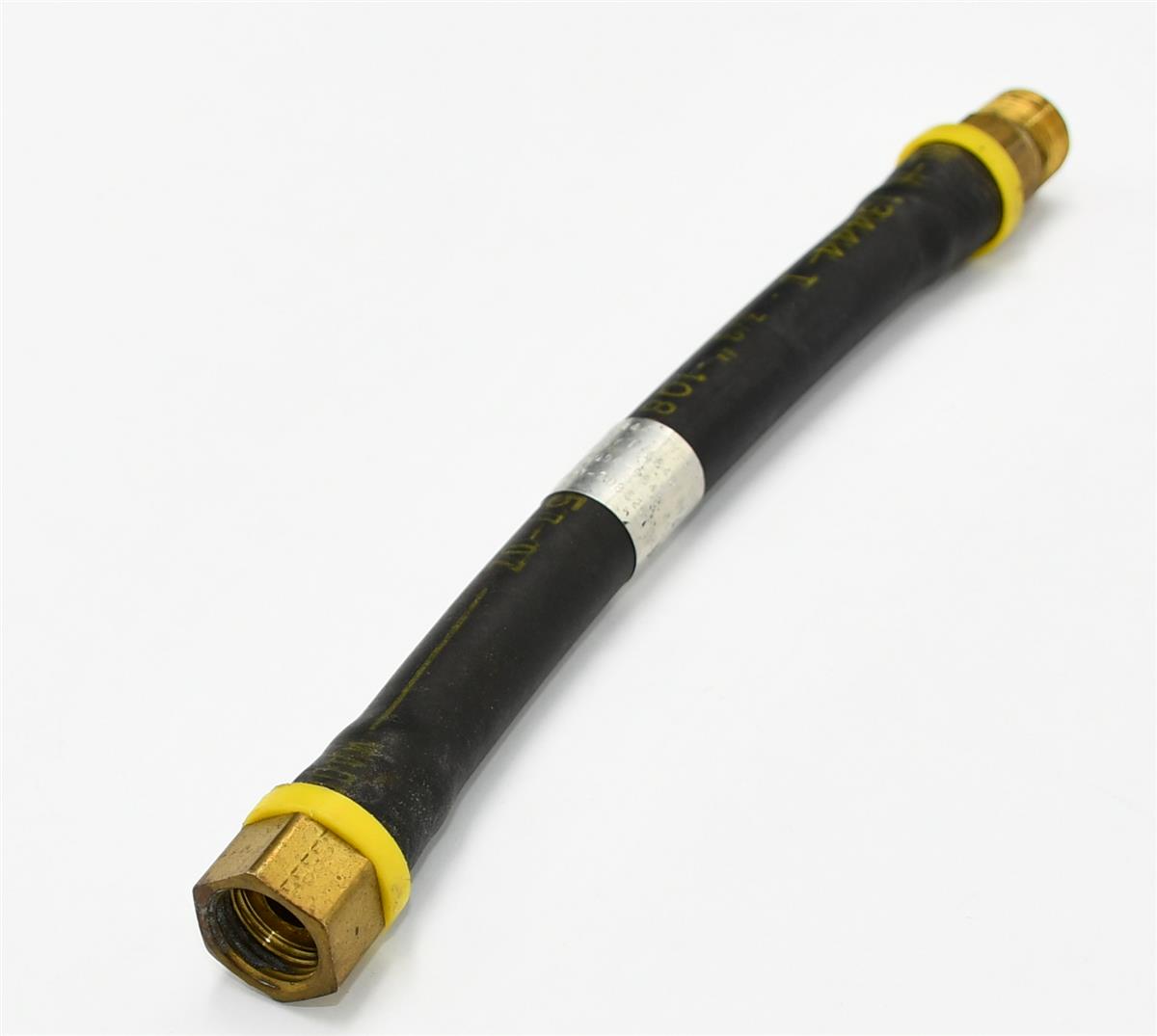

Fuel Line Fuel Tank Selector Valve Hose Bottom Valve Port 8.5 Inch Length M818 M936 Wrecker M939 M939A1 M939A2
3 Hoses Are Required for Build, Sold Separately
- Overall Length is 8.5 inches
- Inside Diameter is 0.312 inches
- Outside Diameter is 0.609 inches
- Minimum Bending Radius is 3 inches
- Burst Test Pressure is 1000 lbs.
- Nominal Thread Size is 0.625 inches 1st End
- Nominal Thread Size is 0.375 inches 2nd End
- Seat Angle is 45 Degrees 1st End
- Seat Angle is 30 Degrees 2nd End
- Diagram Shown in Pictures
Click Here For Fuel Tank Diverter Selector Valve M817 M818 M816 M931 M929
Click Here For Fuel Line Fuel Tank Selector Valve Hose Top Valve Port 8.5 Inch Length M818 M936 Wrecker M939 M939A1 M939A2
Fits:
M939 M939A1 M939A2 M923 M923A1 M923A2 M925 M925A1 M925A2 M927 M927A1 M927A2 M929 M929A1 M929A2 M931 M931A1 M931A2 5-Ton Trucks
M936A1 M936A2 5 Ton Wrecker
M809 M813 M814 M816 M817 M818
