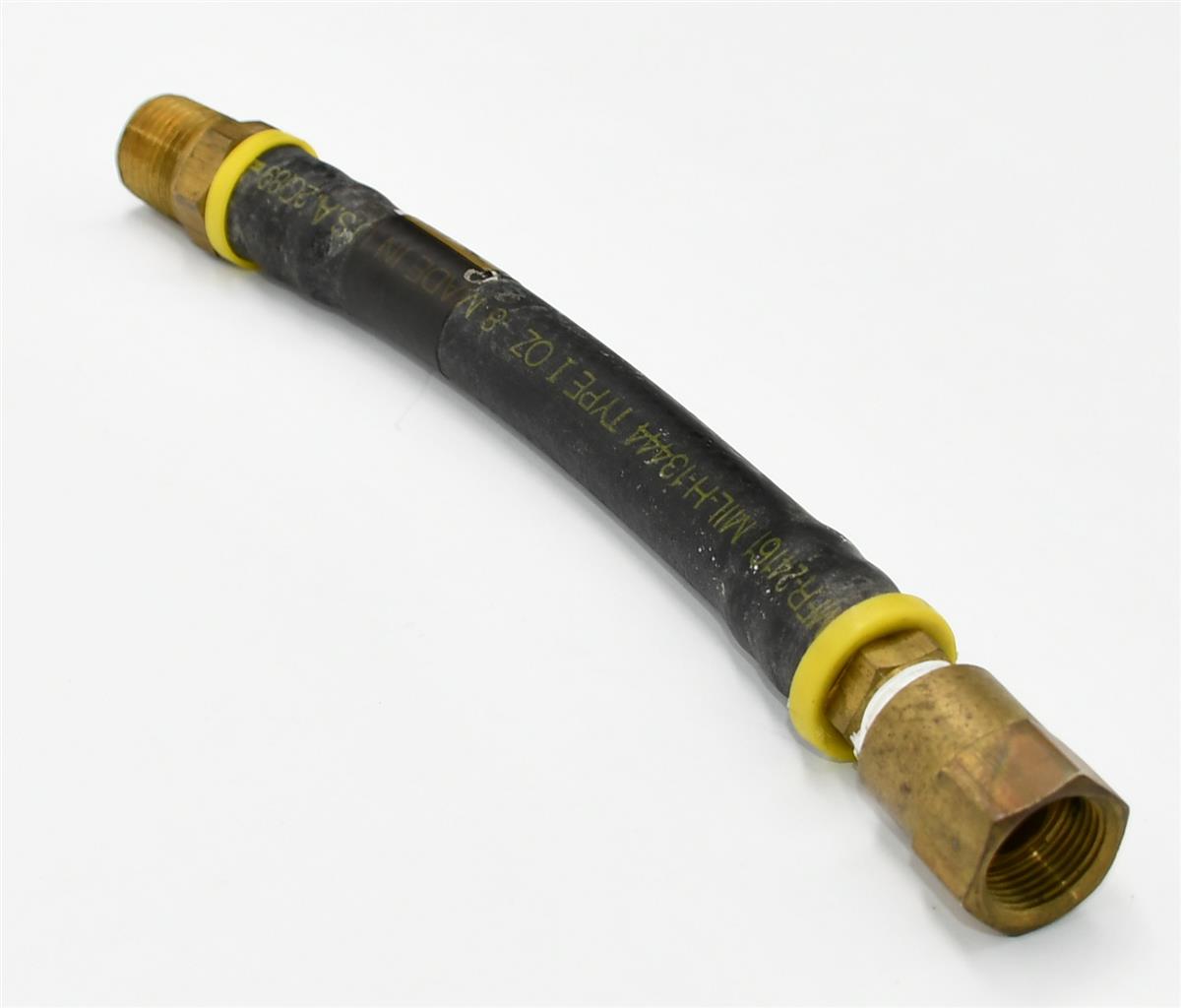

Fuel Line Fuel Tank Selector Valve Hose Top Valve Port 8.5 Inch Length M818 M936 Wrecker M939 M939A1 M939A2
3 Hoses Are Required for Build, Sold Separately
- Overall Length is 8.5 inches
- Inside Diameter is 0.500 inches
- Outside Diameter is 0.750 inches
- Minimum Bending Radius is 5 inches
- Burst Test Pressure is 1000 lbs.
- Nominal Thread Size is 0.500 inches 1st End
- Nominal Thread Size is 0.375 inches 2nd End
- Seat Angle is 30 Degrees 1st End
- Seat Angle is 30 Degrees 2nd End
- Diagram Shown in Pictures
Click Here For Fuel Tank Diverter Selector Valve M817 M818 M816 M931 M929
Fits:
M939 M939A1 M939A2 M923 M923A1 M923A2 M925 M925A1 M925A2 M927 M927A1 M927A2 M929 M929A1 M929A2 M931 M931A1 M931A2 5-Ton Trucks
M936A1 M936A2 5 Ton Wrecker
M809 M813 M814 M816 M817 M818
