Dipstick Engine Oil Level Dipstick GM Style Diesel Engine HMMWV

Deep-Water-Fording (DWF) Engine Oil Dipstick For 6.2 L, 6.5L Non-turbo and 6.5 Turbo Charged Diesel Engine HMMWV

For 6.5L Turbo Charged

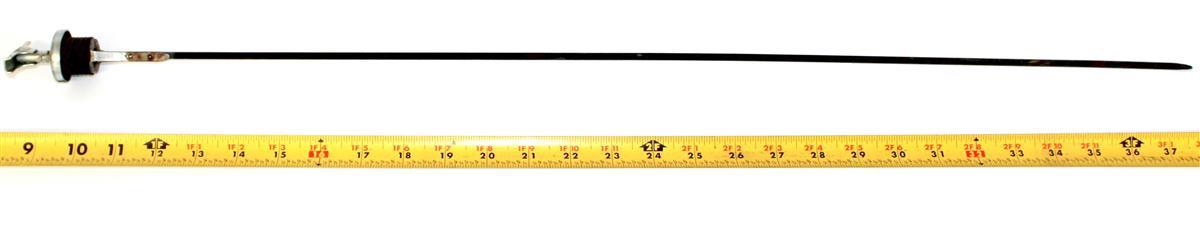

• Overall Length is 30.860 inches
• Distance from Rod end to Scale Graduation is 0.470 inches
• Rod Measuring Portion Width is 0.187 inches
• Rod Measuring Portion Thickness is 0.035 inches
• Steel Material

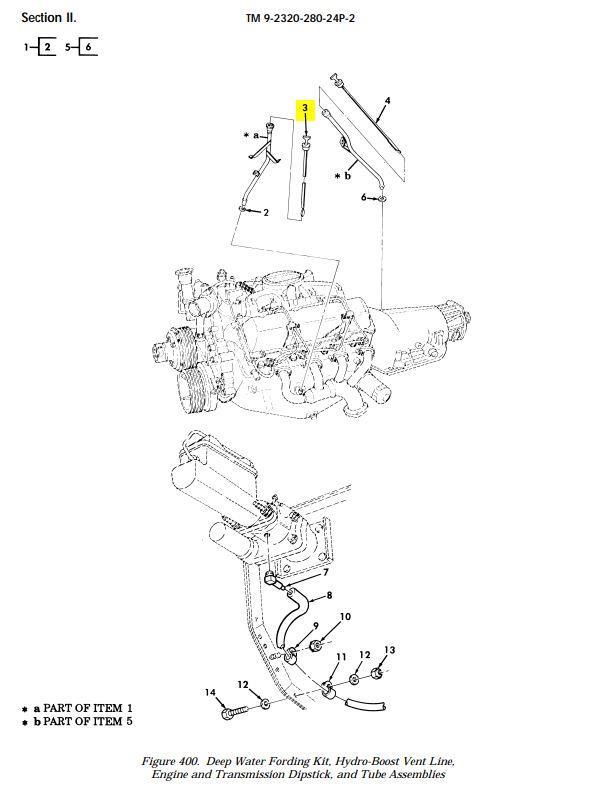

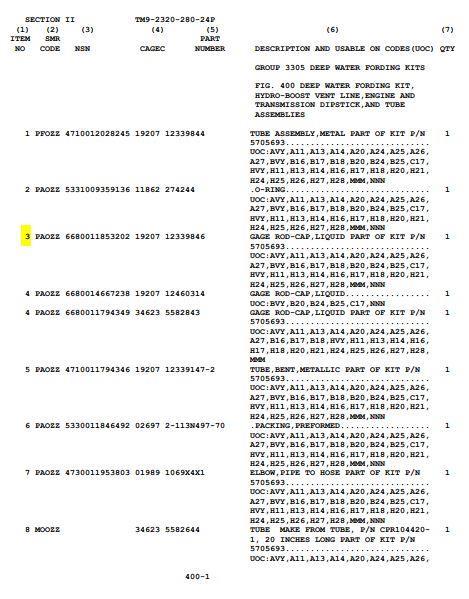

• Diagram Shown in Pictures

Click Here For Deep Water, High-Water Fording Installation Kit

Click Here For Dipstick Standard Engine Oil Dipstick 6.2 and 6.5 GM Style Diesel Engine HMMWV

Click Here For Engine Oil Dipstick Metal Tube Assembly GM Style Diesel Engine HMMWV

Click Here For Outer Tube for Engine Oil Level Dipstick HMMWV

Fits: HMMWV Truck Models, HUMVEE

For 6.2 L, 6.5L Non-turbo and 6.5 Turbo Charged Diesel Engine HMMWV
