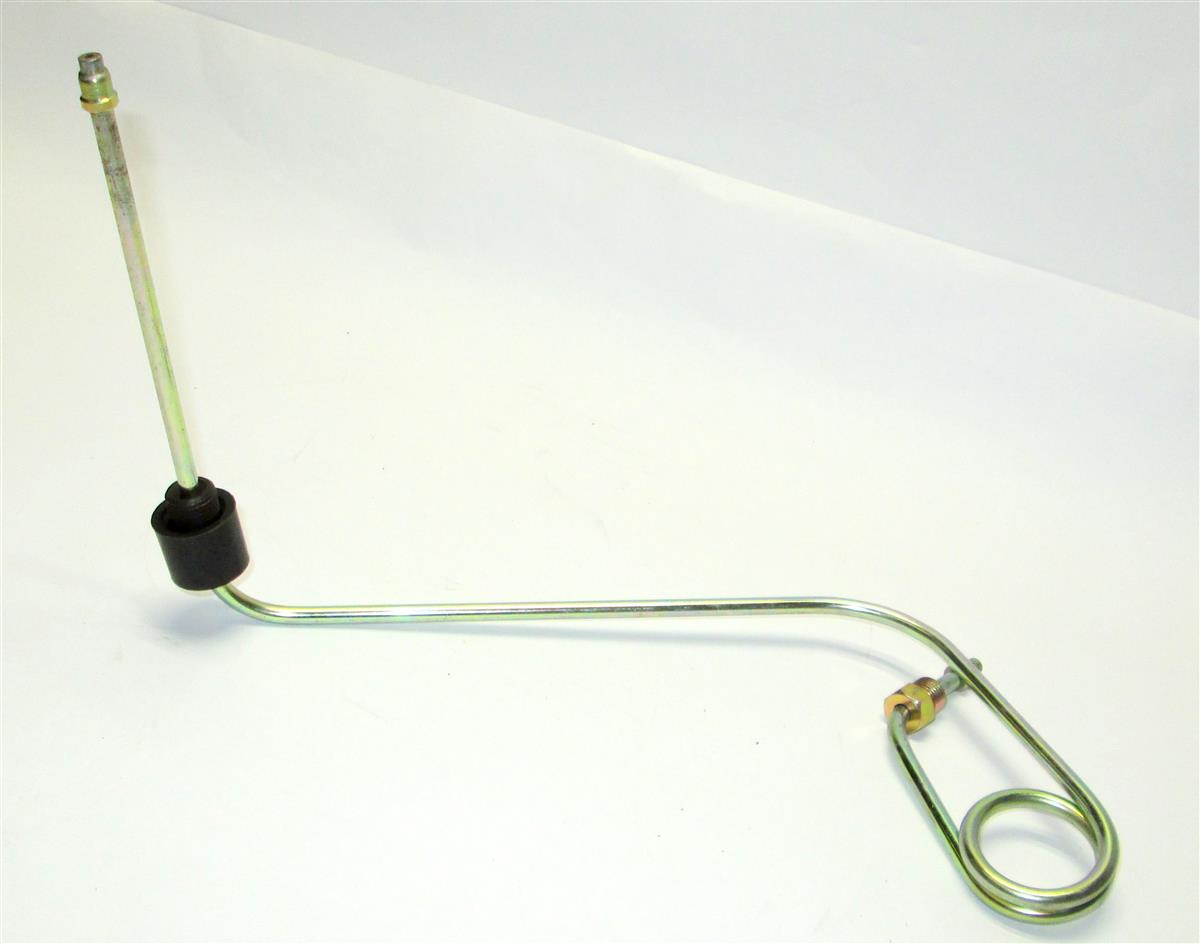

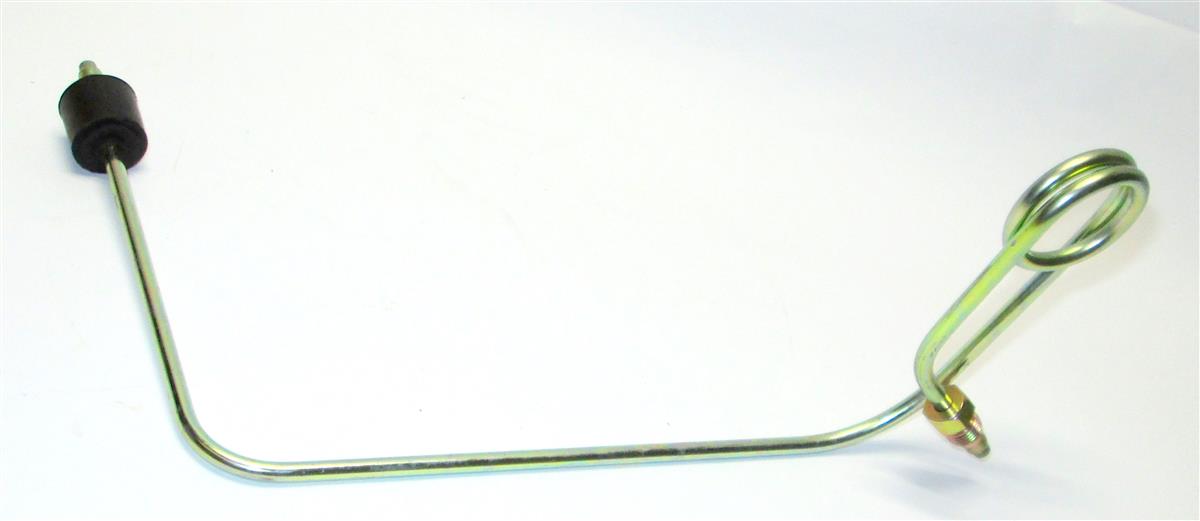

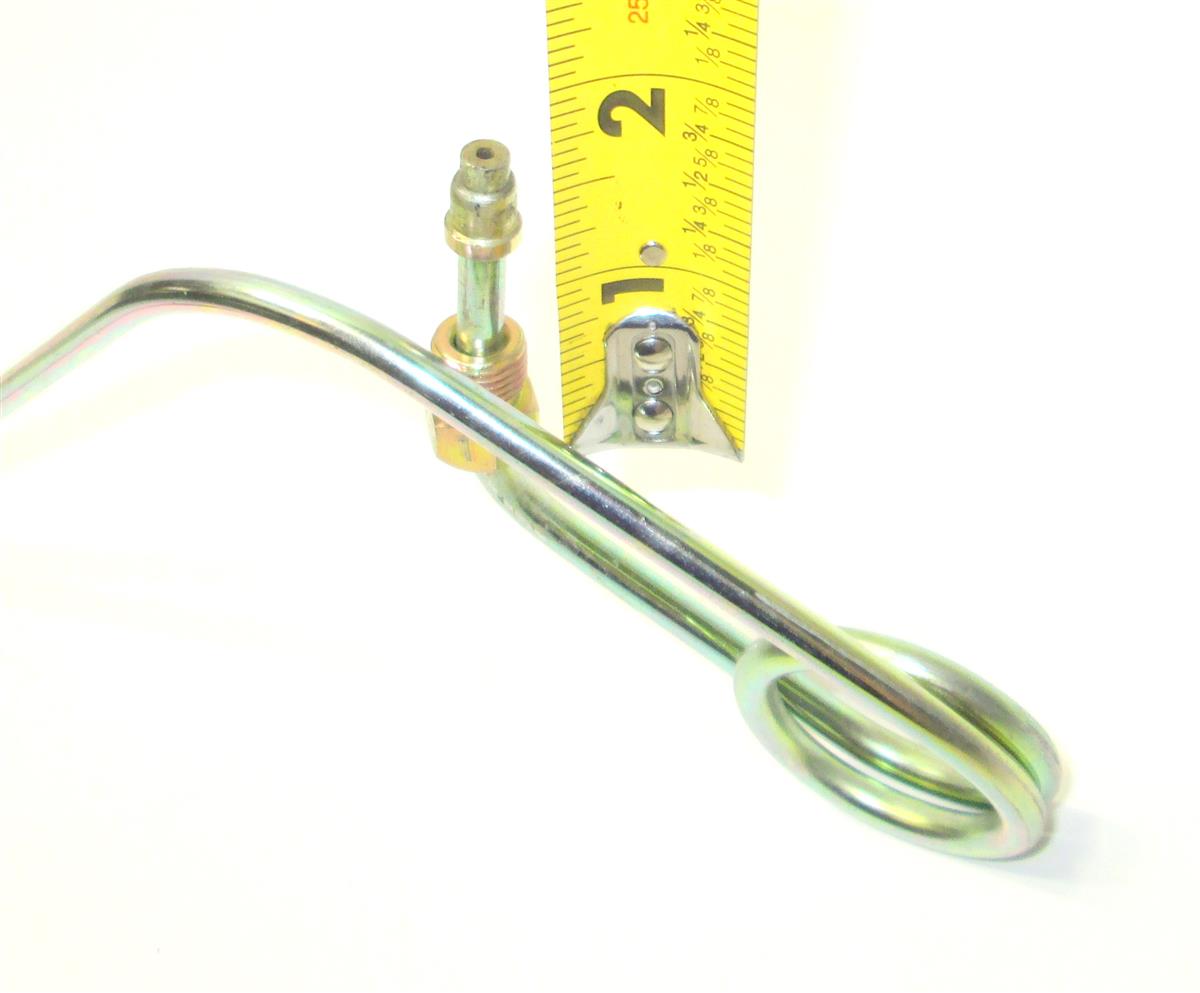

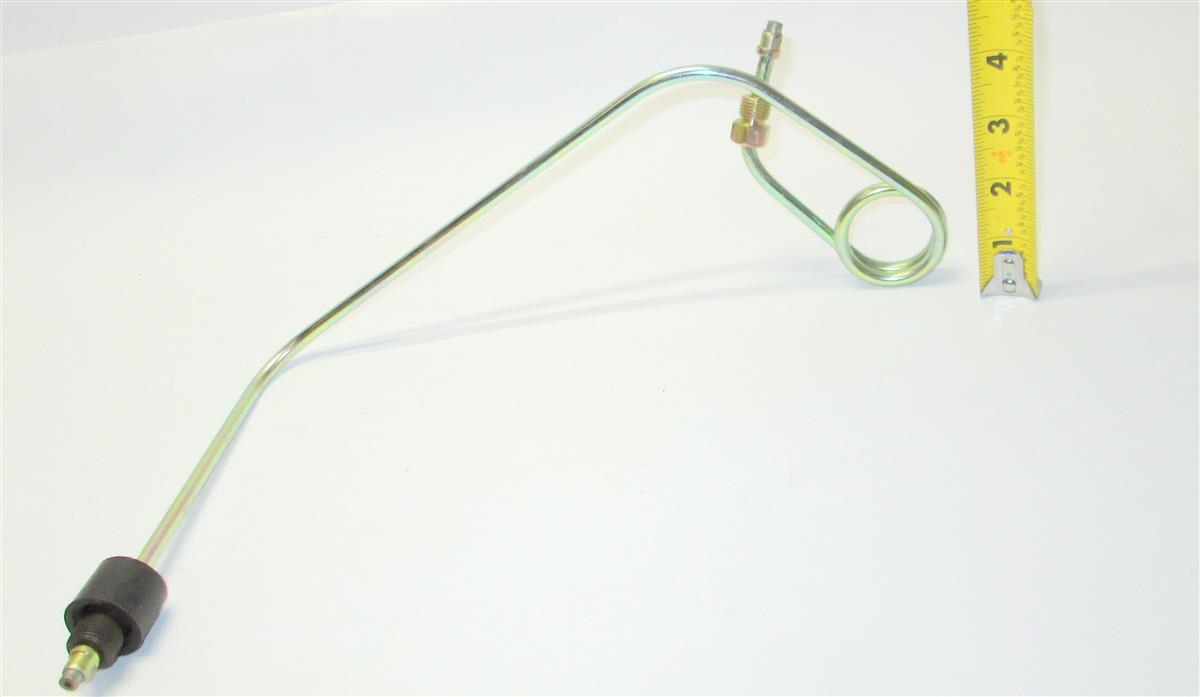

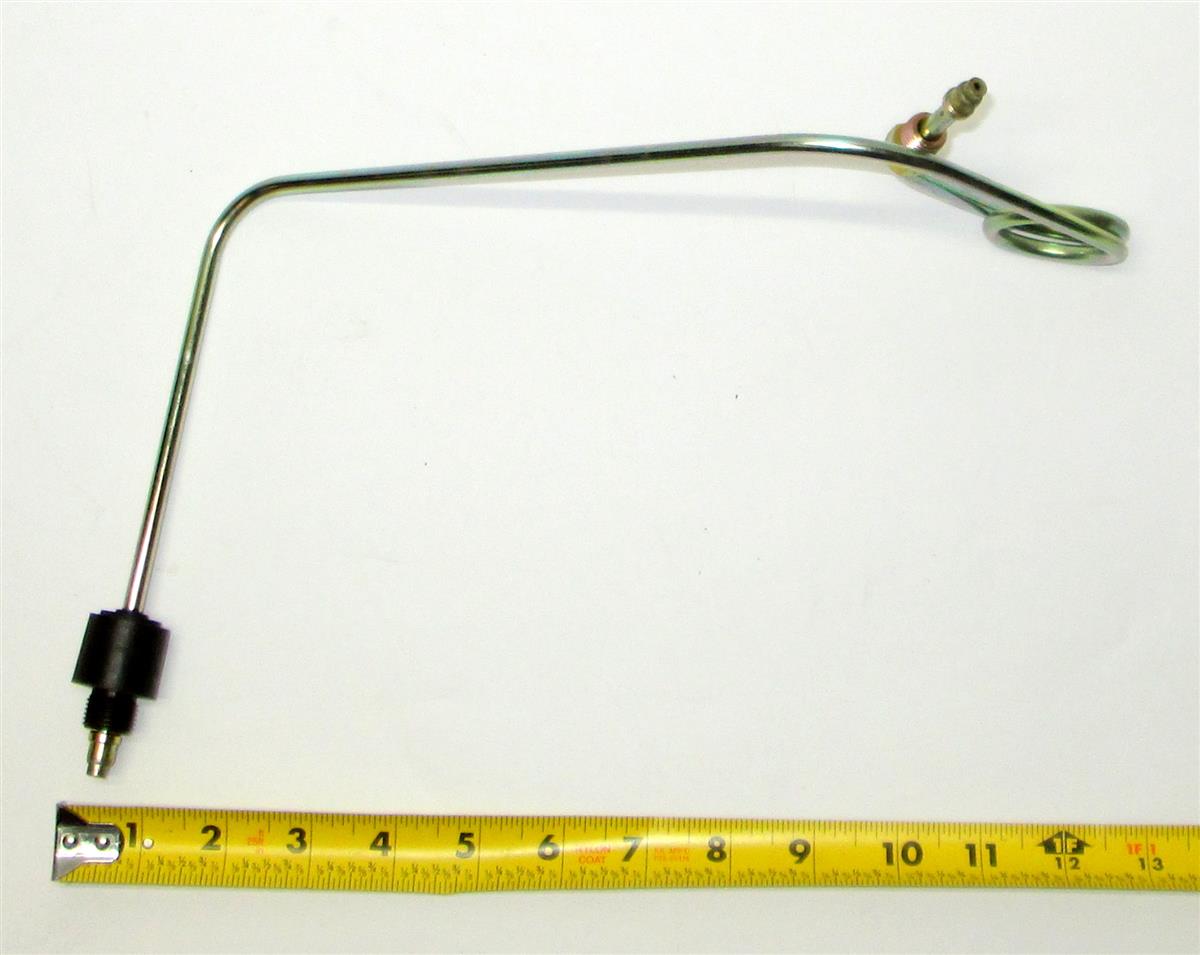

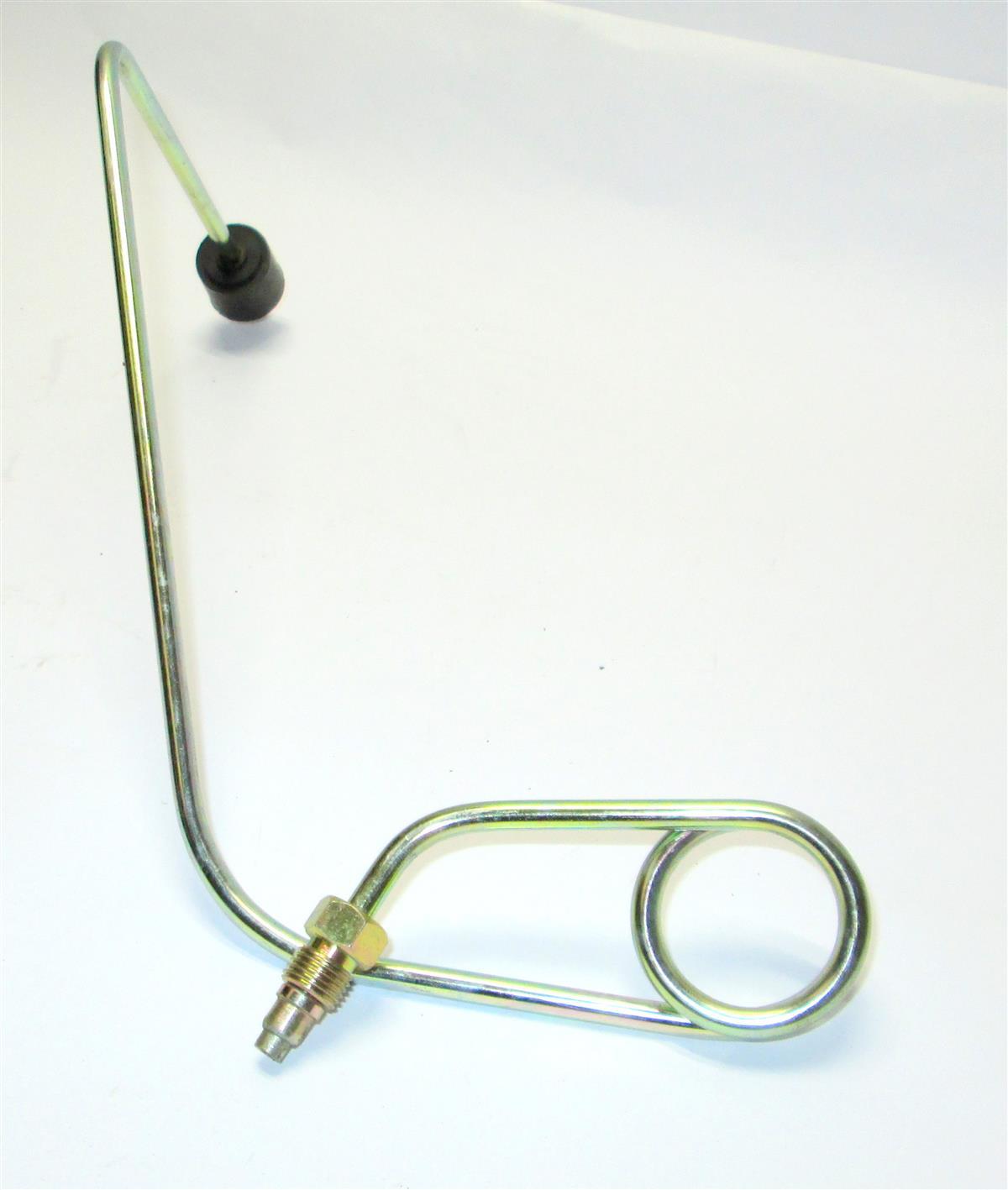

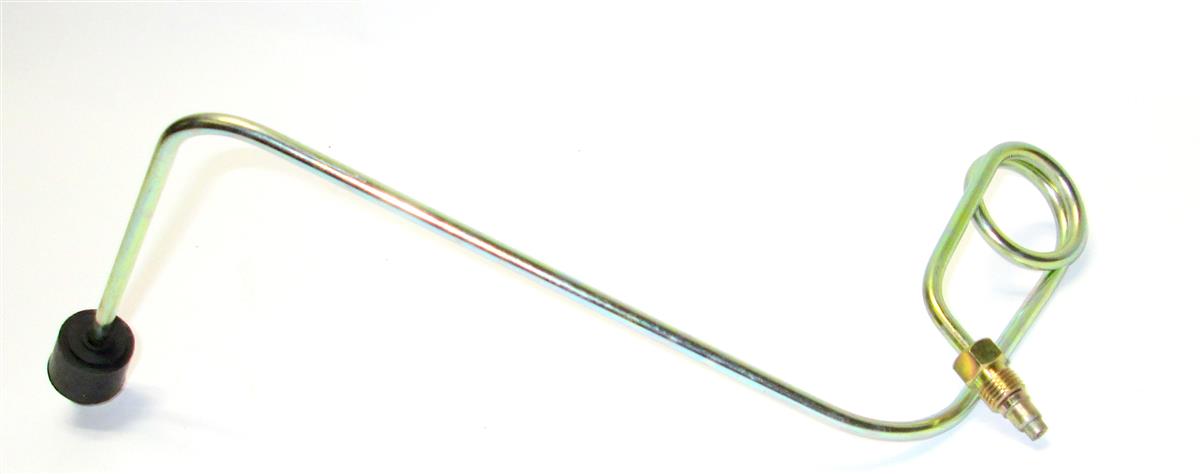

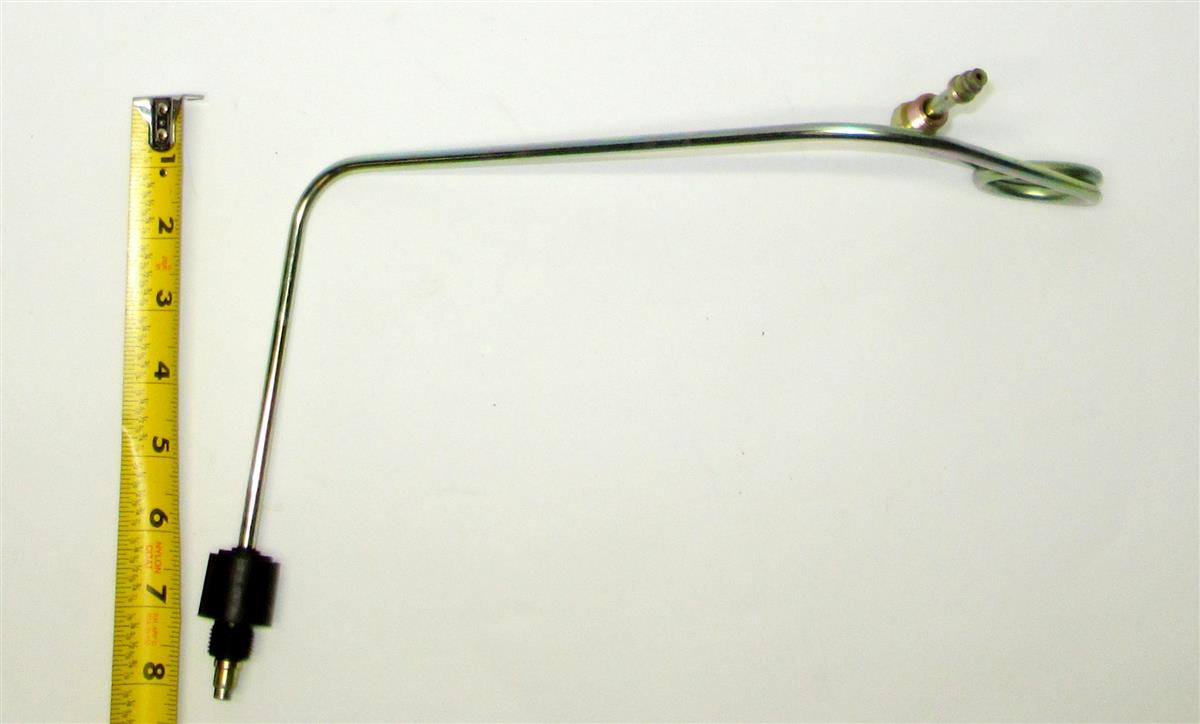

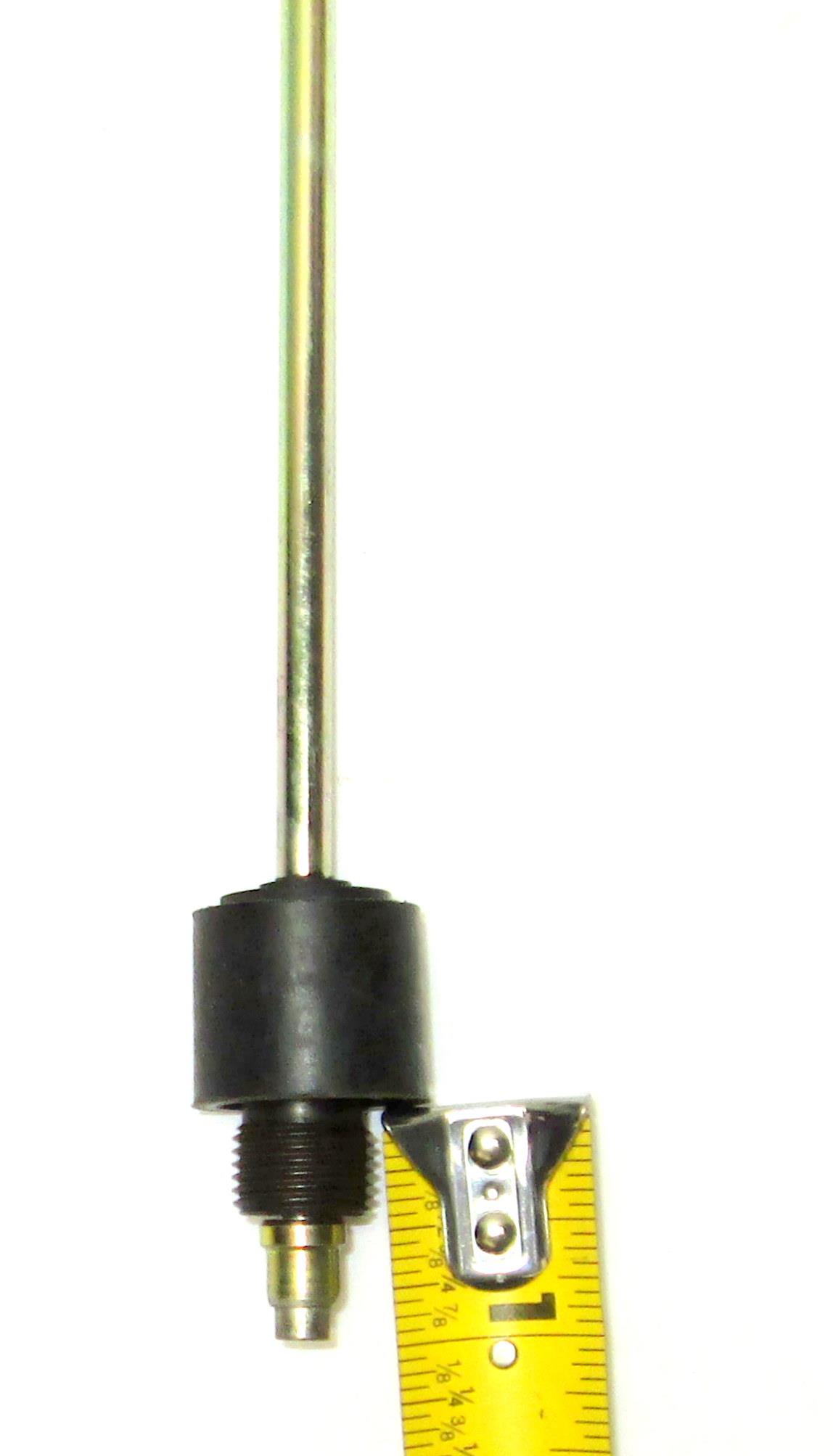

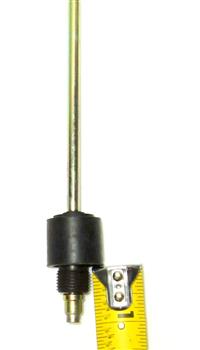

1ST Fuel Line Injector Metallic Tube Multifuel Engine LDT465 M35A2
Wall Thickness 0.095 IN
Thread Class 2A First End
Thread Class 3A Second End
Thread Direction Both Ends Right Handed
Mating End QTY Both Ends 1
Tubing Material Steel
End Connection Style Both Ends Inverted Flare
Seat Angle Both Ends 45.0 Degrees
Design Form Prebent
Tube Outside Diameter 0.250 IN
Nominal Thread Size 0.500 IN First End
Nominal Thread Size 0.625 In Second End
Special Features DUST CAP AMERICAN BOSCH DIV. PART NO. EJN9021-432,PROTECTS FITTING,AMERICAN BOSCH DIV. PART NO. EJN90-1076

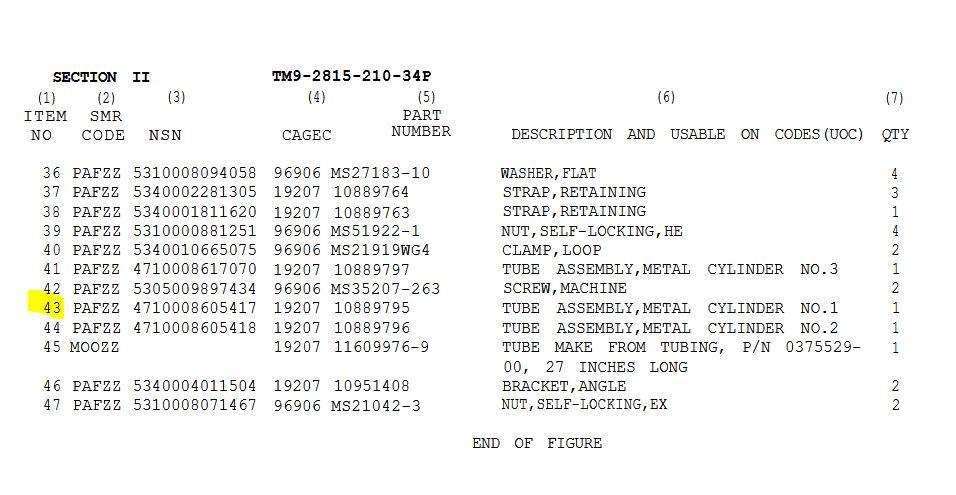

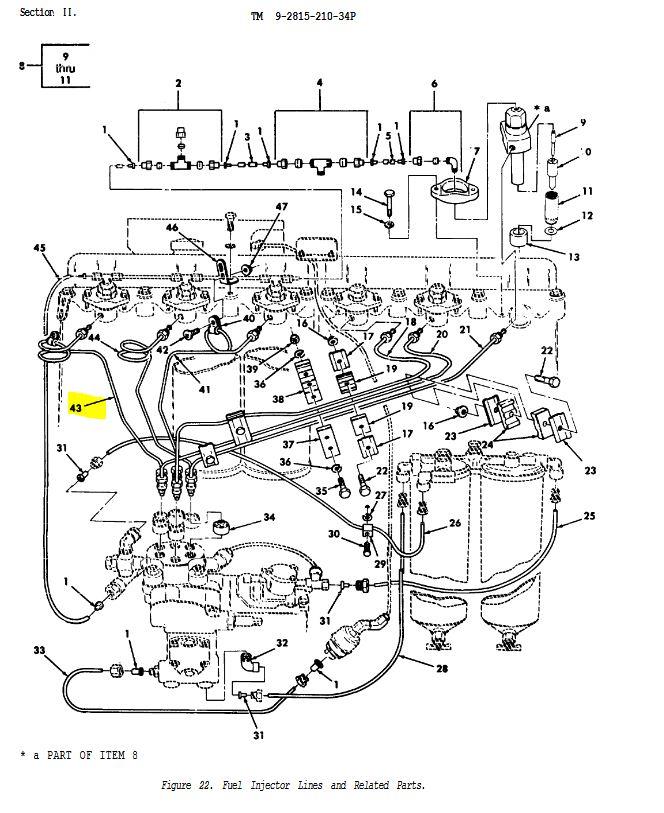

Item NO 43 in Diagram
Click Here For 2ND Fuel Line Injector Metallic Tube Multifuel Engine LDT465 M35A2
Click Here For 4TH Fuel Line Injector Metallic Tube Multifuel Engine LDT465 M35A2
Click Here For 6TH Fuel Line Injector Metallic Tube Multifuel Engine LDT465 M35A2
Fits: Deuce and a Half 6x6 Military Truck
2 ½ ton multifuel trucks
M35A2, M49A2, M50A2, M36A2, M109A3, M275 2 ½ Ton Trucks
