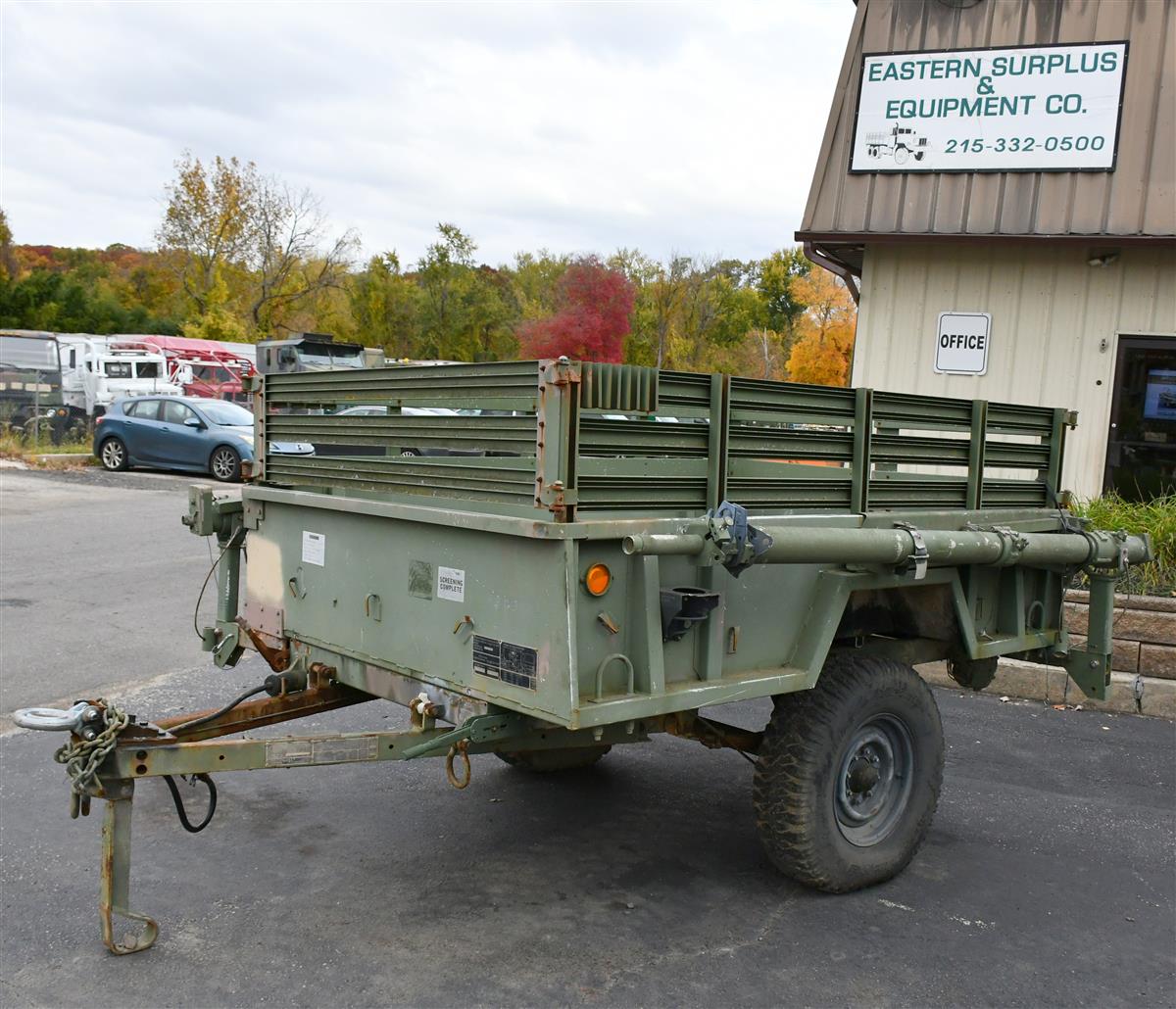

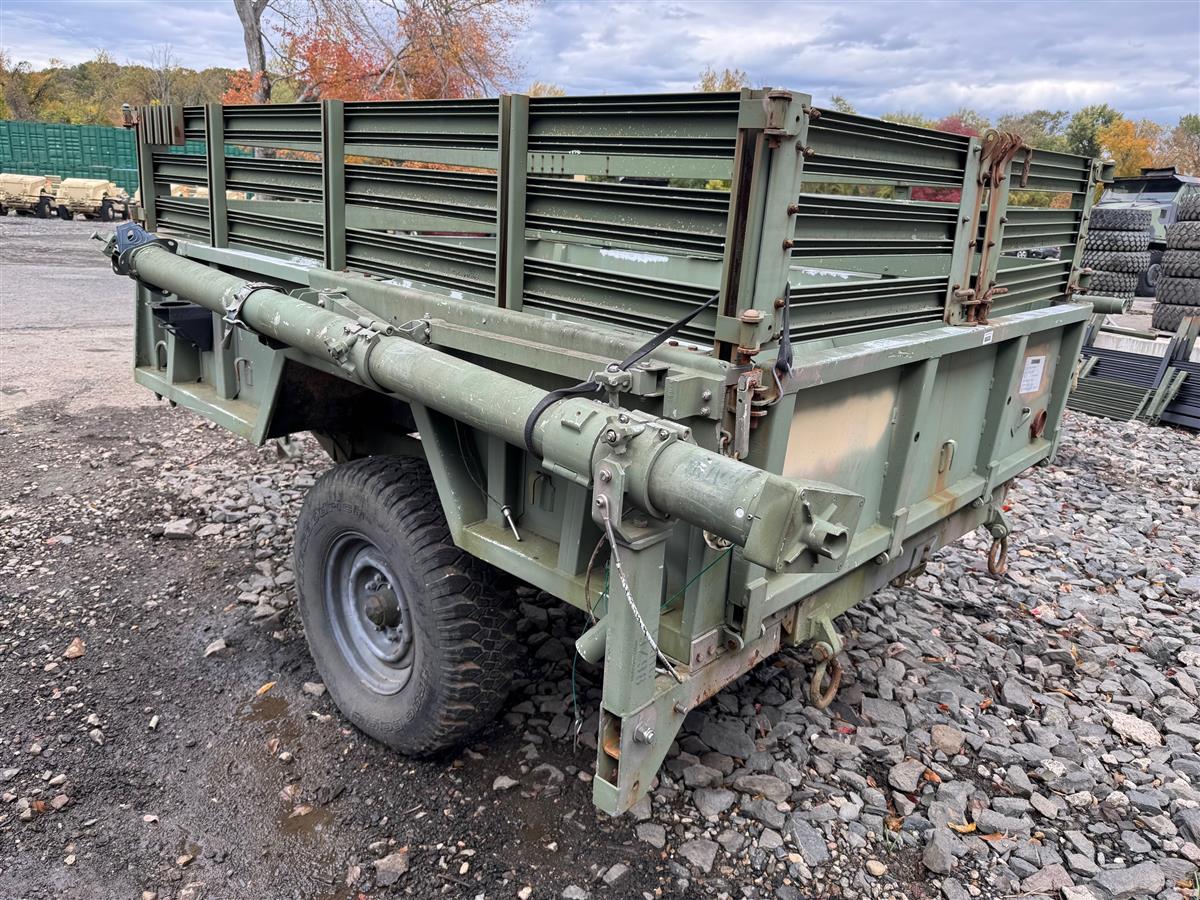

M101 Trailer With 2 Telescoping Antenna Mast AB-1386/U
- LT235/85R16 Tires Mounted on 8 Hole Wheel / Rim
- 24 Volt System
- Dimensions: Length 142" Inches Width 80" Inches Height 52" Inches
- Hand Brake / Parking Brake
- LT235/85R16 Spare Tire Mounted on 8 Hole Wheel / Rim
- Supplied with Bill of Sale only
ANTENNA
Quick Erect Antenna Mast System (QEAM) [AB-1386/U]
The QEAM is a mobile quick erect antenna mast used for elevating tactical communications antennas to a maximum height of 33 ft (10M) which results in more reliable communications over extended ranges.
The QEAM replaces the OE-254, which is vastly more difficult to raise and lower due to its large volume of mast sections and other parts which are easily lost.
The QEAM mast can mount antenna receivers (feed cones, etc) such as the AS-3166 (P/O OE-254), MP-68 (P/O RC-292), AS-4292 (P/O MSE) and A3005068 (P/O EPLRS). The mast can be deployed and operated in ground and vehicular (wheeled and tracked) mounted configurations. The mast can be erected in 7 ½ minutes with two persons and in 15 minutes with one person.
Accessories are provided to assist with guying, anchoring, and operating the mast in its ground mount configuration. They include a hammer, a tripod, guy assemblies, guy stakes, baseplate stakes, crank handle, baseplate, and a radius rope.
Two mounting kits may be used to adapt the HMMWV and the tracked vehicle with brackets and hardware to deploy the mast. The mounting kits are used to anchor the mast to the vehicle and to stabilize the mast when deploying it under normal conditions (i.e., winds below 25 mph [40 kph]).
Characteristics
- Manportable, manually erected, guyed mast.
- Resists water and other environmental elements.
- Mast height is variable by deploying only as much height as is required.
Capabilities and Features
- Supports Antenna AS-3166/GRC, Antenna Base MP-68, Antenna Element A3005068-1 with Antenna Adapter A3004947, or Antenna AS-4292/U.
- Permits antenna heights from 8.3 to 33.1 ft (2.5 to 10.1 m).
- Can be deployed or retrieved by an experienced two-member team in 7 1/2 minutes under tactical conditions, or by a single operator in 15 minutes.
- Can be deployed on maximum 10-degree (17.6 percent) slope.
- Can be deployed in winds up to 25 mph (40 kph). Directional pointing accuracy is maintained in winds up to 60 mph (96 kph). Maximum survival wind speed is 80 mph (128 kph).
Equipment Data
- Temperature Ranges
- Operating
- -40 °F to 125 °F (-40 °C to 52°C)
- Storage
- -50 °F to 160°F (-46 °C to 71°C)
- Mast Type
- Vertical-raising, telescoping, tubular aluminum
- Extended Height
- 33.1 ft (10.1 m)
- Nested Height
- 8.3 ft (2.5 m)
- Max. Operational Wind Speed
- 60 mph (97 kph)
- Max. Survival Wind Speed
- 80 mph (128 kph)
- Guy Assembly Lengths:
- Top
- 54 ft (16.5 m)
- Bottom
- 19 ft (5.8 m)
- Weights
- Mast
- 42 lbs. (19.1 kg) unpacked
- Universal HMMWV Mount
- 56 lbs. (25.4 kg)
- Tracked Vehicle Mount
- 40 lbs. (12.2 kg)
