M1101 3/4 Ton Aluminum LTT Cargo Trailer HMMWV
NSN #:2330-01-387-5443

$2,975.00

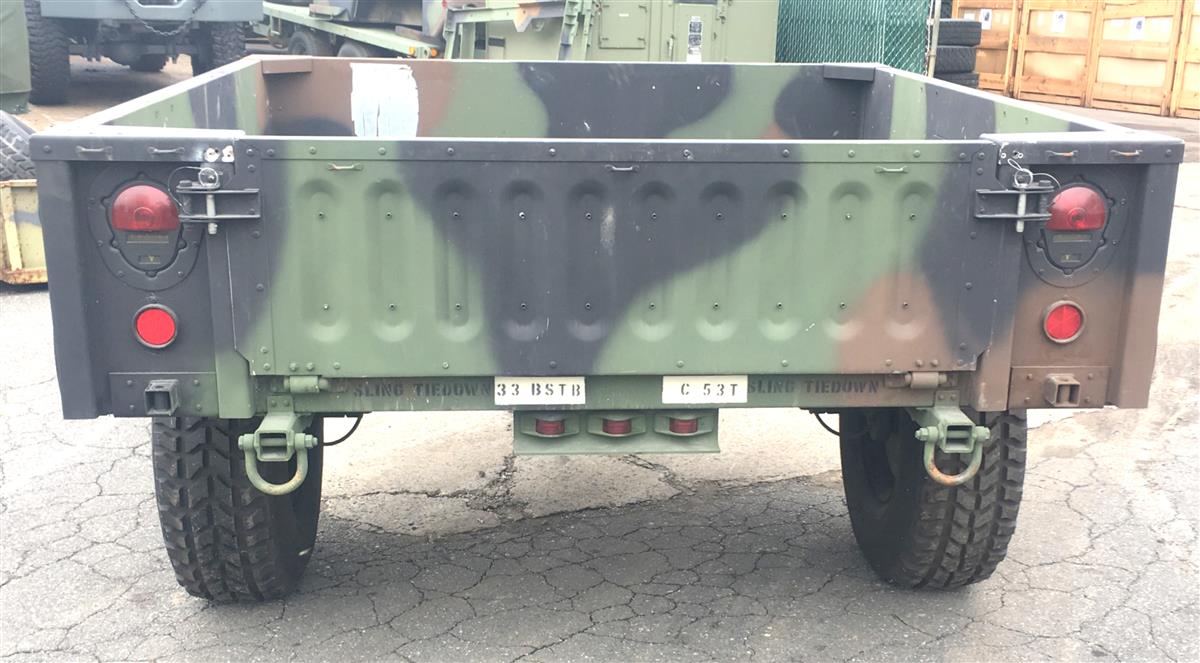

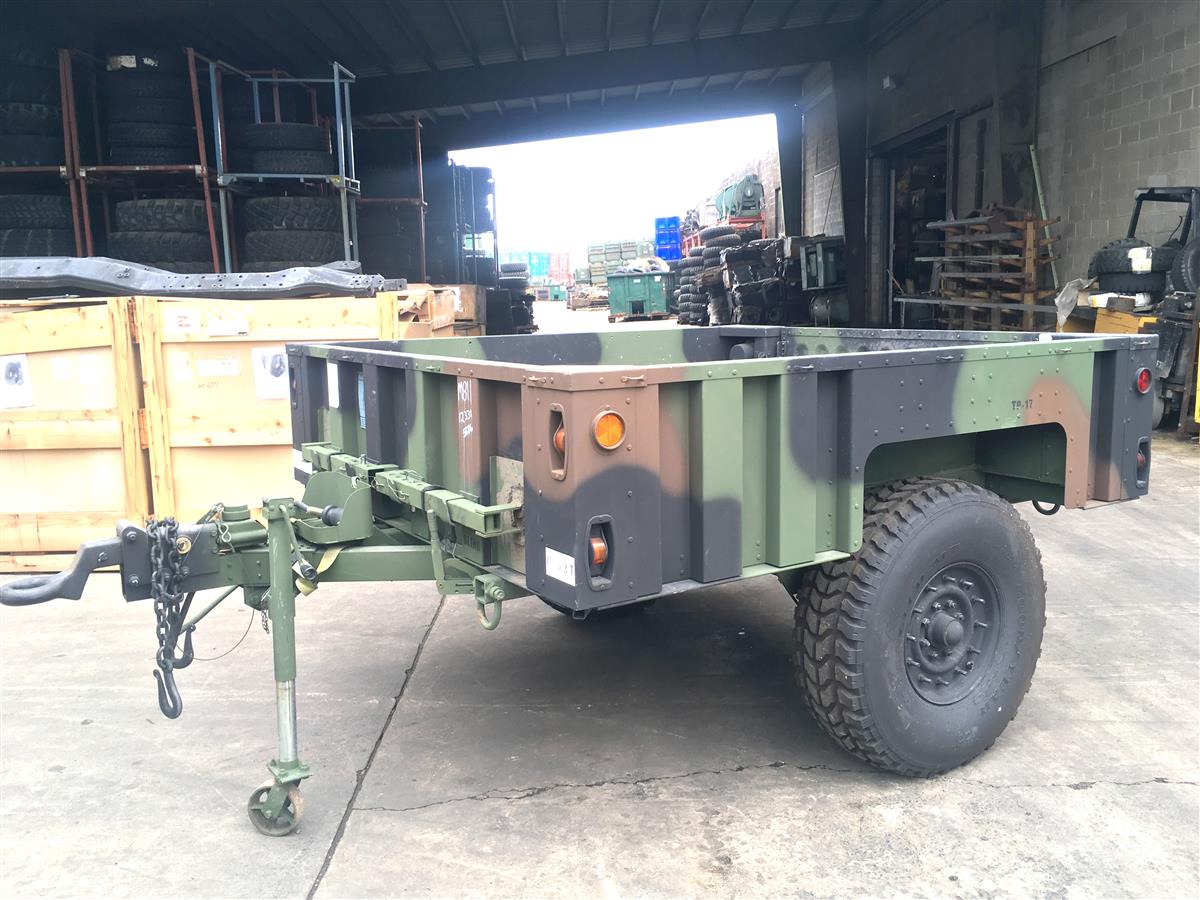

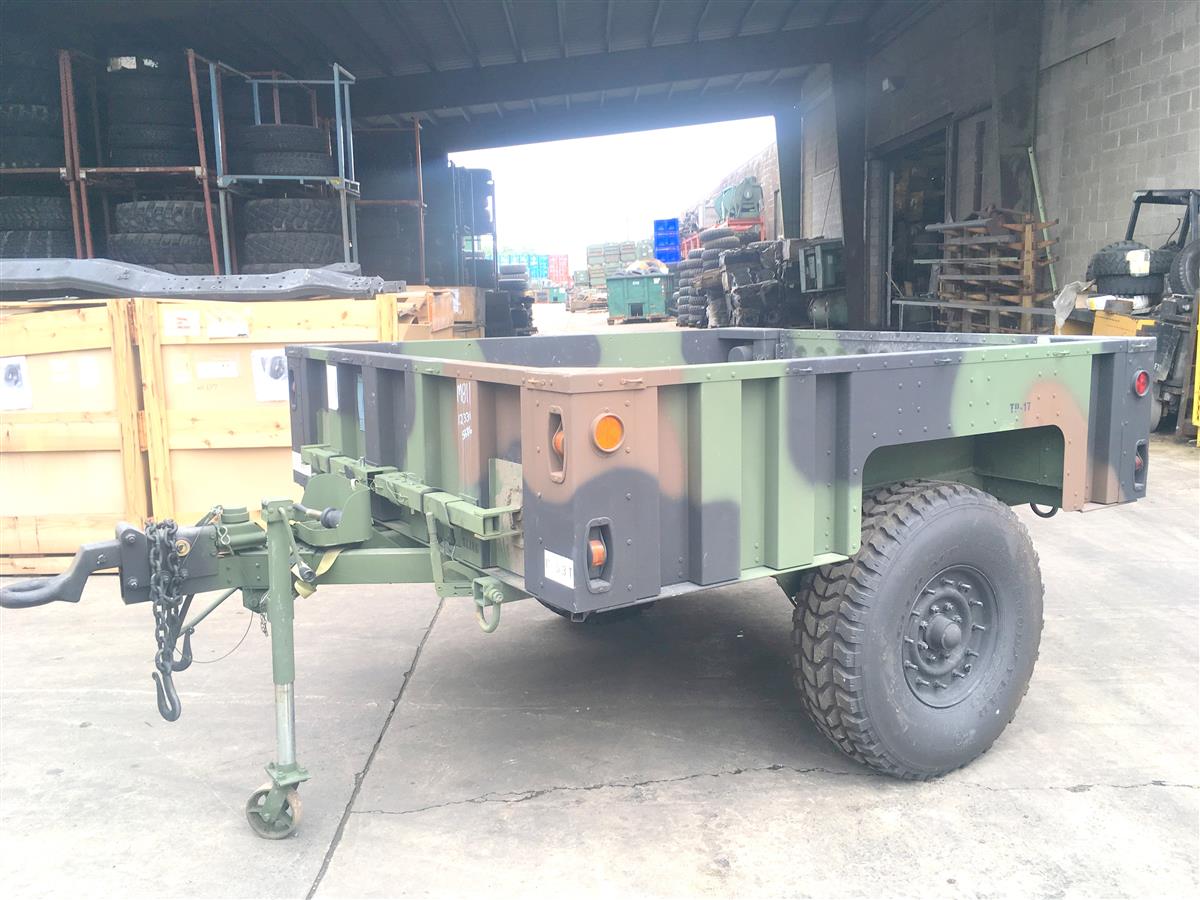

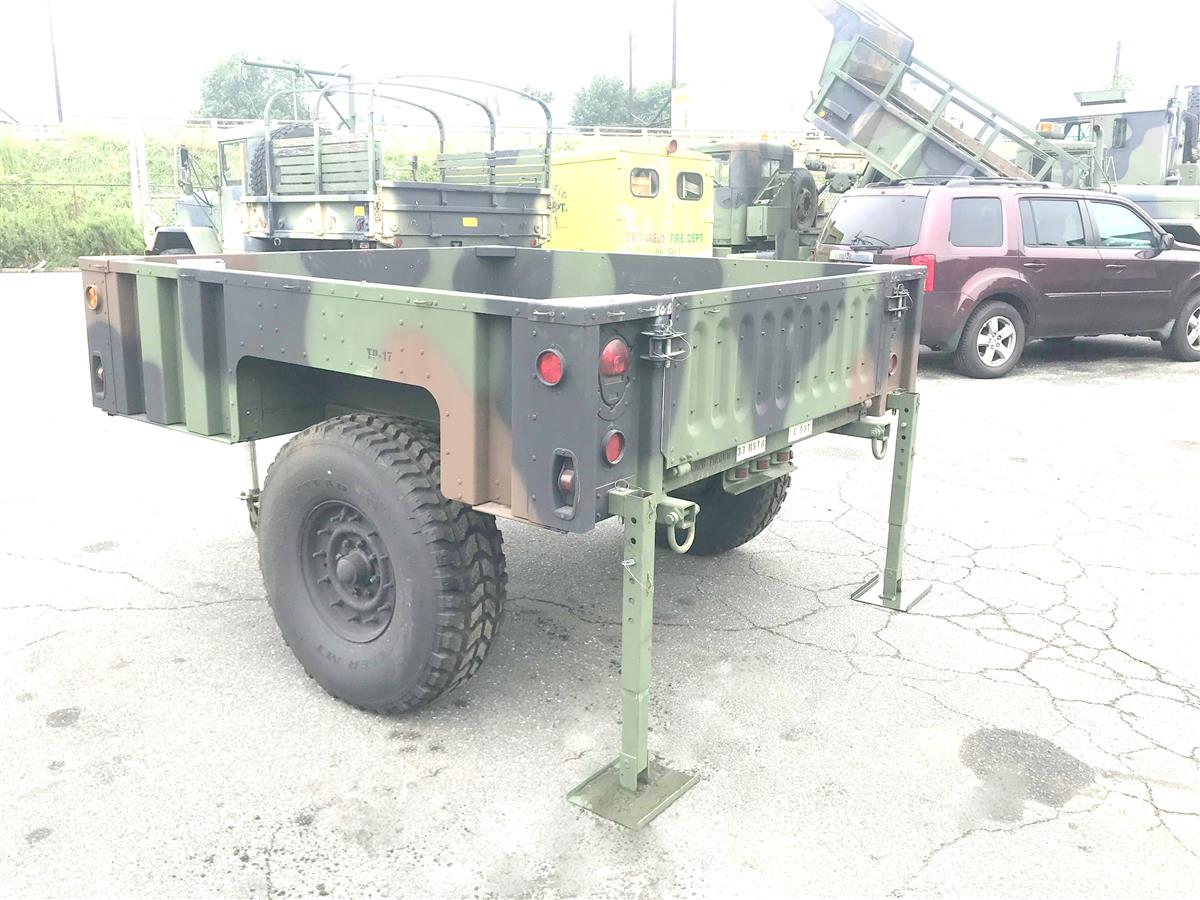

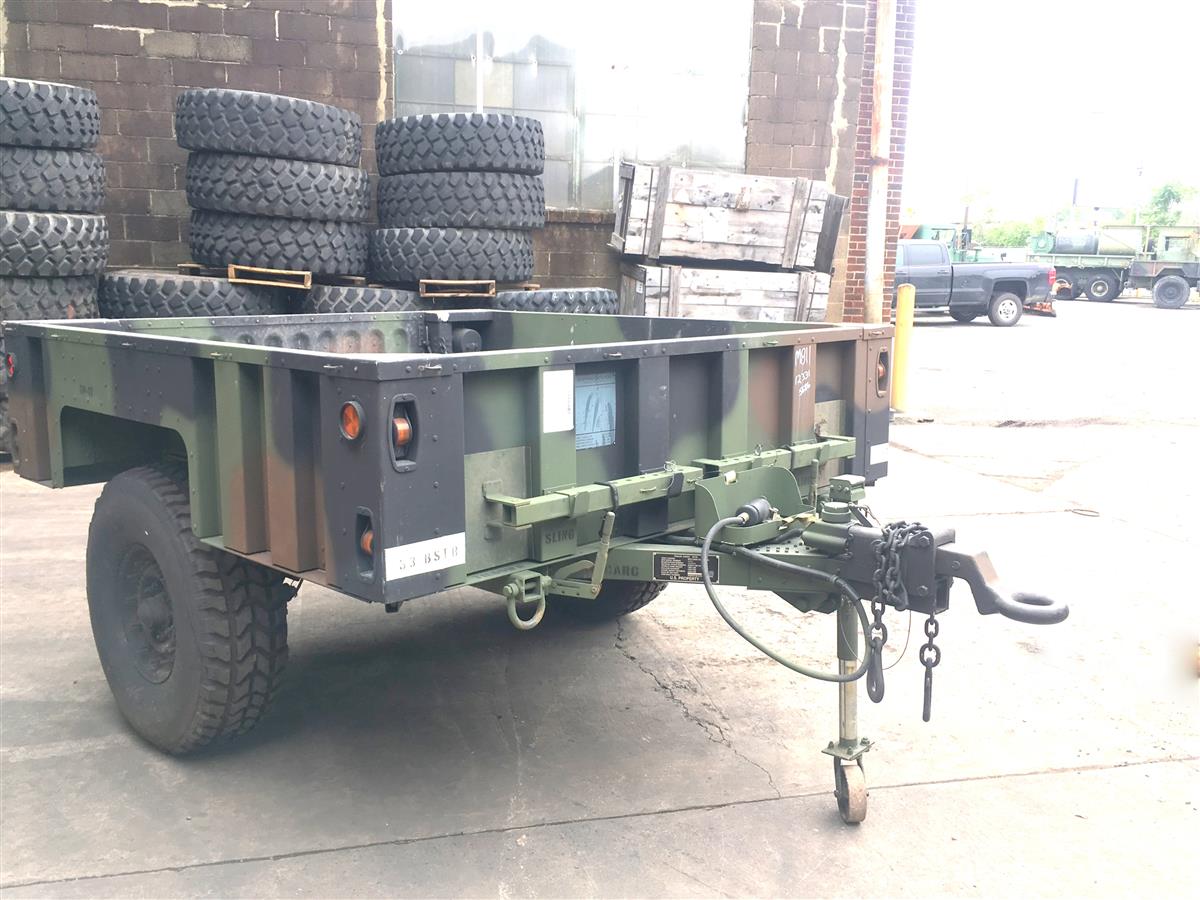

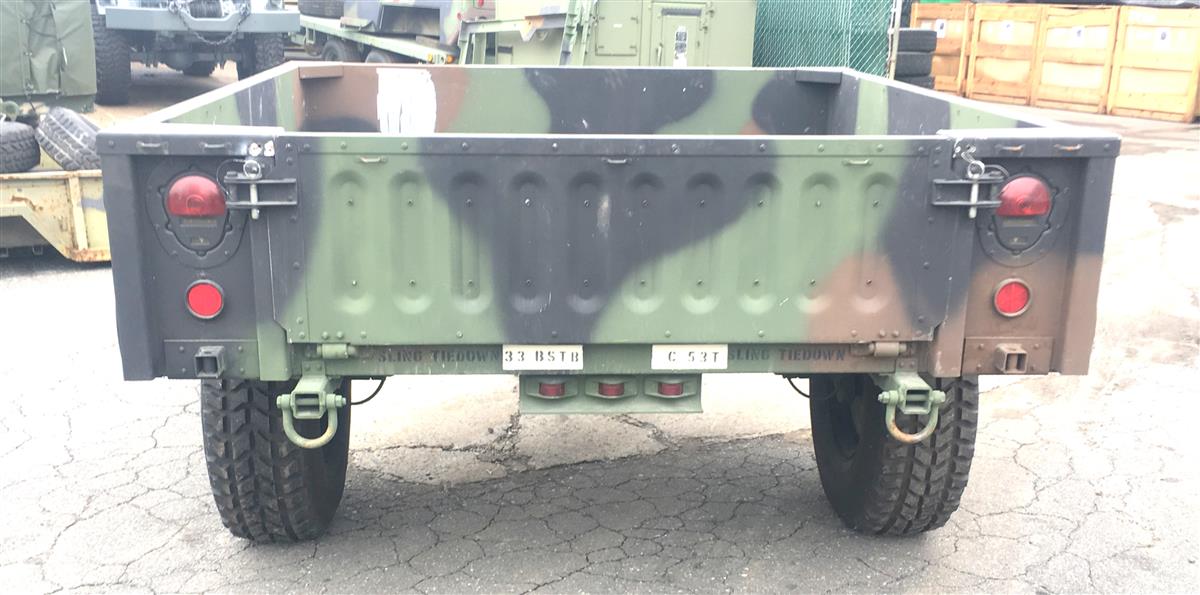

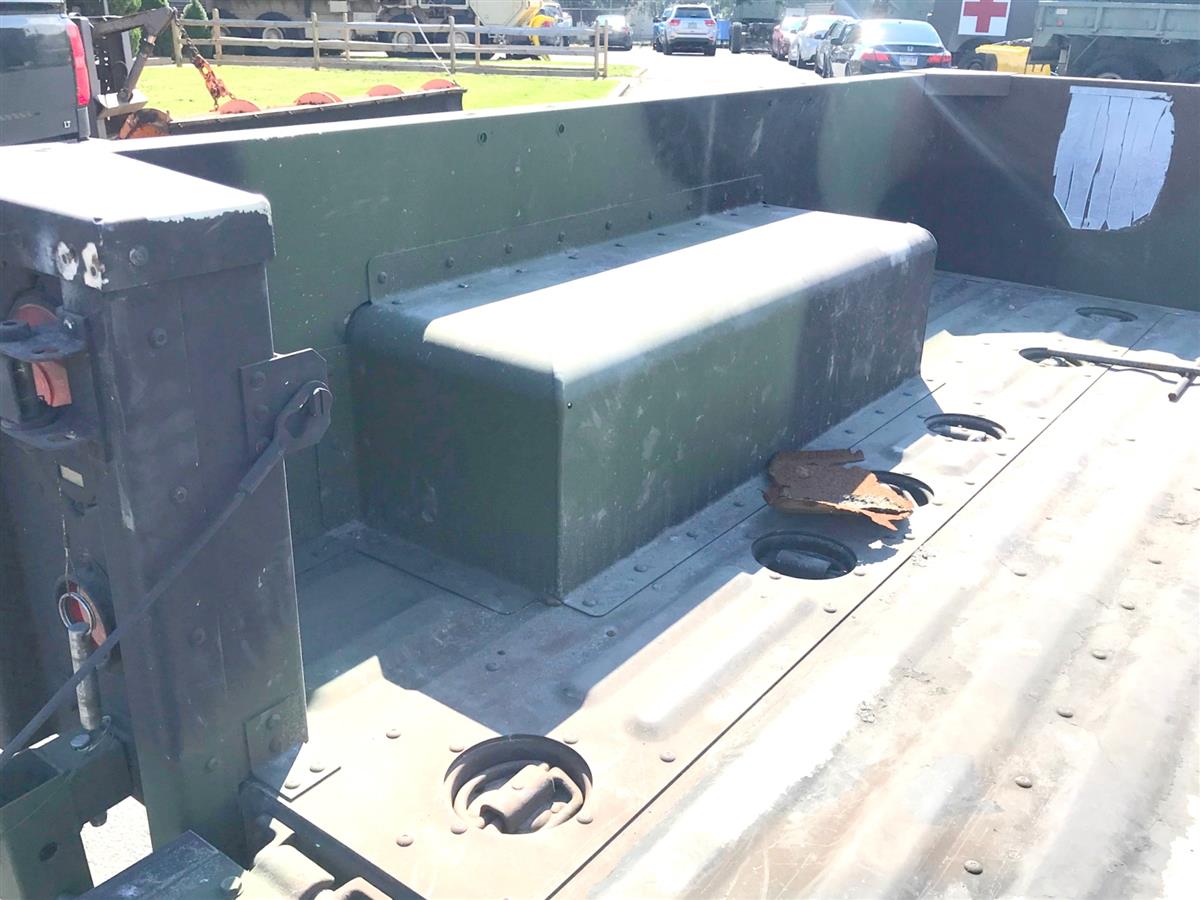

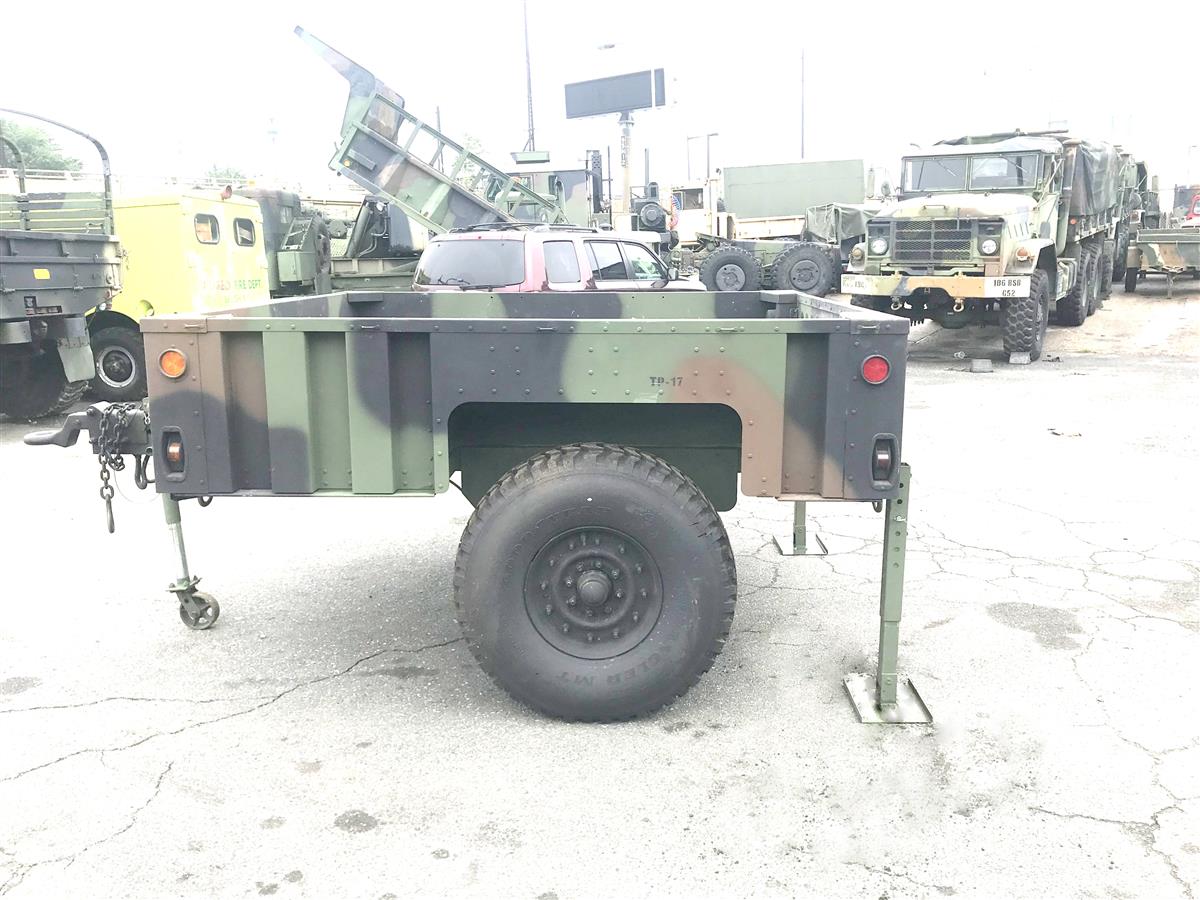

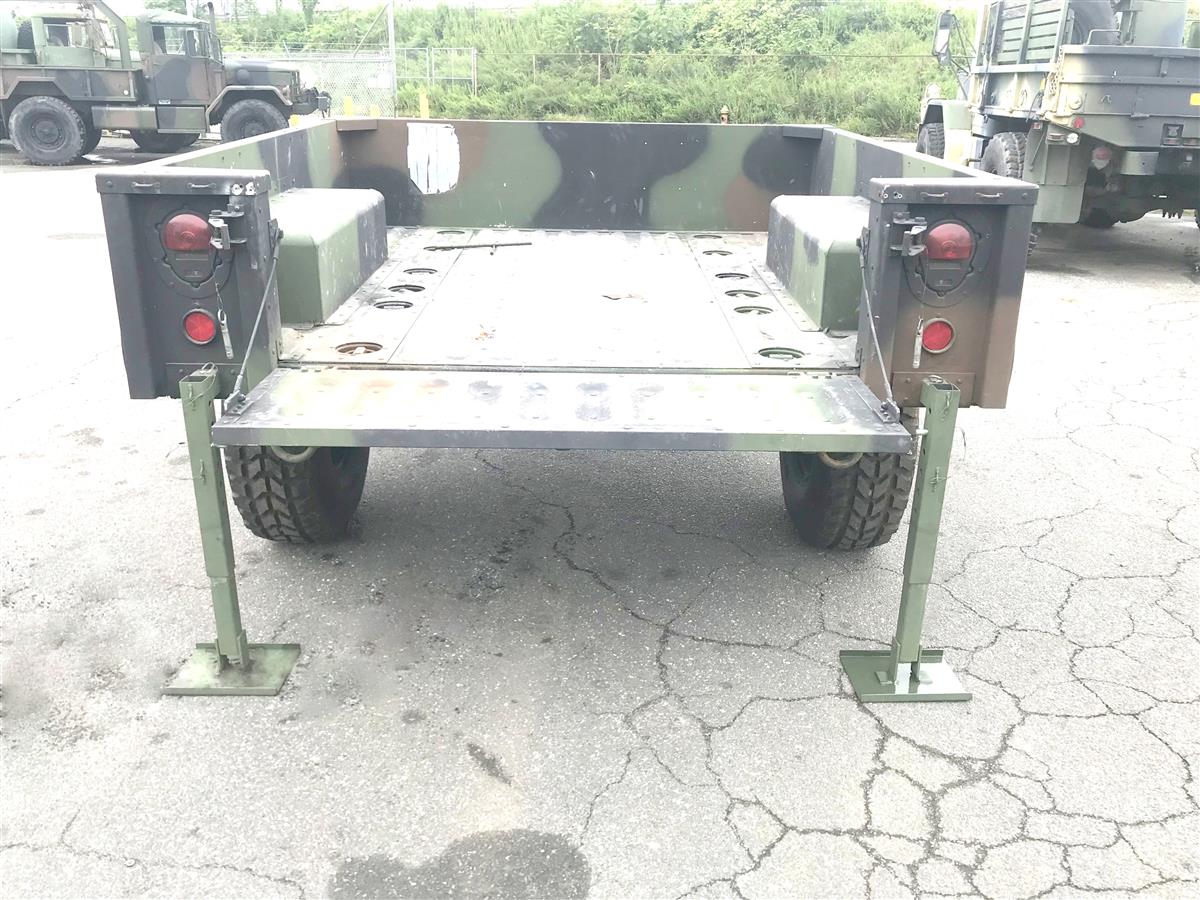

M1101 Aluminum Cargo Trailer



Maximum Vehicle Weight:





M1101: 4200 lb (1905 kg)

Curb Weight 1460 lb ( 662 kg)
Maximum Payload Capacity
M1101: 2740 lb (1243 kg)

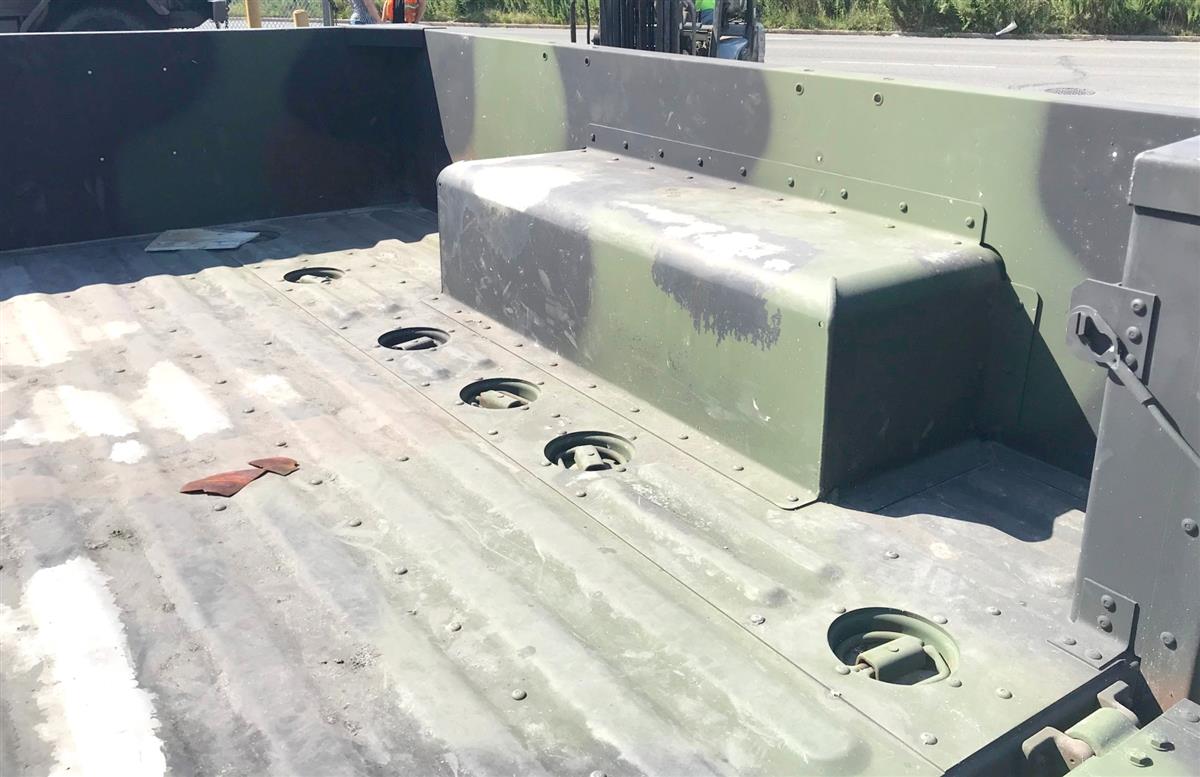

Hull Unitized body construction using aircraft grade aluminum and chromoly steel
Overall Length 132 inches (335cm)
Overall Width 85.6 inches (217 cm)
Overall Height 52.5 inches (133 cm)
Overall Height w/Soft Top Kit 99.5 inches (253 cm)
Track Width 72.5 inches (184 cm)

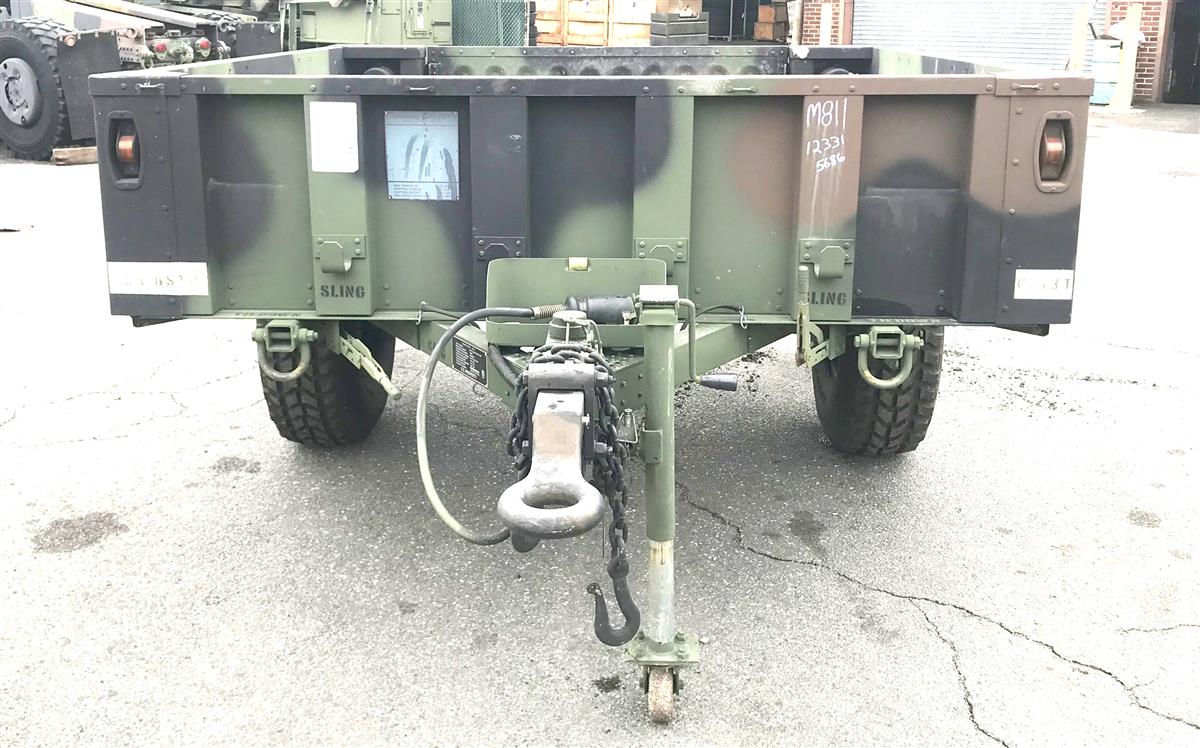

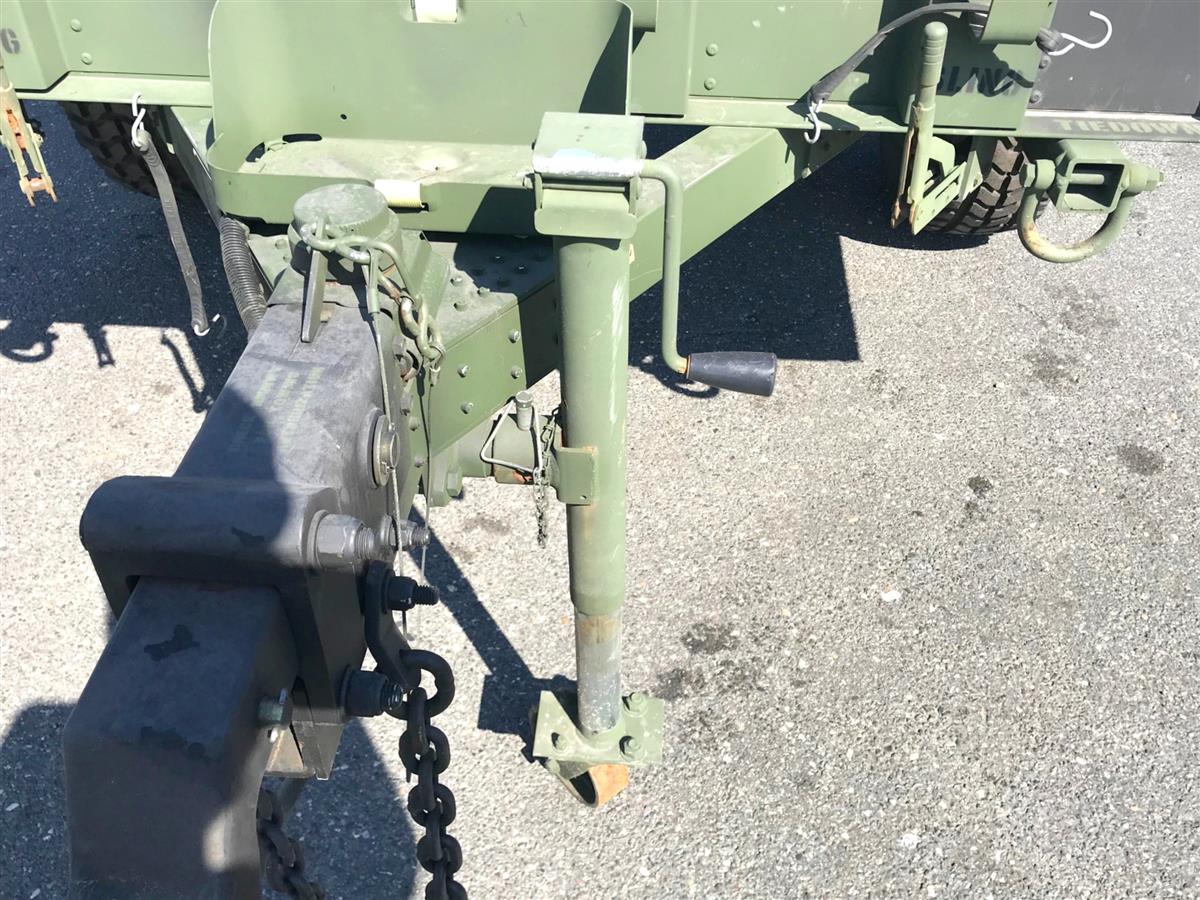

Drawbar Length 93.2 inches (237 cm) (from axle center to eye center)
Drawbar Eye Height 29.5 inches (75 cm)
Deck Height 34.5 inches (88 cm)
Ground Clearance (Laden) 16 inches (41 cm)

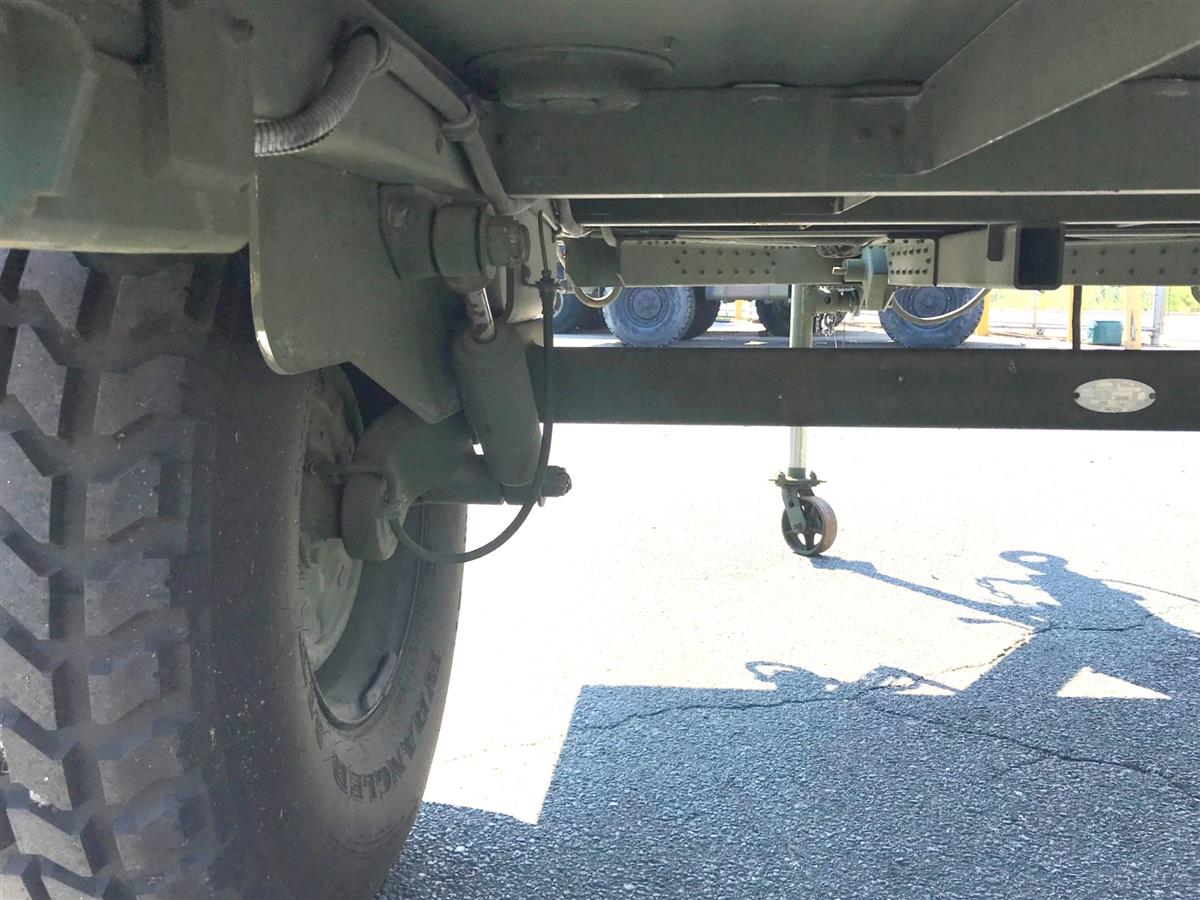

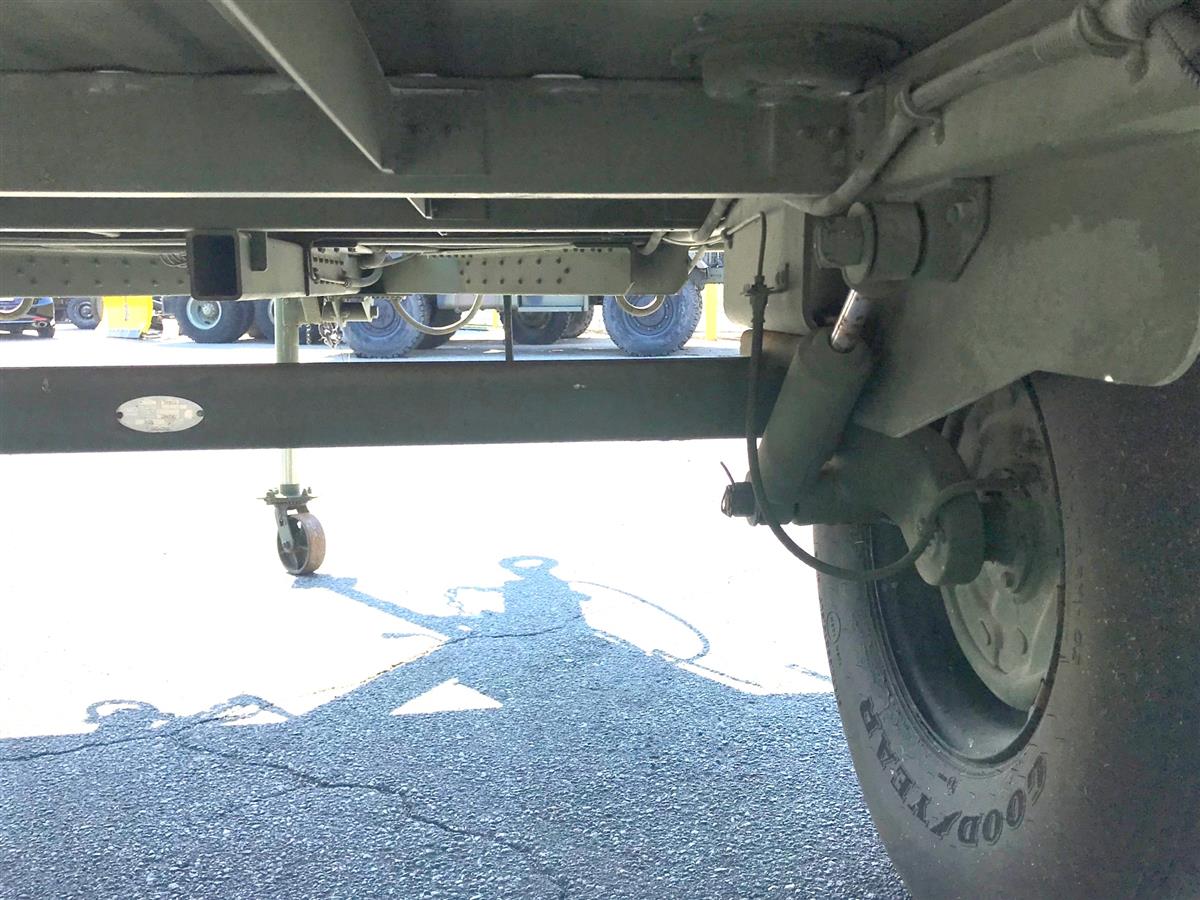

Suspension Type Fully independent progressive rate trailing arm suspension
Axle Tubular steel
Spring Media Progressive rate torselastic rubber chords
Shock Absorbers Telescopic, direct acting, one per wheel, HMMWV compatible
Wheels 16.5 X 8.25, two piece steel, HMMWV compatible, 8 on 6.5 inch bolt pattern
Tires 37X12.50R16.5 Goodyear Wrangler M/T, with 30-mile runflat inserts, HMMWV compatible
Brakes 12 inch x 2 inch free backing hydraulic surge brakes with automatic breakaway actuation. Independent lever-operated left and right side mechanical parking brakes.

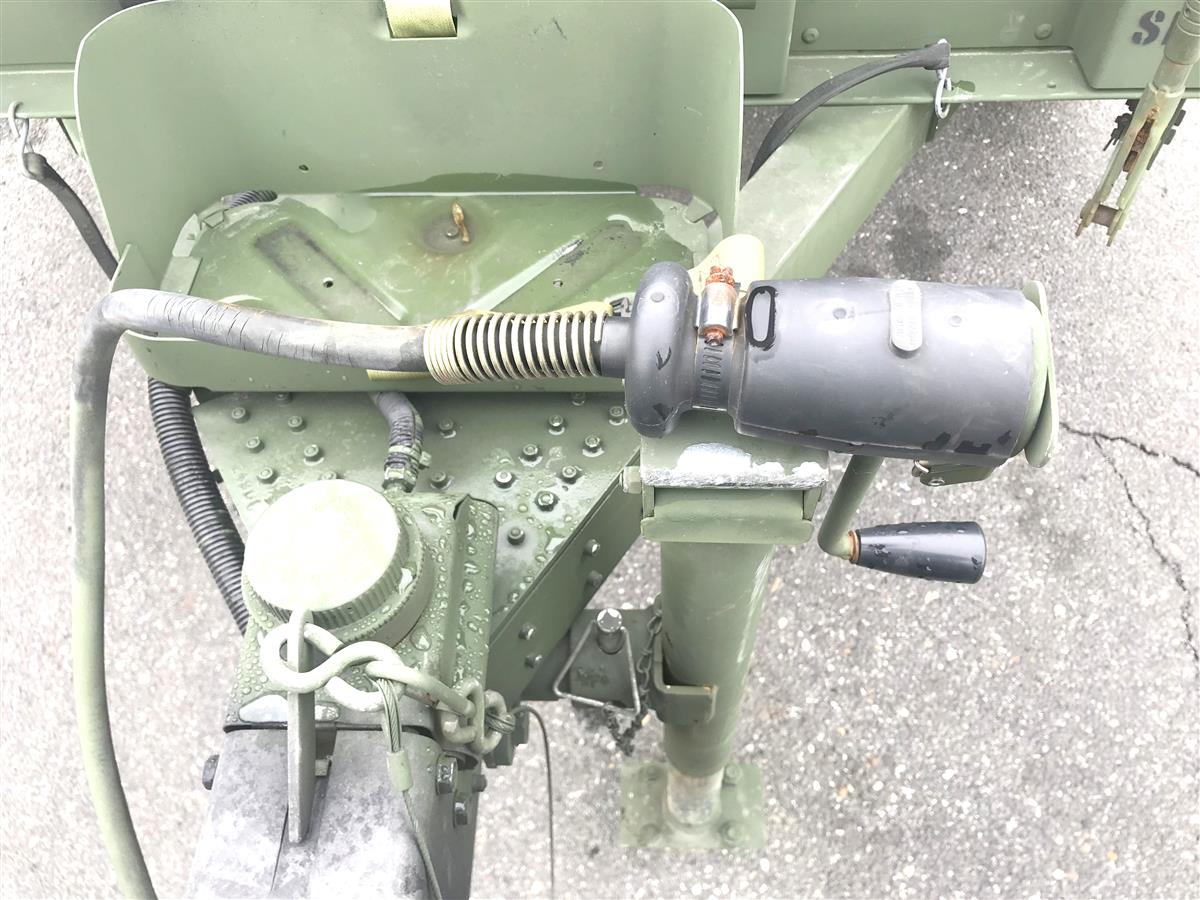

Electrical System 24 Volt DC sealed lighting system with blackout convoy lights, 12 pin connector plug mates with HMMWV
Max Speed (Primary Roads) 55 mph (88 kph)
Max Speed (Secondary Roads) 35 mph (56 kph)
Max Speed (Off Road) 20 mph (32 kph)
Departure Angle 39 degrees
Turning Angle 80 degrees
Fording 60 inches (152 cm)

Model
M1102

Eastern Surplus Inventory #
00-9

Tire Size
37 x 12.5 x 16.5
