Air Pressure Tank FMTV

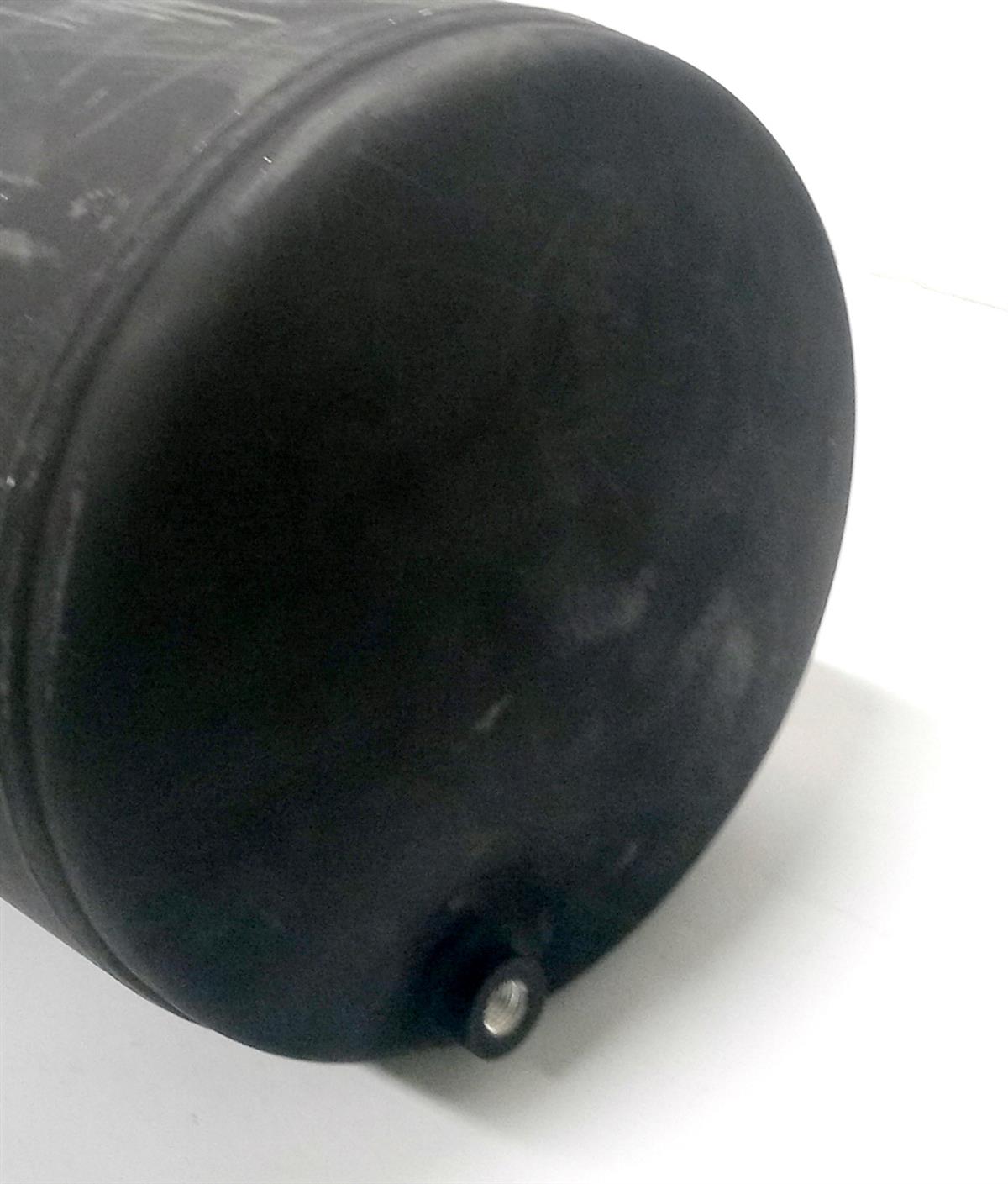

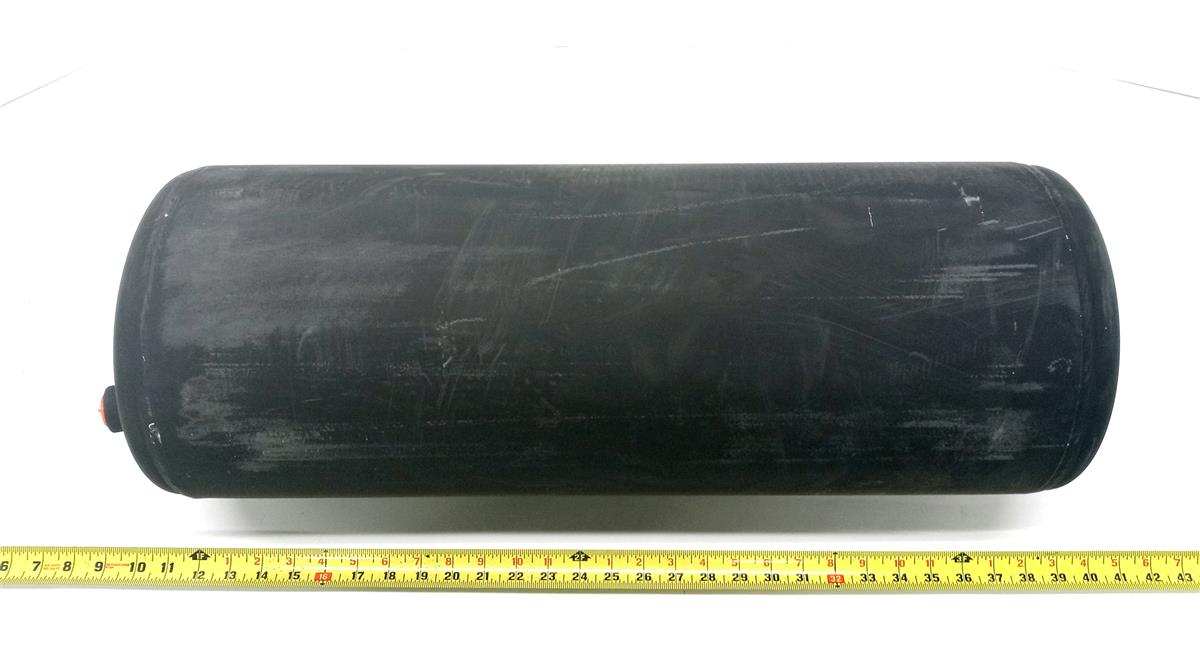

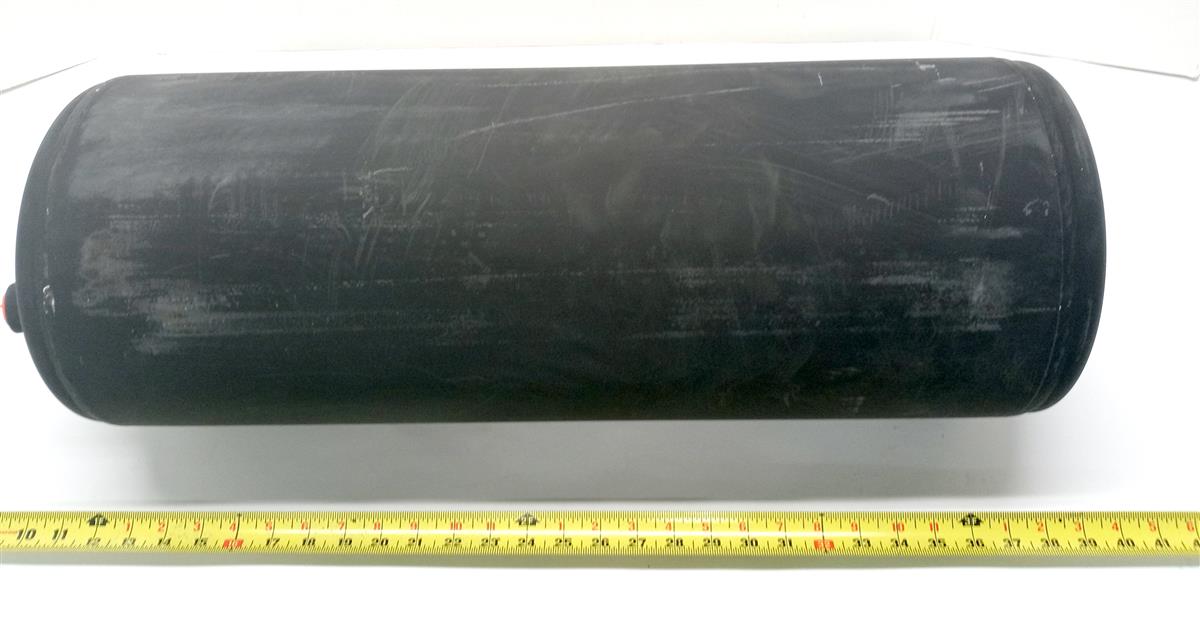

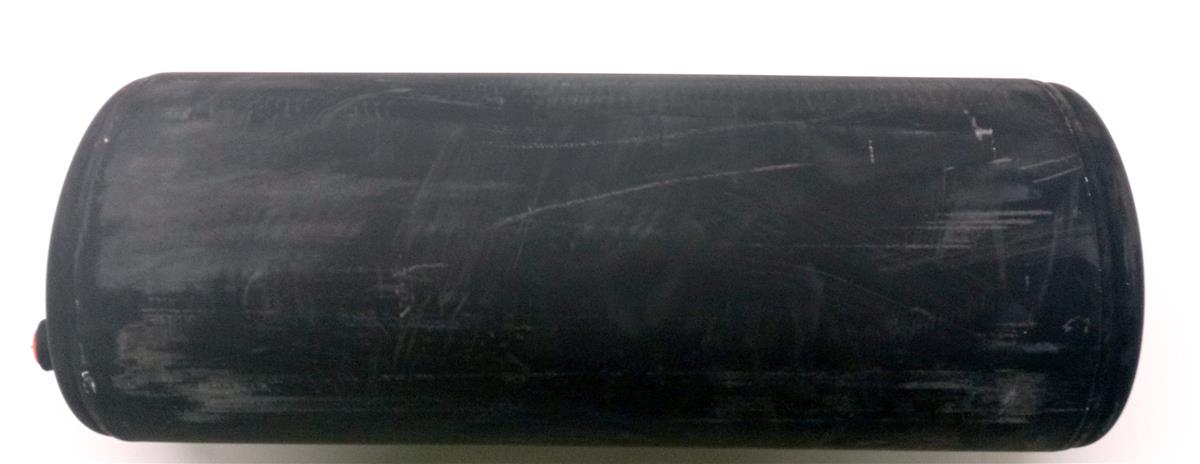

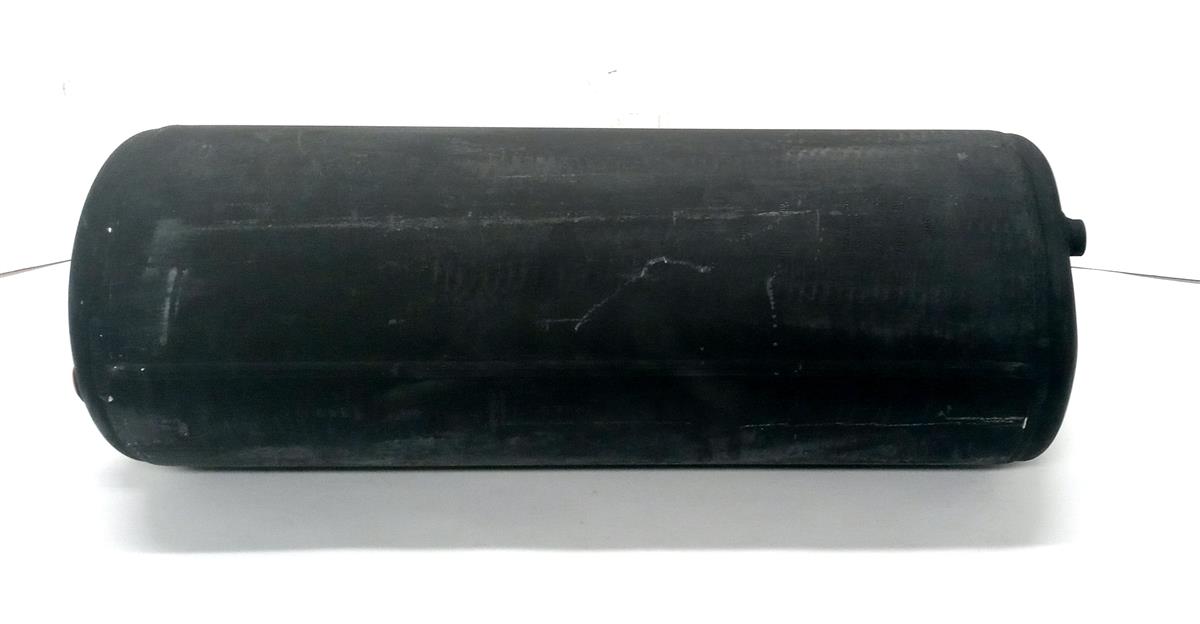

NOS Pictures Shown
Used Condition Available

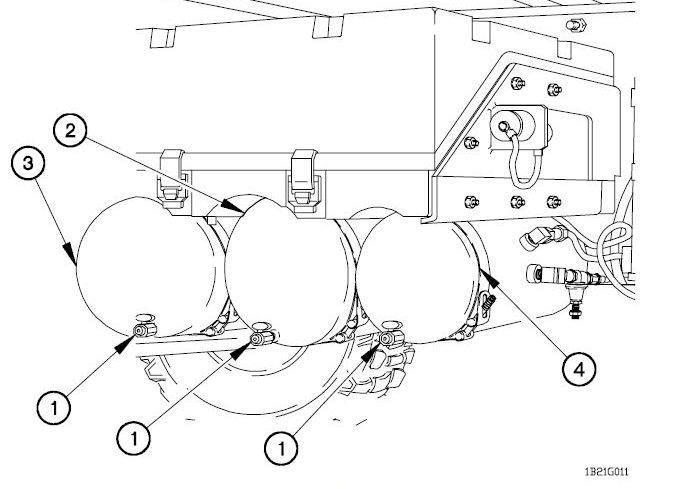

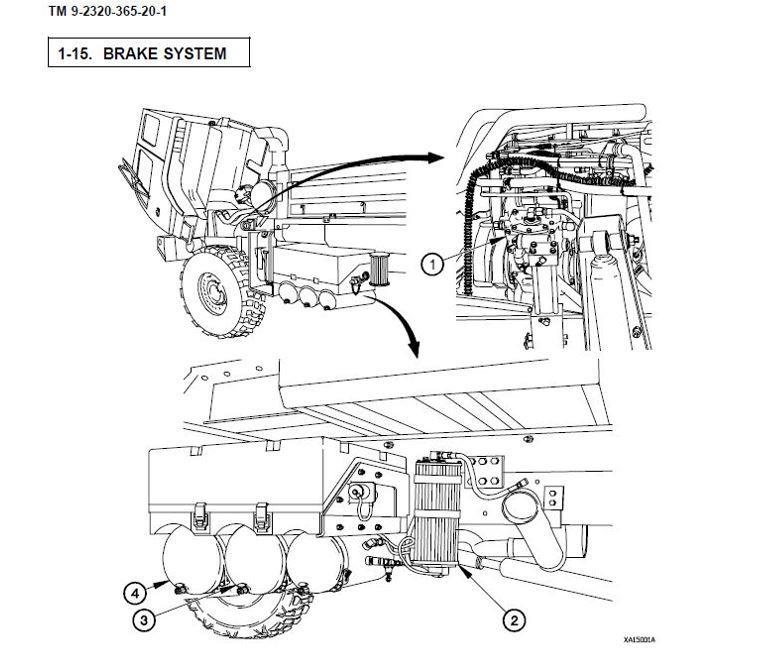

Diagram in Pictures
Click Here For Air Tank Pressure Aluminum FMTV LMTV
Click Here For Air Tank Wet Pressure Air Tank FMTV LMTV
|
OUTSIDE SURFACE TREATMENT
|
|
PAINTED |
| END SHAPE AND LOCATION |
|
CONVEX BOTH ENDS |
| OPENING QUANTITY |
|
4 |
| OPENING SIZE |
|
0.500 INCHES AND |
| OPENING SIZE |
|
0.250 INCHES |

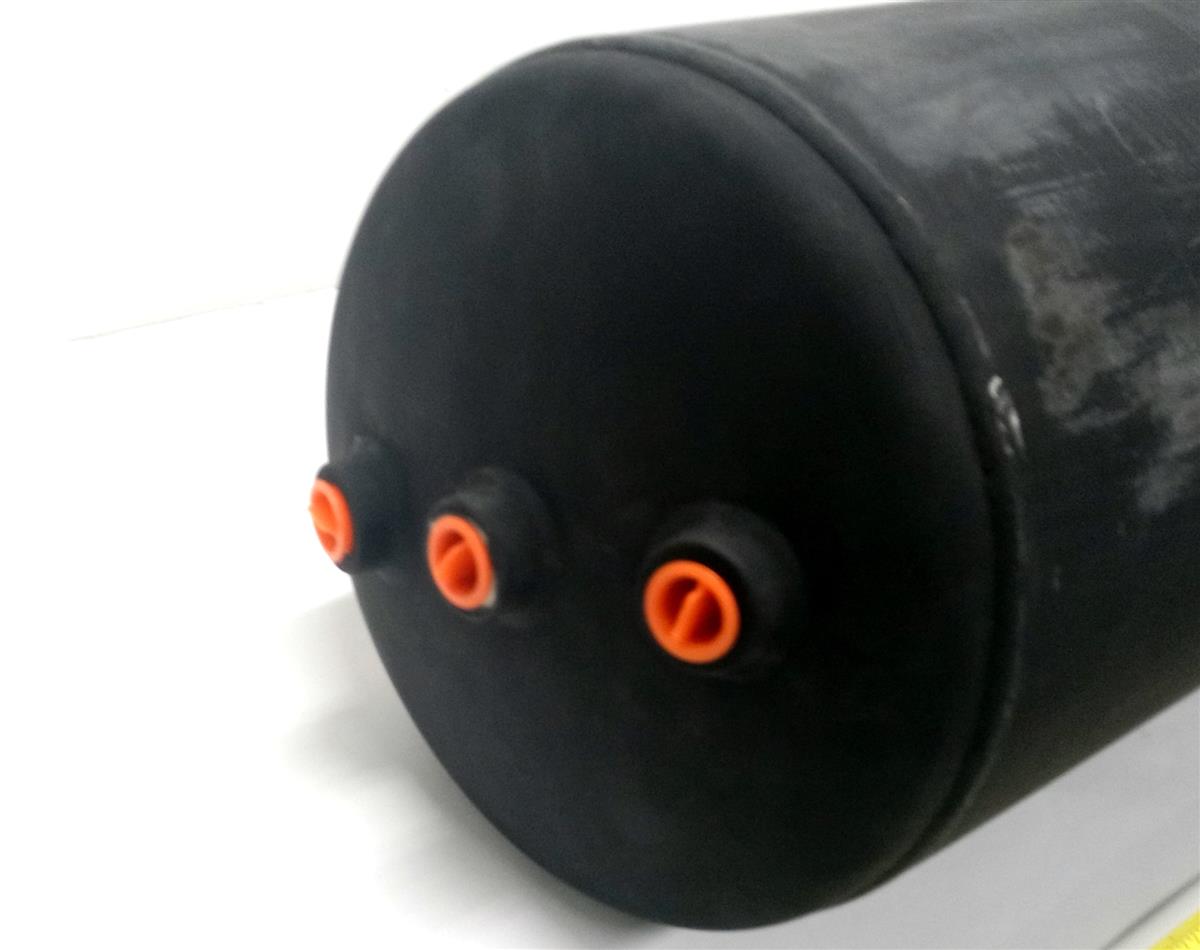

| OPENING LOCATION |
|
3 ON ONE END; 1 ON OTHER END |
| OPENING CHARACTERISTIC |
|
THREADED |
| THREAD SIZE |
|
0.500-14 AND |
| THREAD SIZE |
|
0.250-18 |
| SCREW THREAD SERIES DESIGNATOR |
|
NPTF |
| THREAD DIRECTION |
|
RIGHT-HAND |
| OVERALL LENGTH |
|
28 1/4 or 718 mm |
| OVERALL DIAMETER |
|
9 3/4 or 248 mm |
| OUTER SHELL MATERIAL THICKNESS .125 inch |
|
|
Fits: FMTV and LMTV Variants
2 ½ Ton Trucks --- M1078 M1079 M1080
5-Ton Trucks --- M1083 M1084 M1085 M1086 M1087 M1088 M1089 M1090 M1091 M1095 M1096
