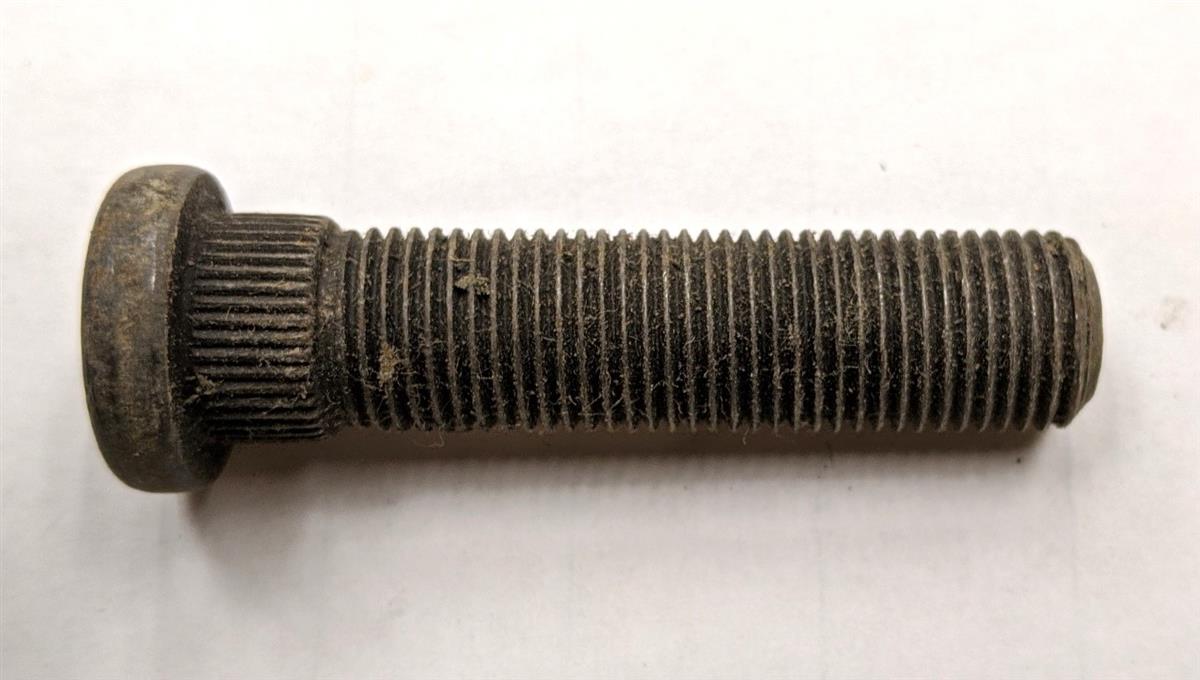

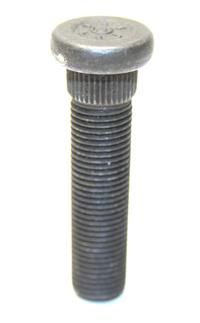

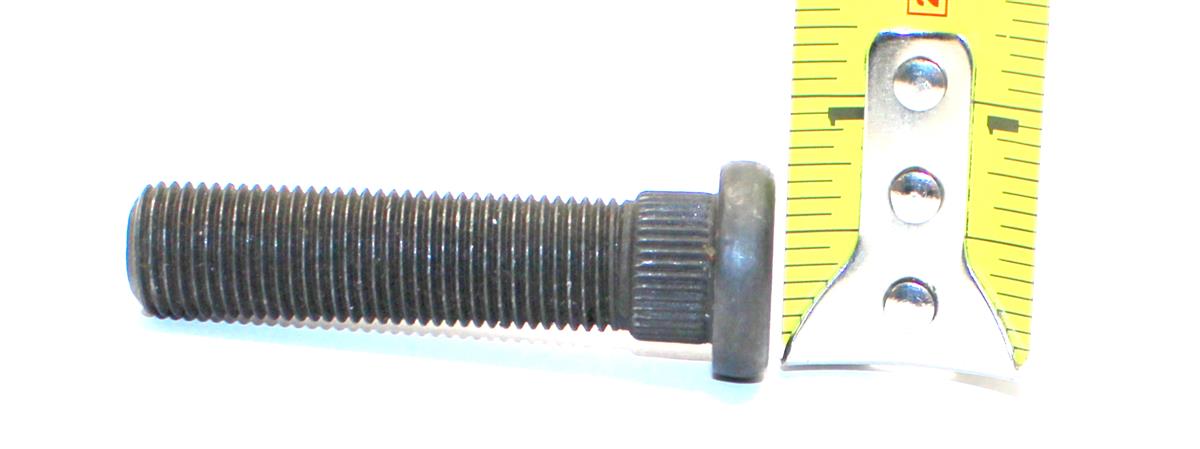

Half Wheel Stud Ribbed Neck Bolt HMMWV

• Right-Hand Thread Direction
• Thread Class 3A
• Thread Length 1.500 IN
• Fastener Length 2.000 IN
• Head Style DEE
• Head Diameter 0.810 IN
• Head Height 0.200 IN
• Rib Major Diameter 0.5525 IN MIN 0.5625 IN MAX
• Rib Length 0.270 IN
• Rib Minor Diameter 0.5236 IN MIN 0.5313 IN MAX
• Item No 3 in Diagram


 Click Here For Wheel Rim 16.5 Inch, 2-Piece HMMWV Rim 12 Bolt

Fits: HMMWV Models

M1025 M1025A1 M1025A2 M1026 M1026A1 M1035 M1035A1 M1035A2 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1043A2 M1044 M1044A1 M1045 M1045A1 M1045A2 M1046 M1046A1 M1097 M1097A1 M1097A2 M1121 M1123 M966 M966A1 M996 M996A1 M997 M997A1 M997A2 M998 M998A1 M1151 M1151A1 M1167

Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
