SP-2850 | Hydraulic Hand Jack, 15 ton Portable

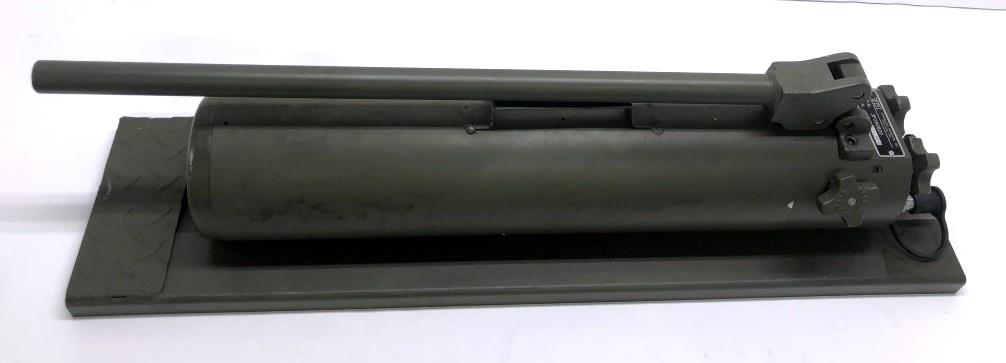

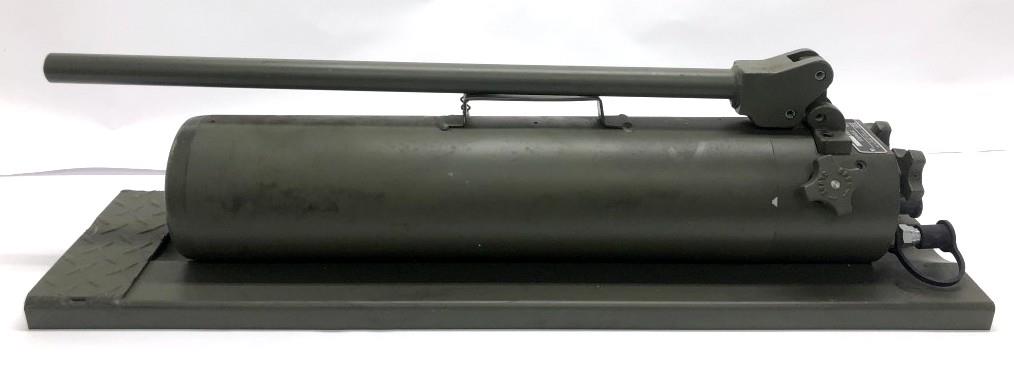

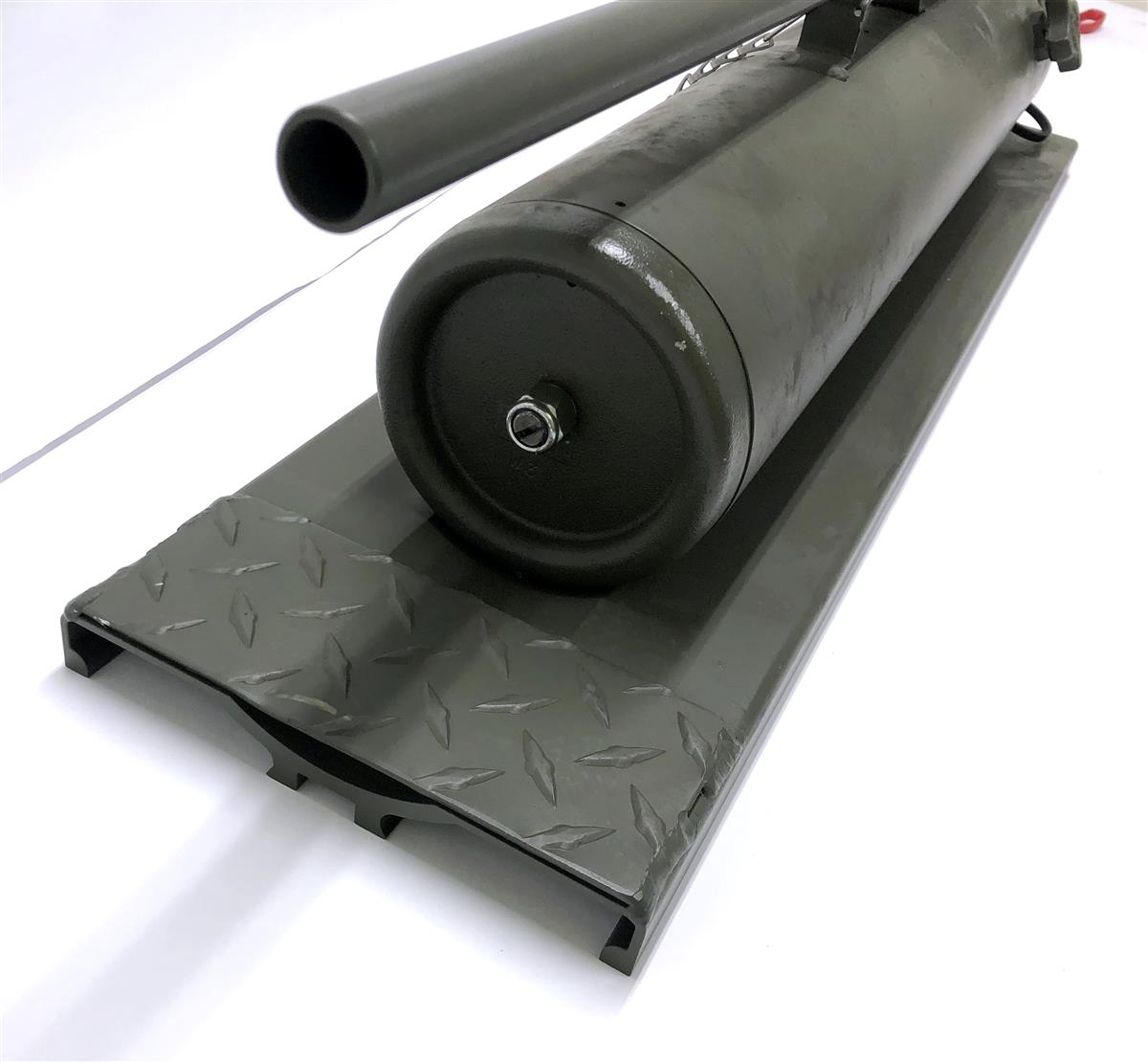

Hydraulic Hand Jack

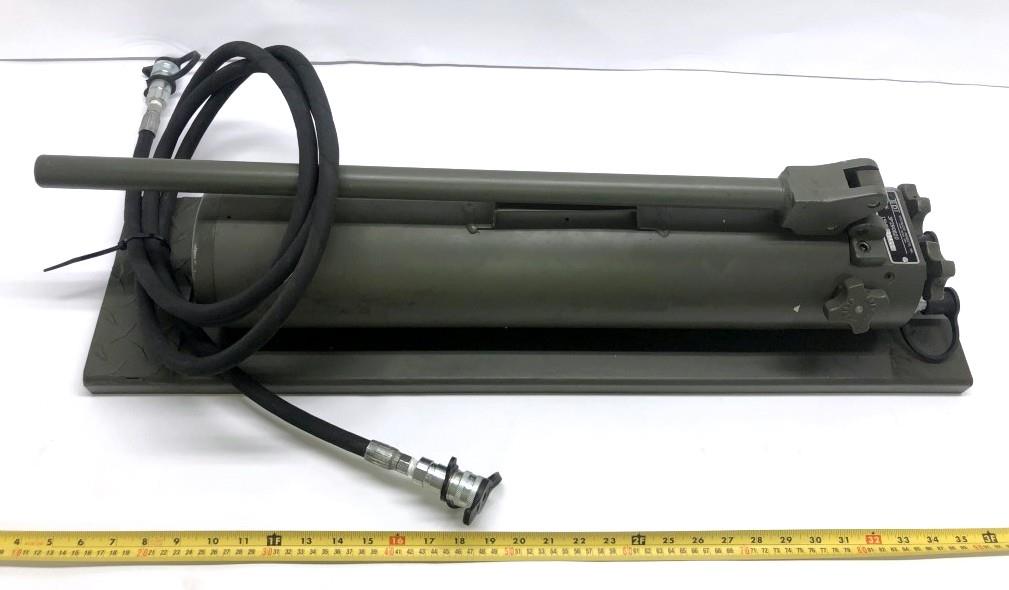

Supplied with hose

Specialized Products

Maximum lifting capacity 30,000 lbs 15 tons

Lifting toe height range 4" to 25.75"

Jack height 26.125" lowered 42.125" raised

16" Stroke

Fits: Military Trucks

• Common Application
• 15 HP

• Name	Value
  EXTENDED HEIGHT	42.000 INCHES NOMINAL
  UNIT TYPE	SELF-CONTAINED
  PUMP TYPE	SINGLE
  RETRACTED HEIGHT	10.000 INCHES NOMINAL
  SPECIAL FEATURES	36.000 IN. O/A LG,5.250 IN. W; WORKING PRESSURE 0-3250 PSI
