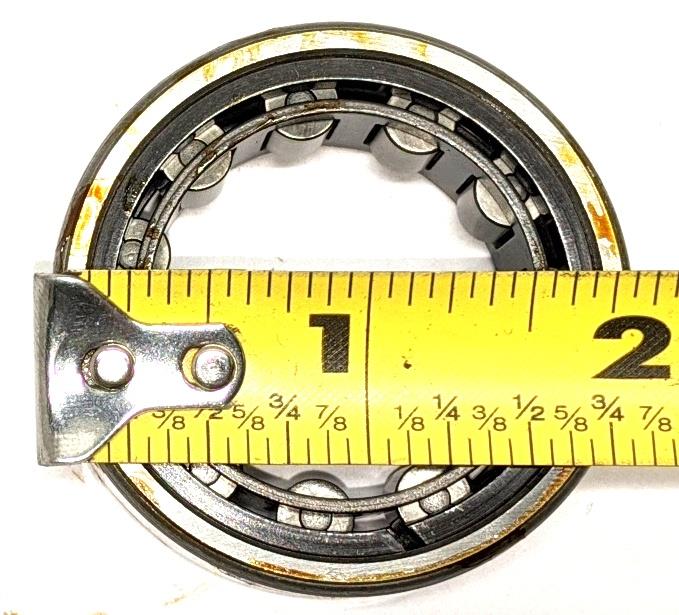

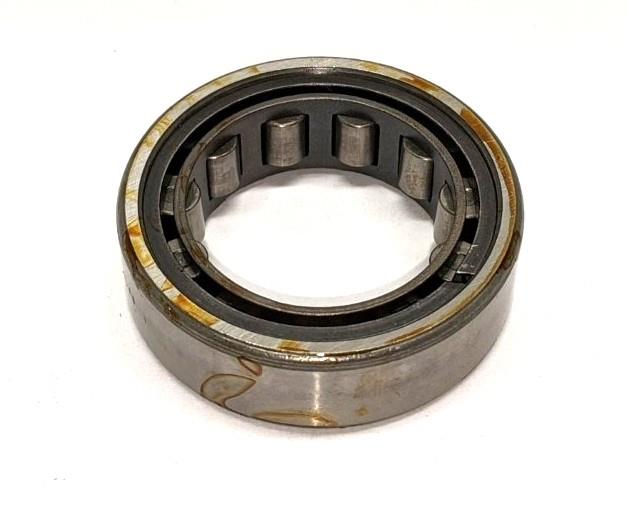

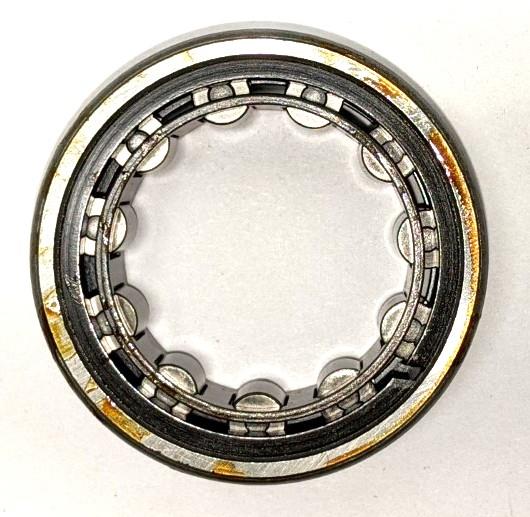

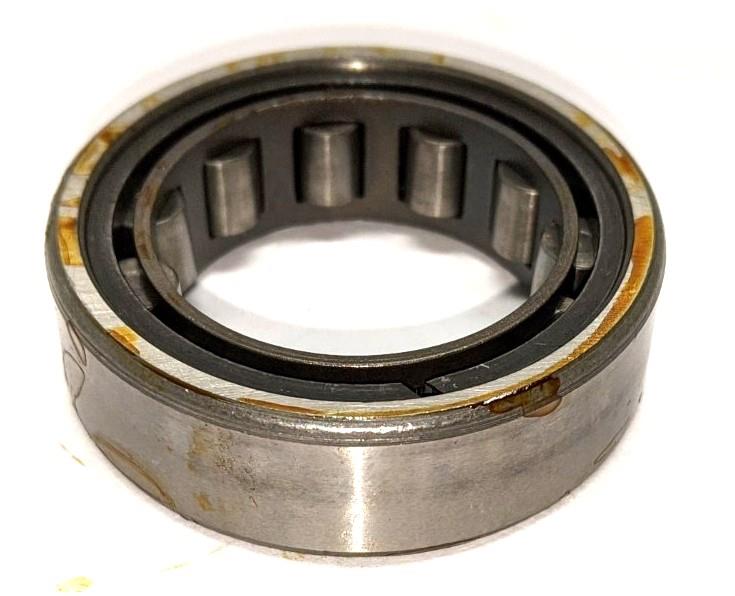

Pinion Shaft Roller Bearing
- Overall Width- 0.5512 INCHES
- Bore Diameter- 1.1080 INCHES
- Over Outside Diameter- 1.8504 INCHES
Fits:MUTT Jeep Military Truck
M151A1 & M151A2
BEARING PINION SHAFT M151 MUTT DIFF PN# 8375565 CAT 2L610 NSN: 3110-00-198-2215
NSN: 3110-00-198-2215
NIIN: 00-198-2215
PN: 8375565
| TECH INFO: |
|
| OVERALL WIDTH |
0.5512 INCHES NOMINAL |
| BORE DIAMETER |
1.1080 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER |
1.8504 INCHES NOMINAL |
| SURFACE FINISH |
GROUND |
| RETAINER FABRICATION METHOD |
MACHINED |
| BORE SHAPE |
STRAIGHT |
| LOCATING FEATURE |
ONE DIRECTION |
| INTERNAL FIT-UP DESIGNATION |
STANDARD |
| INTERNAL CLEARANCE |
0.0020 INCHES MINIMUM RADIAL AND 0.0034 INCHES MAXIMUM RADIAL |
| STANDARD TOLERANCE DESIGNATION |
RBEC NO.1 |
| SPECIAL FEATURES |
INTERNAL CLEARANCE MEASURED UNDER 33 LBS TOTAL LOAD,RINGS ARE PHOSPHATE COATED ALL OVER EXCEPT RACEWAYS,BORE OF OUTER RING AND PLATE LIP,ALL OTHER SURFACES AND ROLLERS ARE BEARING,ROLLER,CYLINDRICAL OXIDED OR PHOSPHATE COATED,MAGNETIC PARTICLE INSPECTED,MAGNAFLUXED |
| MATERIAL |
COPPER ALLOY RETAINER |
| MATERIAL |
STEEL INNER RING |
| MATERIAL |
STEEL OUTER RING |
| MATERIAL |
STEEL ROLLER |
|
THIS IS NEW U.S. GOVERNMENT SURPLUS MATERIAL!
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
