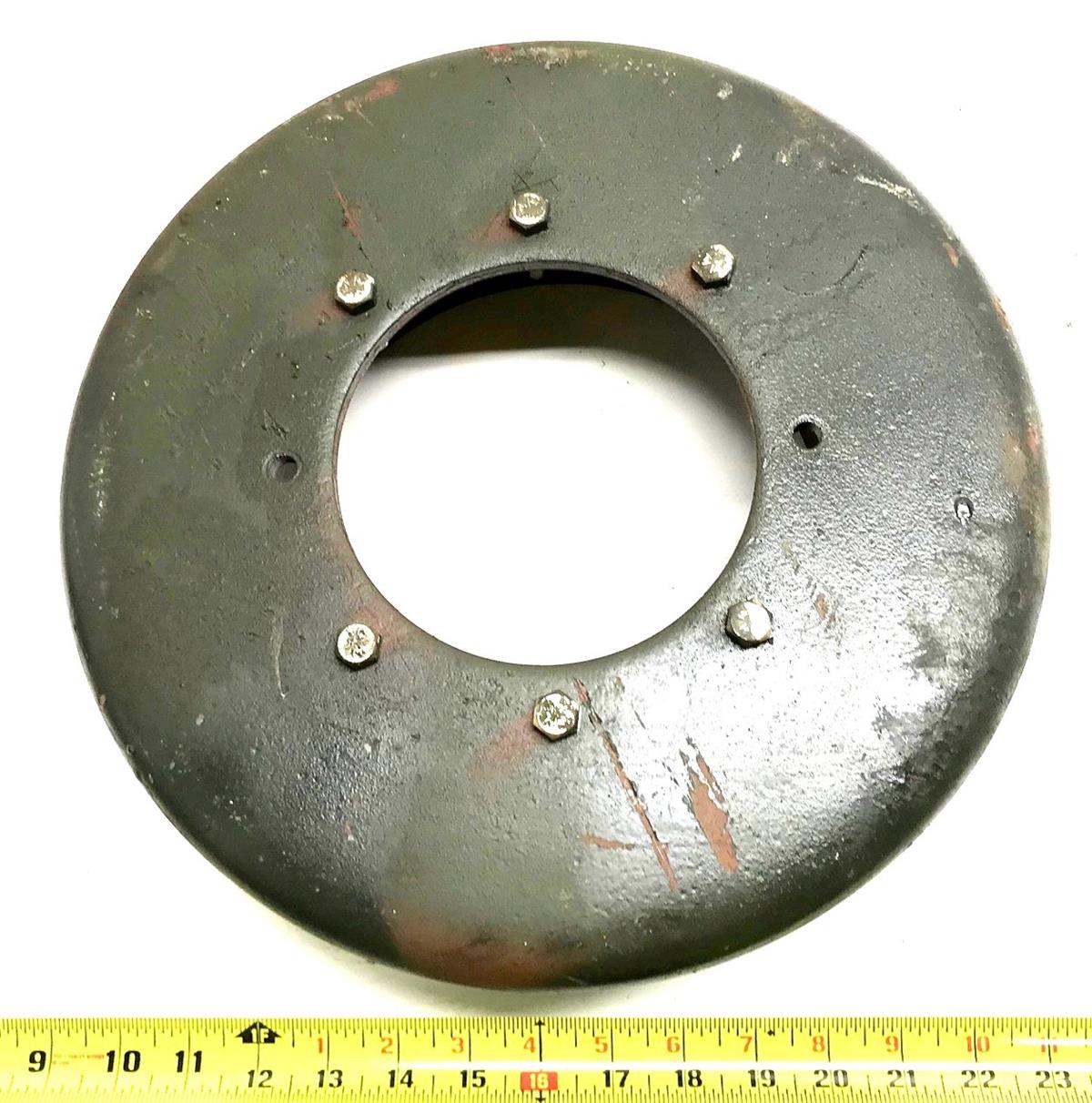

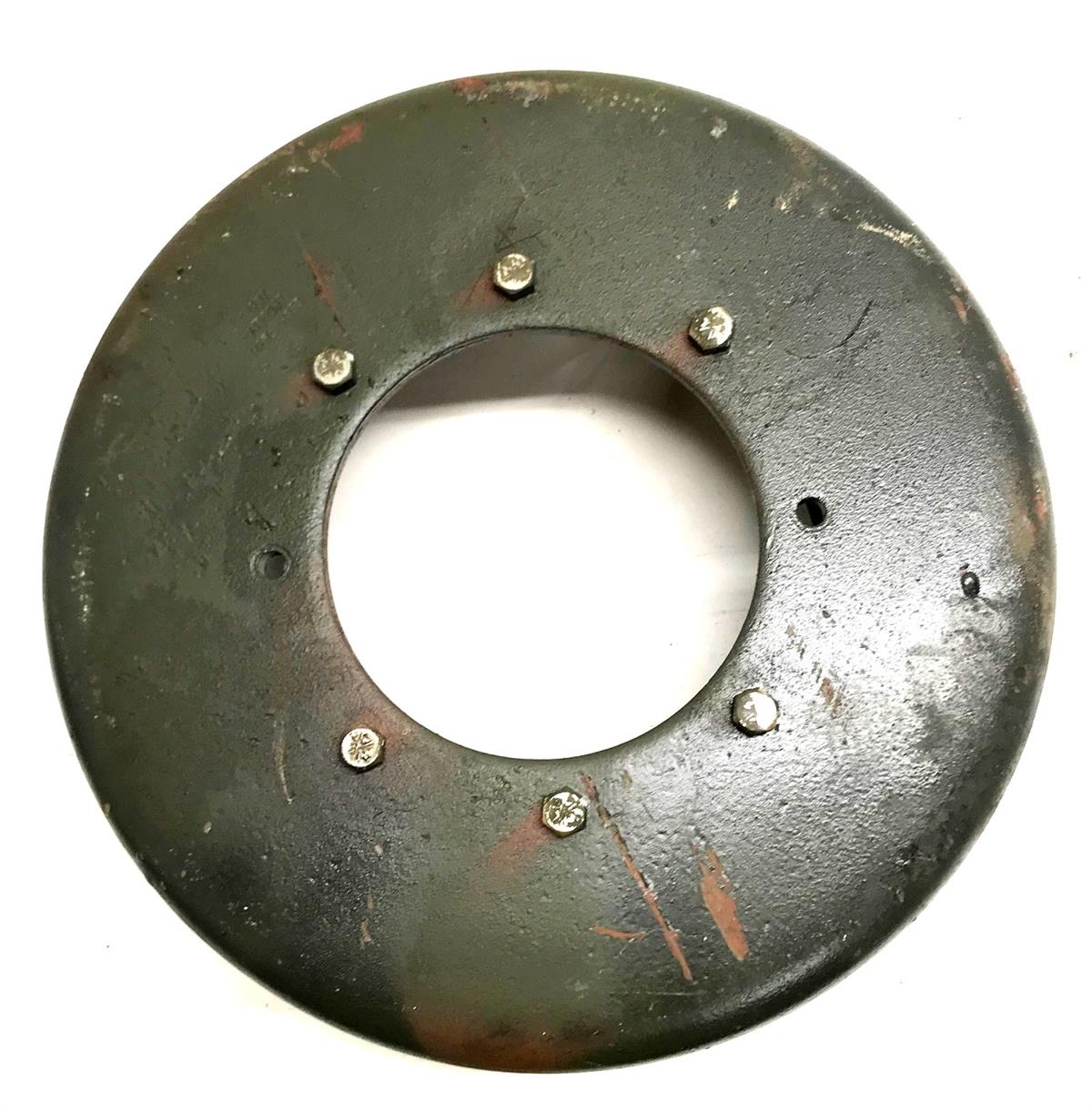

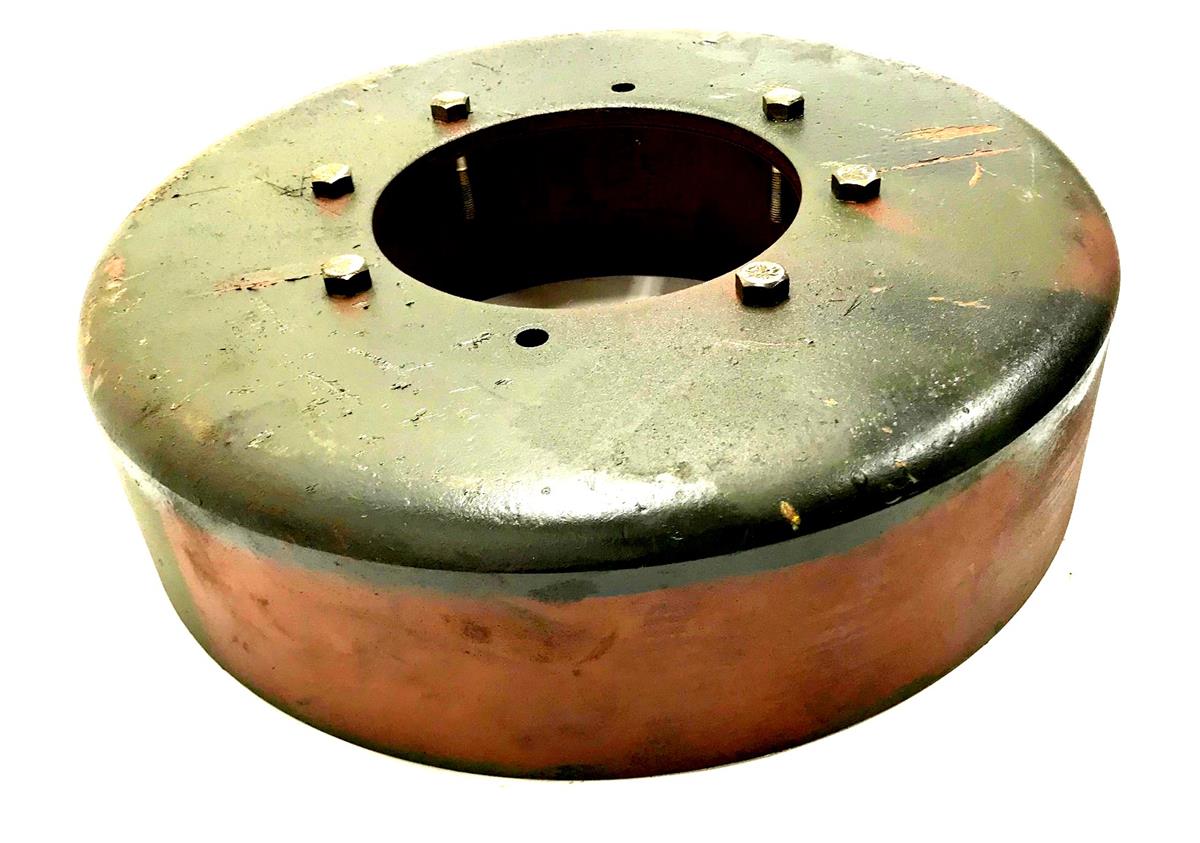

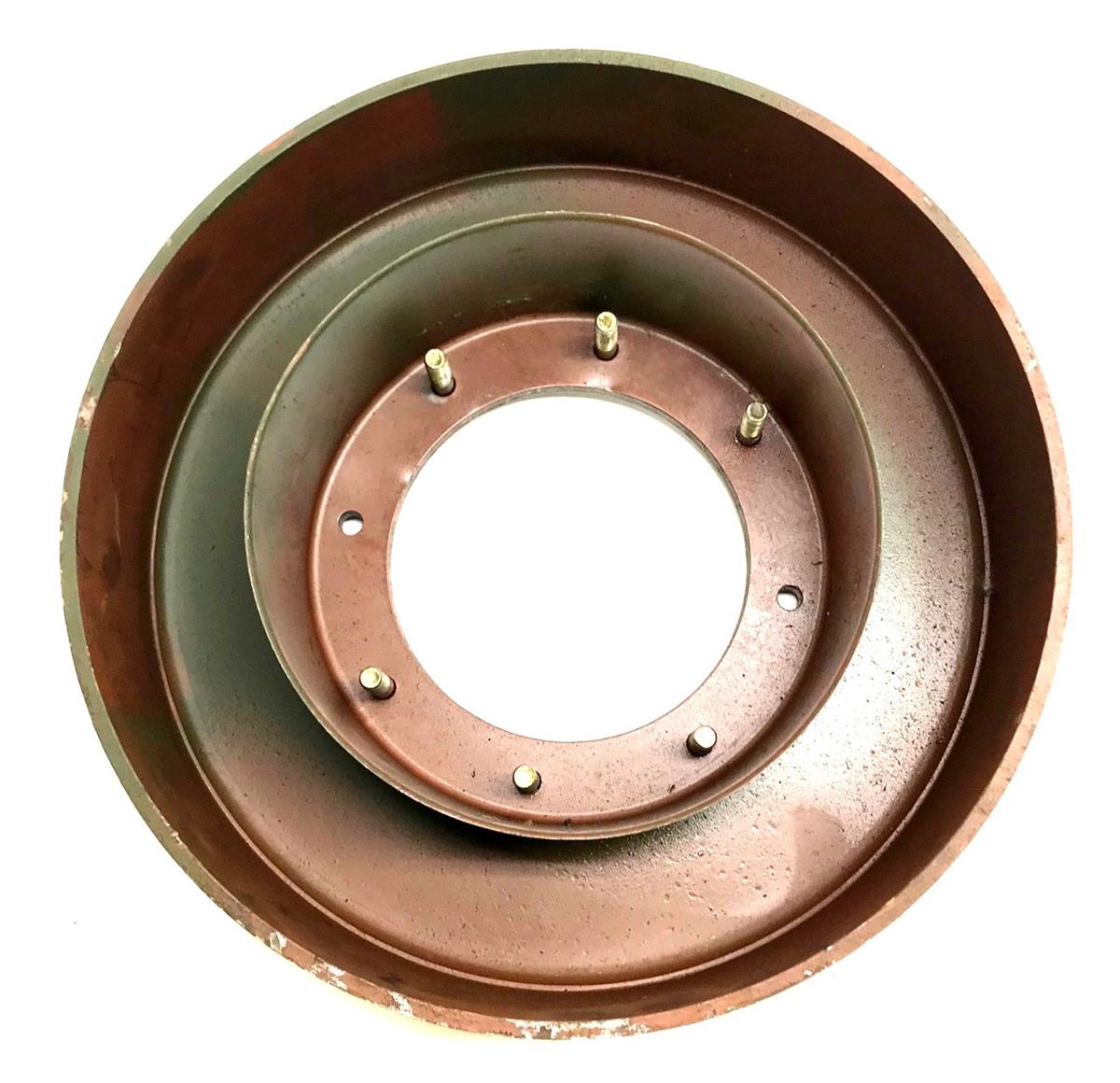

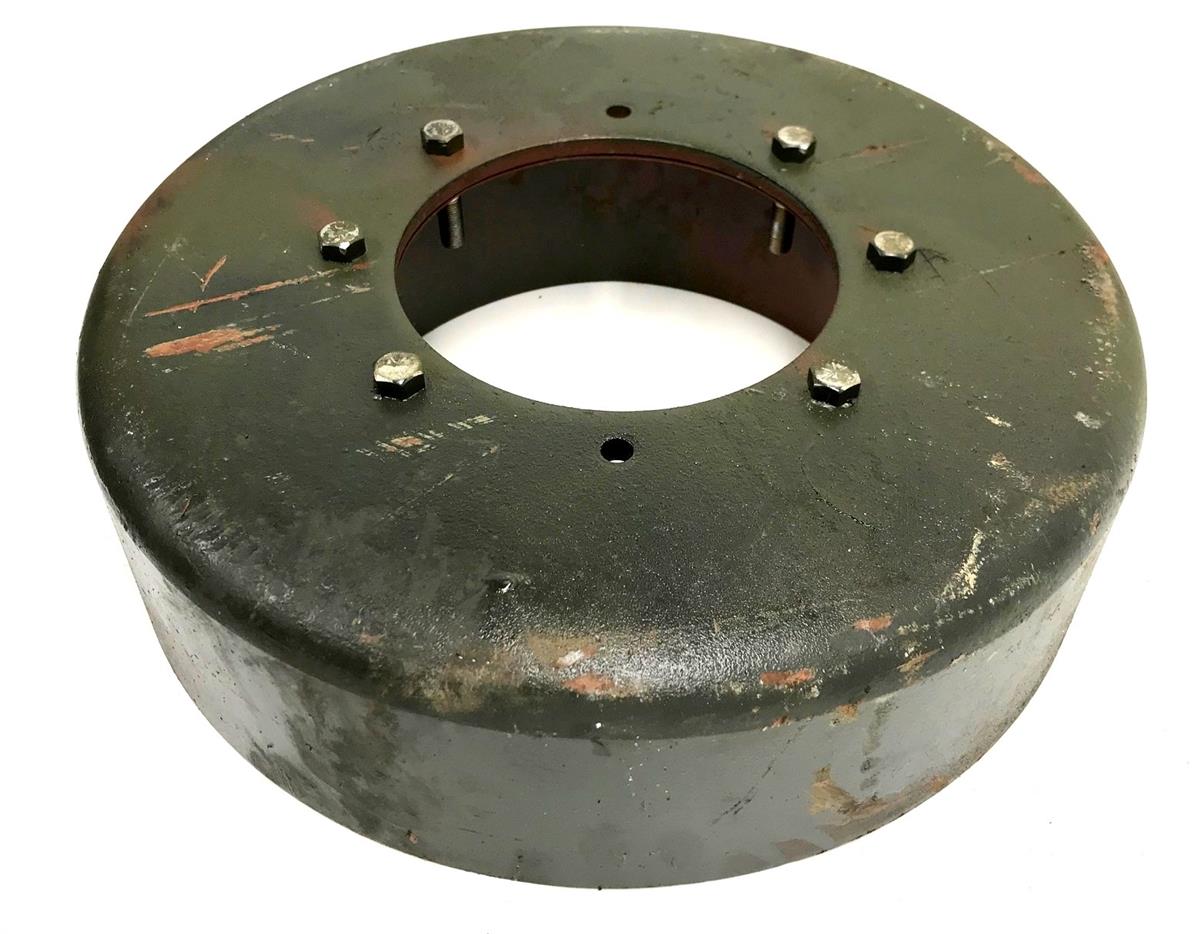

Parking Brake Drum With Deflector

• Hole Diameter: 6'' Inches

• Overall Diameter 14'' Inches
• Mounting Hole Spacing-Equally on 7.25In Bolt Circle
• Used with Rockwell transfer case T138  T-138

Includes:

• Brake Drum PN 7409367, NSN 2530-00-033-6029

• Ribbed Neck Bolt PN 10X507 NSN 5306-00-737-6152

• Deflector PN 7409371 NSN 2530-00-312-1583

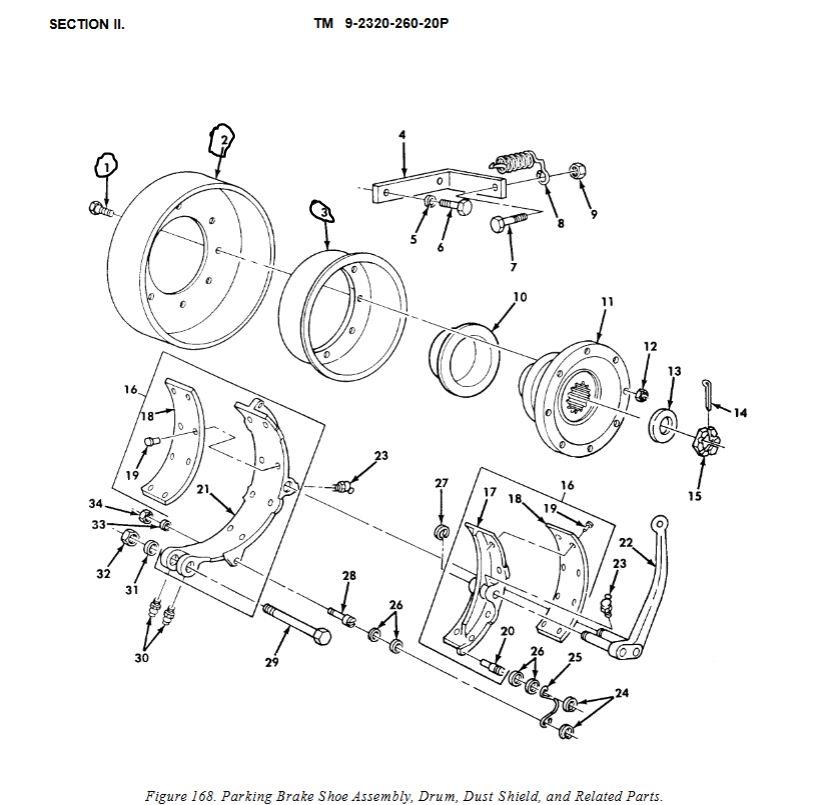

Item 1,2, And 3 In Diagram

Fits 5 Ton Military Trucks

• M809, M813, M814, M816, M817, M818, M820 and M54 and variants 5-Ton Trucks Equipped with Rockwell Transfer Case Model T138

Parts we offer for sale can be exported.  Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.

We can provide container loads of parts, loaded and shipped from our facility.
