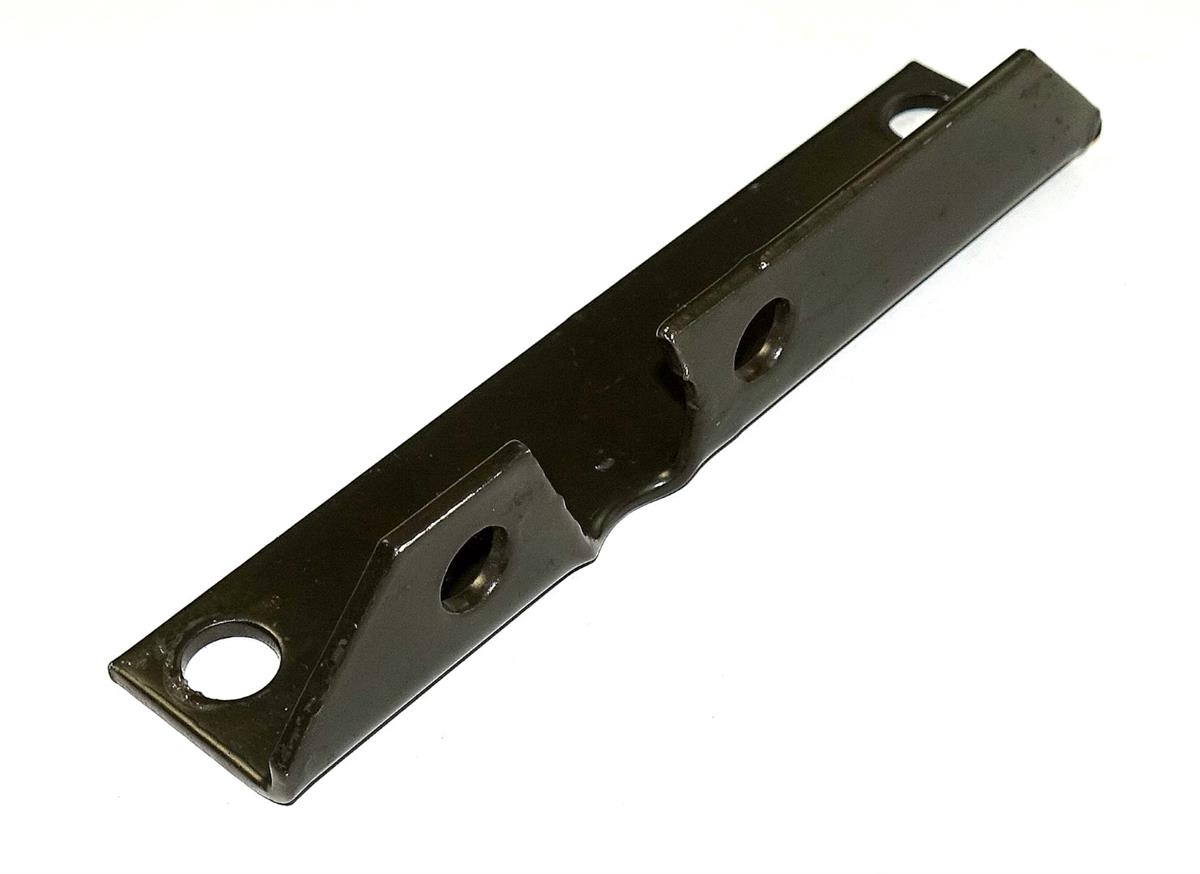

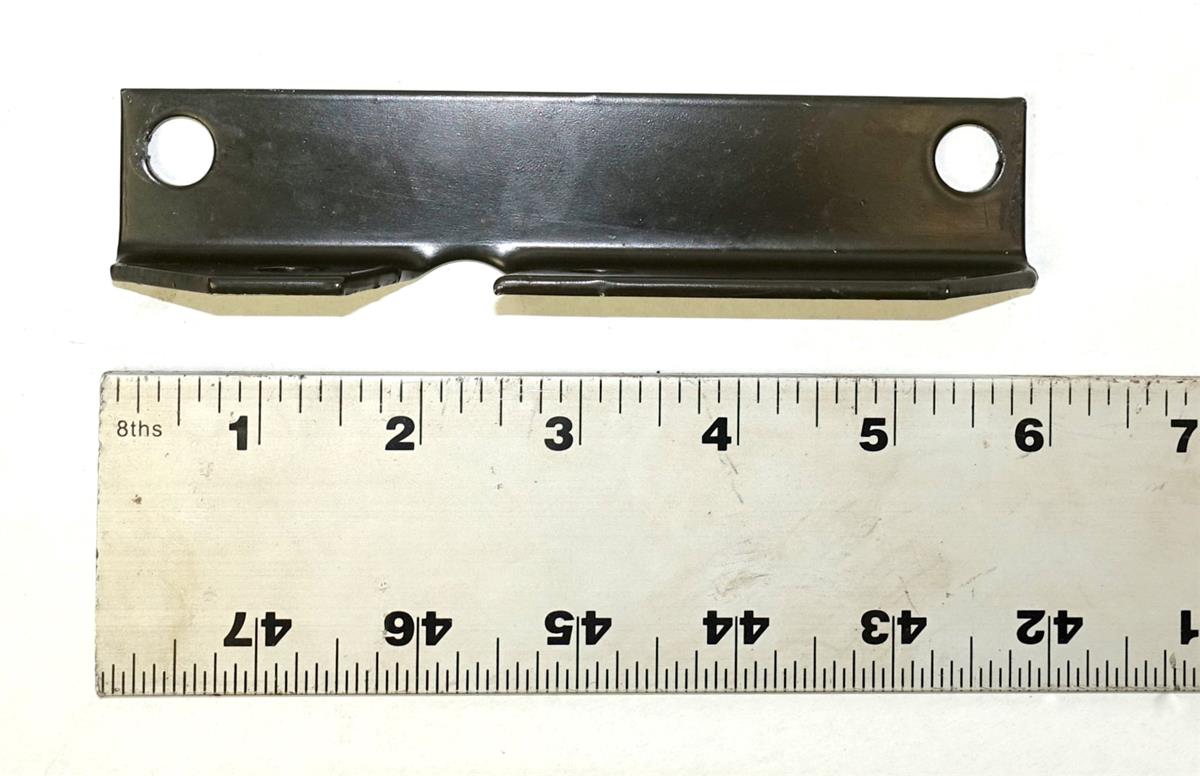

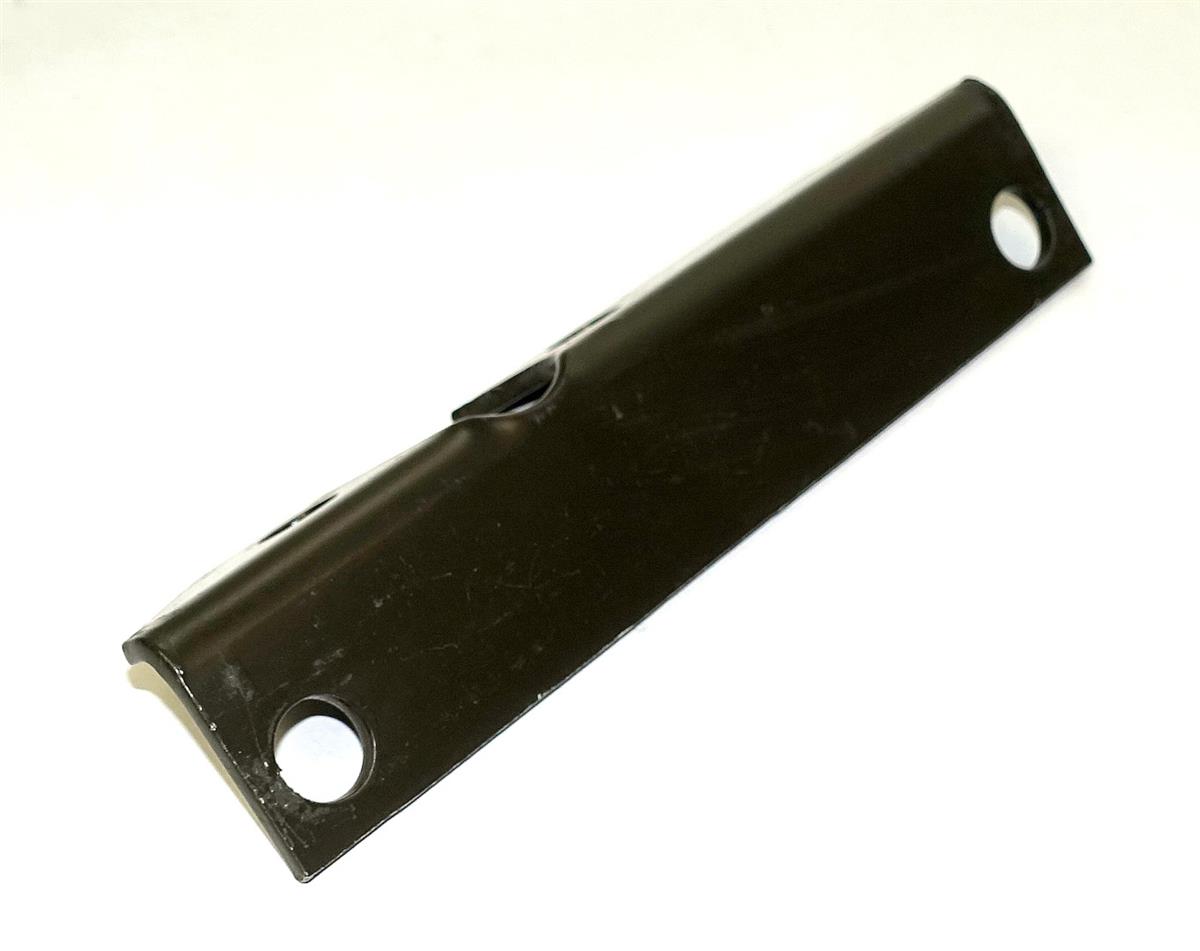

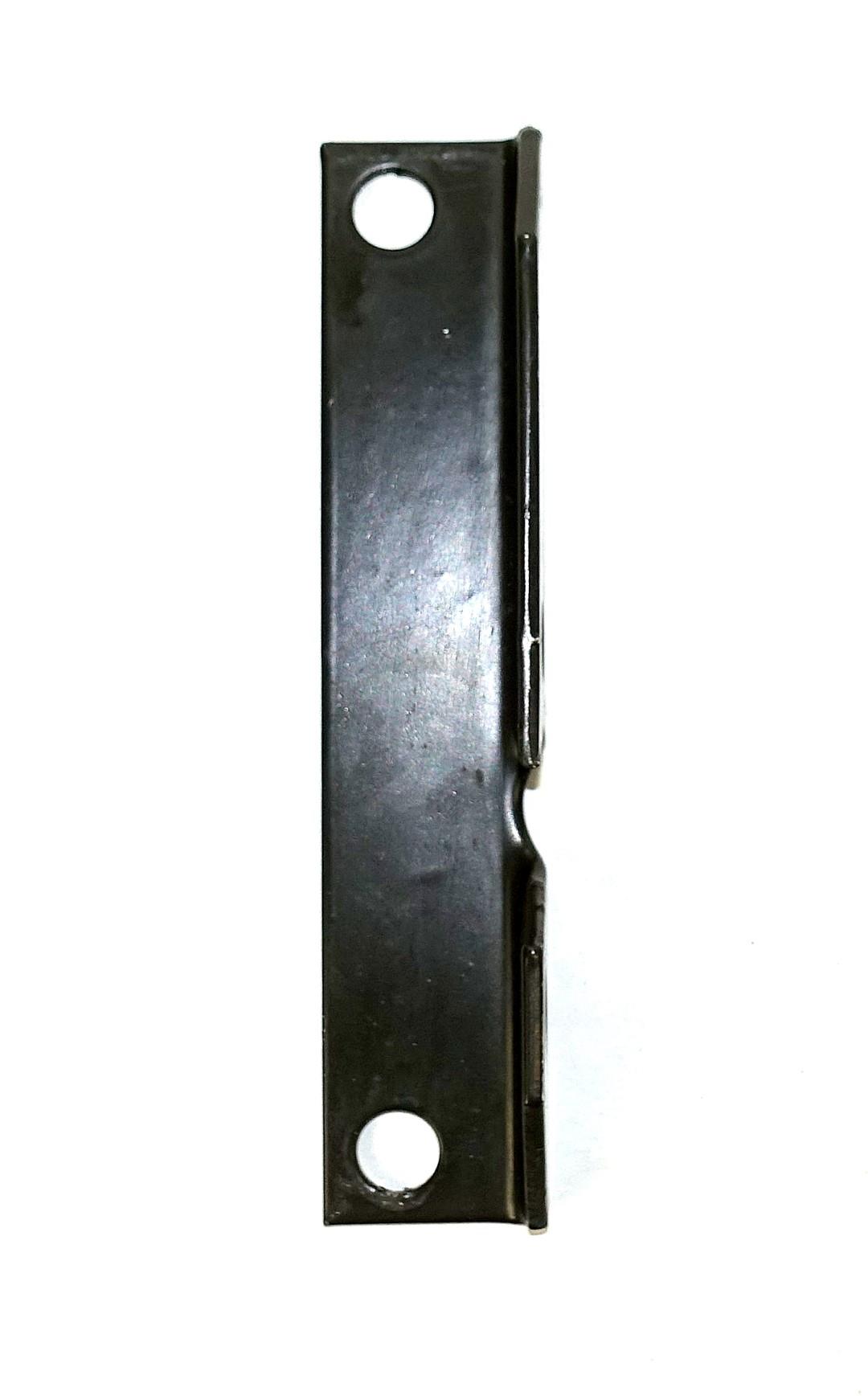

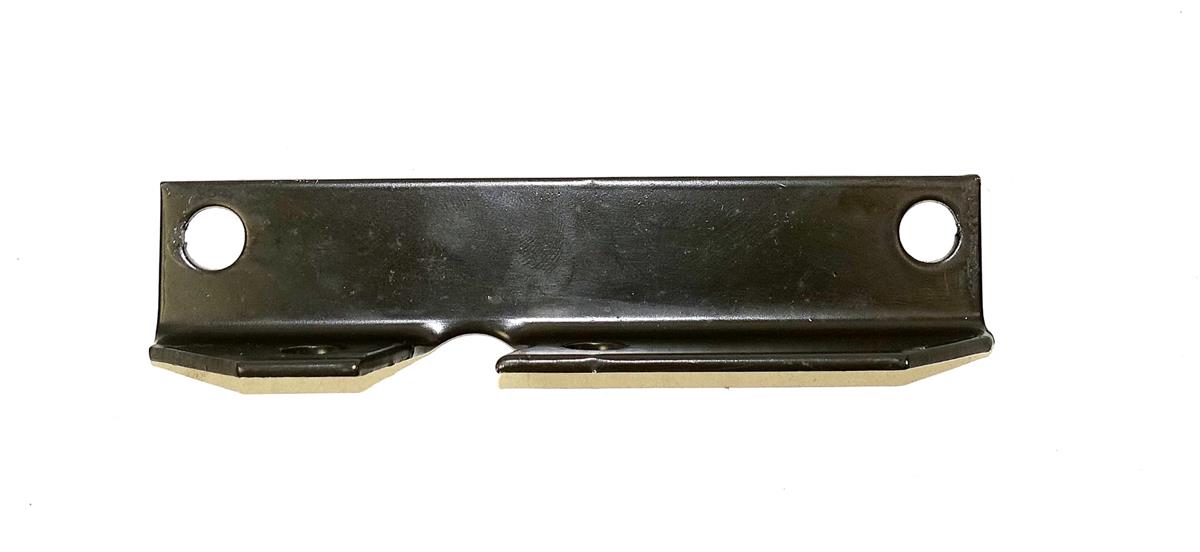

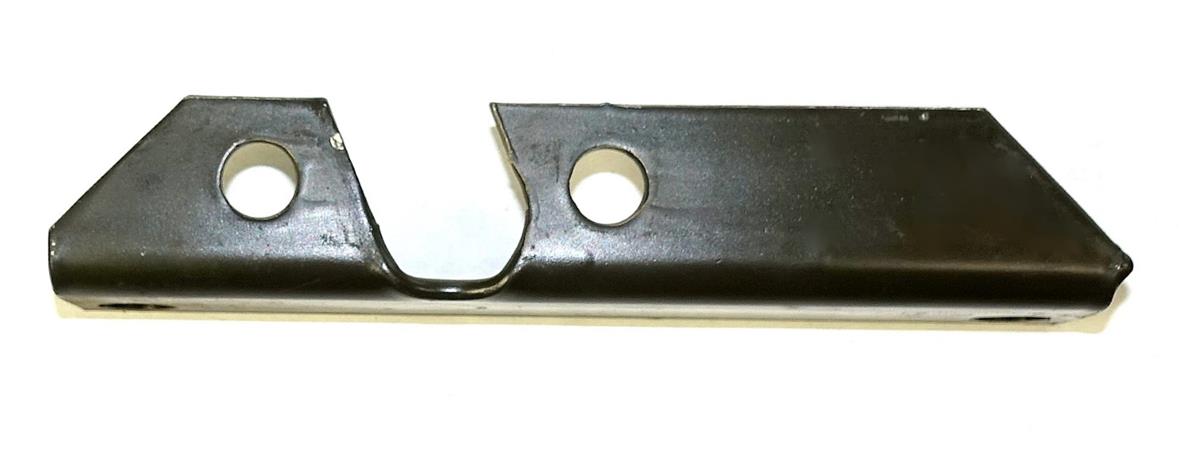

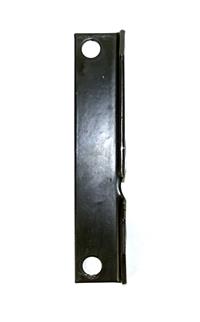

Parking Brake Floorboard Angle Bracket
Emergency brake handle bracket
This bracket mounts to the floor of the truck cab and the parking brake cable control handle mounts to it
Fits:
M35 M35A1 M35A2 M35A3 M36 M36A1 M36A2 M36A3 M275 M109 M109A1 M109A3 M109A4 2 ½ Ton Trucks
M54 and variants 5-Ton Trucks
M809 M813 M814 M816 M817 M818 M820 5 Ton Trucks
- First Leg Length: 1.060" inches
- Second Leg Length:1.190" inches
- Second Leg Hole Diameter: 0.44" inches
- Second Leg Thickness: 0.120" inches
- First Leg Thickness: 0.120" inches
- Style Designator: Angle
- First Leg Angle: 90 Degrees
- Second Leg Hole Arrangement Style: Two Holes
Item is #3 on Parts Diagram
Click Here for Emergency Brake Handbrake Control Lever Assembly
