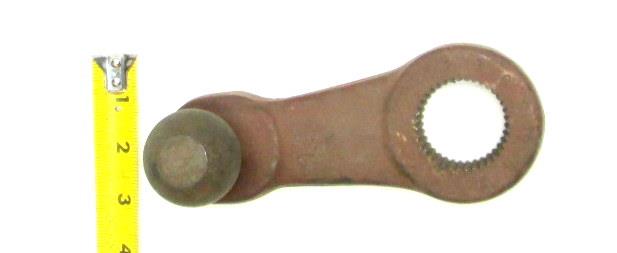

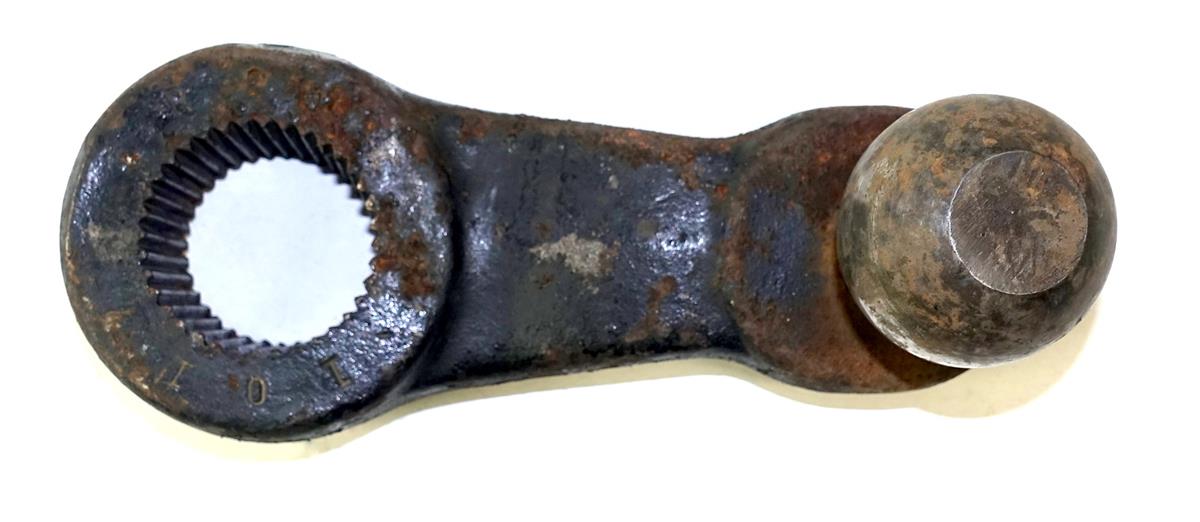

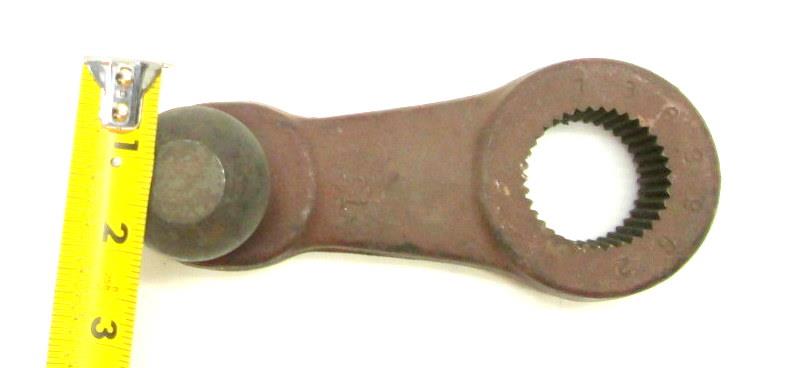

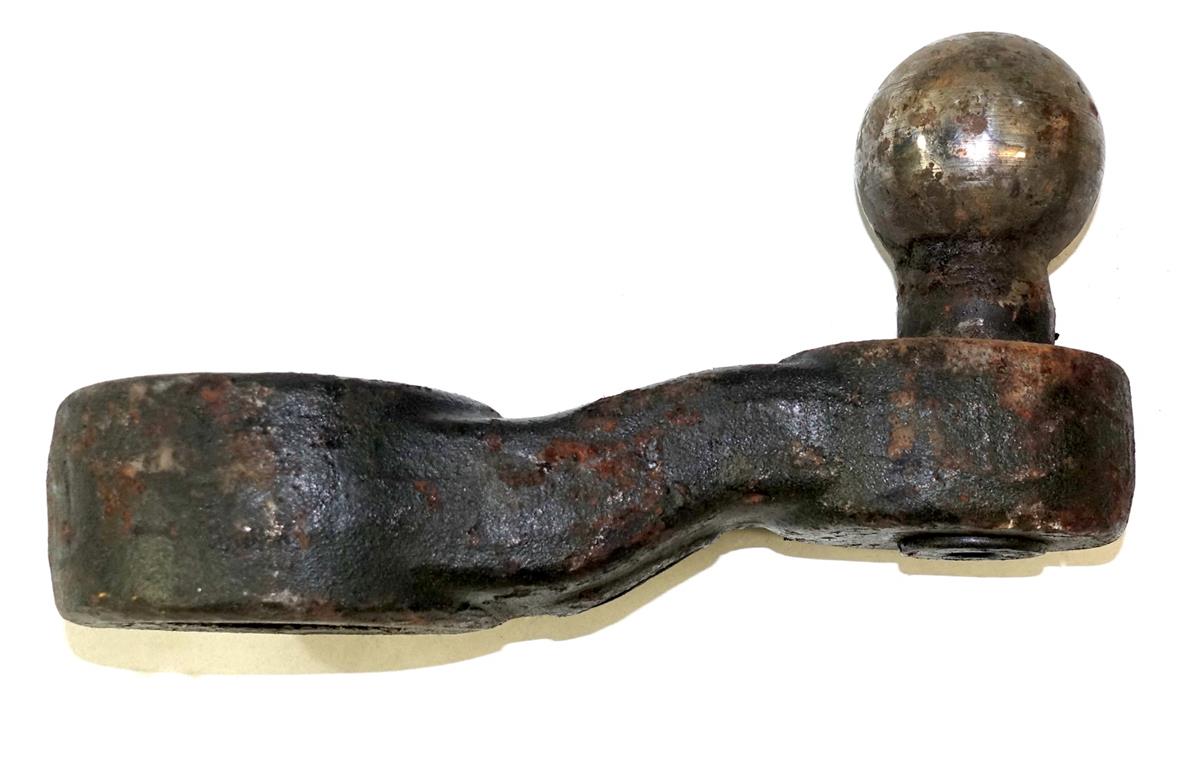

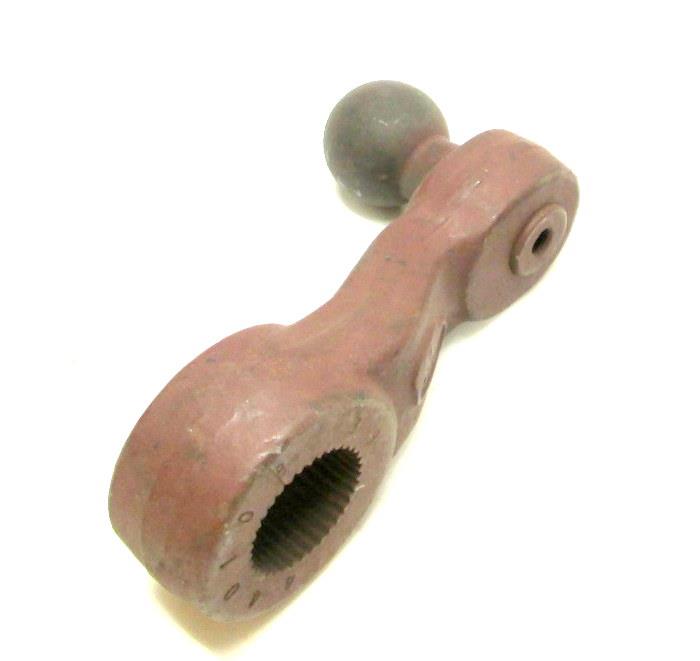

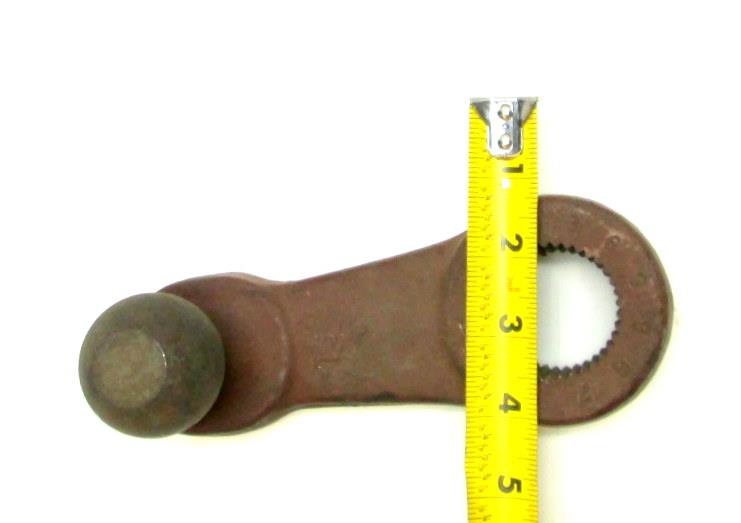

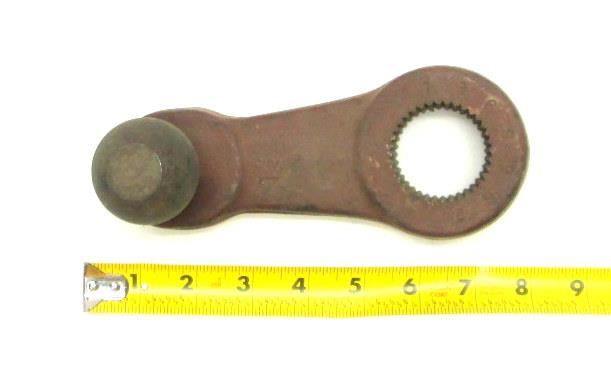

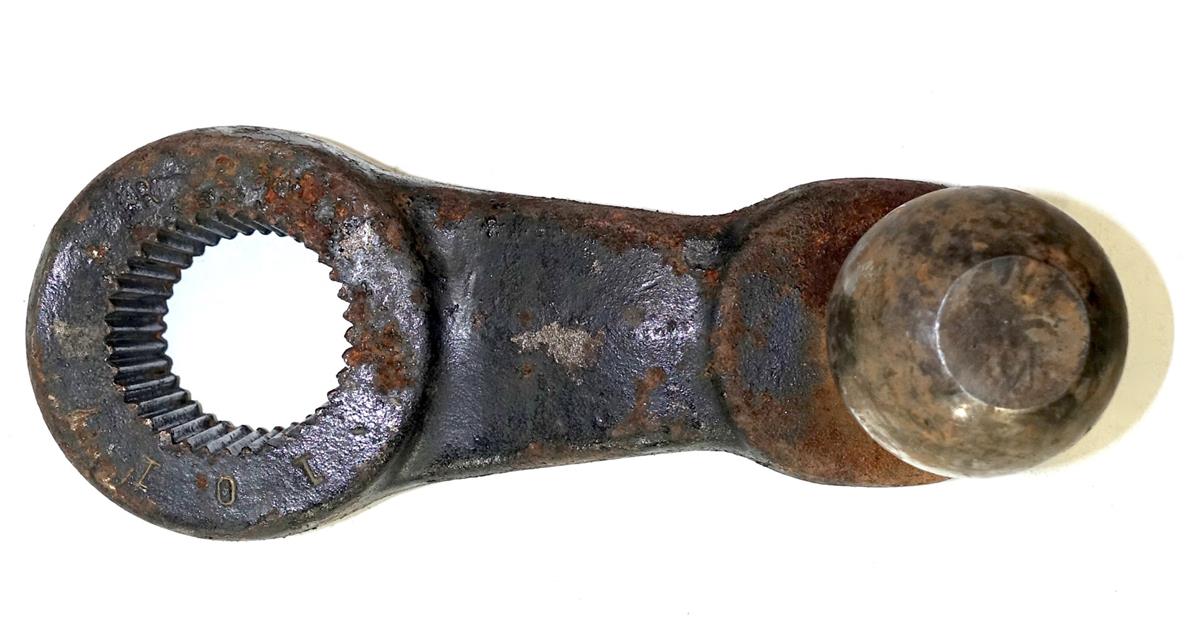

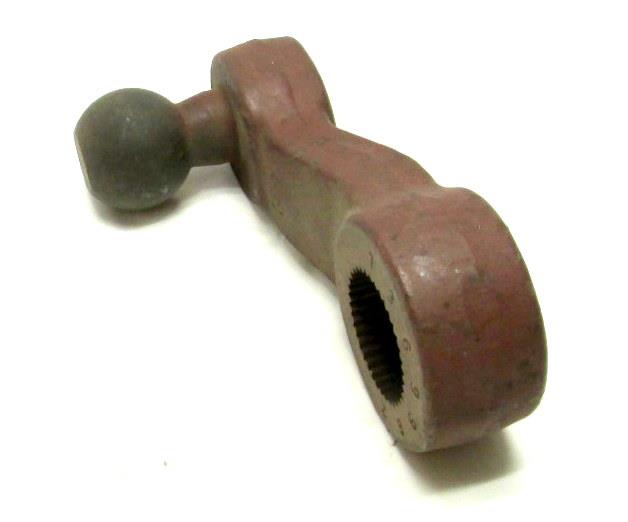

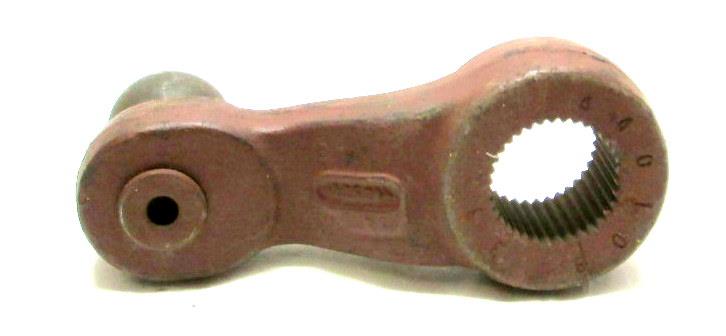

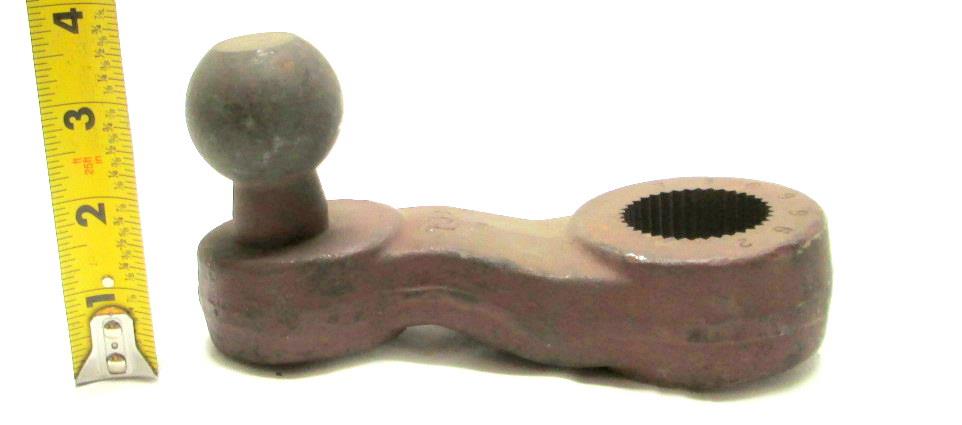

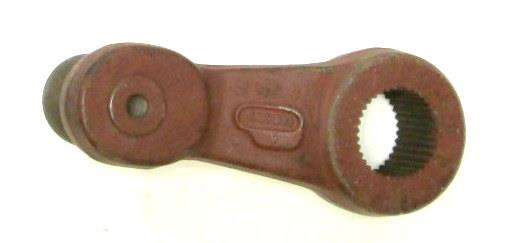

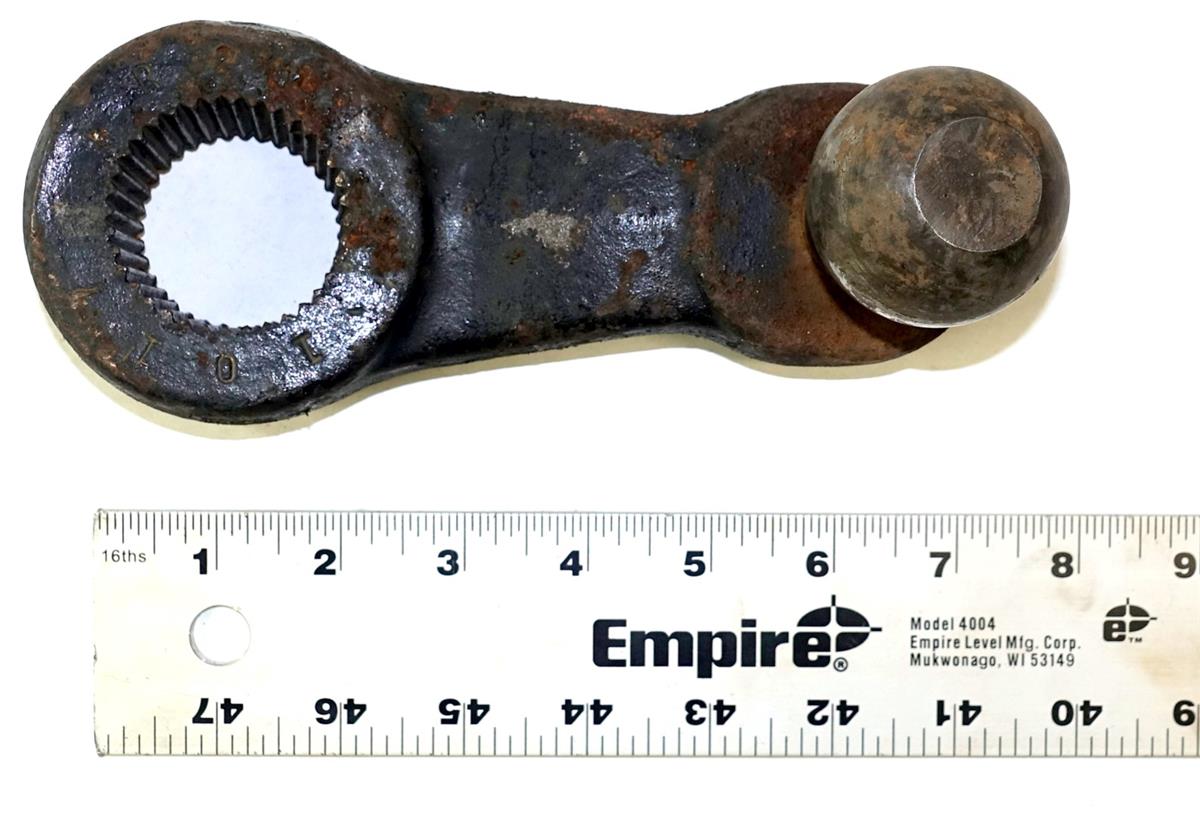

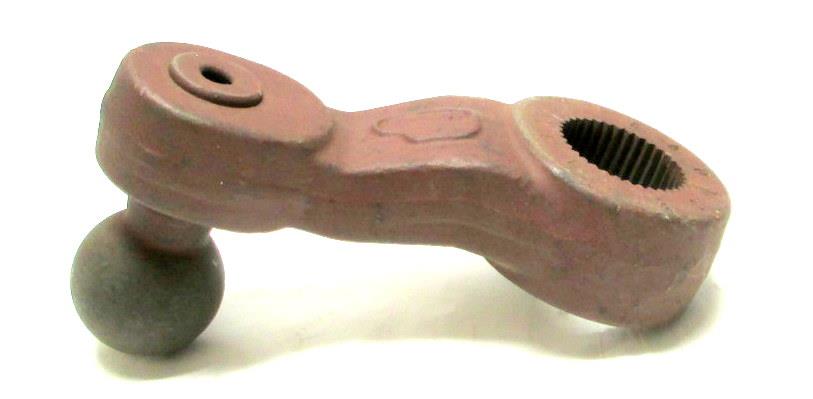

Steering Gear Pittman Arm with Ball Joint M54A1 M54A2 M809
Taper Length 1.250 IN
Serration Included Angle in Degrees 74.0
Bore Length 1.157 IN MIN 1.219 IN MAX
Bore Smallest Diameter 0.859 IN
Teeth QTY 36
Design Type Offset
Sector Shaft Mounting End Width 3.000 IN
Sector Shaft Mounting End Thickness 1.469 IN MIN 1.531 IN MAX
Small End Major Diameter 1.656 IN
Teeth Cut Angle in Degrees 4
Small End Teeth Depth 0.094 IN
Drag Link End With Ball Stud Bore
Center to Center Distance Between Ball/Ball Stud Hole and Sector Shaft Bore 4.500 IN MIN and 4.625 IN MAX
Taper 1.750 Per Foot in IN
Fits: 5 Ton 6x6 Military Truck
M54 and variants 5-Ton Trucks
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
