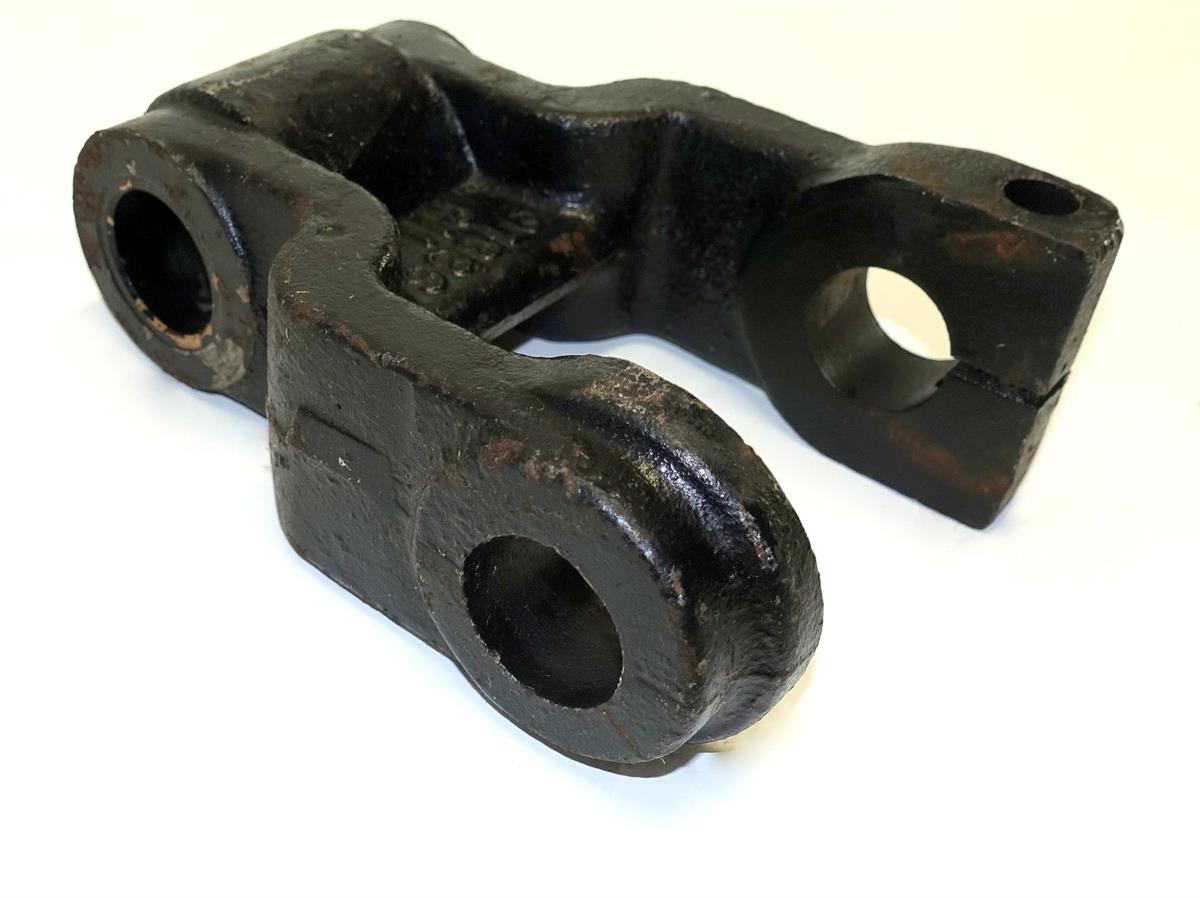

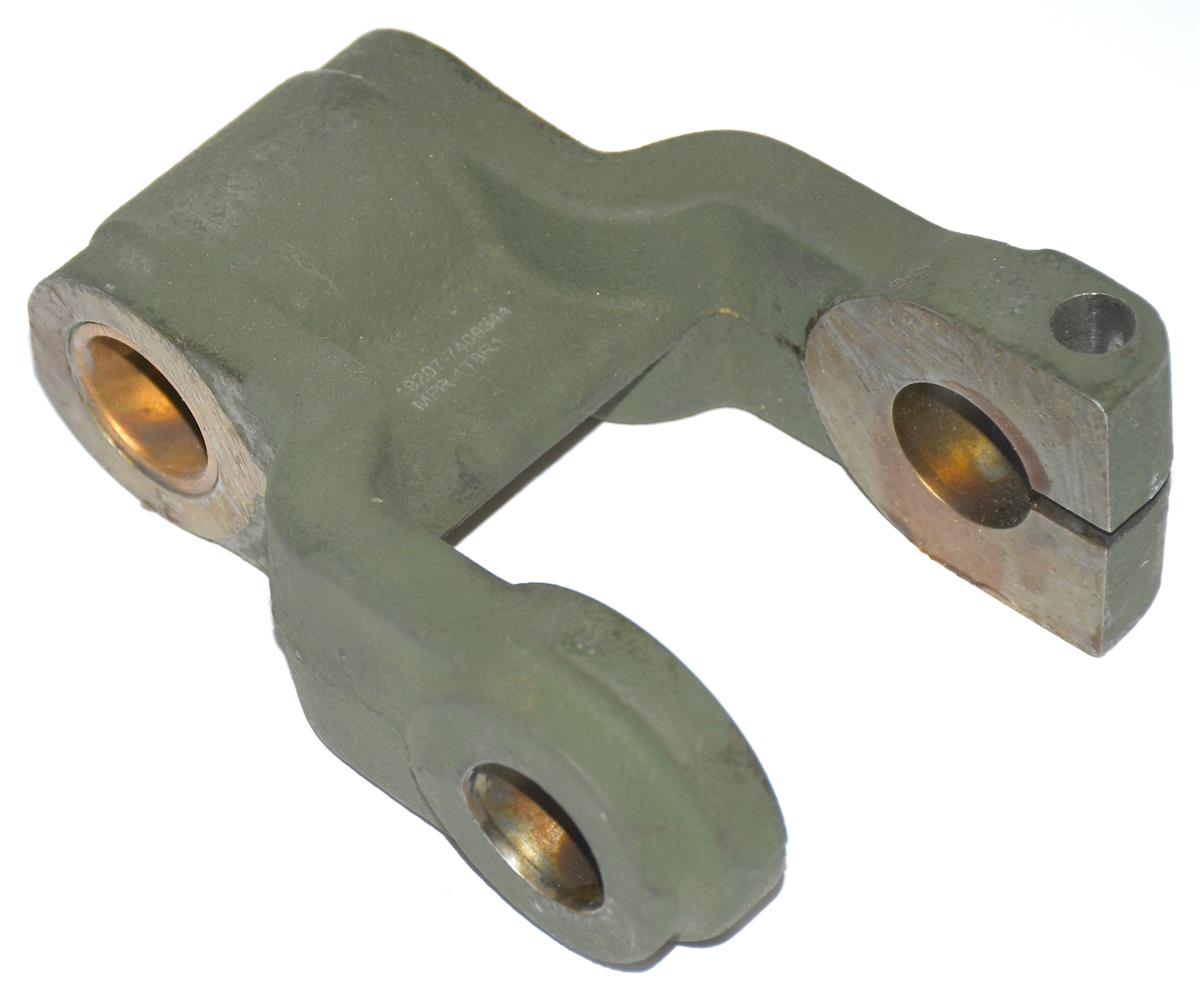

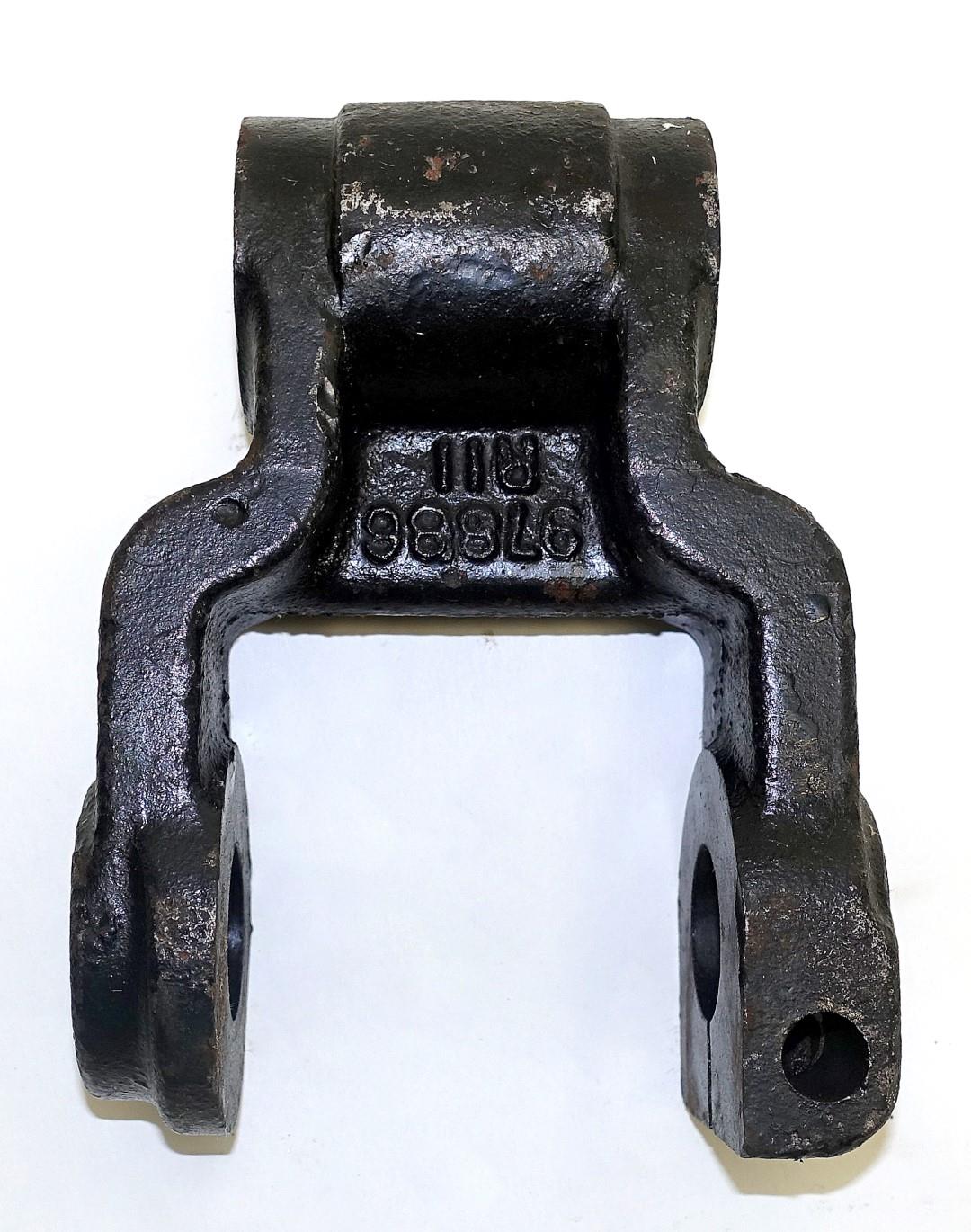

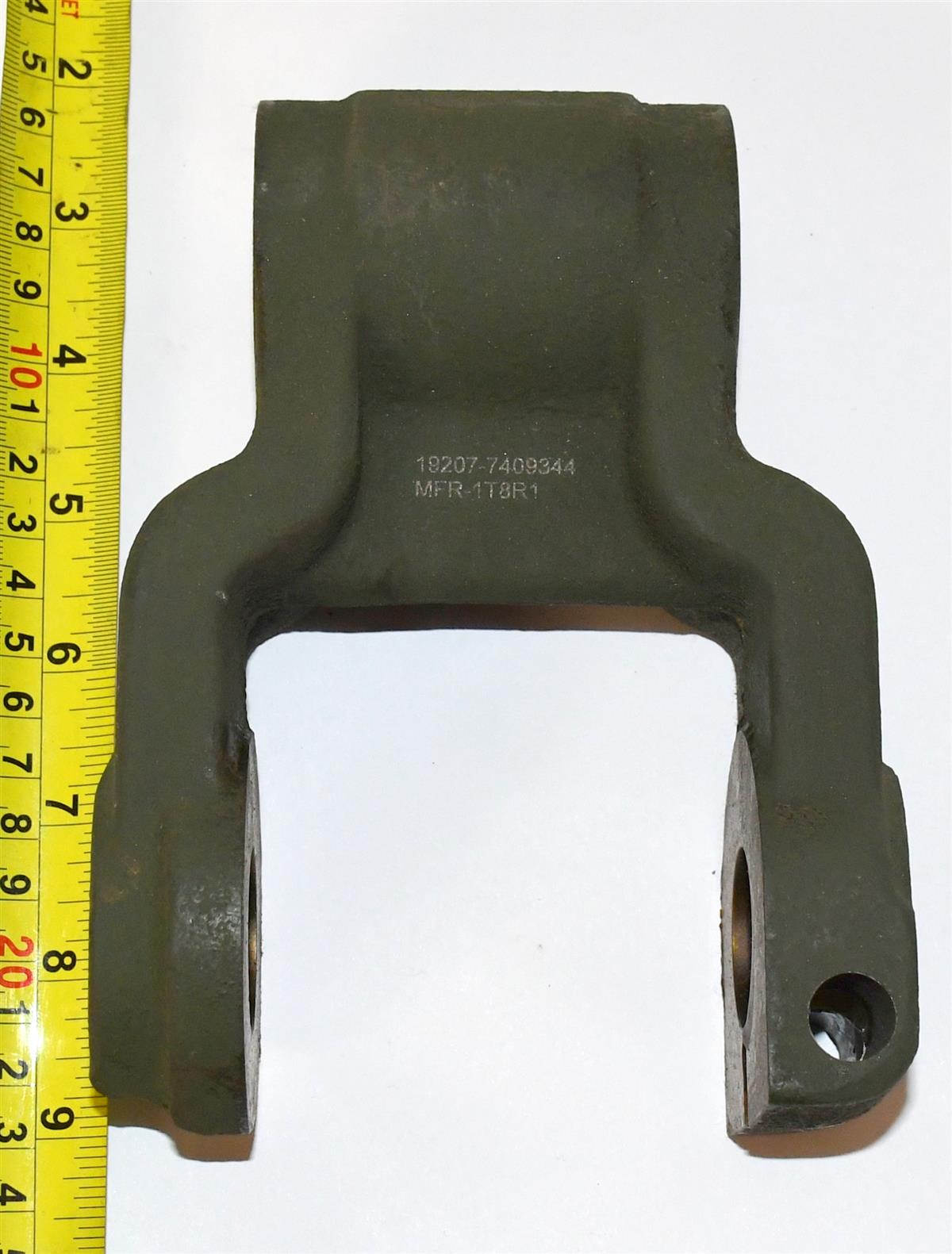

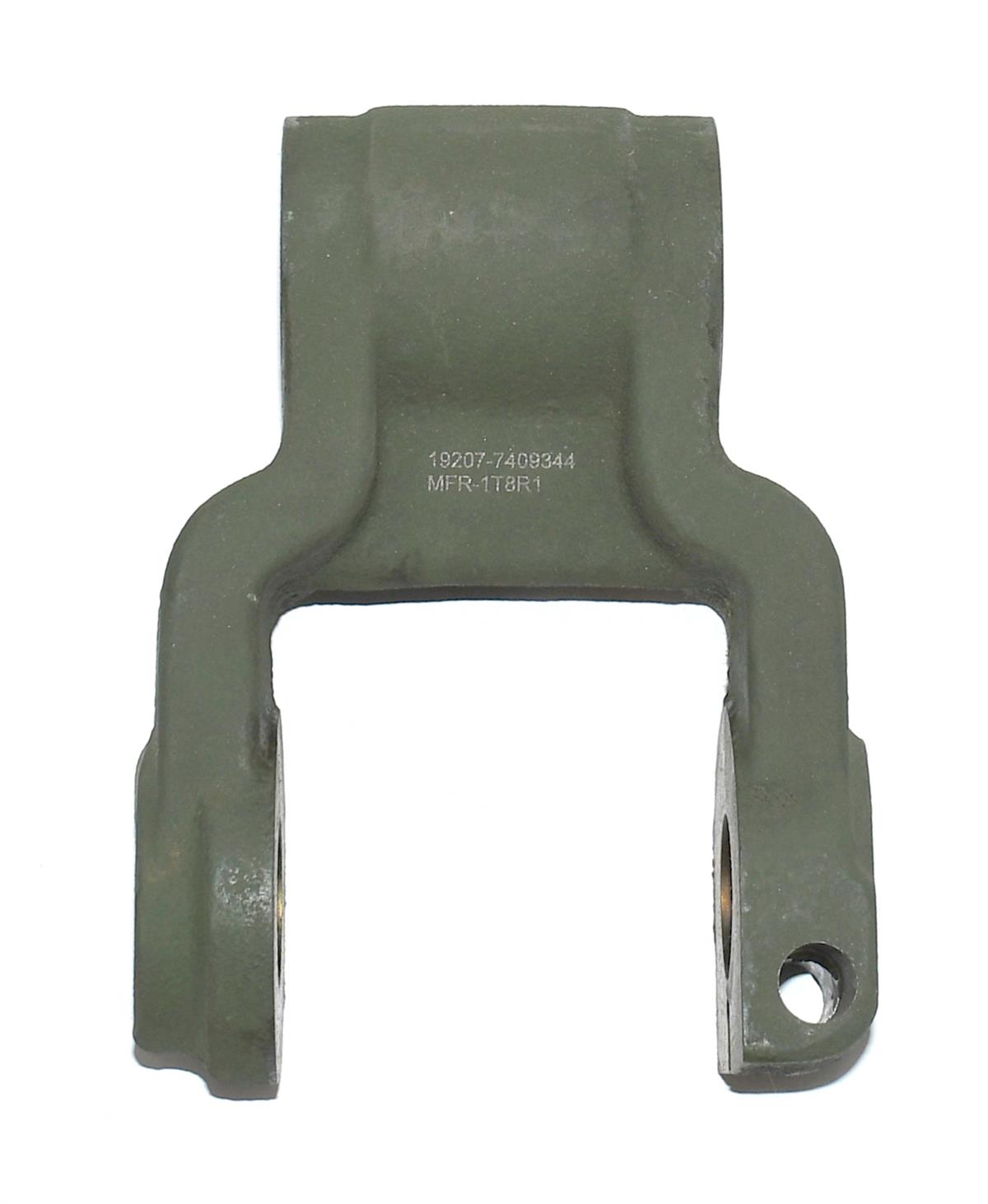

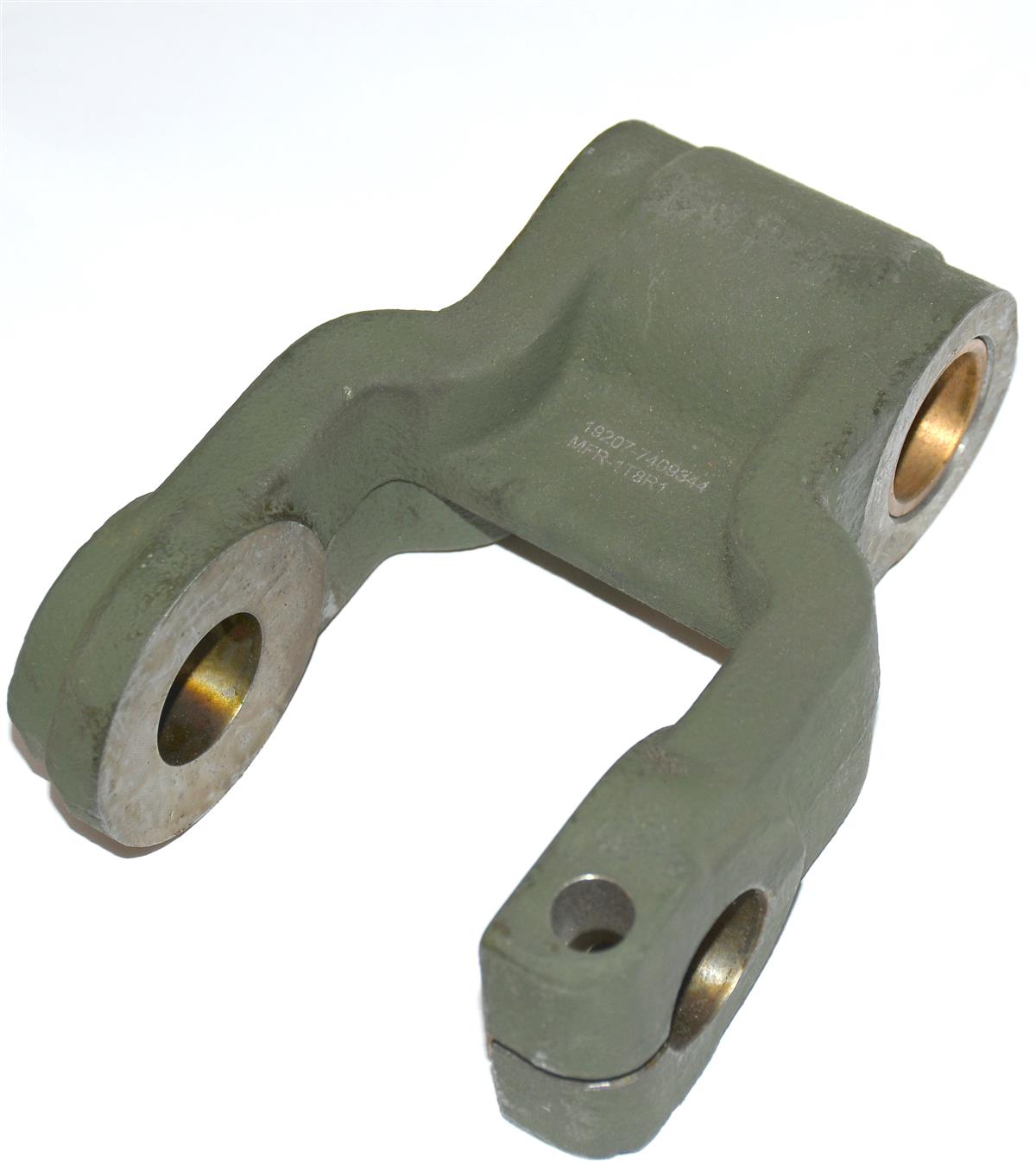

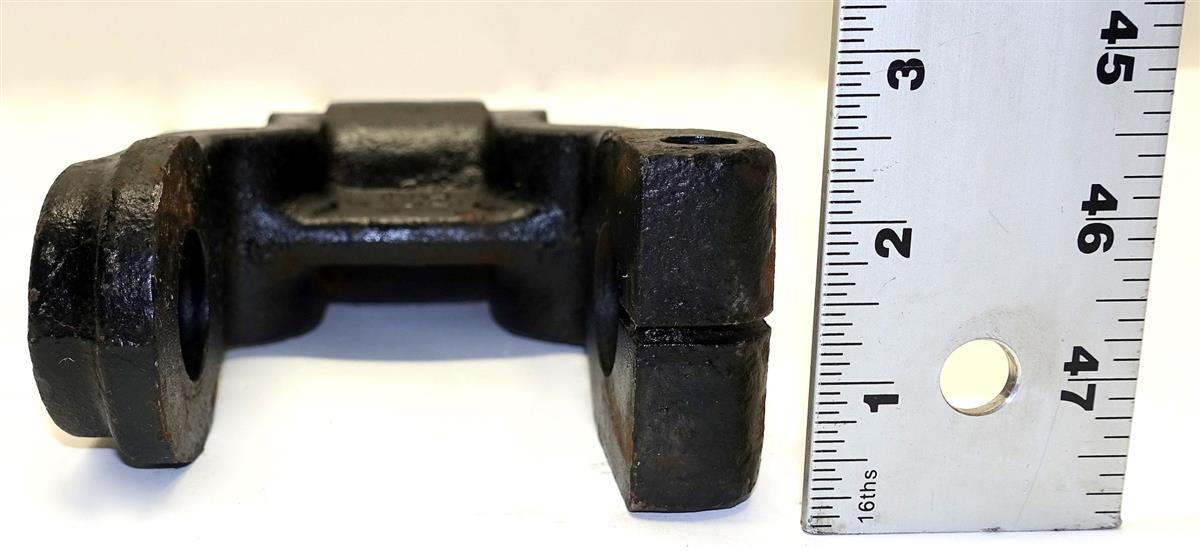

Leaf Spring Shackle 5 Ton M54A2 M809 M939A1 M939A2
- Slot Width is 0.156 Inches Nominal

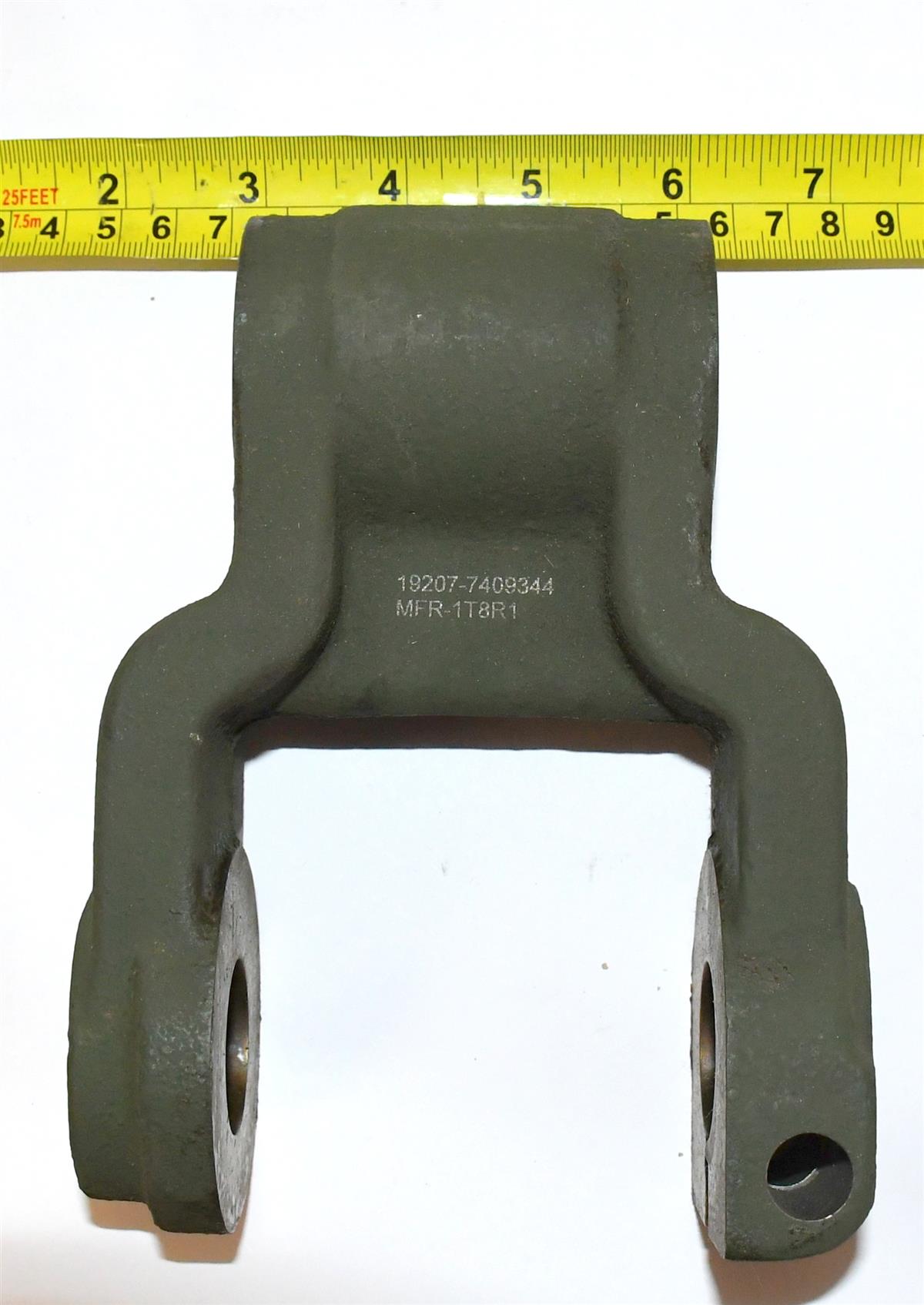

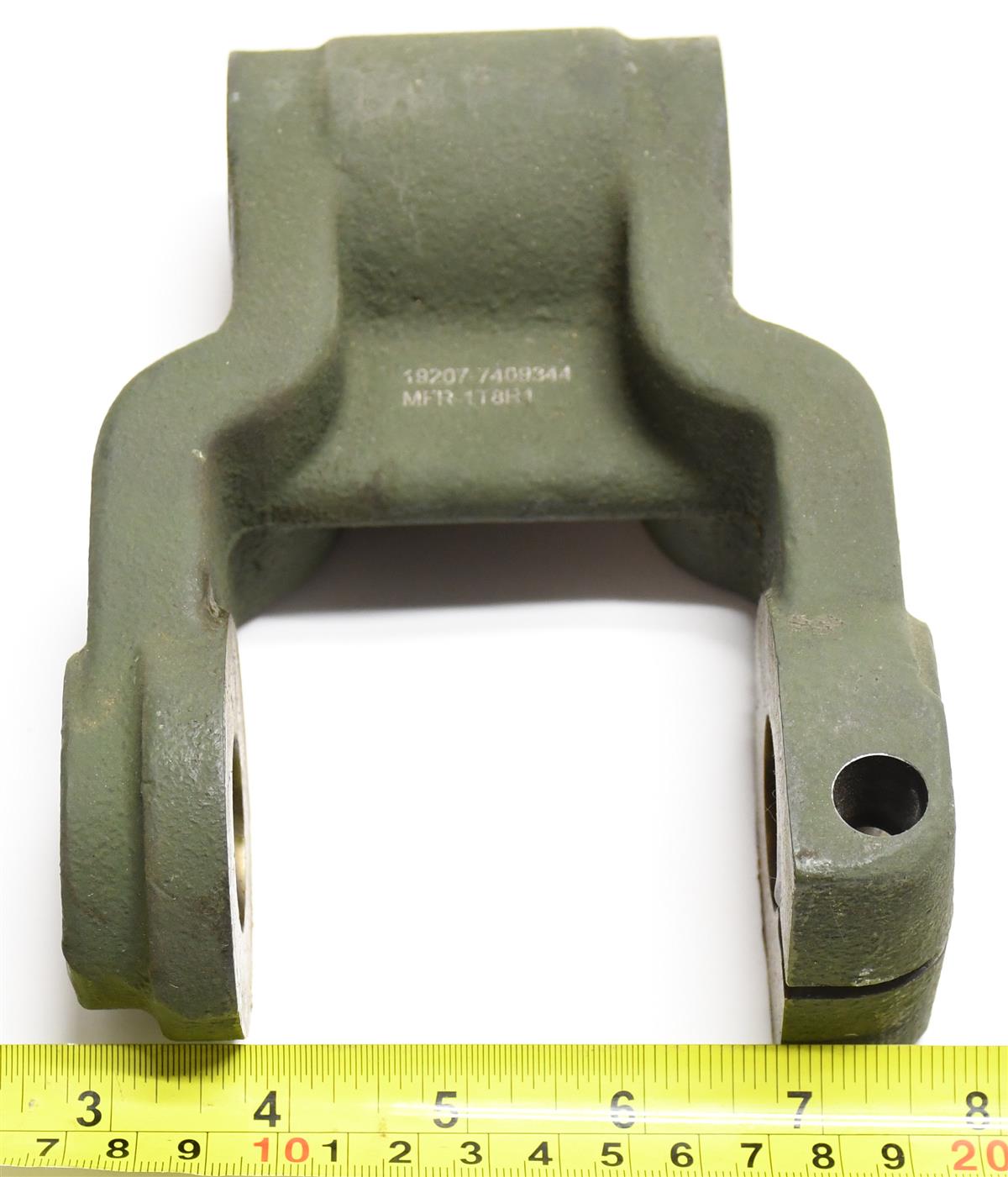

- Overall Width is 4.843 Inches Nominal
- Center to Center Distance between Holes is 4.375 Inches Nominal
- Pinhole Diameter is 0.514 Inches Nominal
- Width Between Legs is 3.016 Inches Nominal

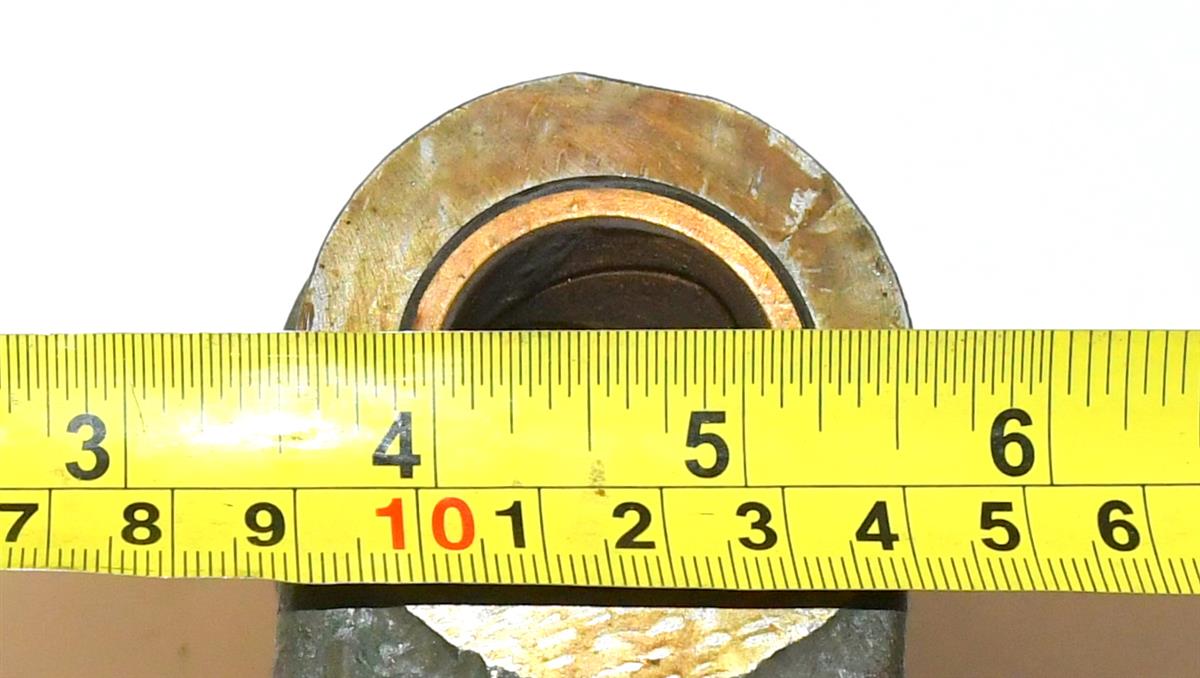

- Leg Hole Diameter is 2.000 Inches Nominal

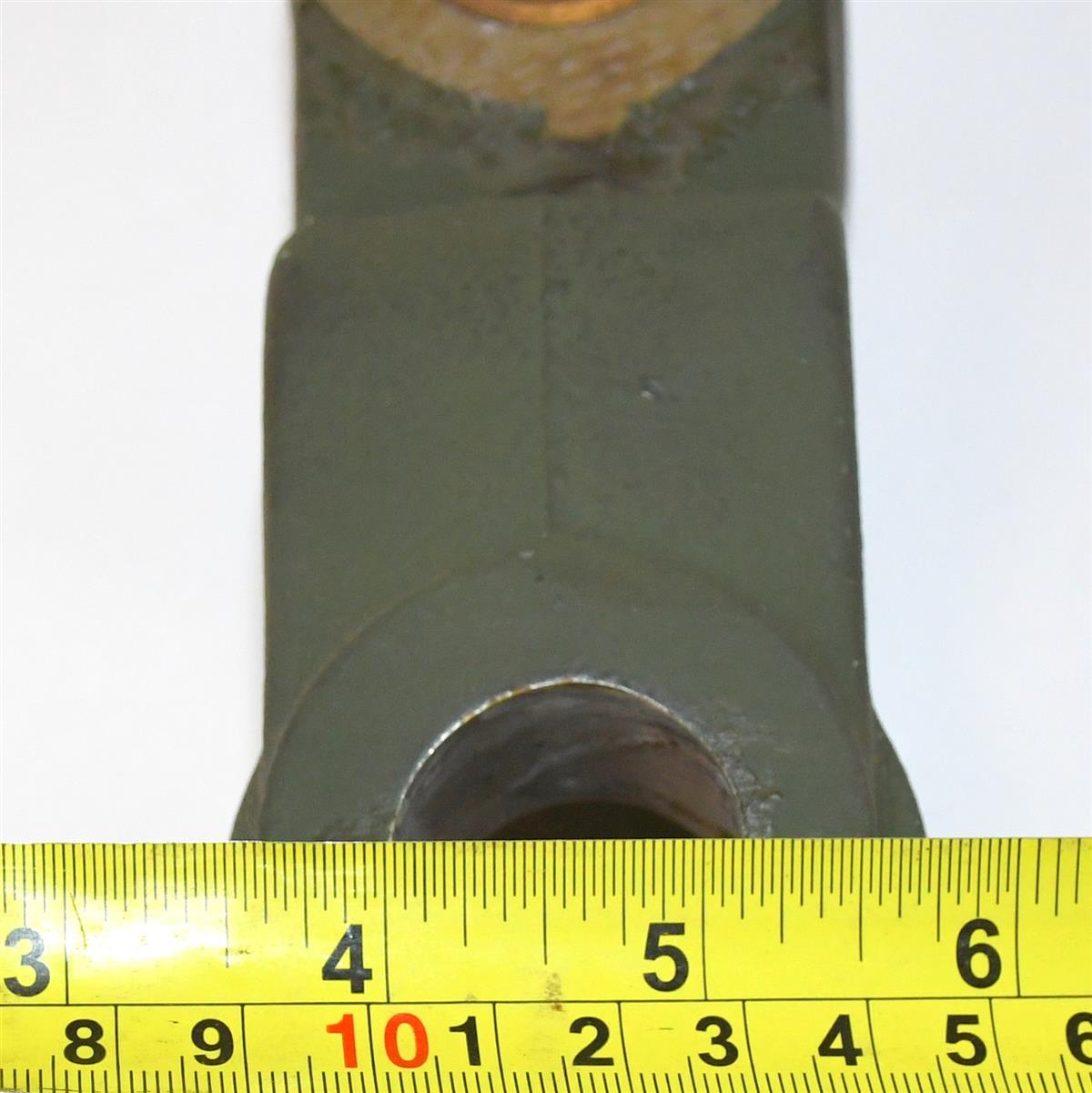

- Attaching End Width is 3.000 Inches Nominal
- Attaching End Hole Diameter is 2.000 Inches Nominal
- Iron Malleable Overall Material

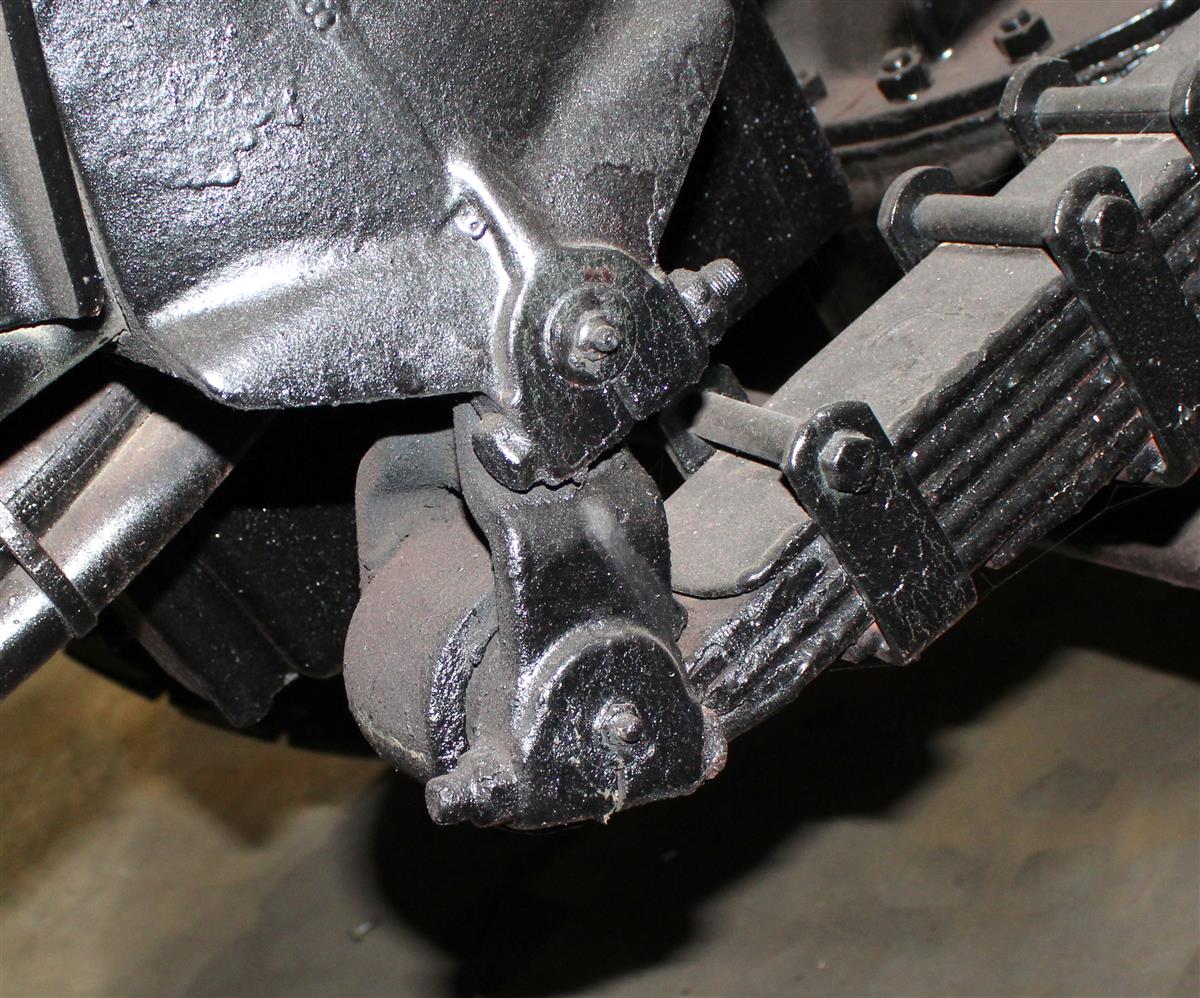

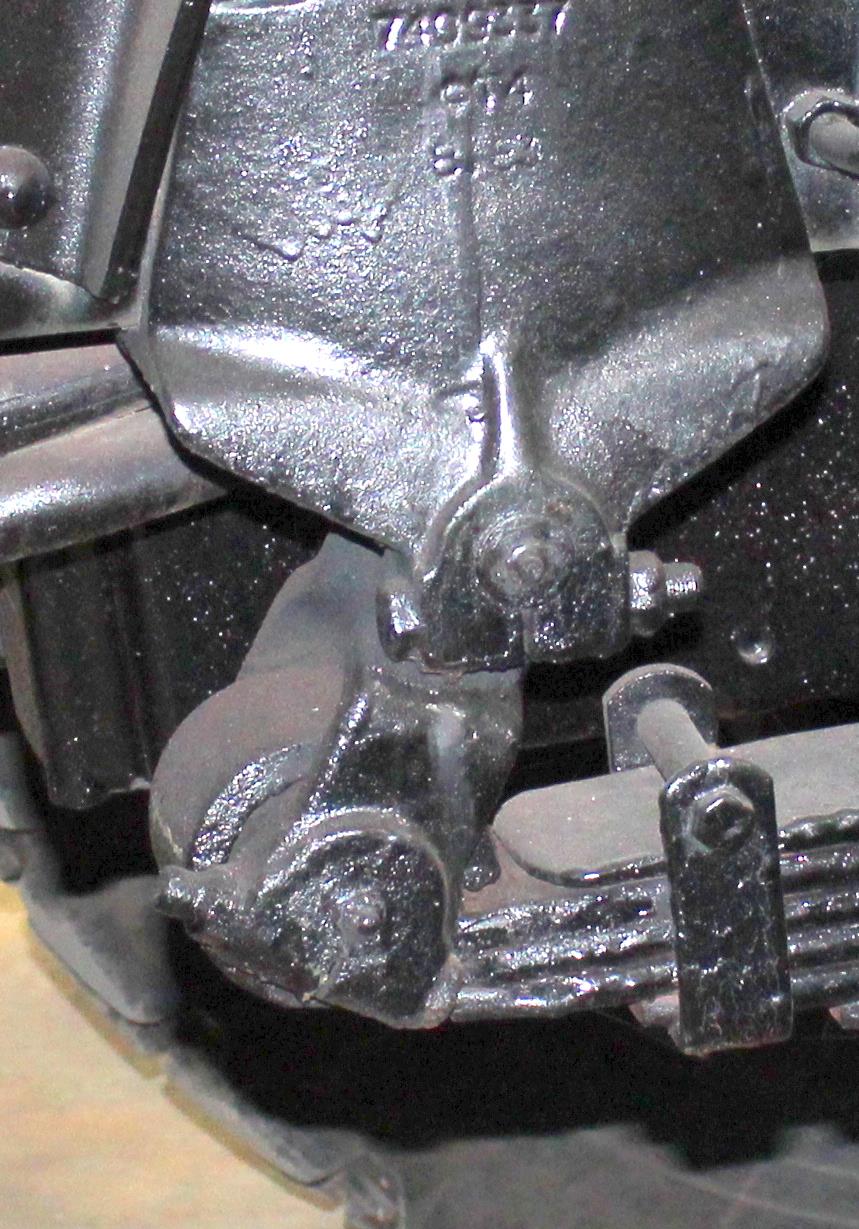

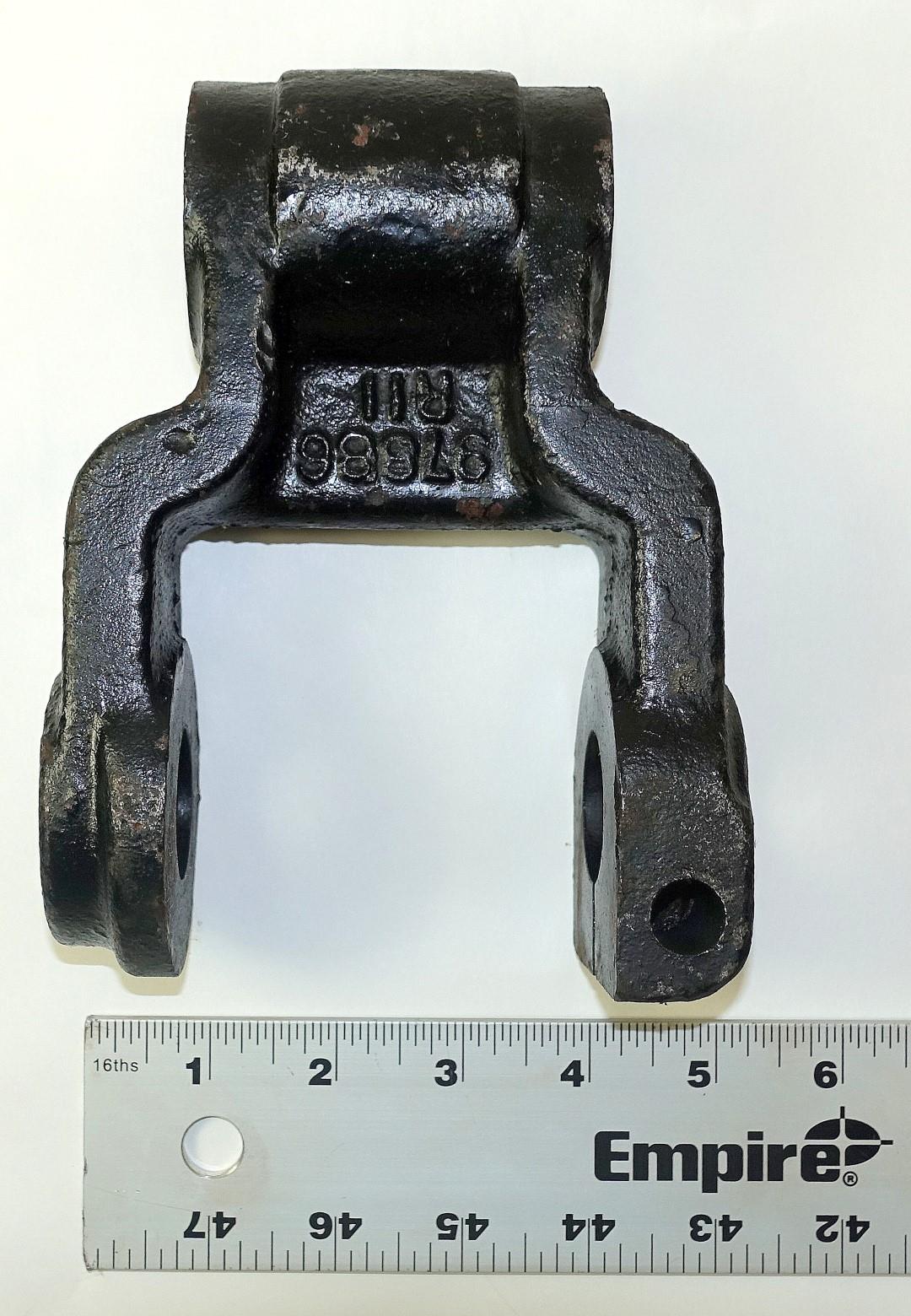

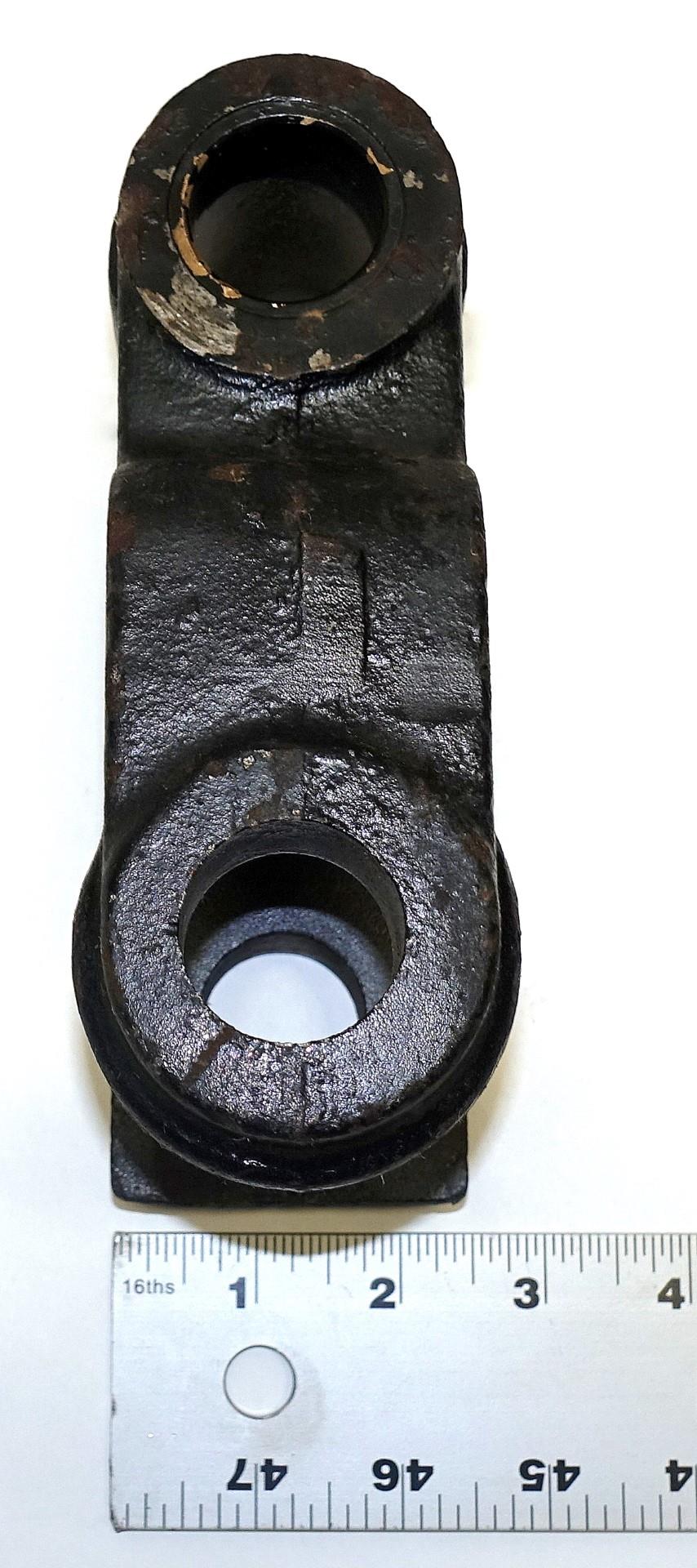

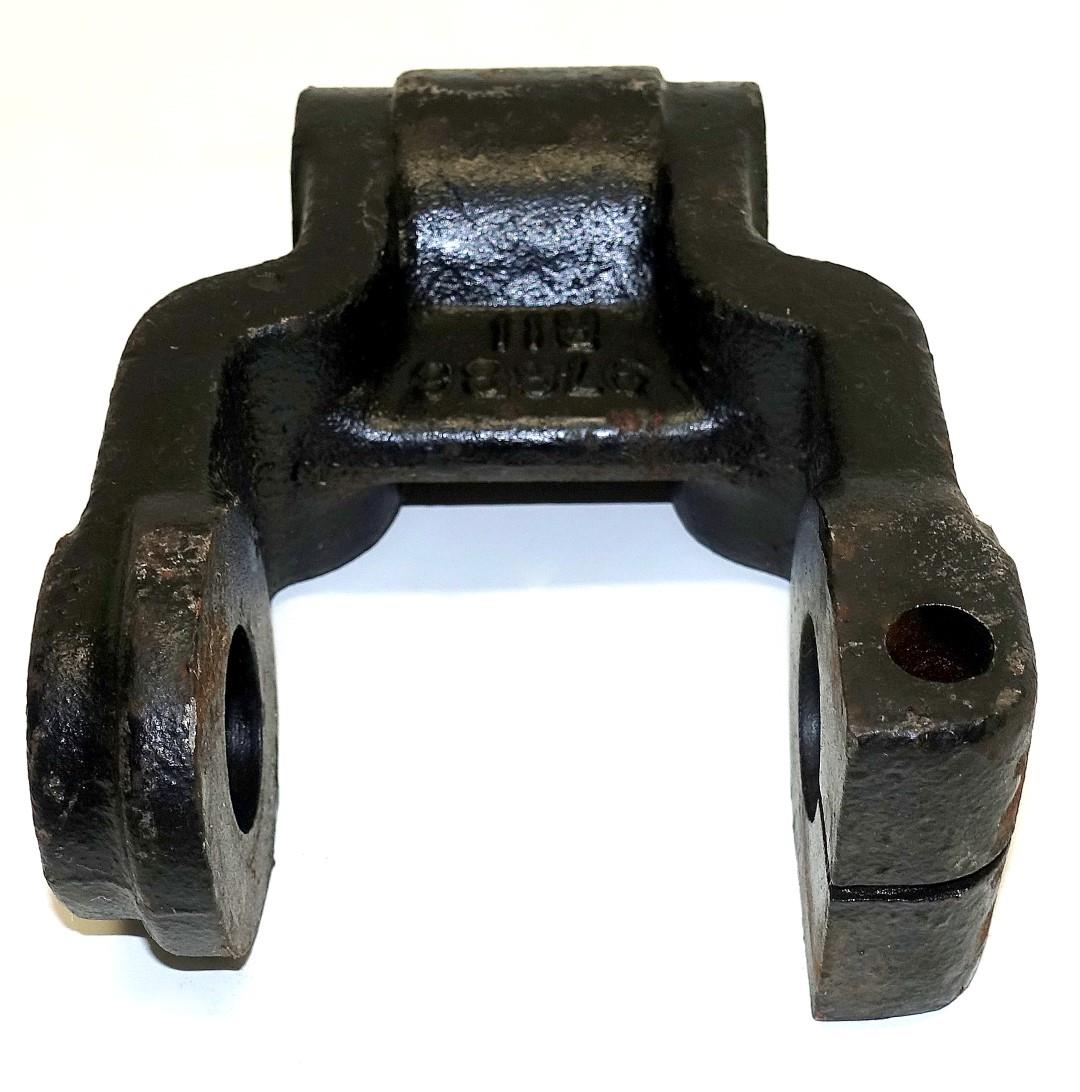

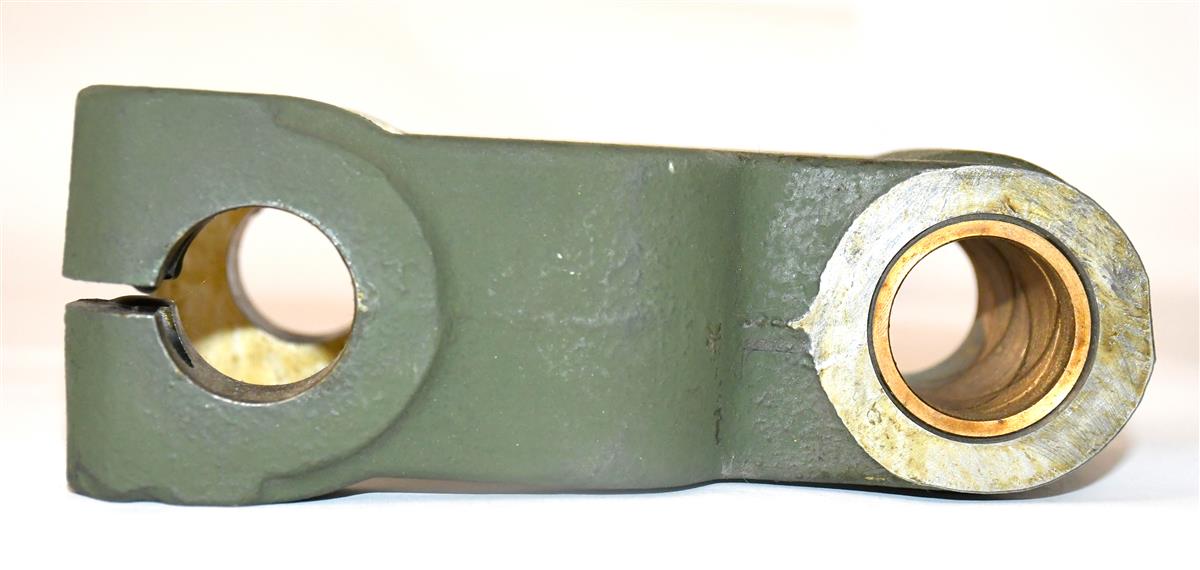

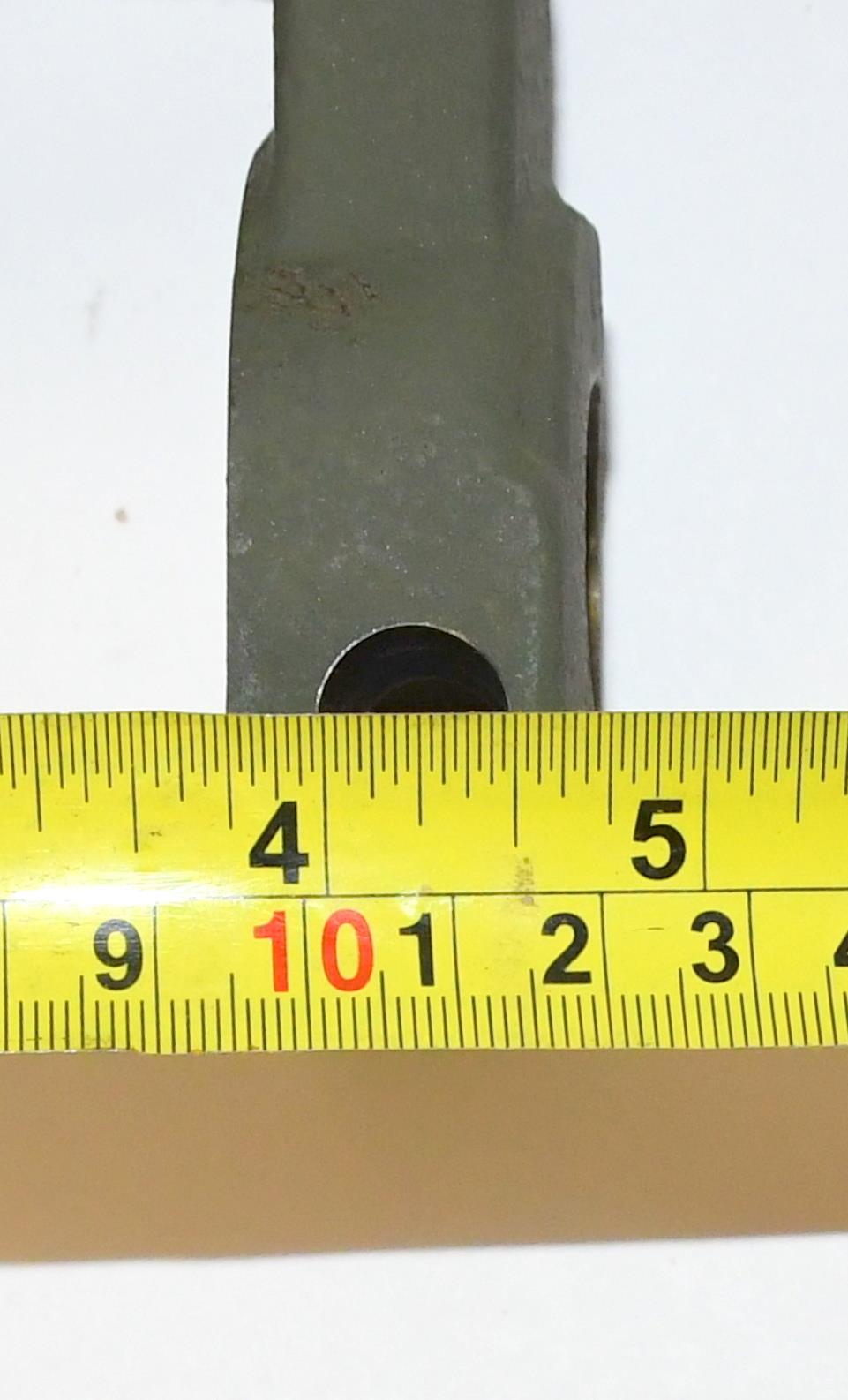

- Placement Shown in Pictures

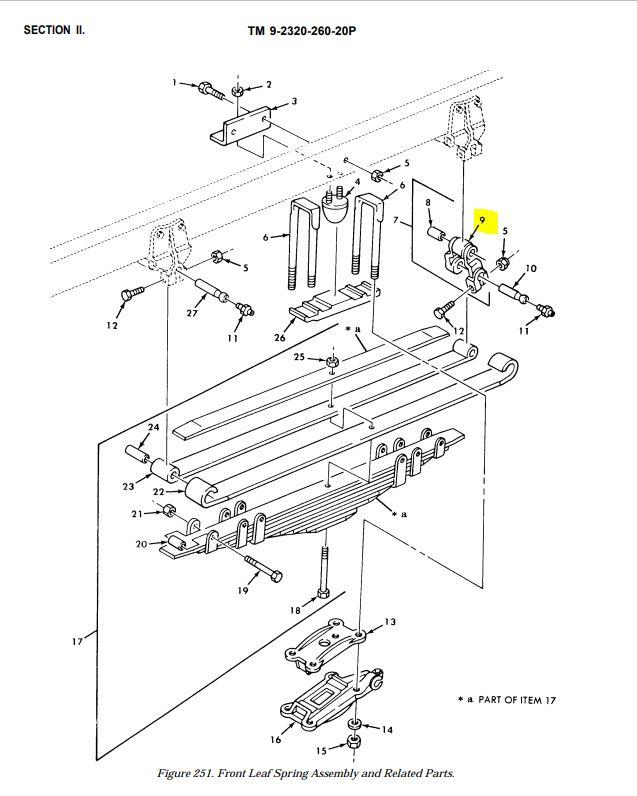

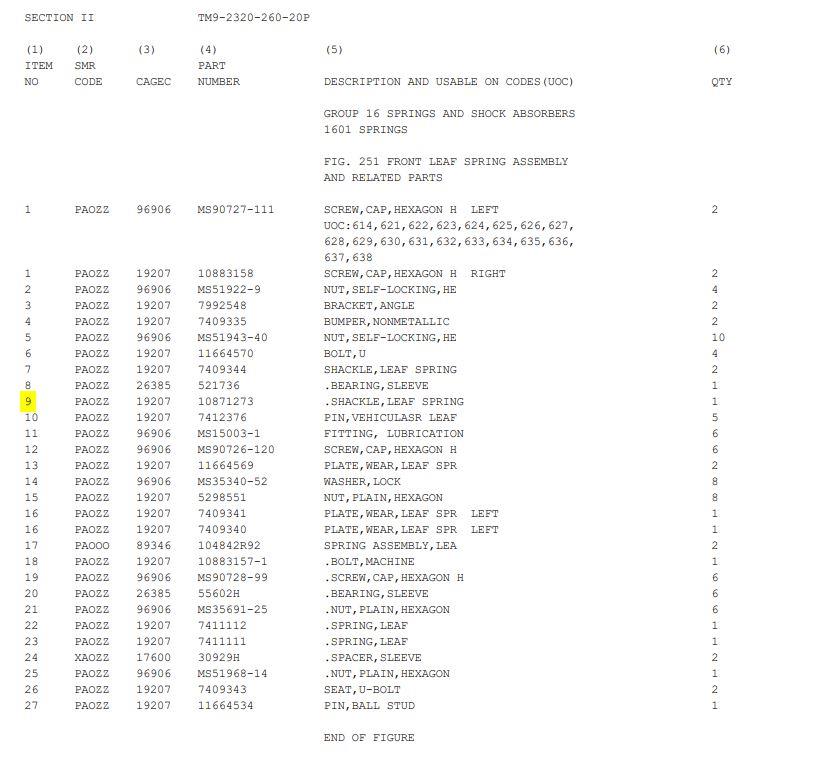

- Diagram Shown in Pictures
Fits: 5 Ton 6 x 6 Military Trucks
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2 5-Ton Trucks
M54 and variants 5-Ton Trucks
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
