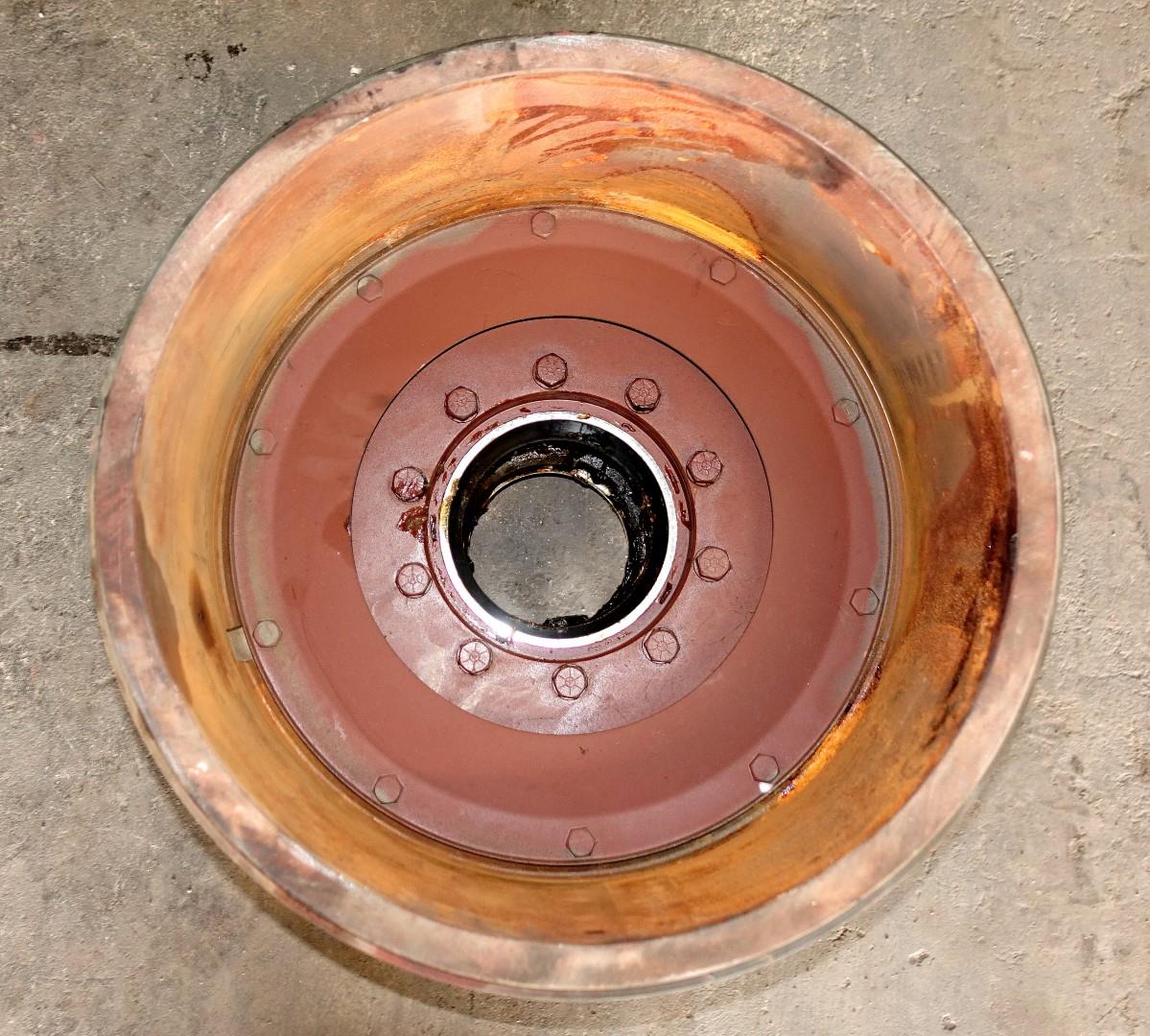

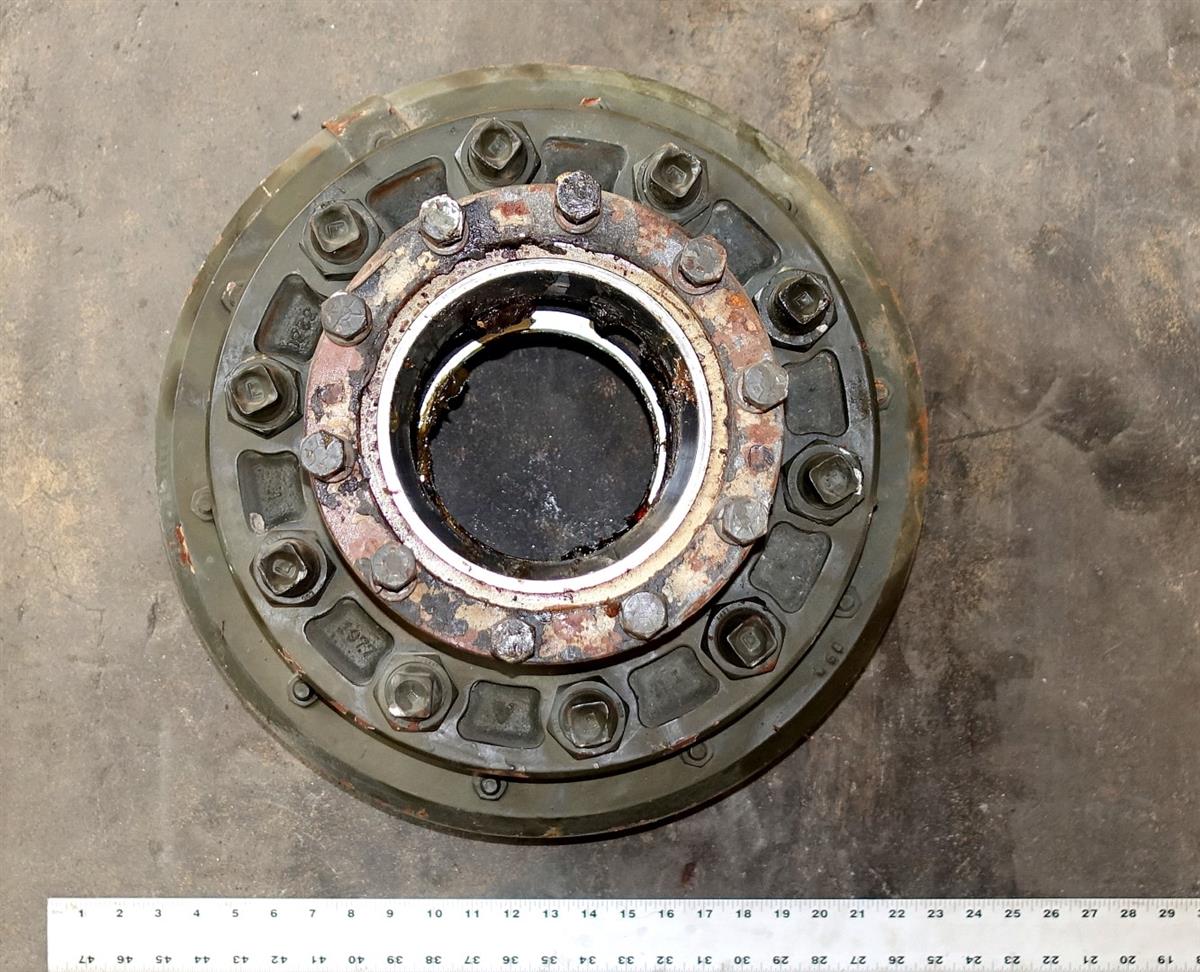

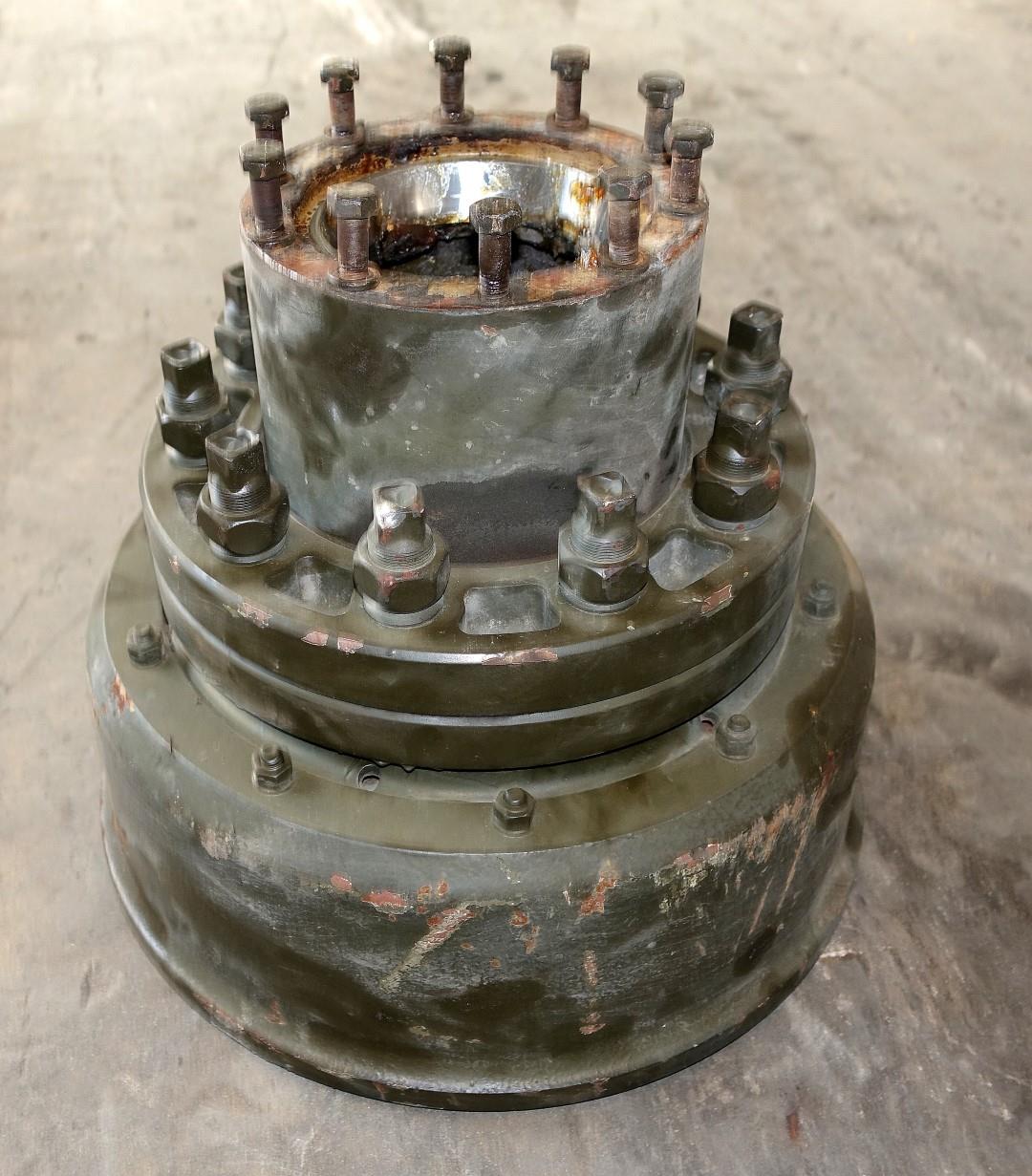

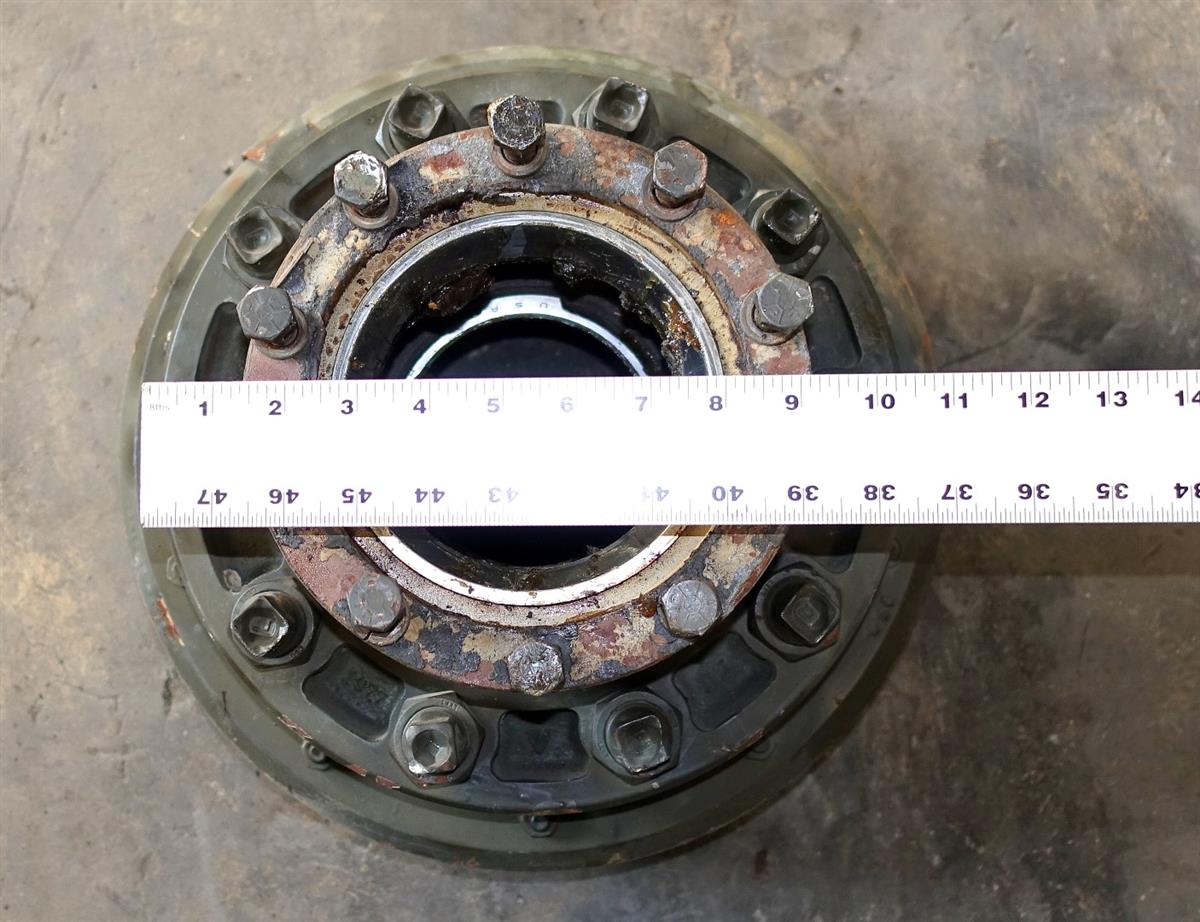

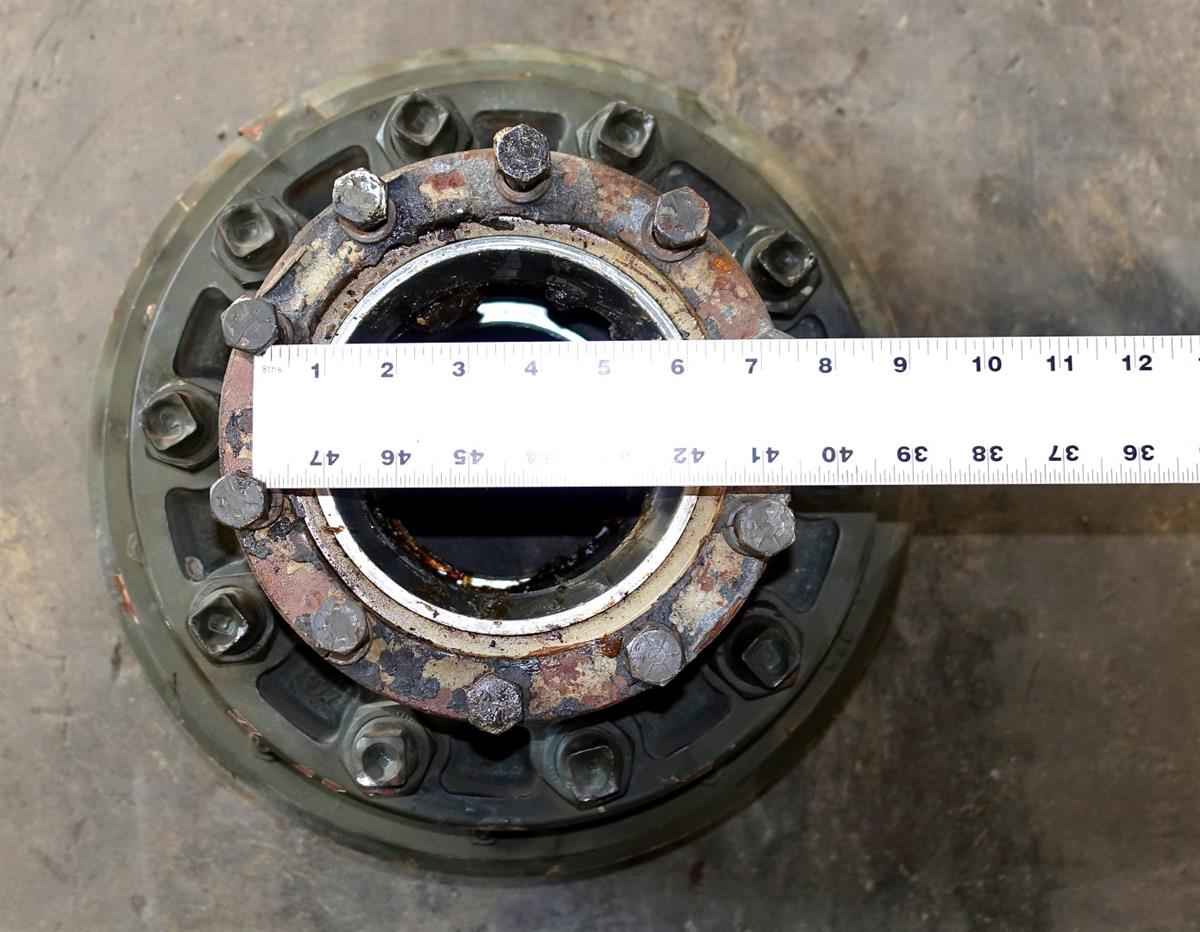

Hub and Brake Assembly, Bridge Truck Right Hand (RH)
Fits:
M821 M812A1 5-Ton Trucks
M139 series Bridge Trucks
Item Includes:
- Bolt (RH) PN: 10938444-2 NSN: 5310-00-176-6521 item # 24 Shown in diagram Qty: 10
- Nut Cap (RH) PN: 1199J114C NSN: 2530-00-359-1162 item # 25 Shown in diagram Qty: 10
- Ribbed Bolt Stud (RH)
- Brake Drum PN: 7409394 NSN: 2530-00-093-5597 item # 8 Shown in diagram Qty: 1
- Spacer PN: 3280-A1977 NSN: 5365-01-132-2015 item # 9 Shown in diagram Qty: 2
- Hub Body PN: 7979324 NSN: 3040-00-421-3928 item # Shown in diagram Qty: 1
- Cover Access PN: 7979315 NSN: 5340-00-211-6129 item # 12 Shown in diagram Qty: 1
- Washer Lock PN: MS35338-47 NSN: 5310-00-209-0965 item # 13 Shown in diagram Qty:10
- Hexagon Nut PN: MS51968-11 NSN: 5310-880-7745 item # 14 Shown in diagram Qty: 10
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
