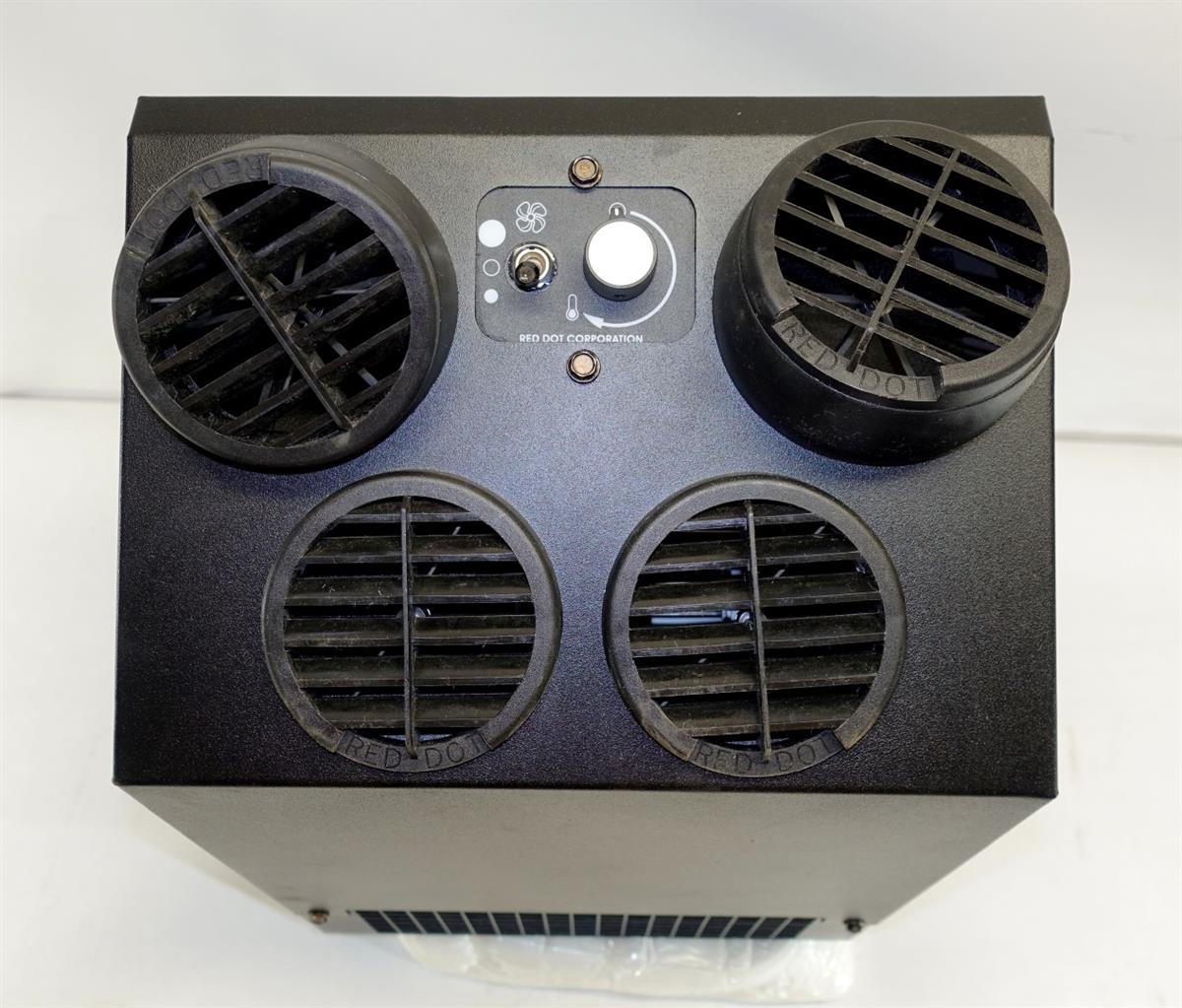

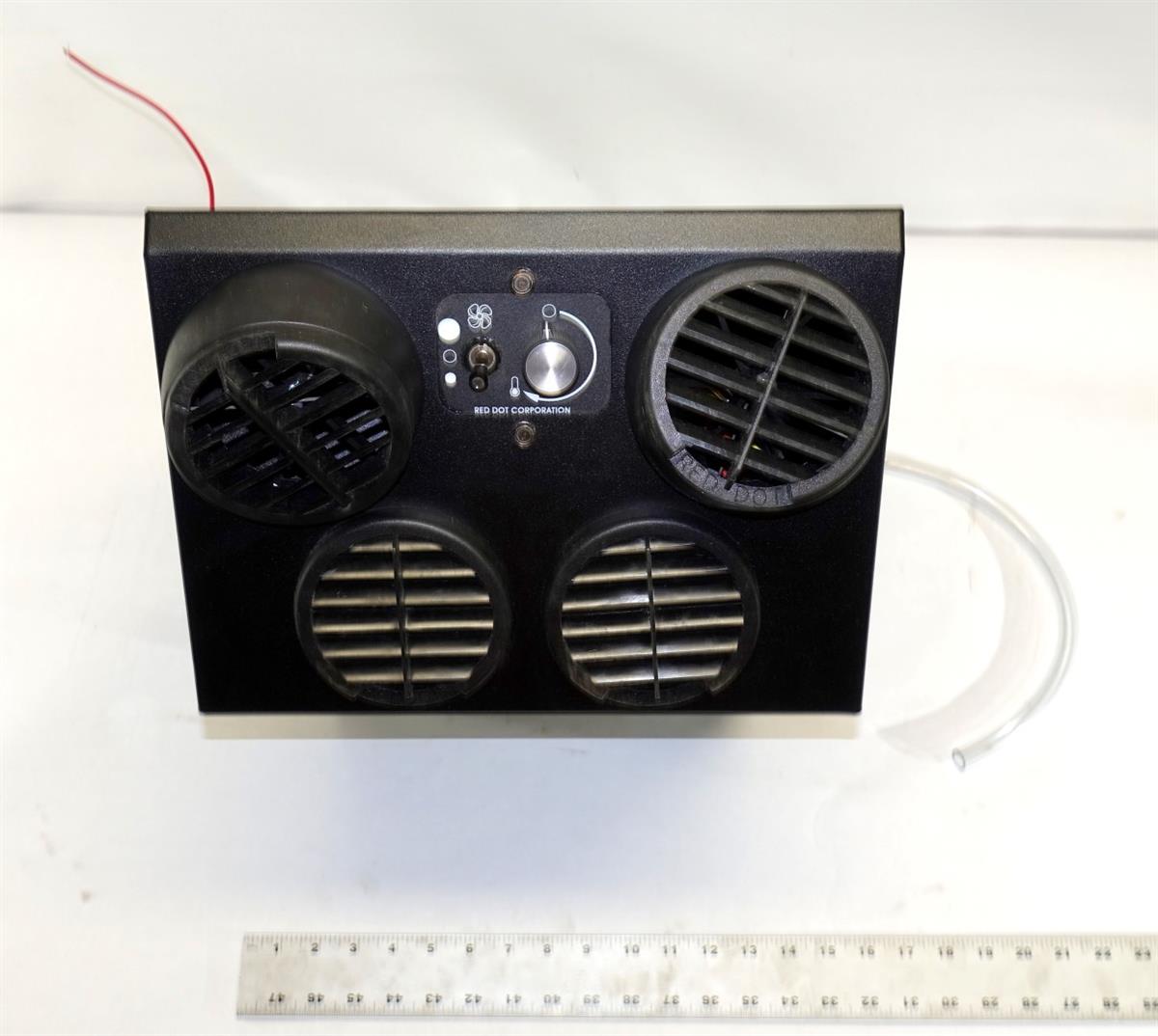

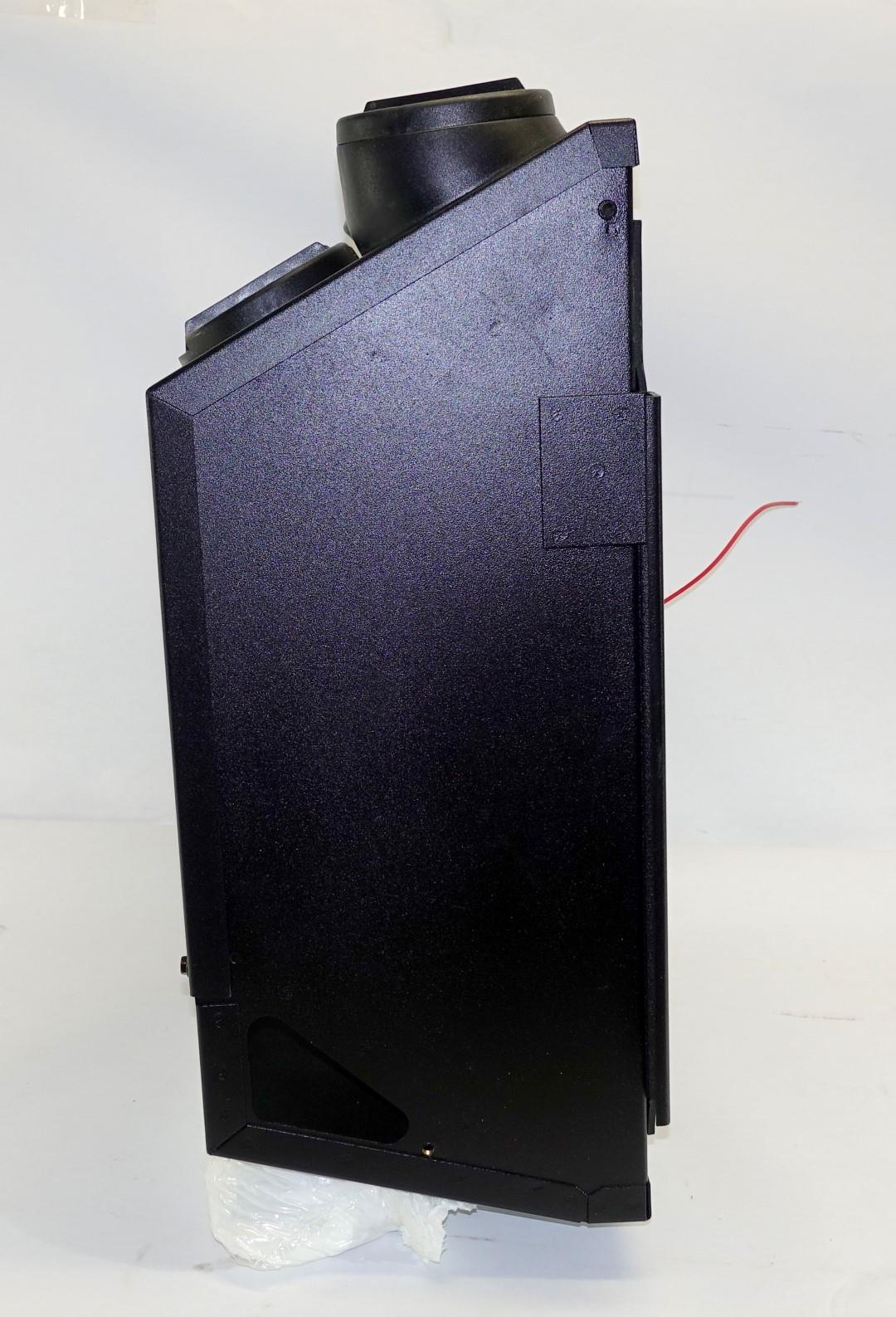

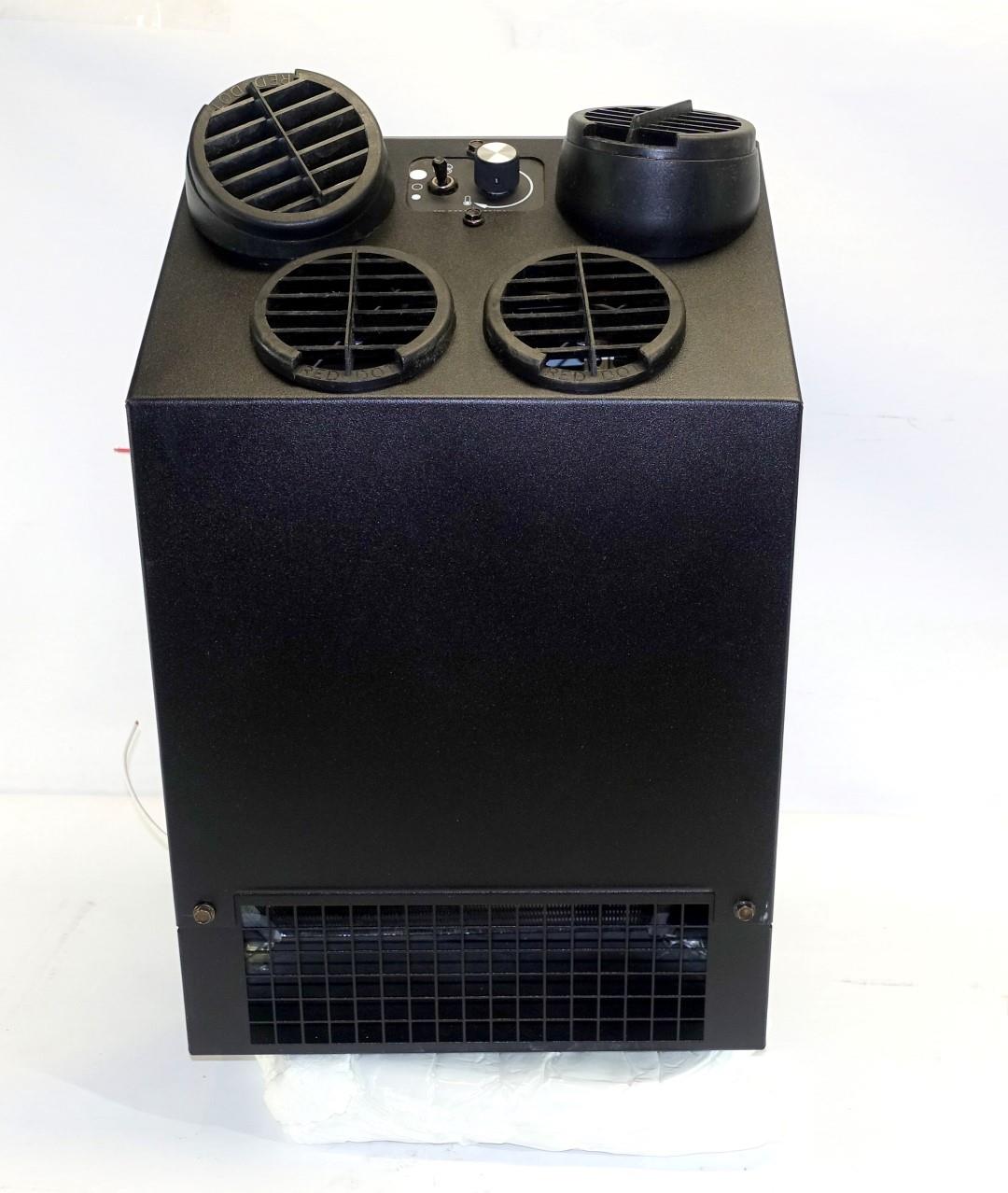

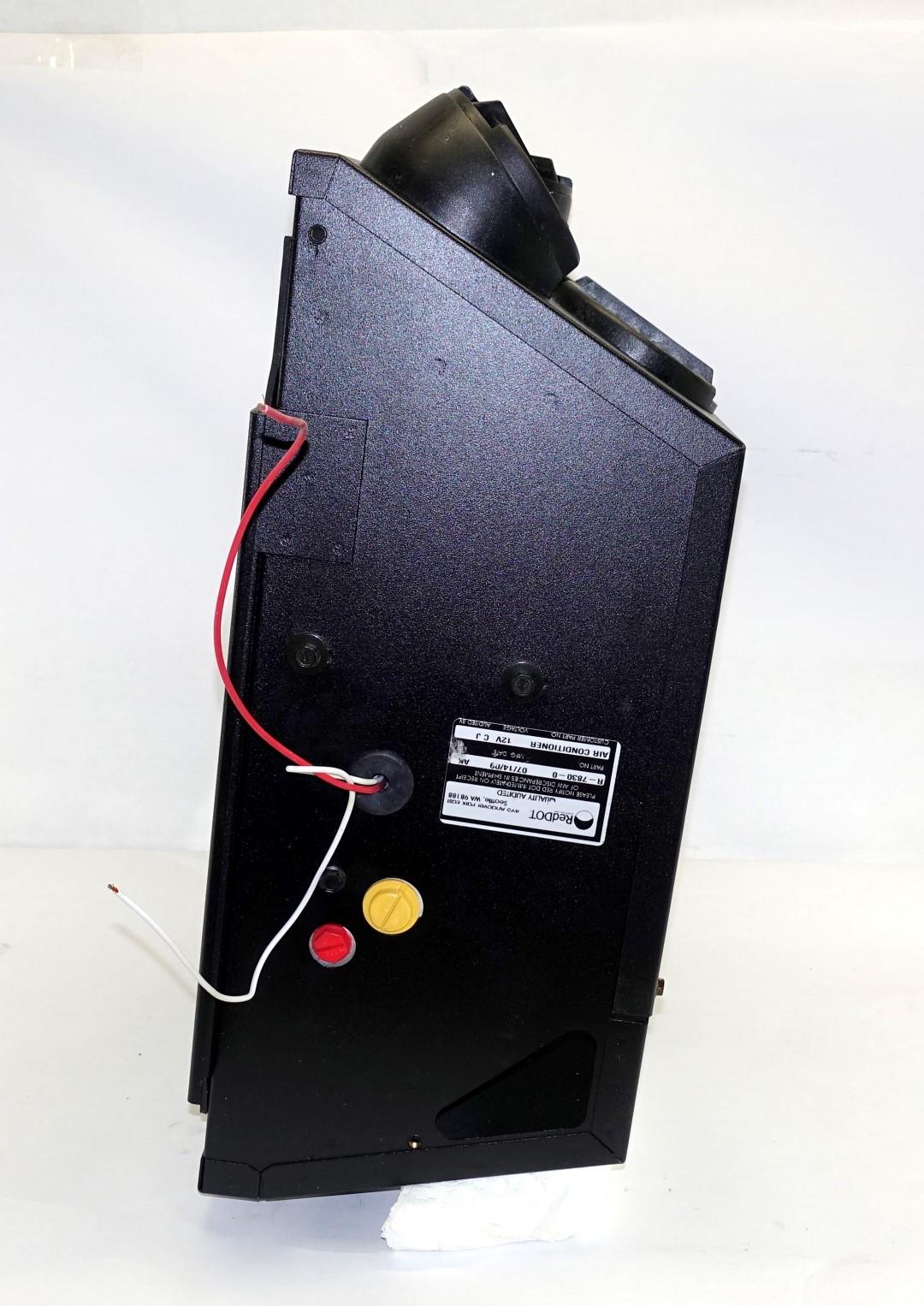

Red Dot 12 Volt Evaporator and Fan Unit
Fits:
Commercial Vehicles

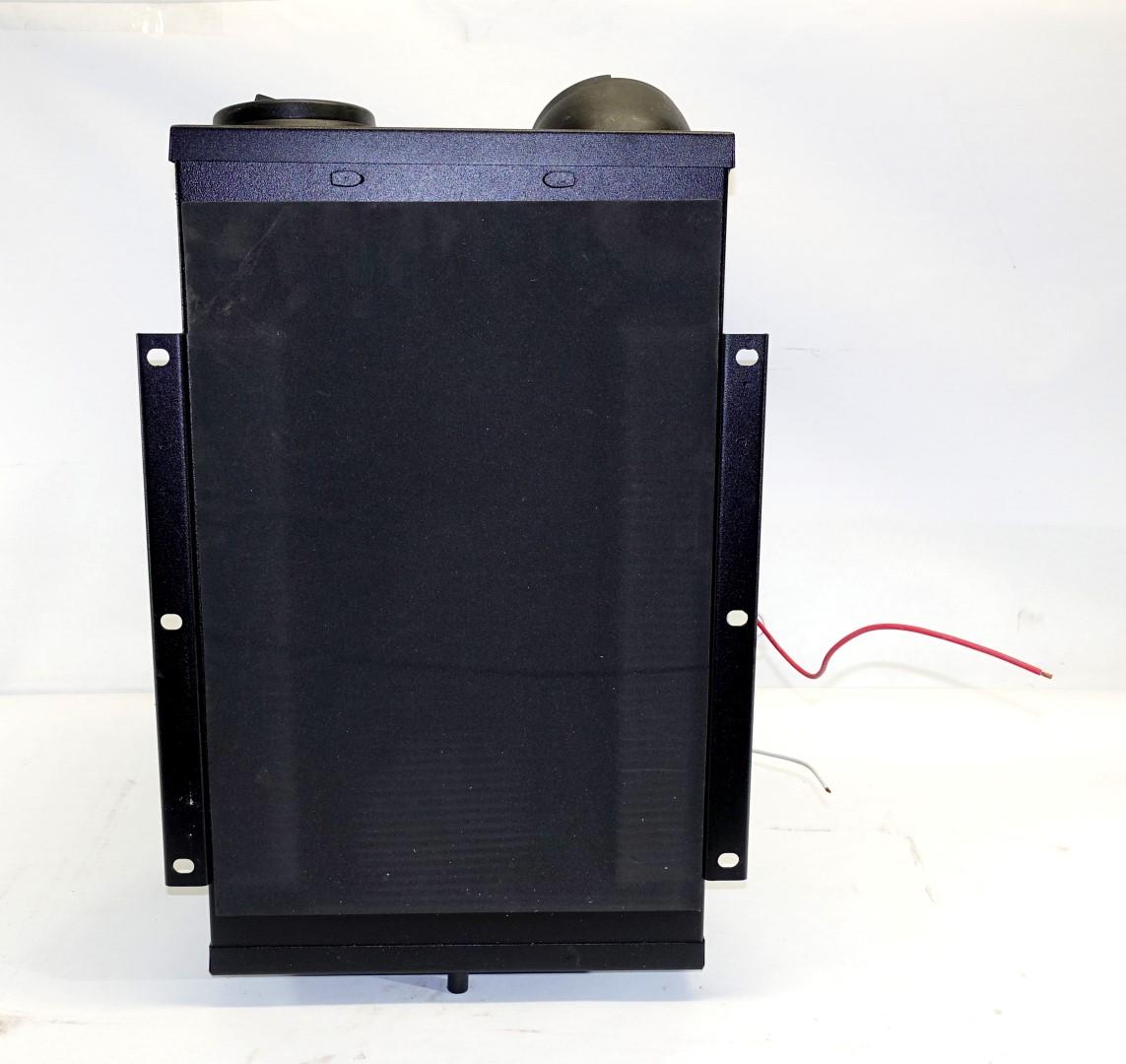

- Mounts between the seats to back walls in most class 6-8 conventional cabs
- It can also be front dash mounted in some class 6 and 7 vehicles where a flat space permits.
- BTU's: 17,180 BTU/Hr with 36°F (4329 kcal/h w/2.2°C) Refrigerant
Temp. and 80°F (26°C) Wet Bulb Entering Air
-
Air Flow: 260 CFM (442 m3/h)
- Current Draw: 18 Amps @ 13.6 V.D.C. (Includes 4 Amps for A/C Clutch) 9 Amps @ 27.2 V.D.C. (Includes 2 Amps for A/C Clutch)
-

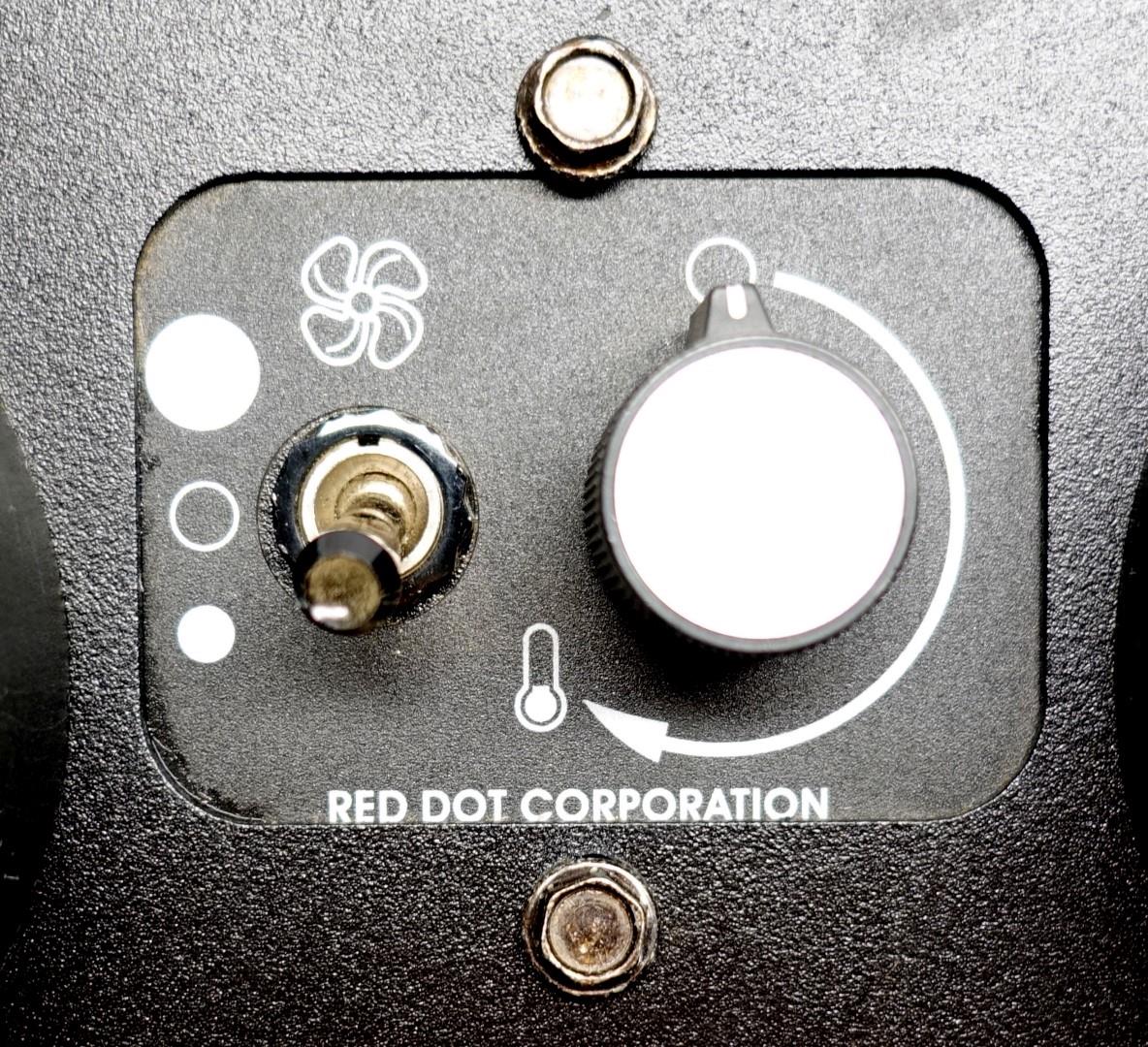

Controls: High-low motor speed, four adjustable louvers, adjustable thermostat
