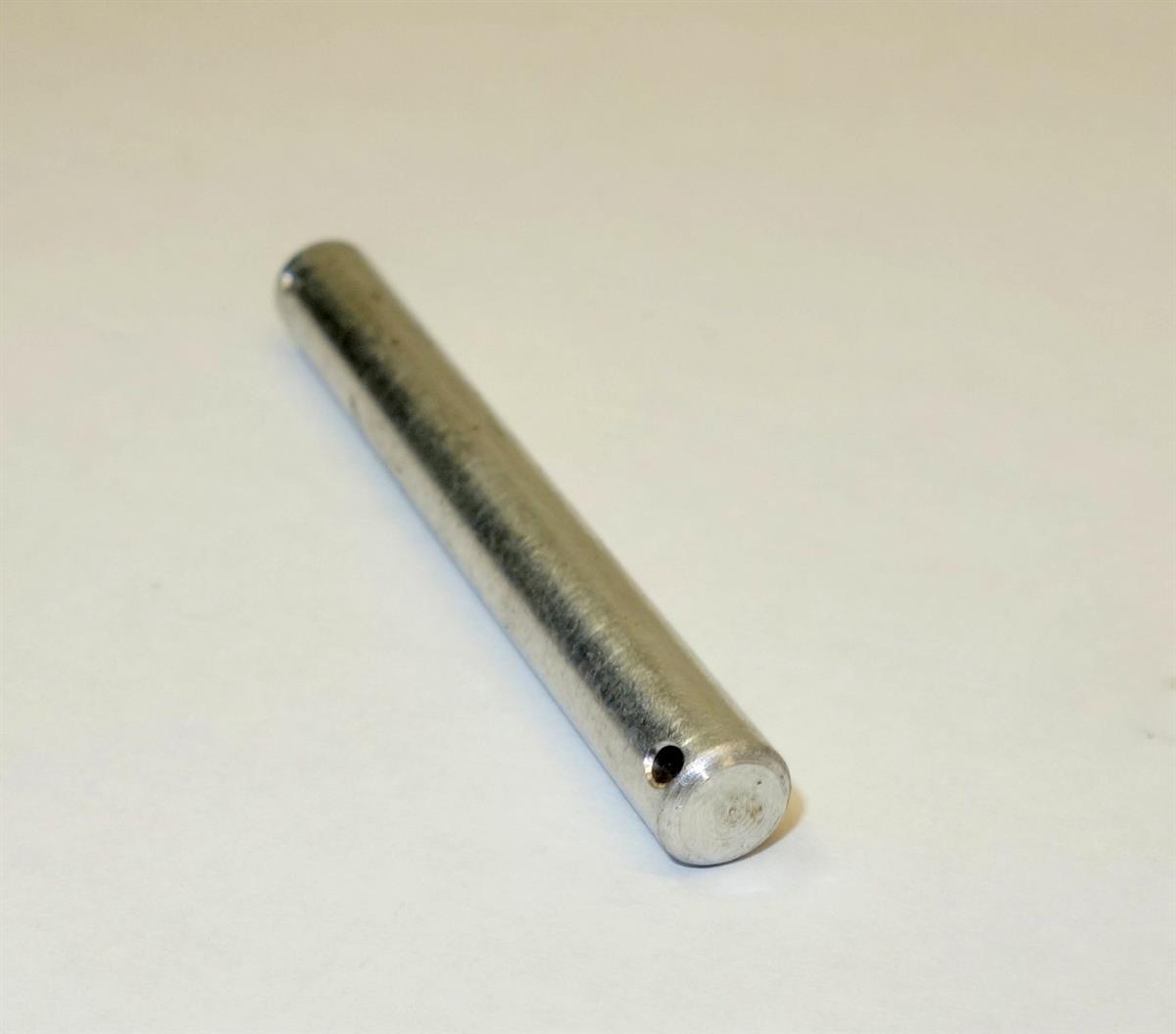

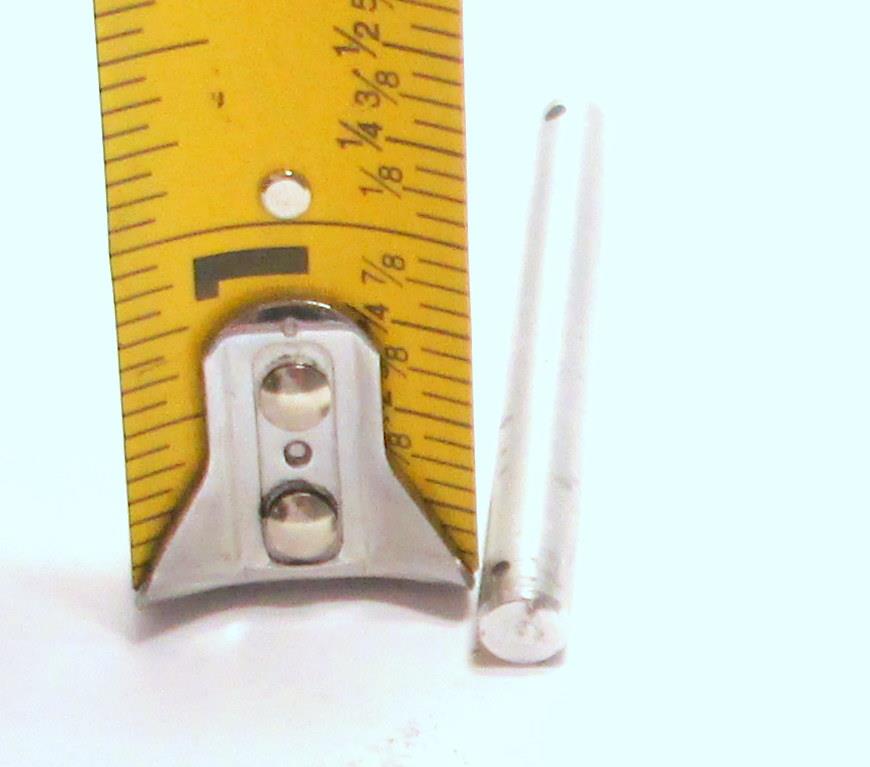

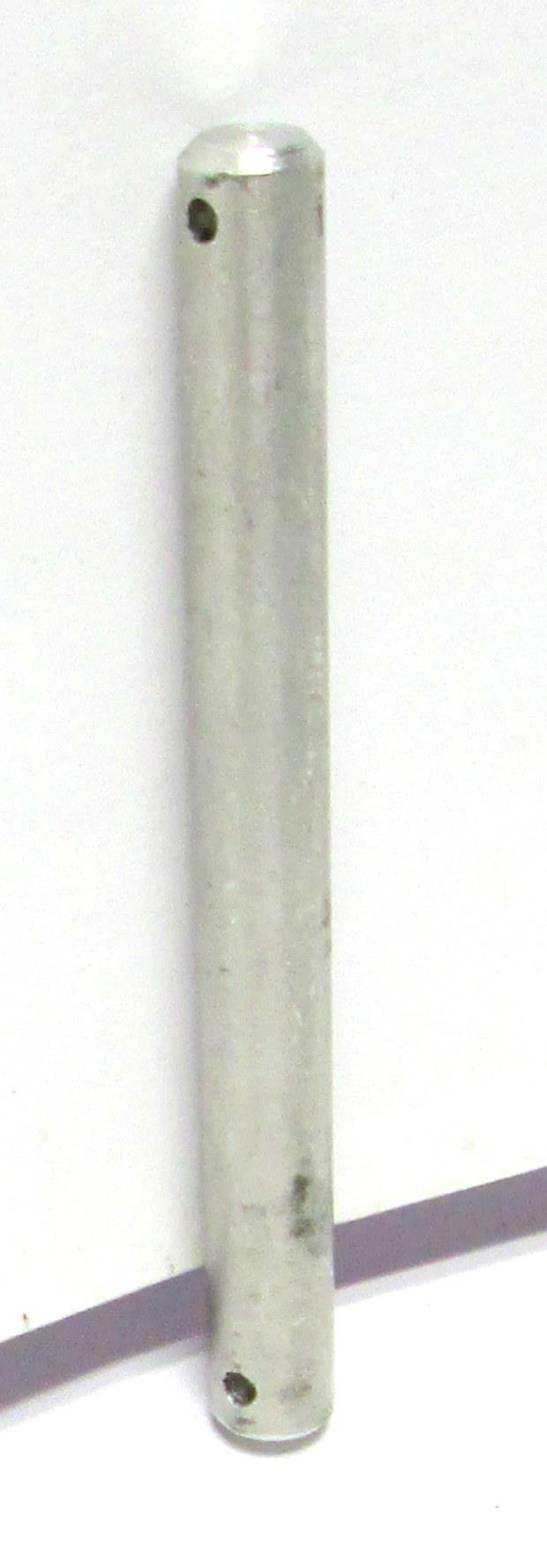

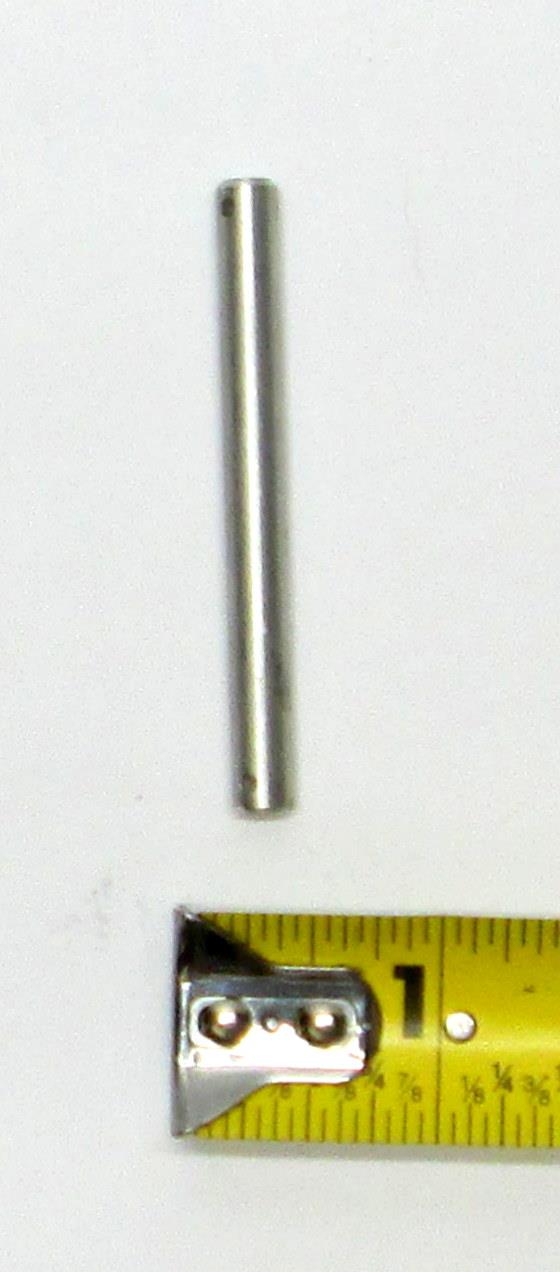

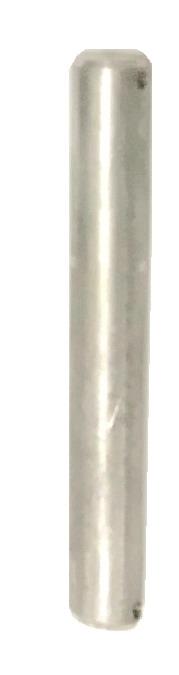

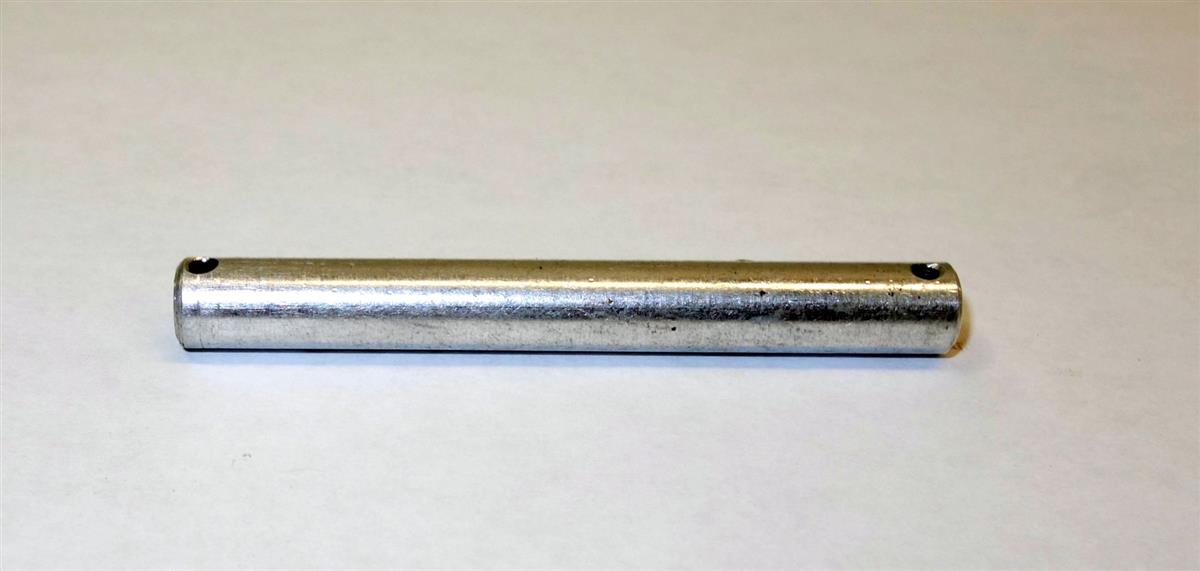

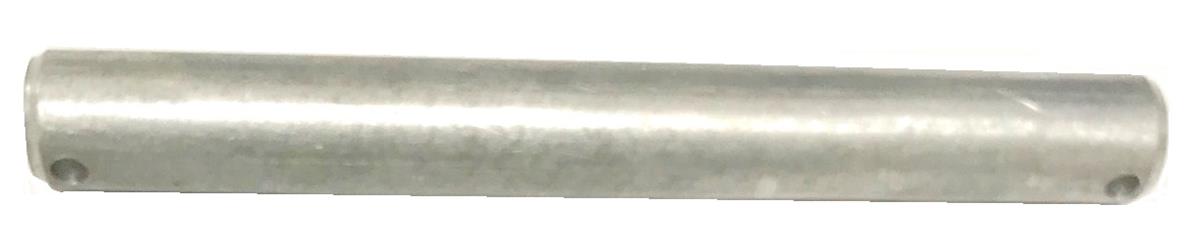

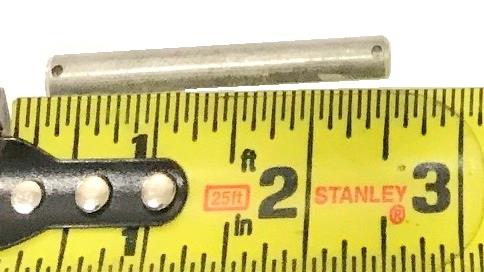

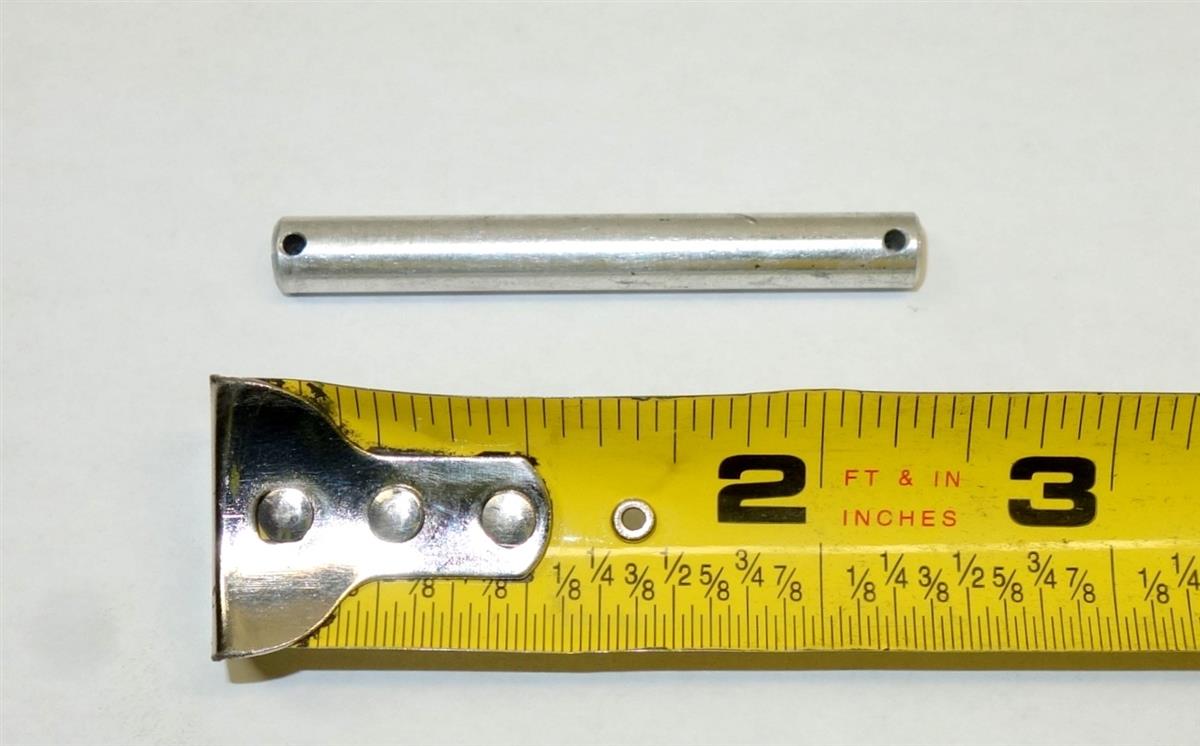

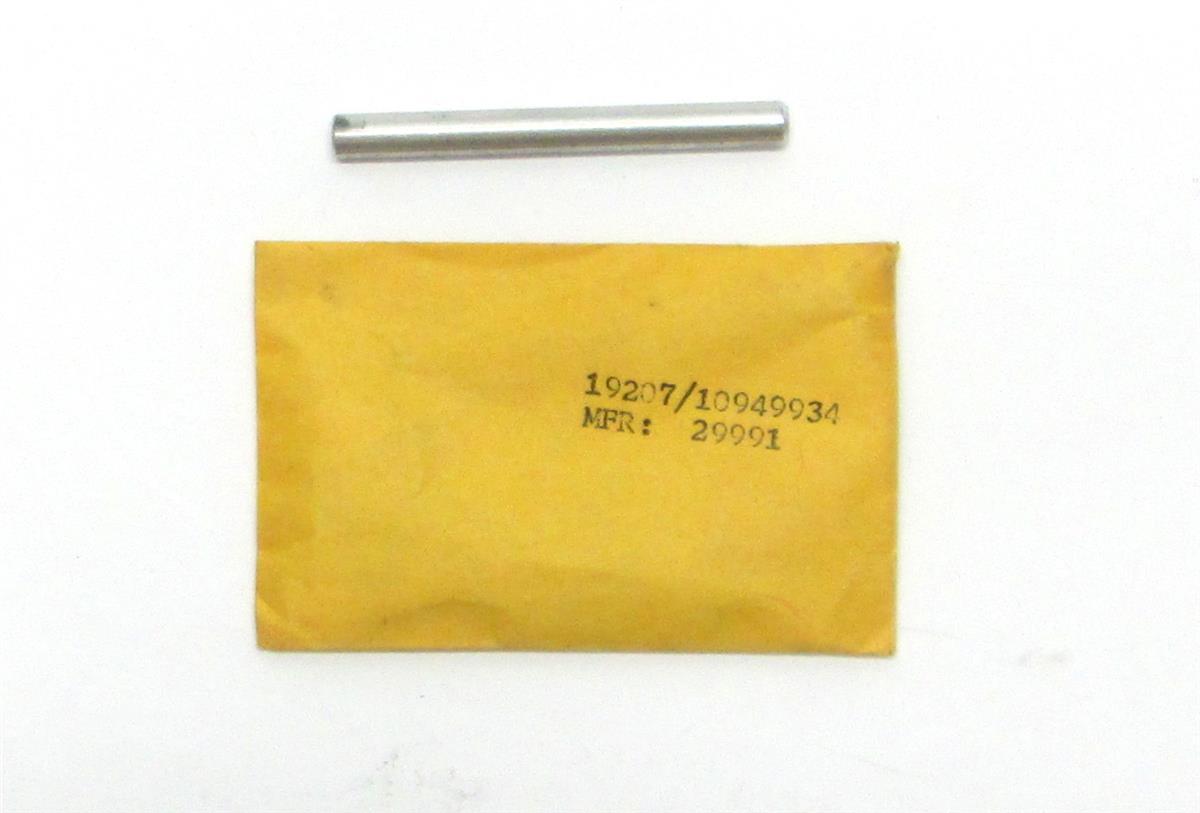

Front Winch PTO Drive Shaft Shear Pin Garwood 10,000 lb. Winch M35A2
Hole Arrangement Style Both End Drilled
First Hole Diameter 0.076 IN Min 0.086 IN Max
Second Hole Diameter 0.076 IN Min 0.086 IN Max
Distance from Center Line of Hole to End of Pin 0.110 IN Min 0.140 In Max
Center to Center Distance between Holes 2.250 IN
Pin Overall Length 2.500 IN
Pin Overall Diameter 0.2470 In Min 0.2480 IN Max
First End Taper Length 0.031 IN
Second End Relationship With First End IDENTICAL
First End Taper Angle 45 Degrees
Steel
Fits: Deuce and a Half 6x6 Military Truck
M35, M35A1, M35A2, M35A3, M36, M36A1, M36A2, M36A3,M275, M109, M109A1, M109A3, M109A4 2 ½ Ton Trucks
