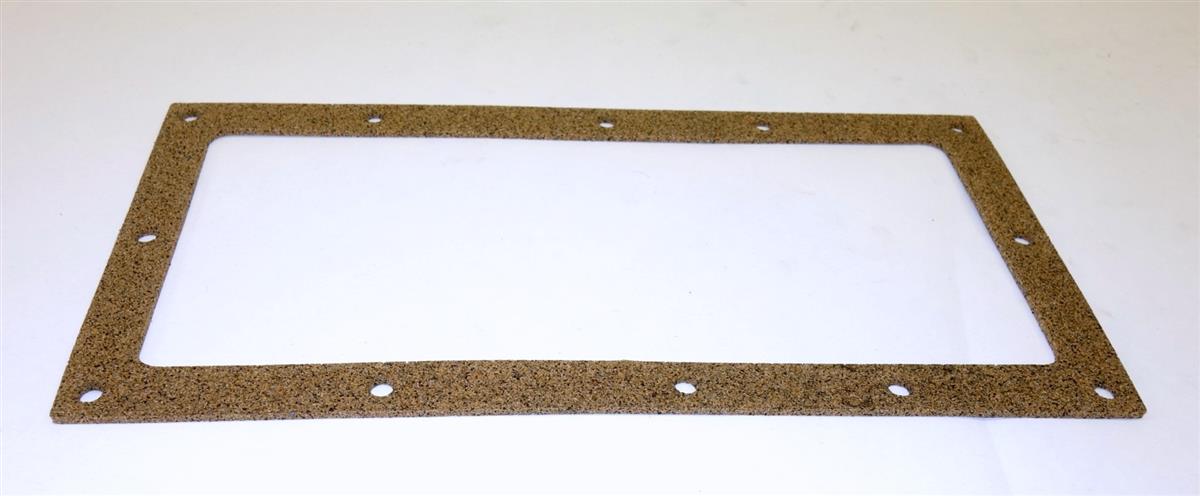

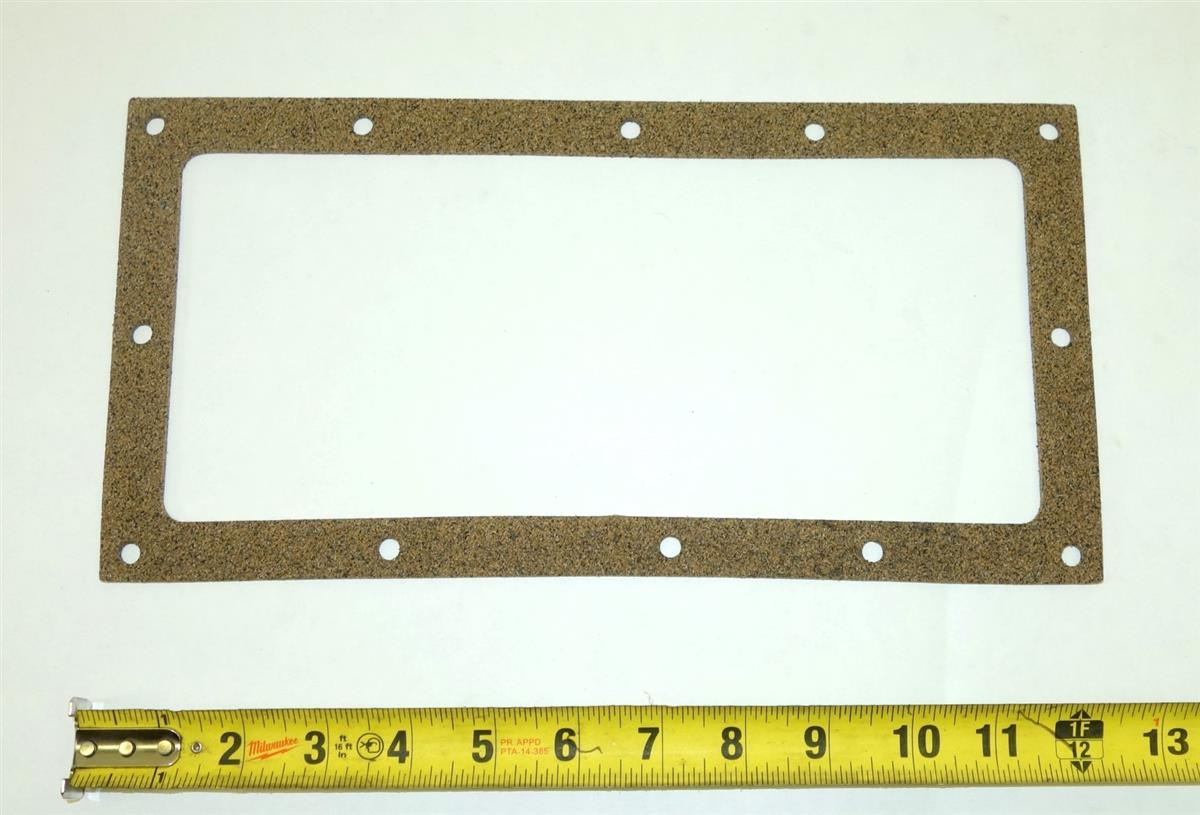

Fuel Tank Access Plate Gasket
- Hole Diameter - 0.313 Inches
- Overall Length - 12.750 Inches
- Overall Width - 6.500 Inches Nominal
- Inside Corner Radius - 0.310 Inches
- Aperture Width - 5.000 Inches
- Aperture Length - 11.250 Inches
- Center To Center Distance Between Bolt Holes Along Width - 2.874 Inches
- Outside Edge To Bolt Hole Center Distance Along Width - 0.370 Inches
- Cross-Sectional Thickness - 0.125 Inches
- Bolt Hole Quantity - 12
- Hardness Rating - 30.0 Shore Durometer A Minimum And 50.0 Shore Durometer A Maximum Overall
- Material - Rubber Synthetic Overall
Click Here For Fuel Tank HMMWV
Click Here For Fuel Tank 25 Gallon Fuel Tank Assembly HMMWV
Click Here For Fuel Tank with Hardware HMMWV
Fits
HMMWV 1 1/4 Ton M1025 , M1025A1 , M1025A2 , M1026 , M1026A1 , M1035 , M1035A1 , M1035A2 , M1037 , M1038 , M1038A1 , M1042 , M1043 , M1043A1 , M1043A2 , M1044 , M1044A1 , M1045 , M1045A1 , M1045A2 , M1046 , M1046A1 , M1097 , M1097A1 , M1097A2 , M1121 , M1123 , M966 , M966A1 , M996 , M996A1 , M997 , M997A1 , M997A2 , M998 , M998A1
