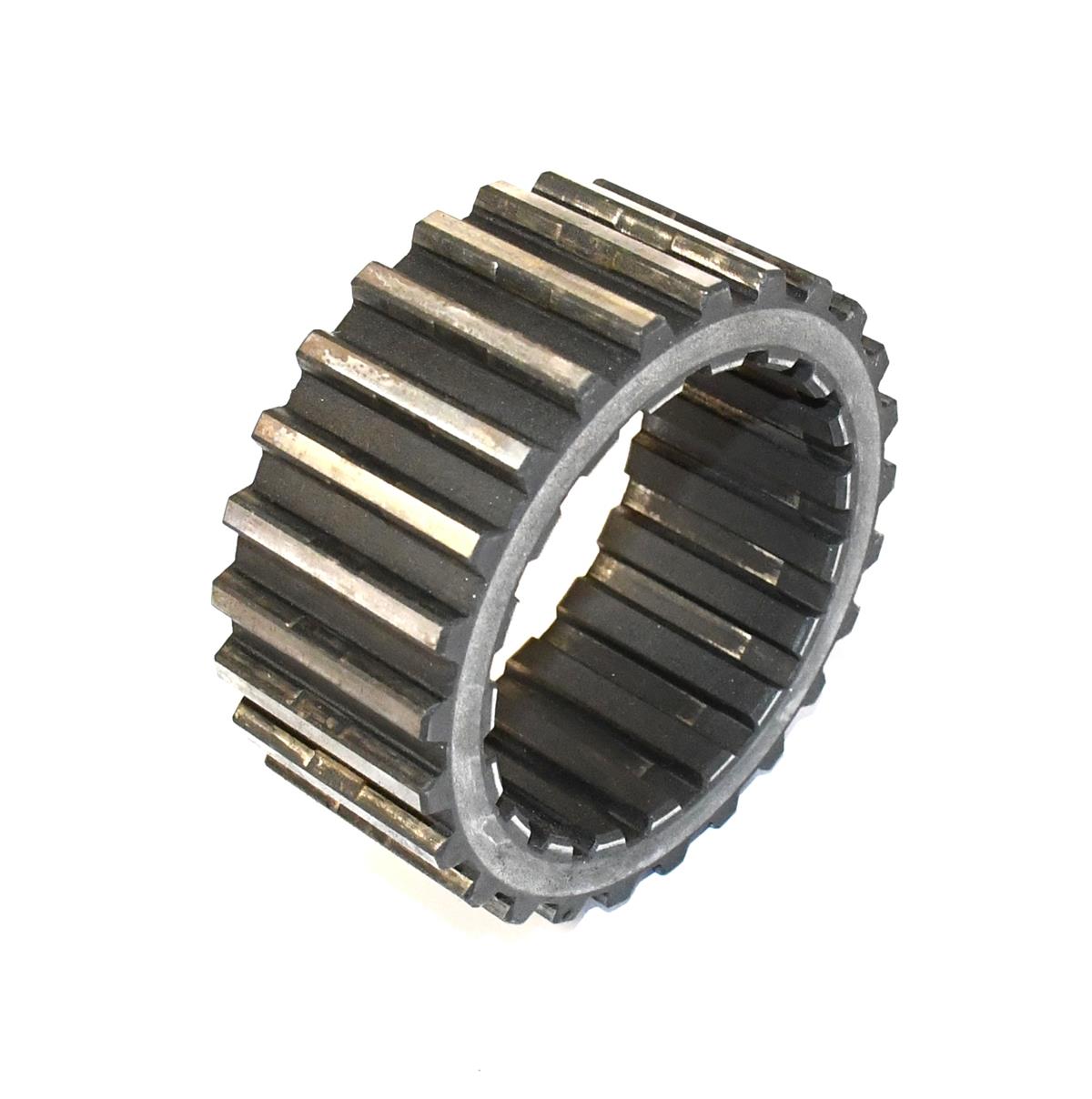

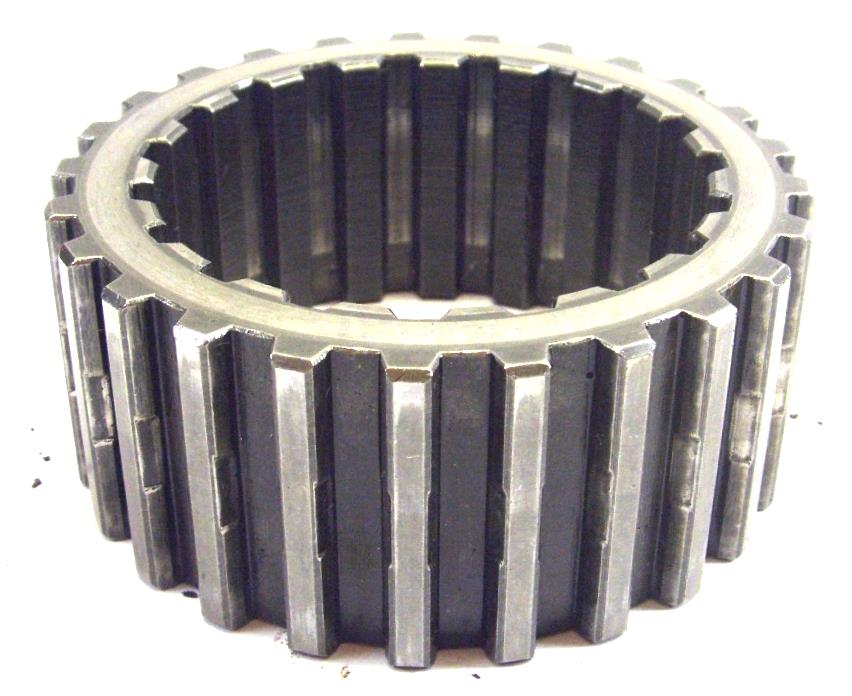

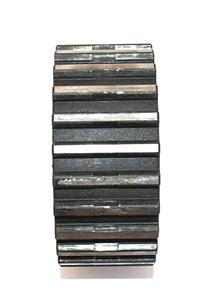

Spur Gear Spicer Model 6452 6453 5 Speed Manual Transmission M54A2 M809
Transmission Spur Gear
- Spline Quantity: 19 Both Ends
- Pitch Diameter: 3.571 in.
- Spline Pitch Diameter: 2.714 in.
- Nominal Outside Diameter: 3.731 in.
- Face Nominal Width: 1.562 in.
- Bore Nominal Diameter: 2.771 in.
- Pressure Angle: 20 Degrees
- Material: Steel
Fits
M54 and variants 5-Ton Trucks equipped with Transmission Model Spicer 6452 & 6453
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks equipped with Transmission Model Spicer 6453 and Model 6452
