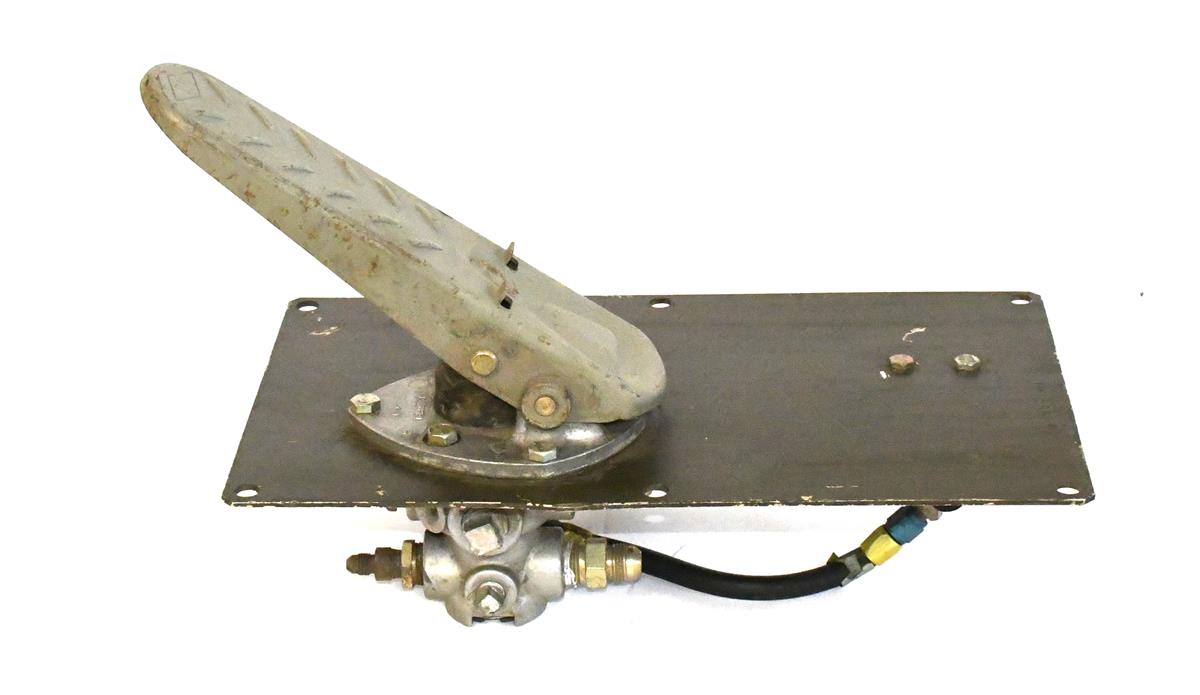

Air Brake Pedal Assembly Cargo Carrier M548 M548A1
- Overall Length: approx. 17.5 in.
- Overall Width: approx. 8.75 in.
- Overall Height: approx. 11 in.
Additional Part Numbers:
- 321724R91
- 7022-01
- 866673
- N20837
- 162410H3
- 229800
- 2888-M5
- 013708-00A0
- 162410H3
- 2R617
Includes
- Pedal Control PN: 10947141 NSN: 2540-00-802-1240 Qty:1
- Bolt PN: MS90725-34 NSN: 5306-00-225-8499 Qty: 3
- Pipe Plug PN: MS20913-4S NSN: 4730-00-221-2139 Qty:2
- Pipe Plug PN: MS20913-2S NSN: 4730-00-221-2137 Qty:1
- Straight Pipe Adapter PN: MS51500A8-8 NSN: 4730-00-809-9427 Qty:2
- Screw PN: MS90725-6 NSN: 5305-00-068-0502 Qty:2
- Pressure Switch PN: MS27152-1 NSN: 5930-00-058-1576 Qty:1
- Pipe Bushing PN: 10933104-4 NSN: 4730-01-223-0781 Qty:1
- Elbow Pipe PN: MS51508A4Z NSN: 4730-00-995-1568 Qty:2
- Air Brake Hose PN: MS52103A040080R NSN: 4720-01-191-6448 Qty:1
- Self Locking Nut PN: MS51922-1 NSN: 5310-00-088-1251 Qty:4
- Elbow Pipe PN: MS51504A4-4 NSN: 4730-00-877-8997 Qty:1
- Straight Pipe Adapter PN: MS51500A4-4 NSN: 4730-00-837-7073 Qty:2
- Air Brake Hose PN: MS52103A040062R NSN: 4720-01-192-4419 Qty:1
- Elbow Pipe PN: MS39230-1 NSN: 4730-00-287-1649 Qty:1
- Pipe Bushing PN: 10933104-3 NSN: 4730-00-204-3481 Qty:1
- Pipe Bushing PN: 10943263-6 NSN: 4730-00-202-6671 Qty:1
- Self Locking Nut PN: MS51922-9 NSN: 5310-00-984-3806 Qty:3
- Screw PN:MS90728-8 NSN:5305-00-225-3843 Qty:2
- Floor Plate PN:12313151 NSN: NA Qty:1
- Pressure Switch PN: MS75062-1 NSN:5930-00-888-9865 Qty:1
Fits:
M548 and M548A1 Cargo Carrier.
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
