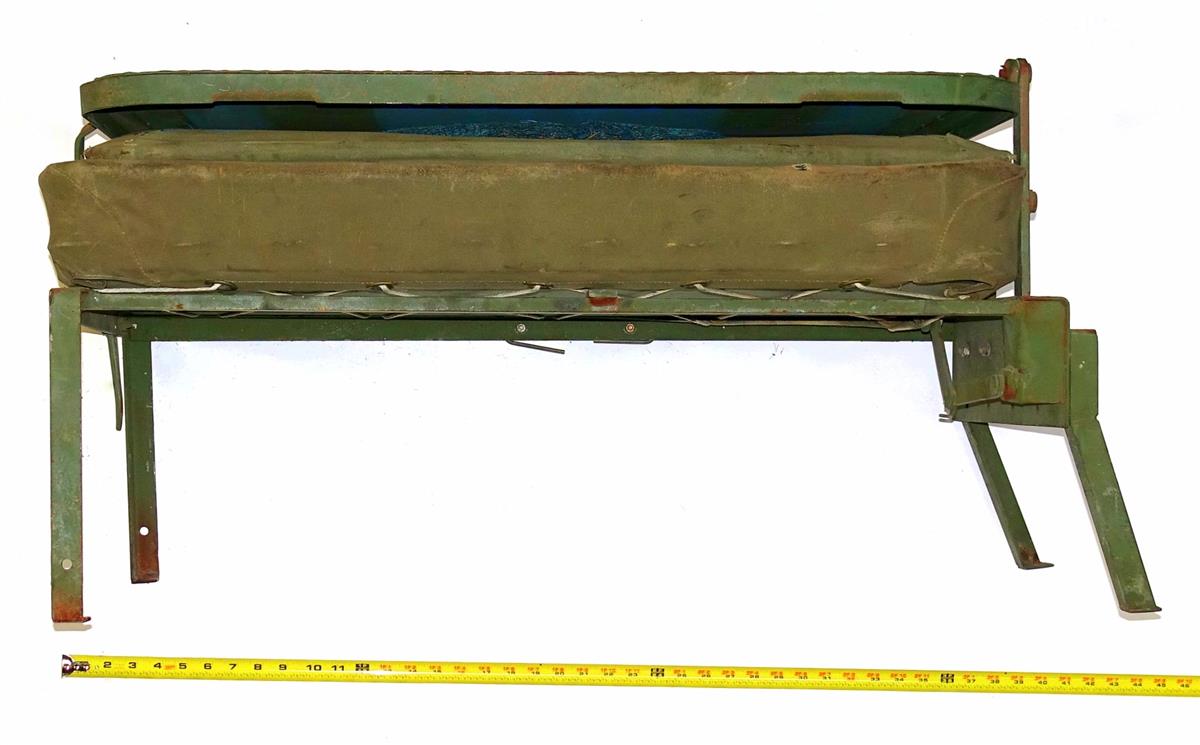

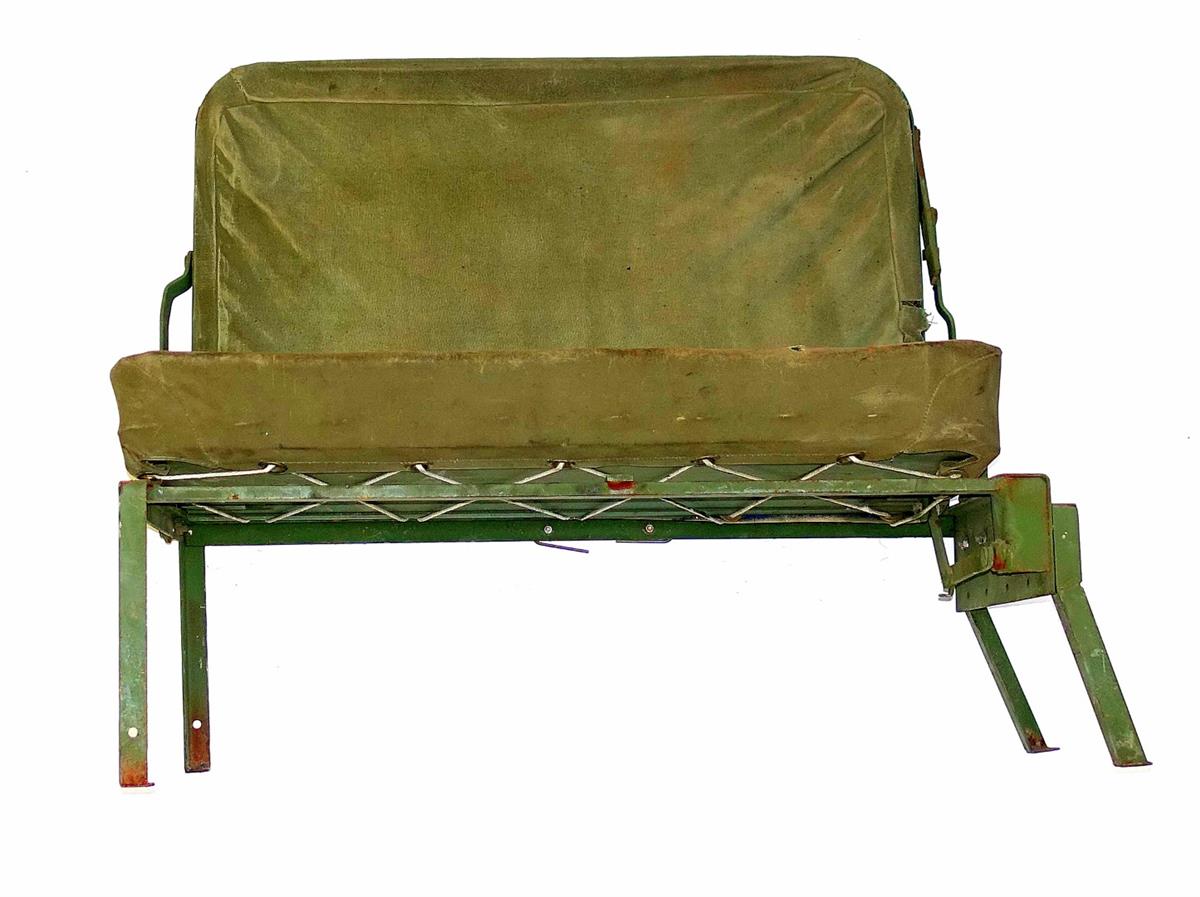

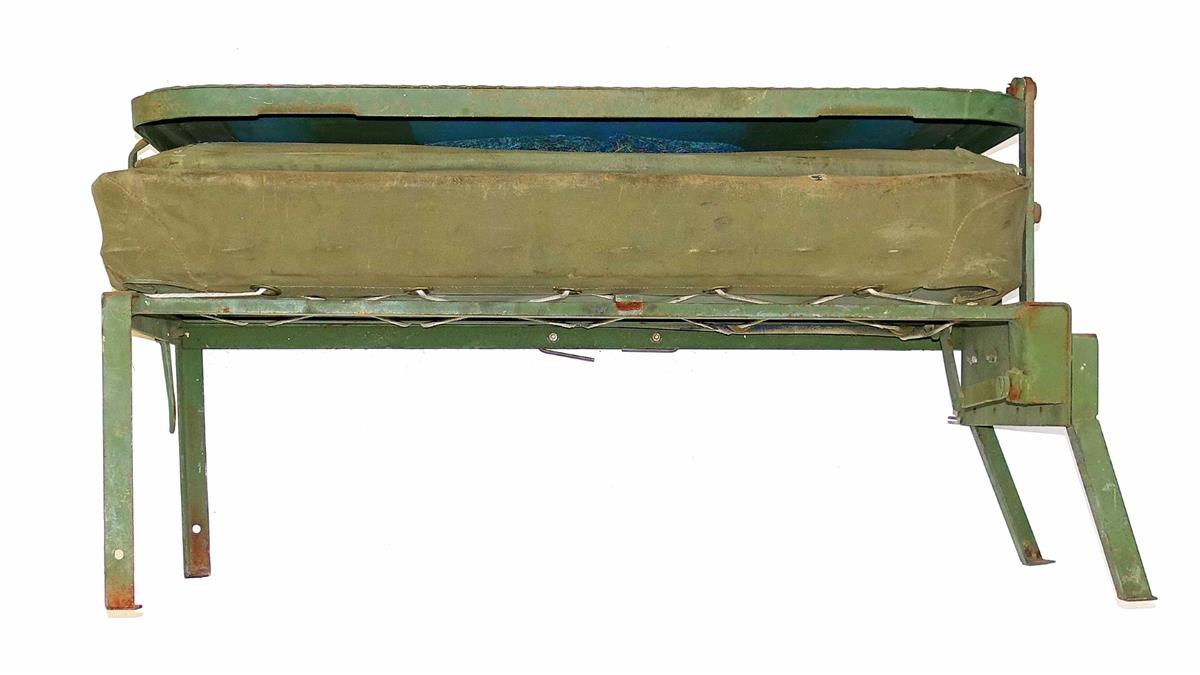

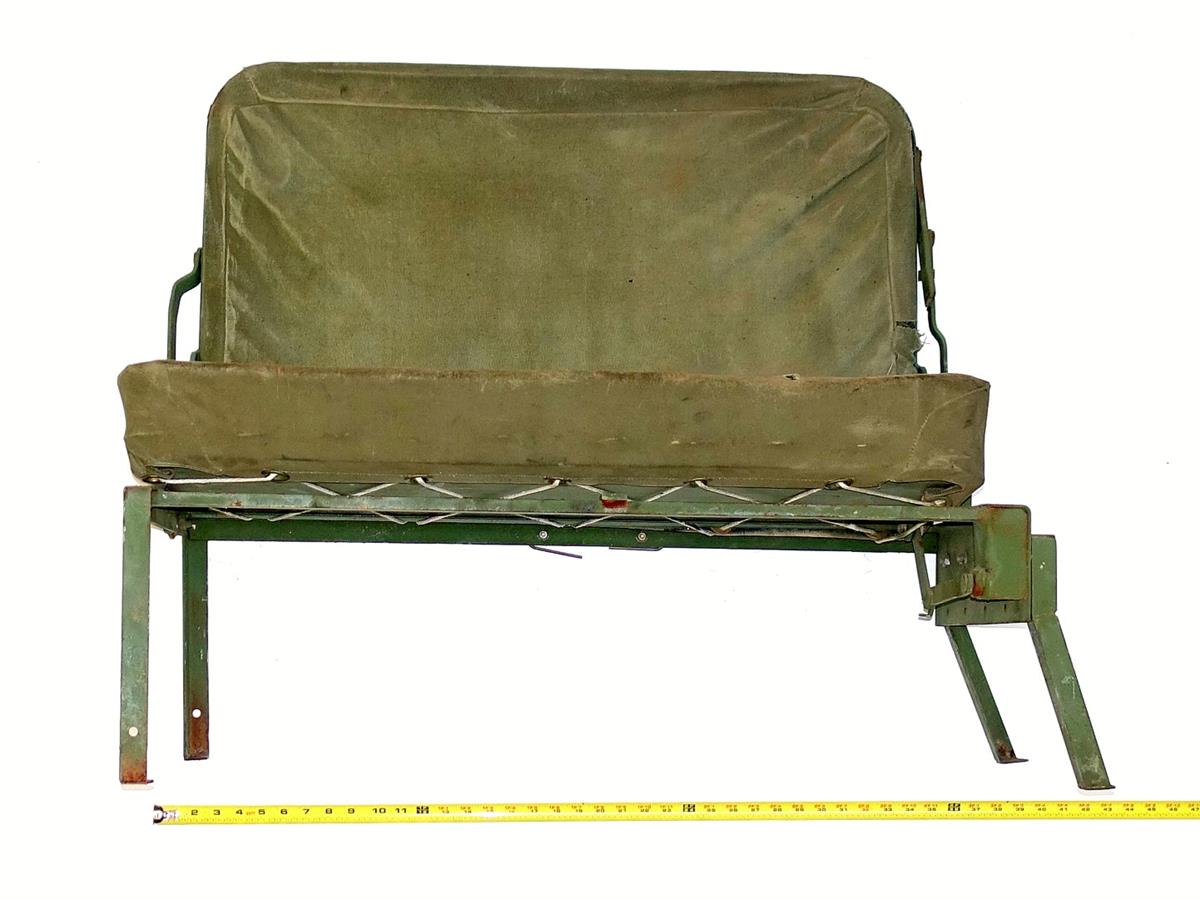

Foldable Passenger / Companion Seat / Bench Seat
Includes bracket to mount alongside free standing spring ride drivers seat
Fits:
M54 Series 5 ton trucks
M35 M35A1 M35A2 M35A3 M36 M36A1 M36A2 M36A3 M275 M109 M109A1 M109A3 M109A4 2 ½ Ton Trucks
M809 M813 M814 M816 M817 M818 M820 5-Ton Trucks
- Foldable design with Seat Cushion and backrest included
- Cover Material: Cotton Duck
- Overall Length: 35 inches
- Overall Width: 20 inches
- Height Unfolded: 31 inches
- Height Folded: 19 inches
- Top Cushion Dimensions: 33"W X 19" D
- Bottom Cushion Dimensions: 34"W X 15"D
- Frame Material: Steel
- Mounting Type: Seat Frame
Item numbers 4-25 on the diagram
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
