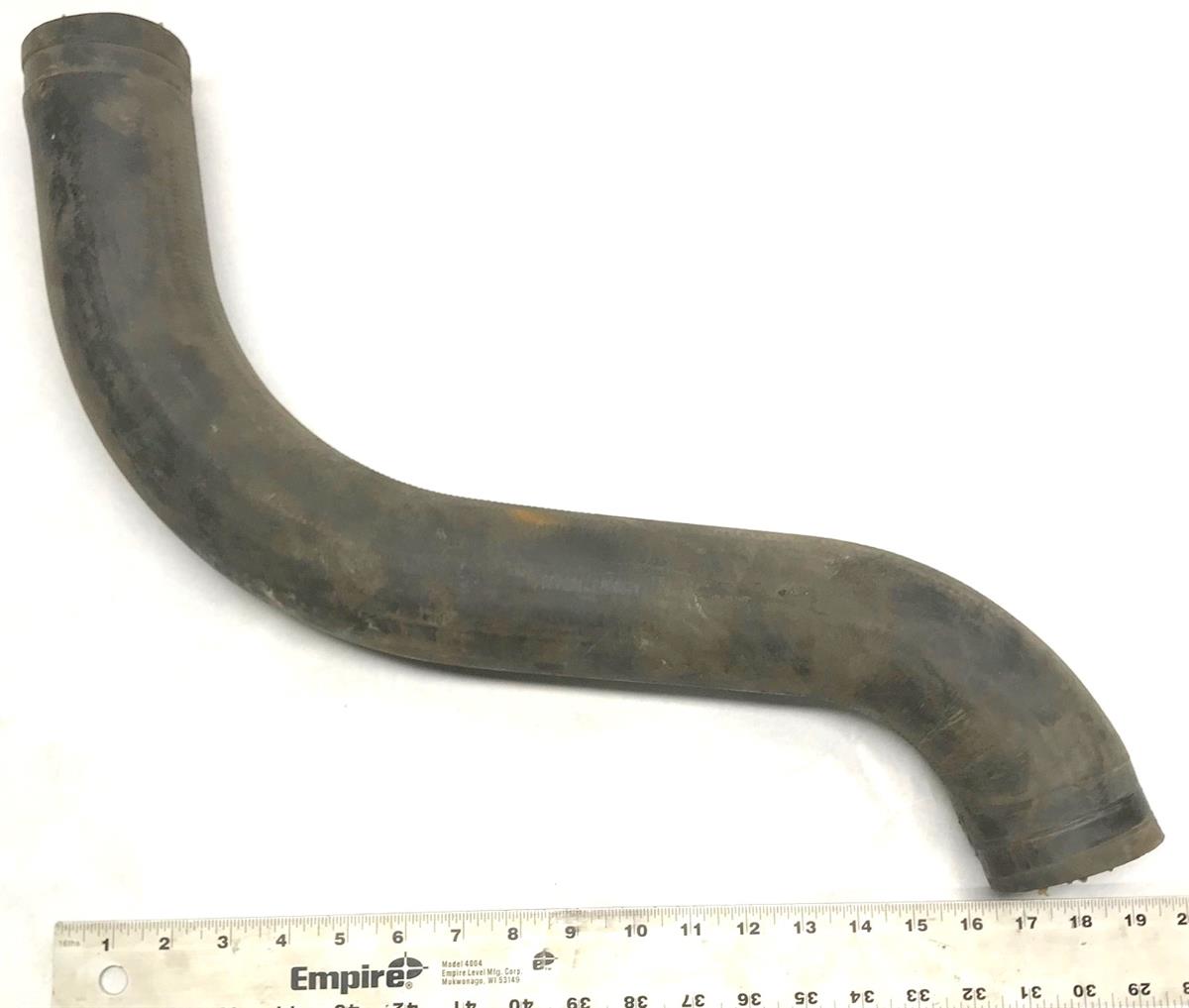

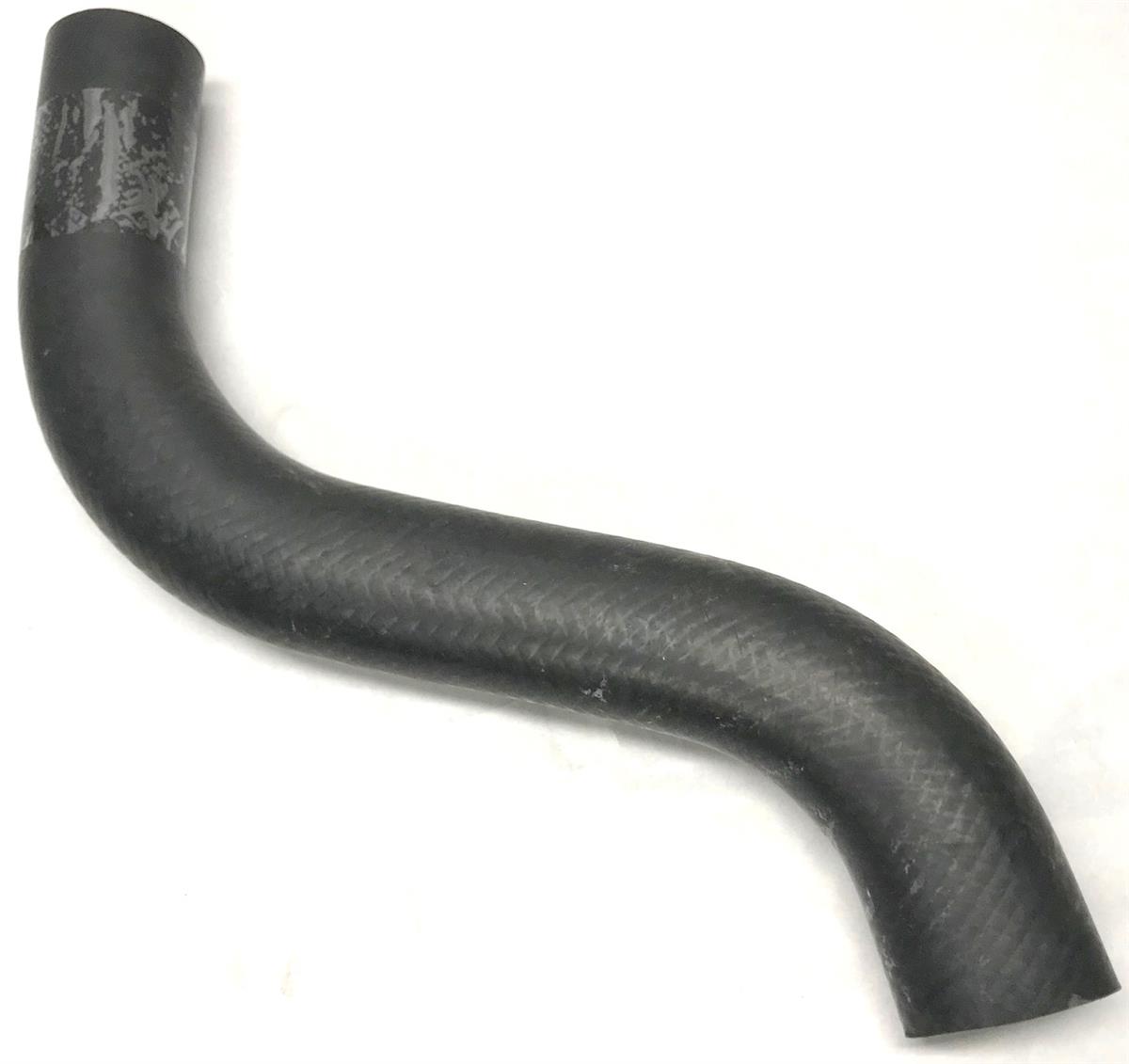

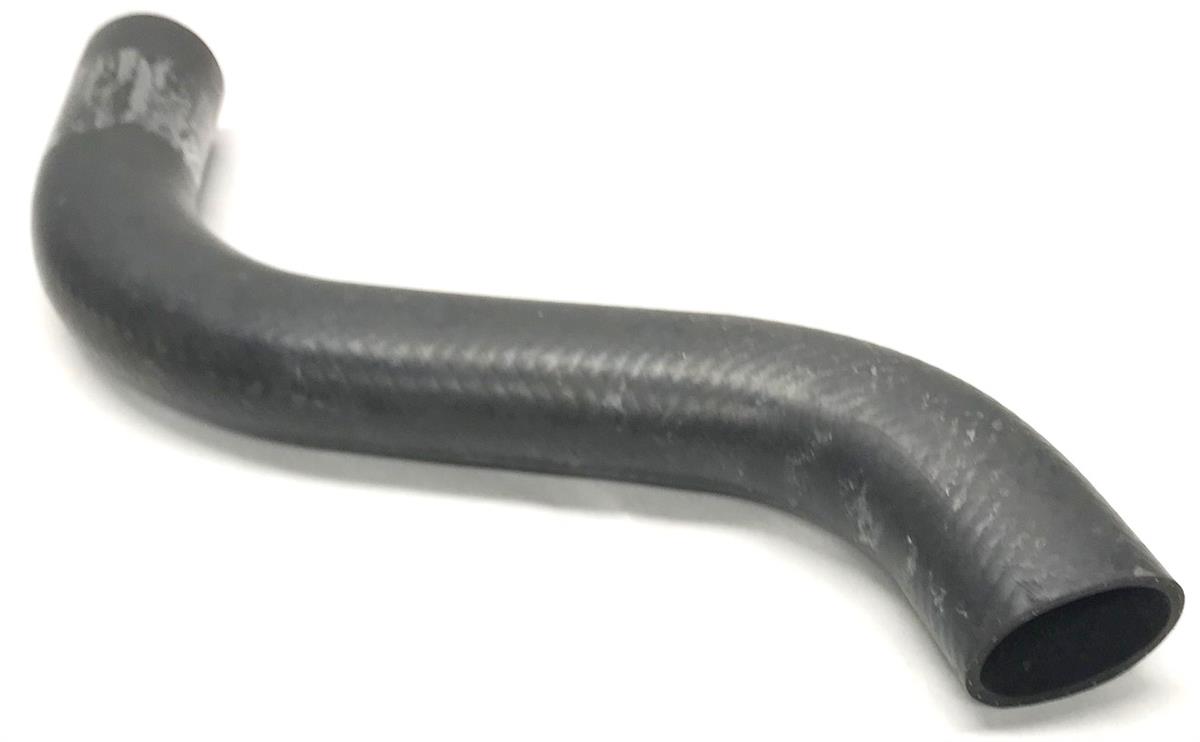

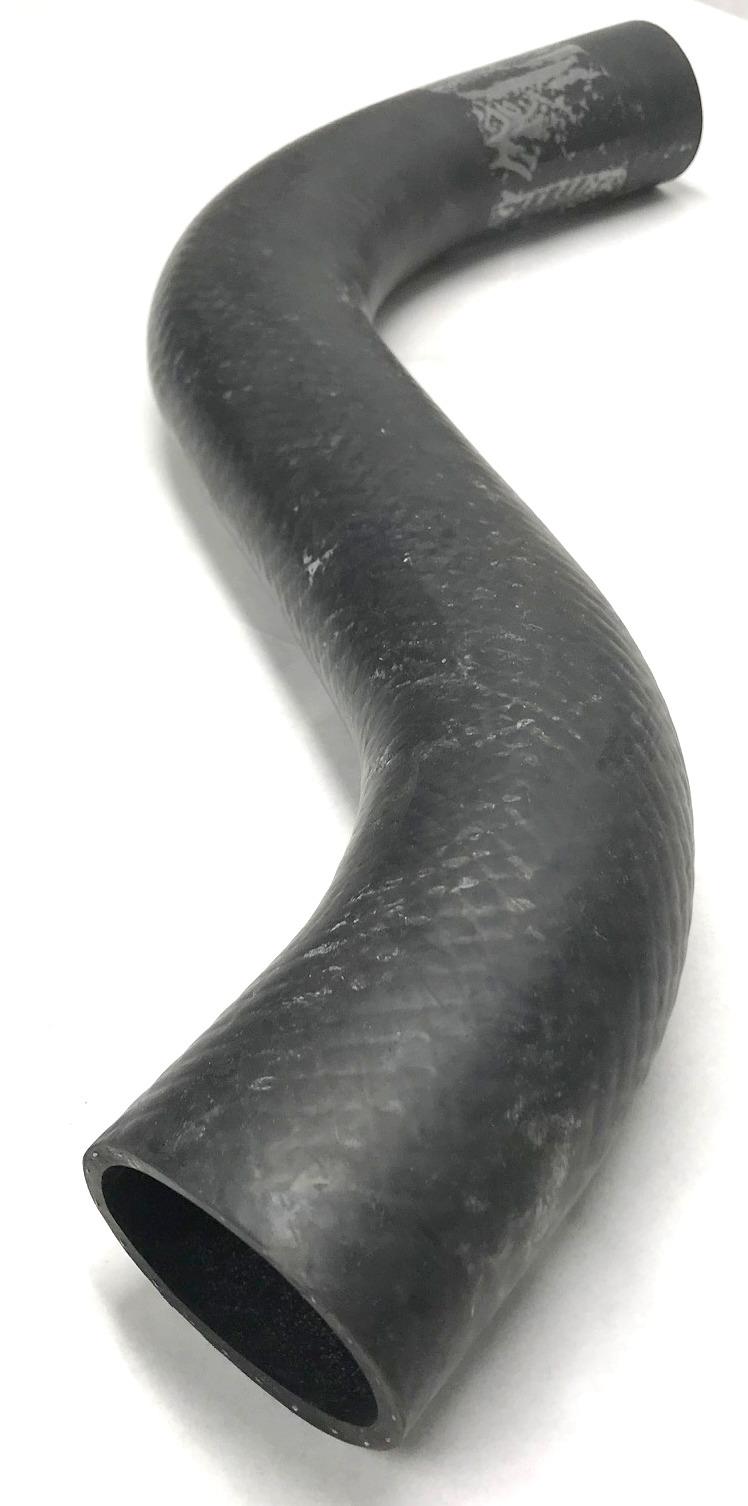

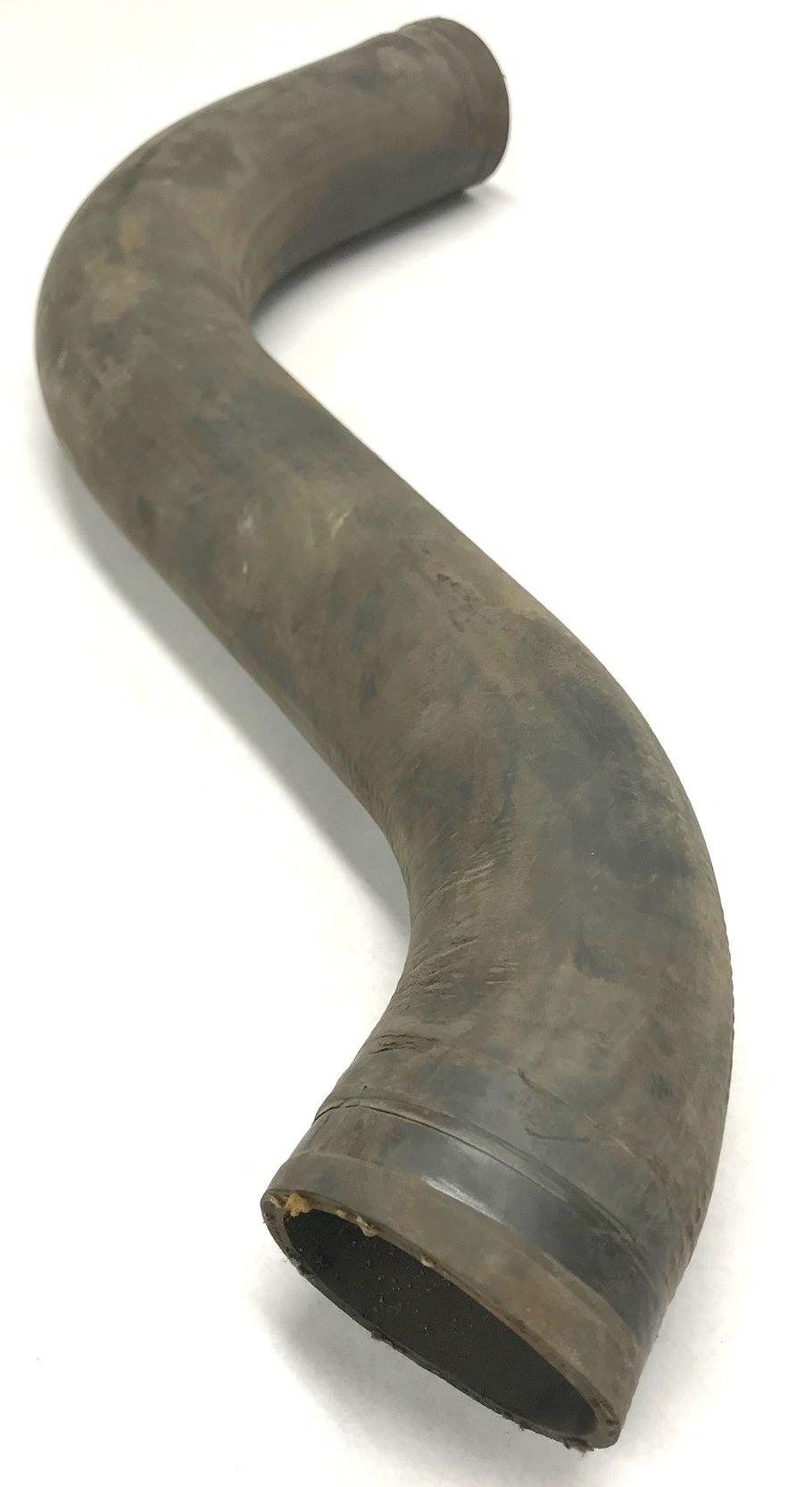

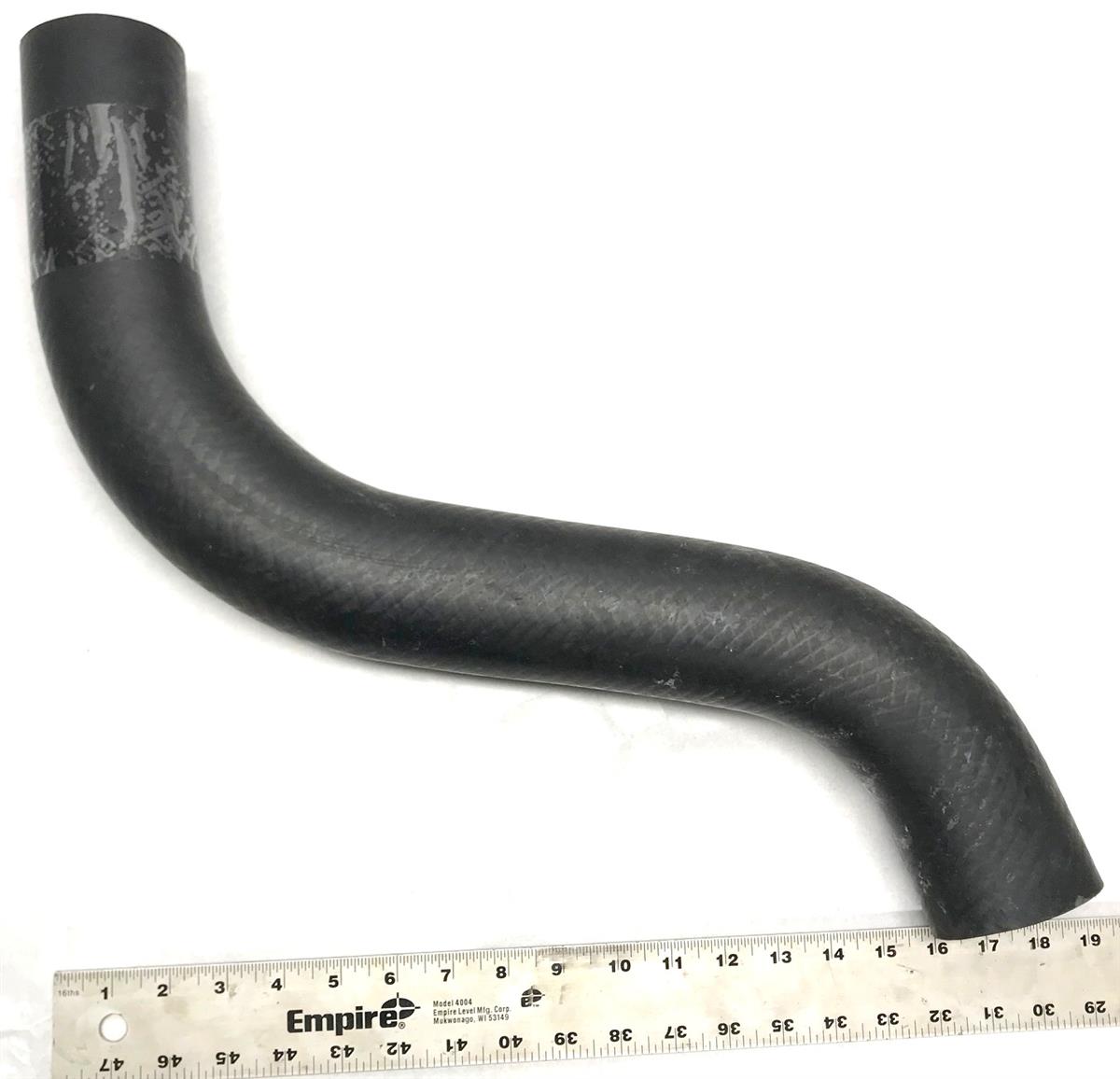

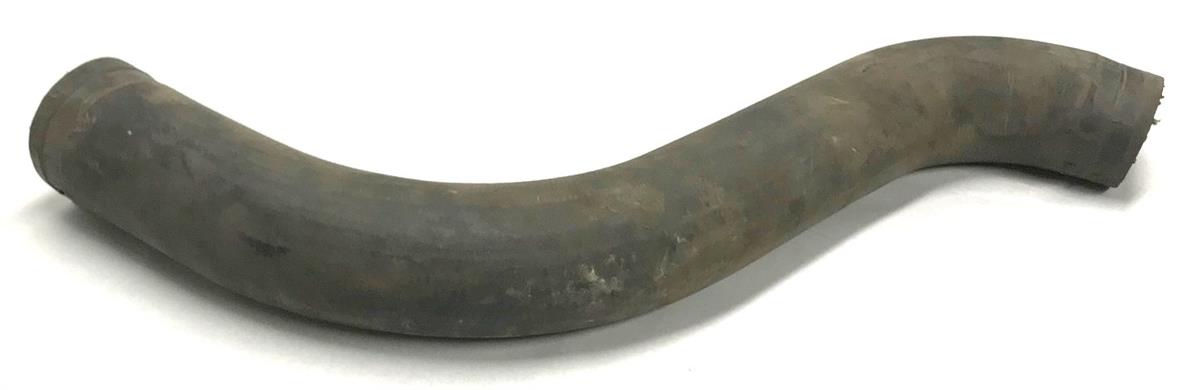

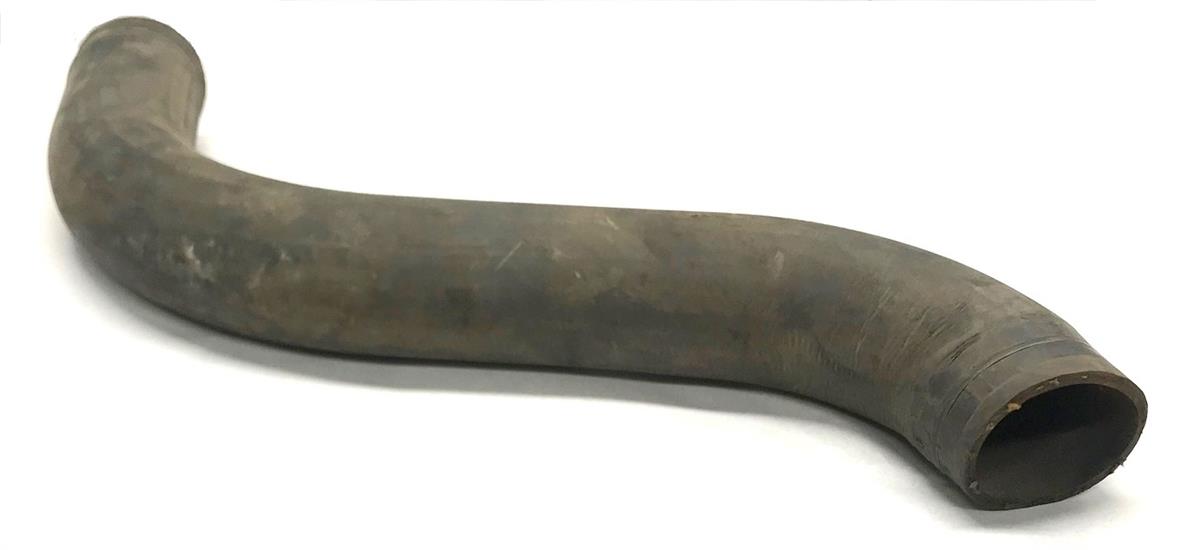

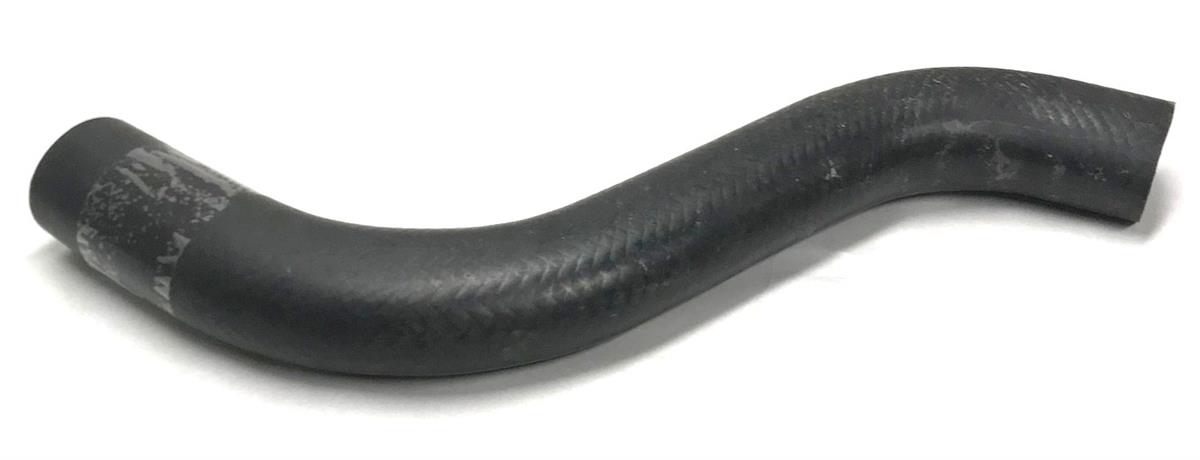

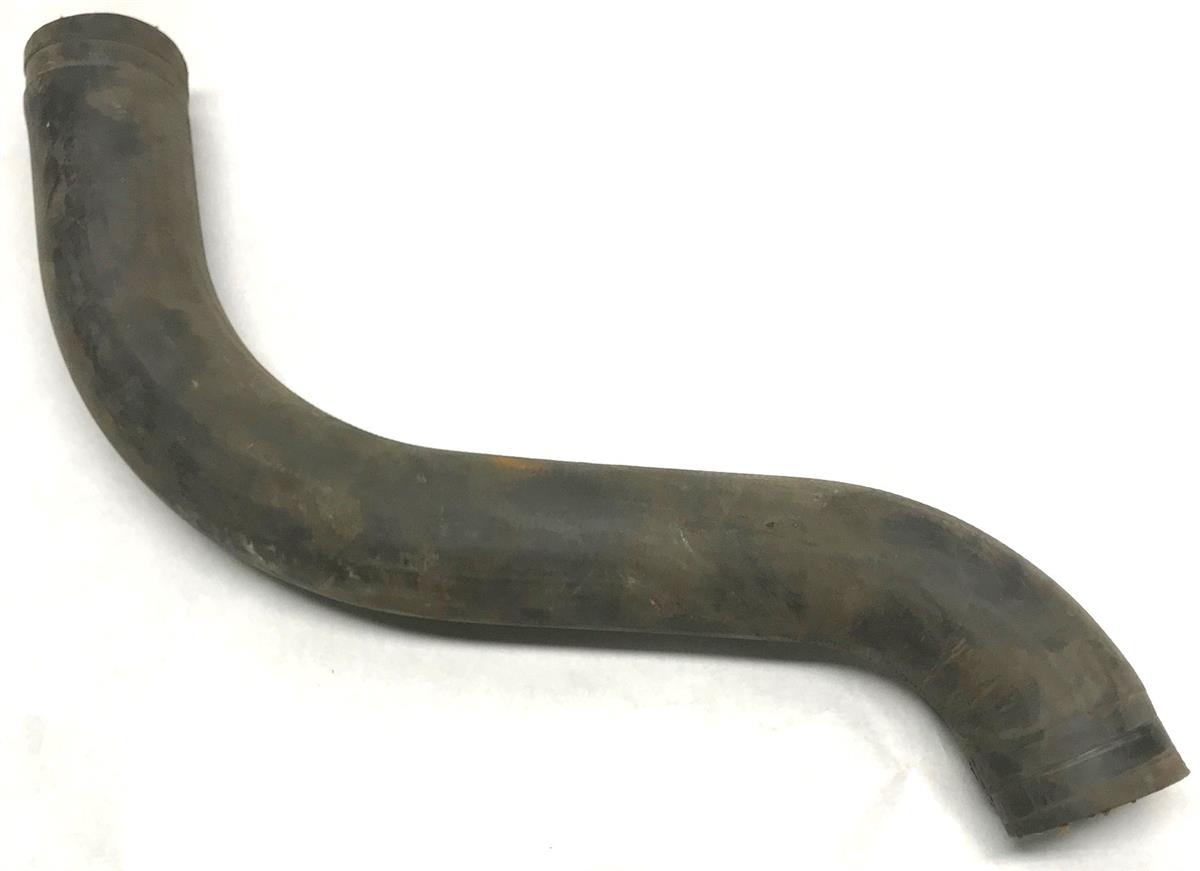

Lower Radiator Hose Cummins NHC250 Diesel Engine M809
- Wall Thickness - 0.250 Inches
- Inside Diameter - 2.500 Inches
- Width - 14.375 Inches Nominal
- Offset Distance - 2.940 Inches
- Bend Radius - 6.000 Inches
- Outer Radius - 4.500 Inches
- First Arm Length - 3.500 Inches
- Second Arm Length - 2.000 Inches
- Material - Rubber Synthetic Overall
- Working Length - 16.375 Inches
- Media For Which Designed - Fuel/Oil, Hydrocarbon
Fits
M809, M813, M814, M816, M817, M818 5 Ton with NHC 250 Cummins Engine
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
