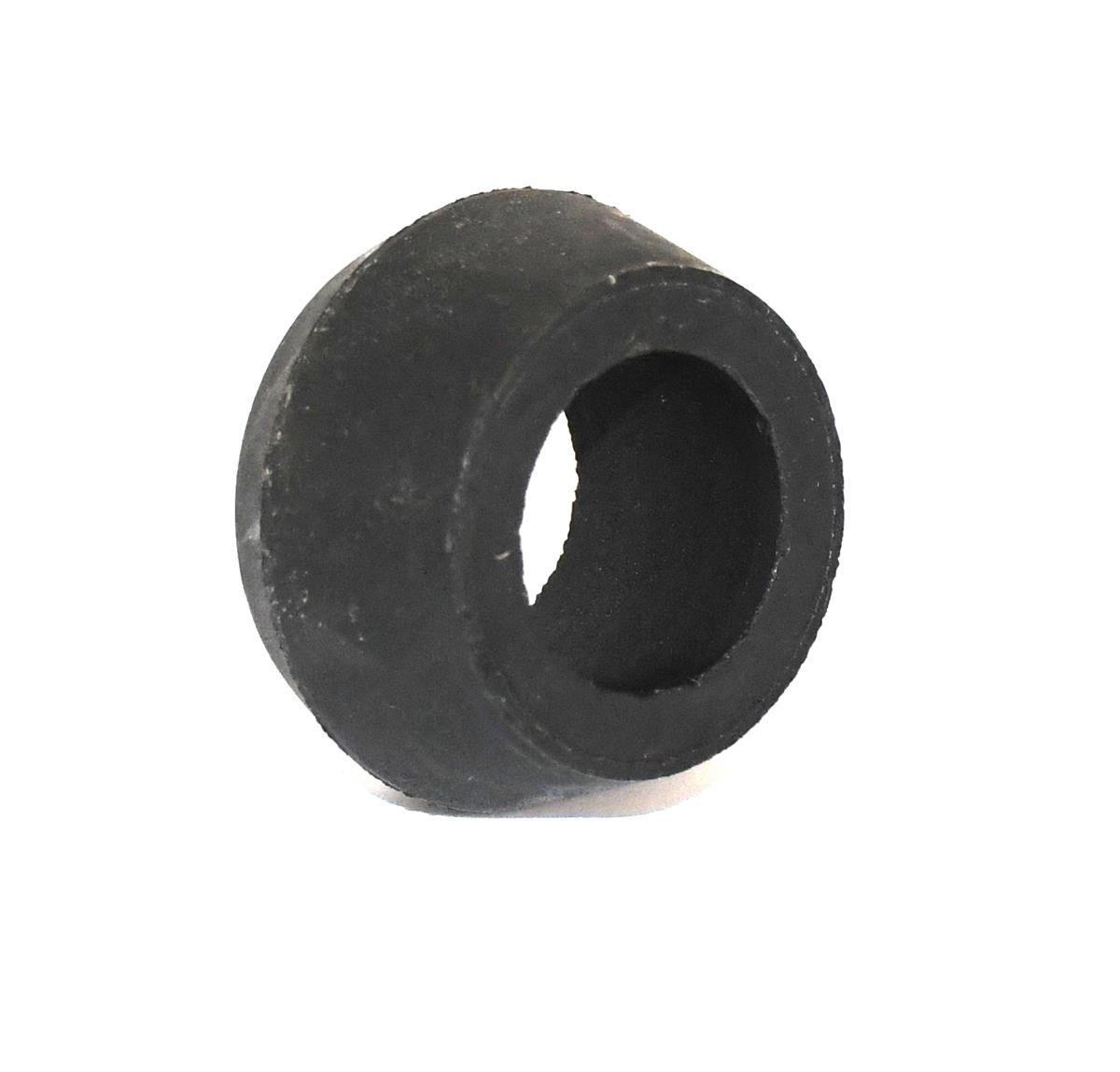

Shock Absorber Bushing M54A2 M809 M915 M916A1 M939A1 M939A2
-
Overall Length: 0.977 in.
-
Center Hole Diameter: 1 in.
-
Overall Diameter: 1.870 in.
-
Tapered Body Largest Diameter is 1.870 inches Minimum and 1.880 inches Maximum
-
Tapered Body Smallest Diameter is 1.620 inches
-
Longer Taper Smallest Diameter is 1.500 inches
-
Bottom Tapered Portion Height is 0.310 inches
-
Material: Rubber
-
Requires 4 per shock absorber
-
Shock absorbers also available separately
-
Price is for one bushing
-
Diagram Shown in Pictures for 5 Ton Truck and for Front Suspension Bar Dolly M689 M832 M840
Alternate Part Numbers: 16A5472, 401754, M401754, 1TI8197A, 9090252
Click Here For Shock Absorber M54A2 M809 M939A1 M939A2
Click Here For Mount Resilient Utility Front Suspension Bar Dolly M689 M832 M840 Trailer Application
Fits 5 Ton 6x6 Military Truck
M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M931, M931A1, M931A2, M54, M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
M915, M915A1, M915A2, M915A3, M916, M916A1, M916A2, M916A3, M917, M918, M919, M920 Series
Oshkosh MK48 LVS
Light Armored Vehicle Anti-Tank LAV-AT
Dolly M689 M832 M840 Trailer
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
