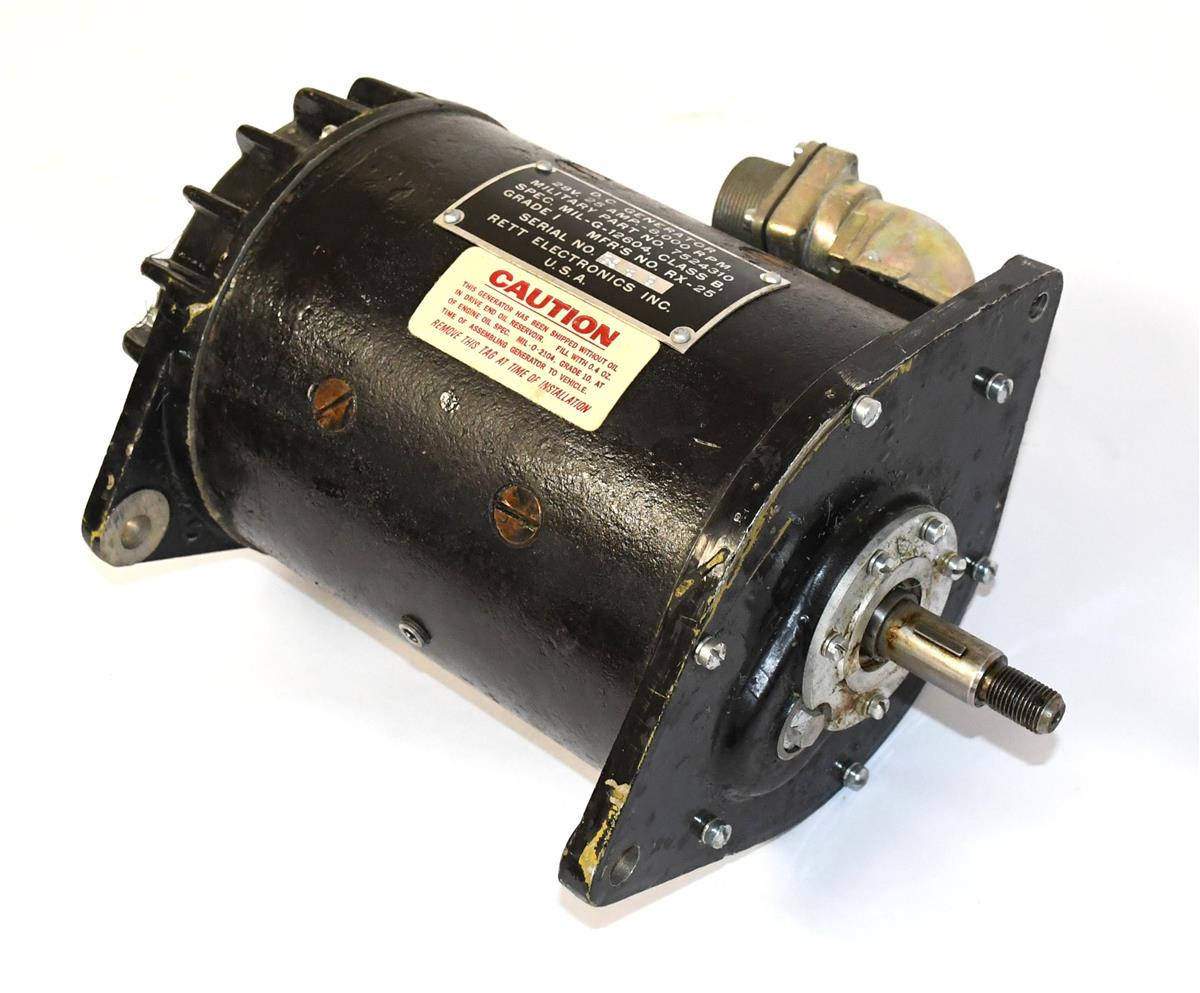

Generator Engine Accessory 24 Volt 25 AMP M37 M43 M56 M274
- Volts: 24
- AMPs: 25
- Minimum Speed at RPM at Full Current Output: 1750
- Minimum Current Cut-in Speed in RPM: 1500
- Max Rated Armature Speed in RPM: 8000
- Serial Number: 19389
- Second Step Diameter: 0.669 in.
- Keyway Width: 0.125 in.
- Keyway Length: 0.625 in.
- Unthreaded Portion Length: 1.234 in.
- Distance From End to Keyway Center: 1.391 in.
- Thread Diameter: 0.5 in.
- Distance Between Shaft Center and Bottom Mounting Hole Center: 3.875 in.
- Distance Between Shaft Center and Top Mounting Hole Center: 3.875 in.
- Overall Length: approx. 12 in.
Fits: Common Application
M37 Utility Truck, M43 Ambulance, M56 Coyote, M274 Mule
