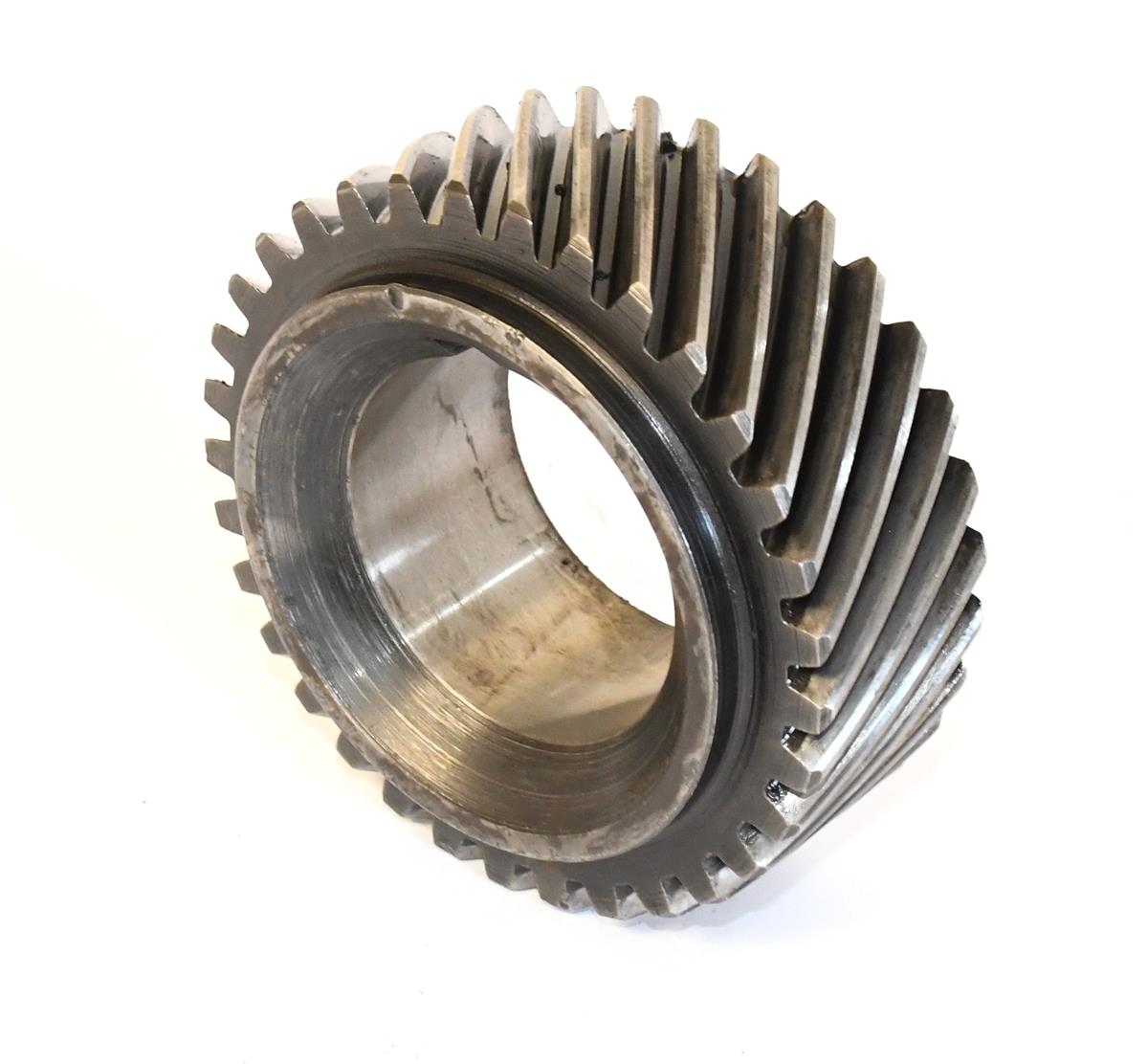

Crankshaft Gear Multifuel Diesel Engine LDS LDT M35A2 M54A2
- Outside Diameter: approx. 4.5 in.
- Bore Nominal Diameter: 2.250 in.
- Face Nominal Width: 1.460 in.
- Keyway Nominal Width: 0.316 in.
- Pitch Diameter: 4.15 in.
- Teeth Quantity: 33
- Tooth Direction: Left
- Pressure Angle: 14.5 degrees
- Material: Steel
- Item #16 in diagram
Fits: Common Application
M35A2, M49A2, M50A2, M36A2, M109A3, M275 2 ½ Ton Trucks
M54 and variants 5-Ton Trucks
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
