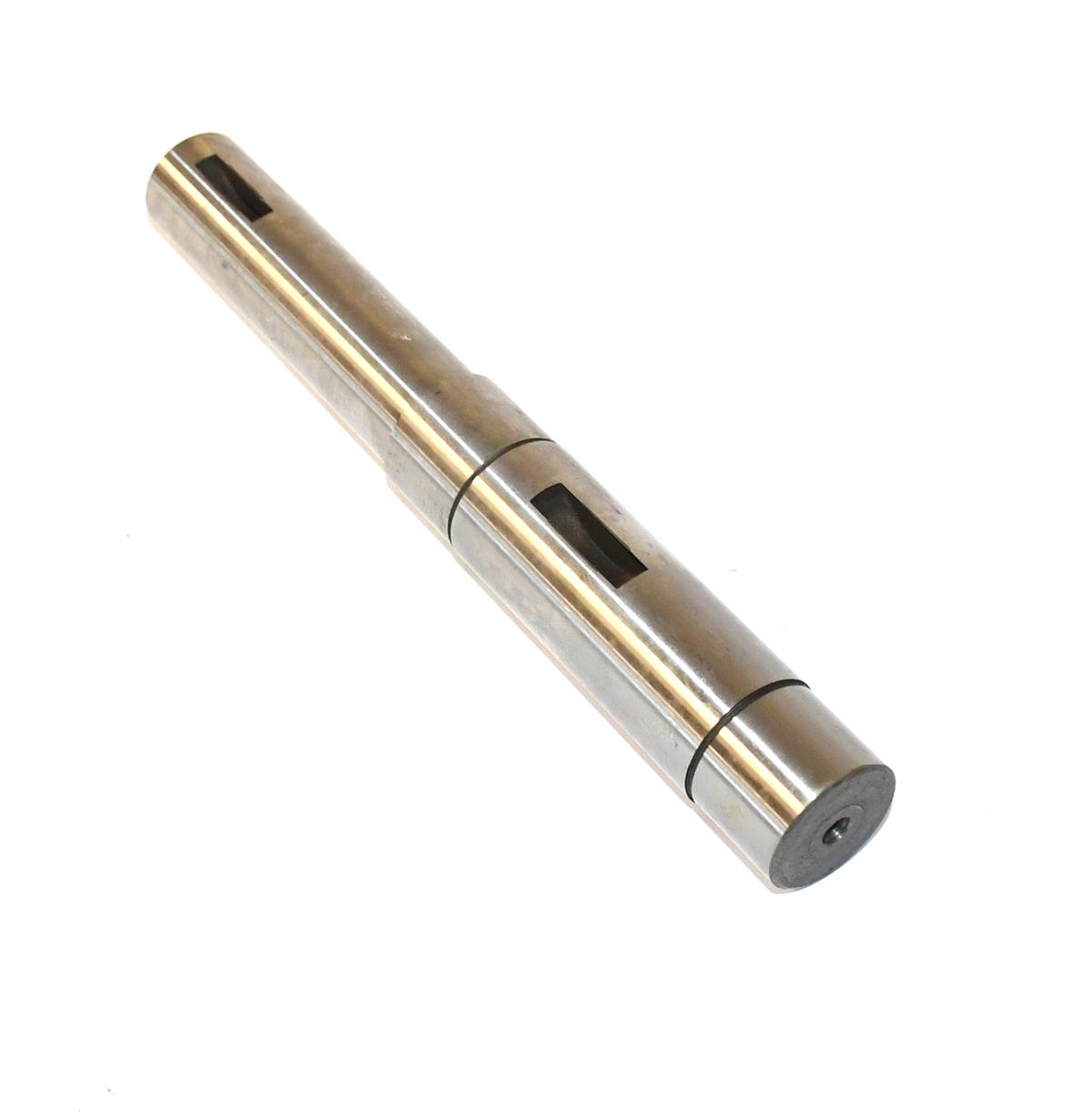

Shaft Shouldered Dump Hoist Pump Assembly M809 M939A1 M939A2
- Overall Length: 7.5 in.
- External Keyway Length: 0.750 in.
- First End Diameter: 0.984 in.
- Second End Keyway Width: 0.250 in.
- Second End Distance from Keyway Center to End: 0.750 in.
- Second End Tongue Thickness: 0.750 in.
- Second end Diameter: 0.874 in.
- Largest Step Diameter: 1 in.
- Step Quantity: 6
- Material: Steel
- Item #11 in diagram
All 5-Ton (M809, M939, M939A1)
M939, M939A1, M923, M923A1, M925, M925A1, M927, M927A1, M929, M929A1, M930, M930A1, M931, M931A1, M54, M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
