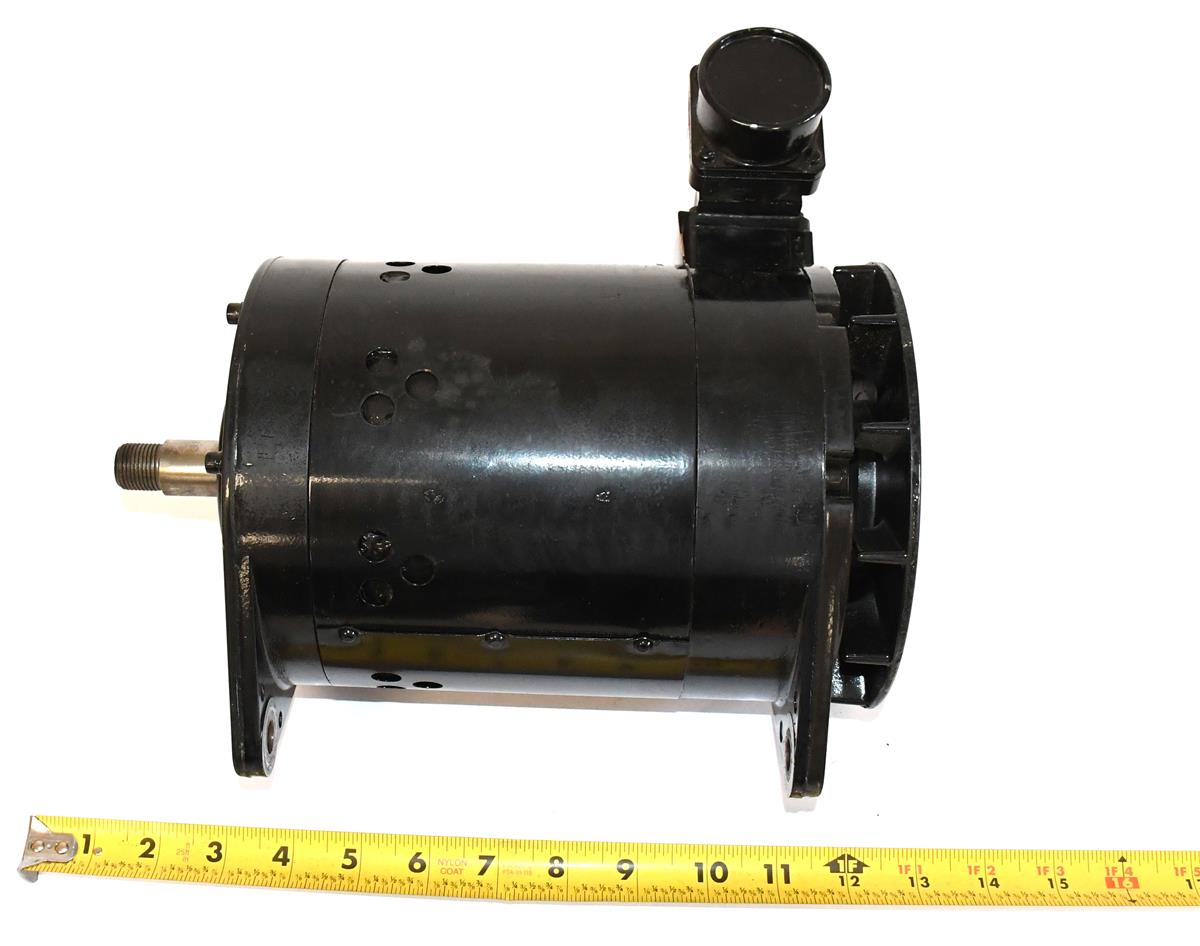

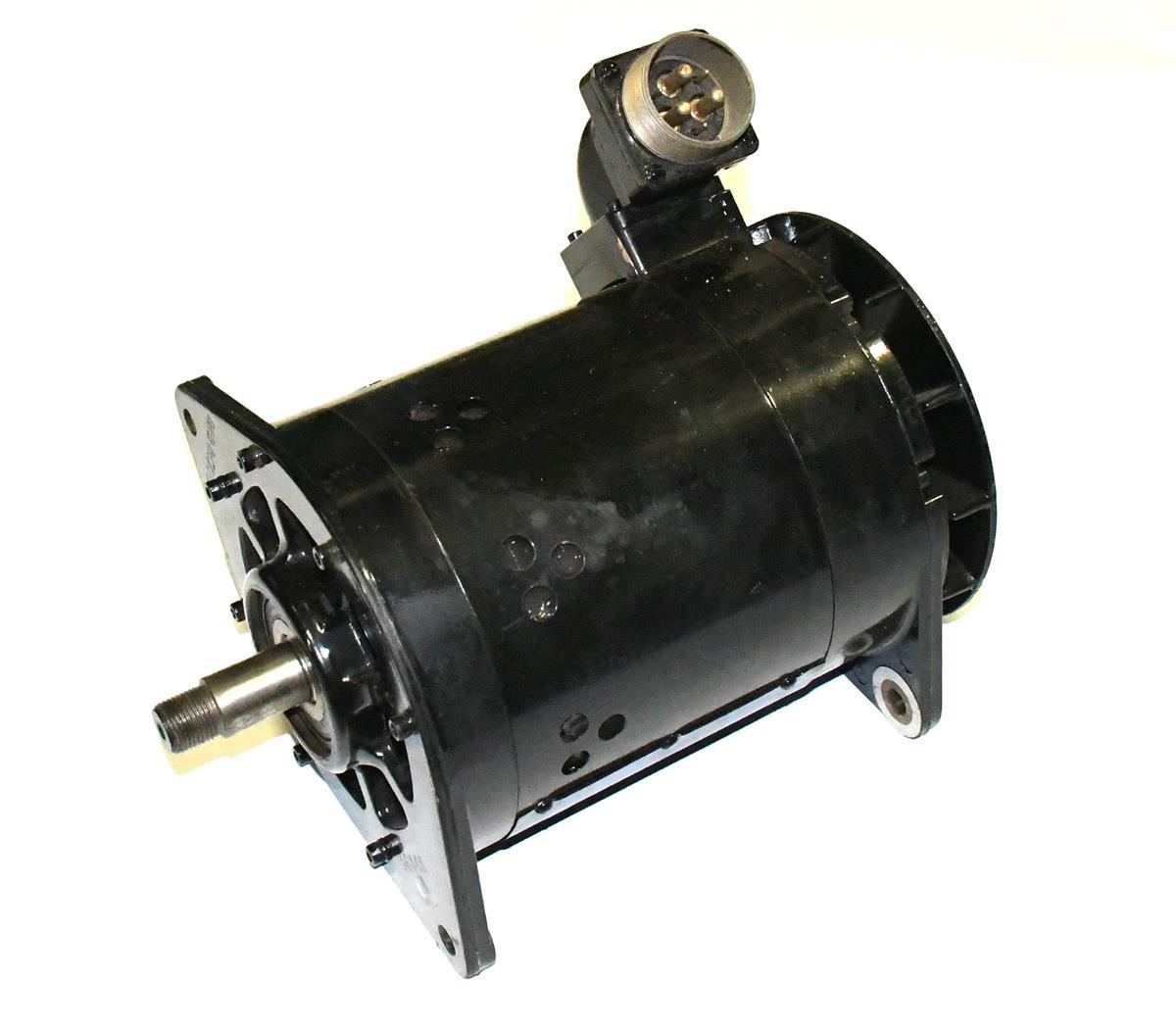

Generator Engine Accessory Alternator Leece Neville 28 Volt 180 AMP
- Maximum Output Current Rating in AMPs: 180
- Volts: 28
- Thread Length: 0.750 in.
- Second Step Diameter: 0.874 in.
- Keyway Width: 0.250 in.
- Keyway Length: 0.562 in.
- Unthreaded Portion Length: 1.219 in minimum and 1.281 in. maximum
- Distance from End to Keyway Center: 1.344 in.
- Thread Diameter: 0.750 in.
- Armature Minimum Speed in RPM at Full Current Output: 2700
- Distance Between Shaft Center and Bottom Mounting Hole Center: 4.125 in.
- Distance Between Shaft Center and Top Mounting Hole Center: 4.125 in.
- Angular Deviation of First Hole From Top Center in Degrees: 180
- Angular Deviation of second Hole From First Hole in Degrees: 159
- Distance Between Inside Surfaces of Hinge Bracket: 7.243 in. minimum and 7.256 in. maximum
- Distance Between Outside Surfaces of Hinge Bracket: 7.681 in minimum and 7.694 in. maximum
- Bottom Mounting Hole Diameter: 0.453 in.
- Maximum Speed Armature Speed in RPM: 8000
- Shaft Rotation Direction: Clockwise
Fits: Special Application
