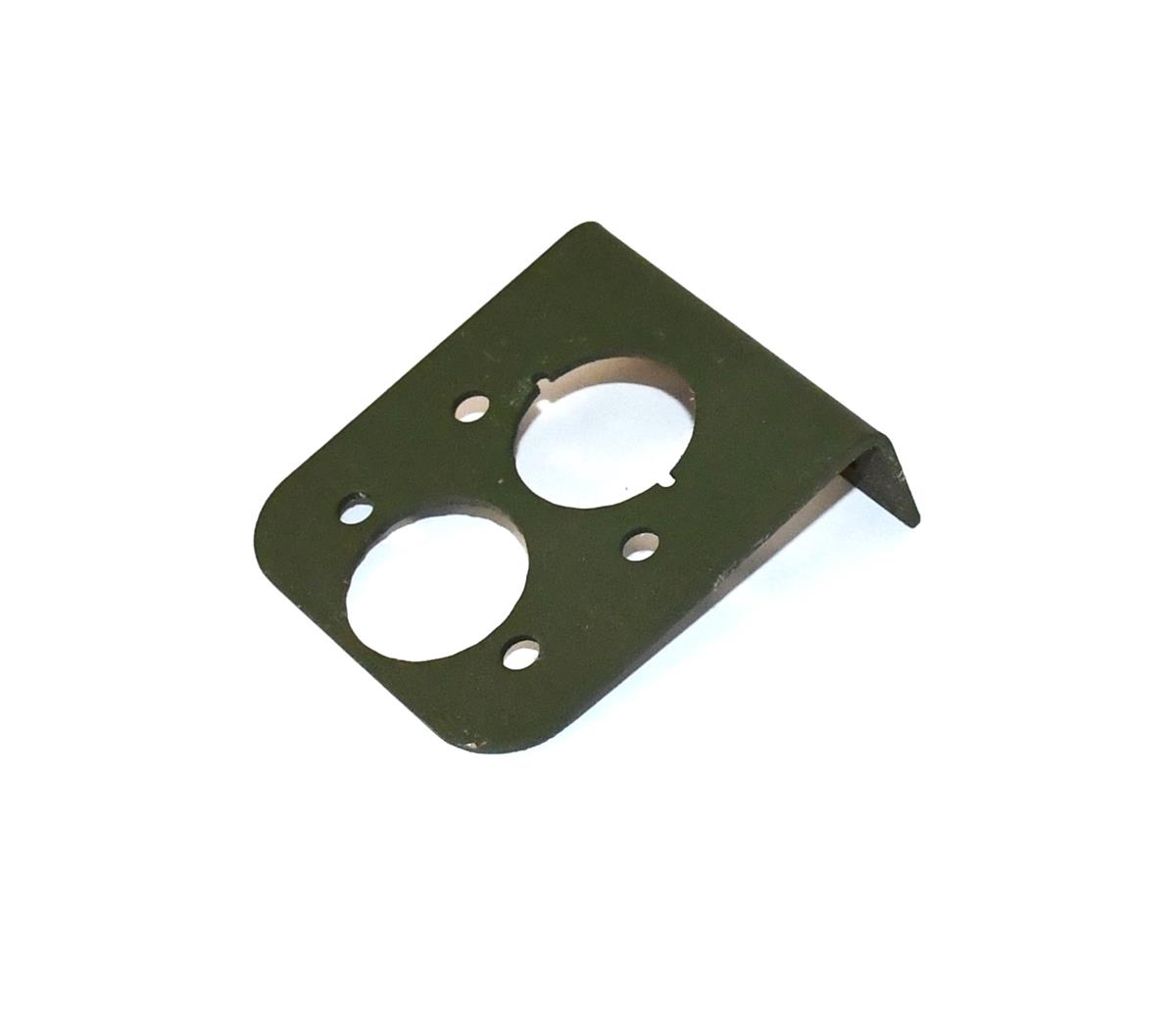

Angle Bracket Transfer Case Air Engaging Switch Mounting Bracket M35A2 M35A3
- First Leg Length: 1 in.
- Second Leg Length: 2.875 in.
- Second Leg Length: 2.5 in.
- Second Leg Corner Radius: 0.5 in.
- First Leg Hole Diameter: 0.281 in.
- First Leg Thickness: 0.075 in.
- First Leg Width: 2.5 in.
- First leg Distance Between Hole Centers Along Width: 1.5 in.
- First Leg Distance From Edge to Hole Center Along Width: 0.5 in.
- First Leg Distance From Edge to Hole Center Along Length: 0.375 in.
- First Leg angle: 90 degrees
- Material: Steel
- Item #5 in diagram
Click Here for Front Axle Lock Switch Data Plate M35A2
Click Here for Transfer Case Air Actuating Switch M35A2 M939A1 M939A2
Click Here for Hose Transfer Case to Tee Pipe for All Wheel Drive Control M35A2 M35A3
Fits: 2 ½ ton multifuel trucks (M35A2 and Variants)-
M35A2, M49A2, M50A2, M36A2, M109A3, M275 2 ½ Ton Trucks
