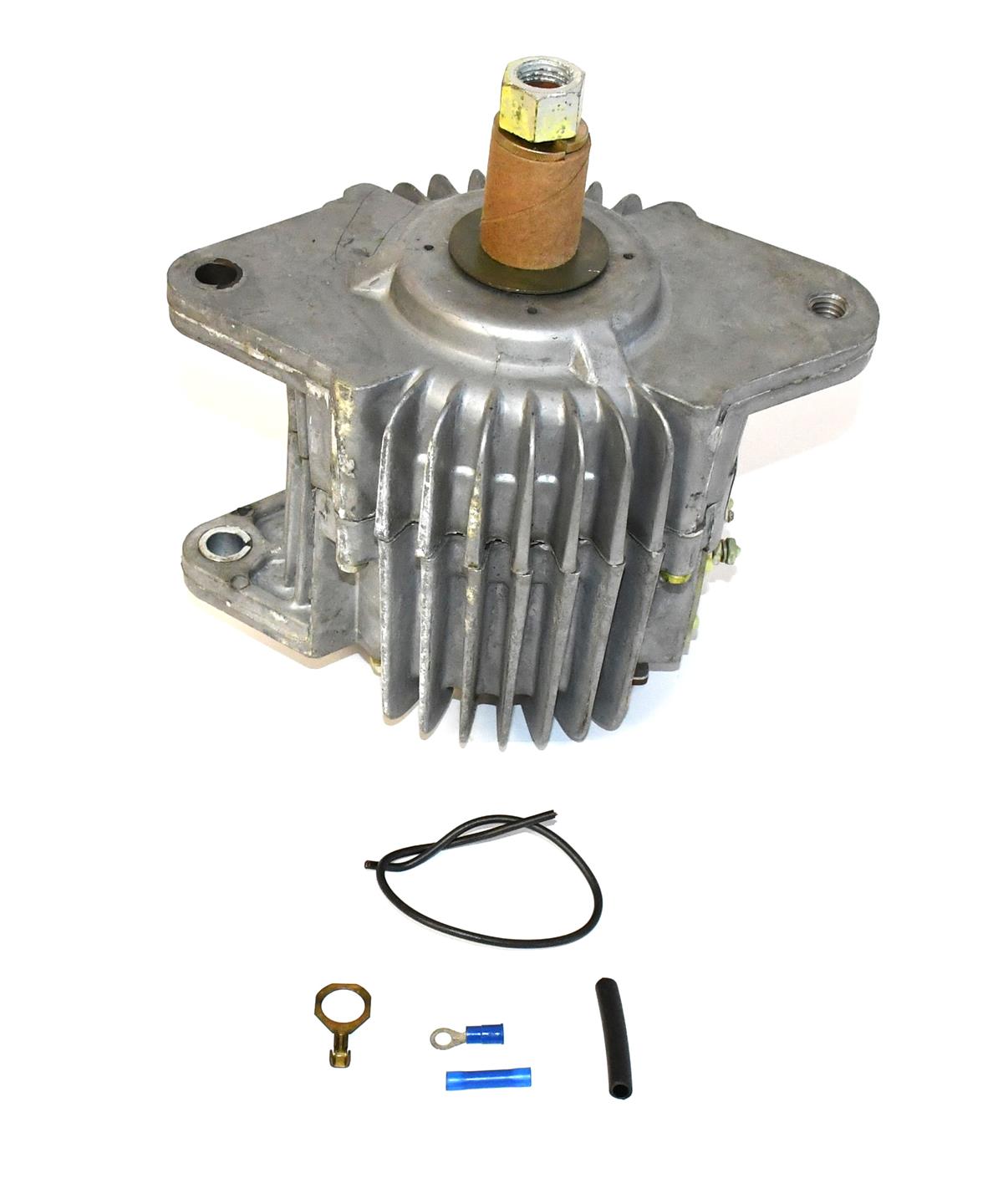

Alternator Generator Engine Accessory 24 Volt Prestolite Caterpillar Application
- Thread Length: 0.816 in.
- Second Step Diameter: 0.874 in.
- Keyway Width: 0.156 in.
- Unthreaded Portion Length: 1.132 in.
- Keyway Length: 0.625 in.
- distance From End to keyway Center: 1.382 in.
- Thread Diameter: 0.688 in.
- Distance Between Shaft Center and bottom Mounting Hole Center: 3.9 in.
- Distance Between Shaft Center and Top Mounting Hole Center: 3.9 in.
- Angular Deviation of First Hole from Top Center in Degrees: 0
- Angular Deviation of Second Hole from First Hole in Degrees: 180
- Distance Between Inside Surfaces of Hinge Bracket: 4 in.
- Distance Between Outside Surfaces of Hinge Bracket: 5.240 in.
- Bottom Mounting Hole diameter: 0.514 in.
- Volts: 24
- Thread Direction: Right Hand

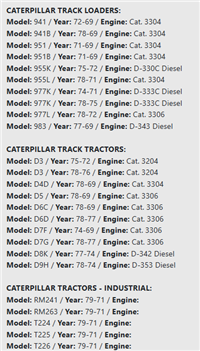

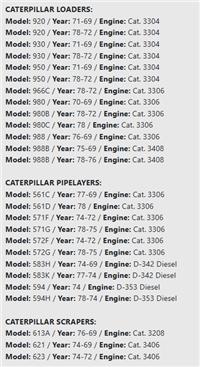

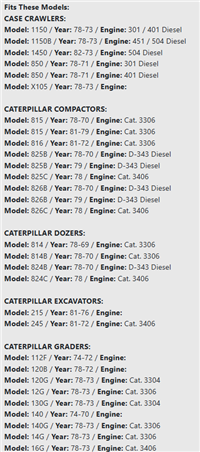

Fits: Special Application
Caterpillar, MHE, Navy Expeditionary Programs
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
