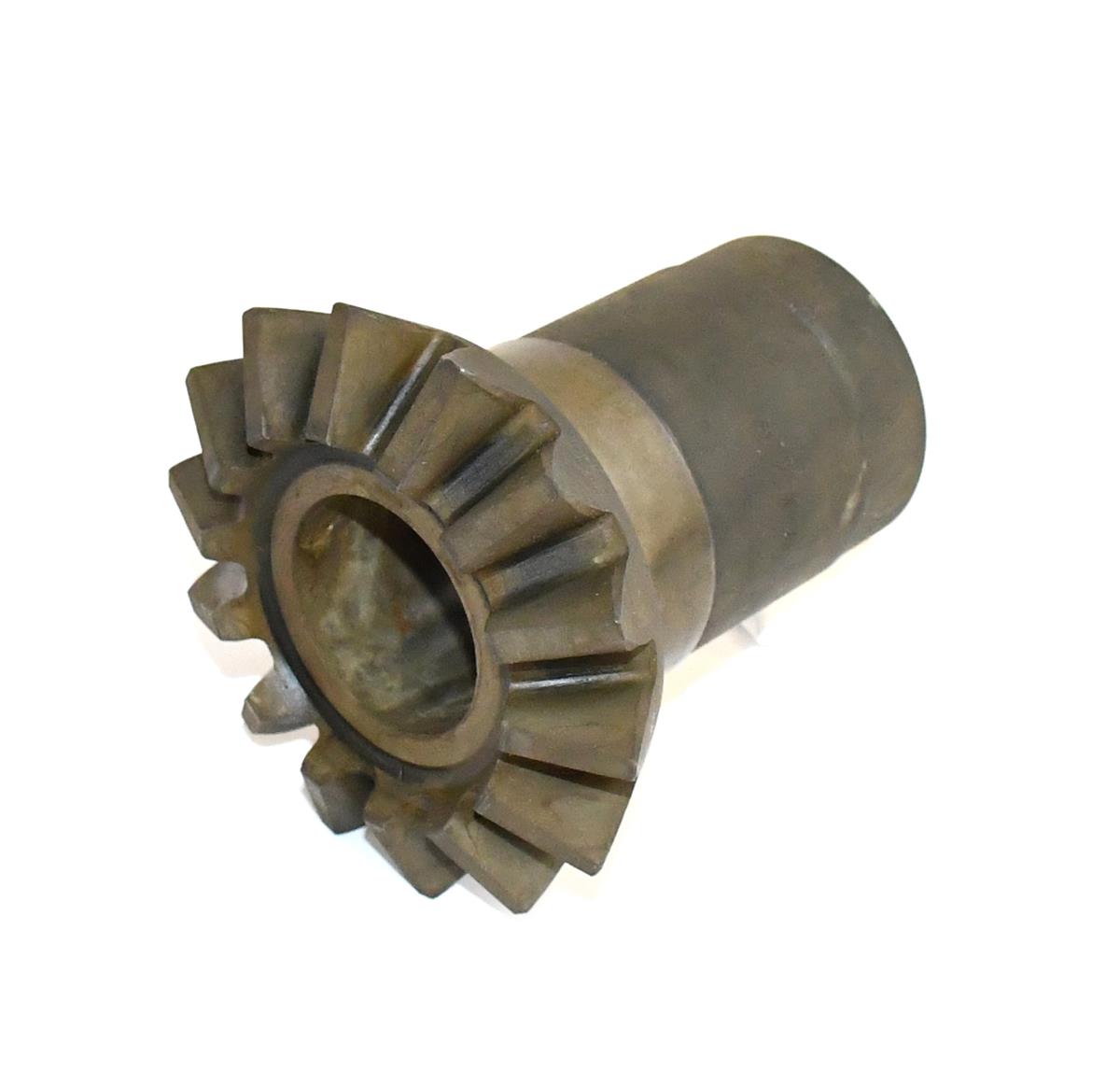

Gear Bevel Differential Side Gear and Drive Assembly 2234-X-778 Rockwell Arvin Meritor M915
- Pitch Diameter: 4 in.
- Teeth Quantity: 14
- Spline Pitch Diameter: 1.6 in.
- Nominal Outside Diameter: 4.344 in.
- Nominal Overall Length: 4.797 in.
- Nominal Distance Between Body Face and Protruding Hub End: 3.688 in.
- Bore Nominal Diameter: 1.650 in.
- End Nominal Length: 0.969 in.
- End Nominal Diameter: 2.438 in.
- First Step Nominal Length: 1.688 in.
- First Step Nominal Diameter: 2.5 in.
- Second Step Nominal Length: 0.938 in.
- Second Step Nominal Diameter: 2.563 in.
- Third Step Nominal length: 0.094 in.
- Third Step Nominal Diameter: 3 in.
- Pressure Angle: 20 Degrees
- Pitch angle: 25 Degrees
- Material: Steel
- Item #3 in diagram
Fits: M915 Series
M915A3, M916A3, M917A1, M917E1, M917A2, M917E2, M917A
