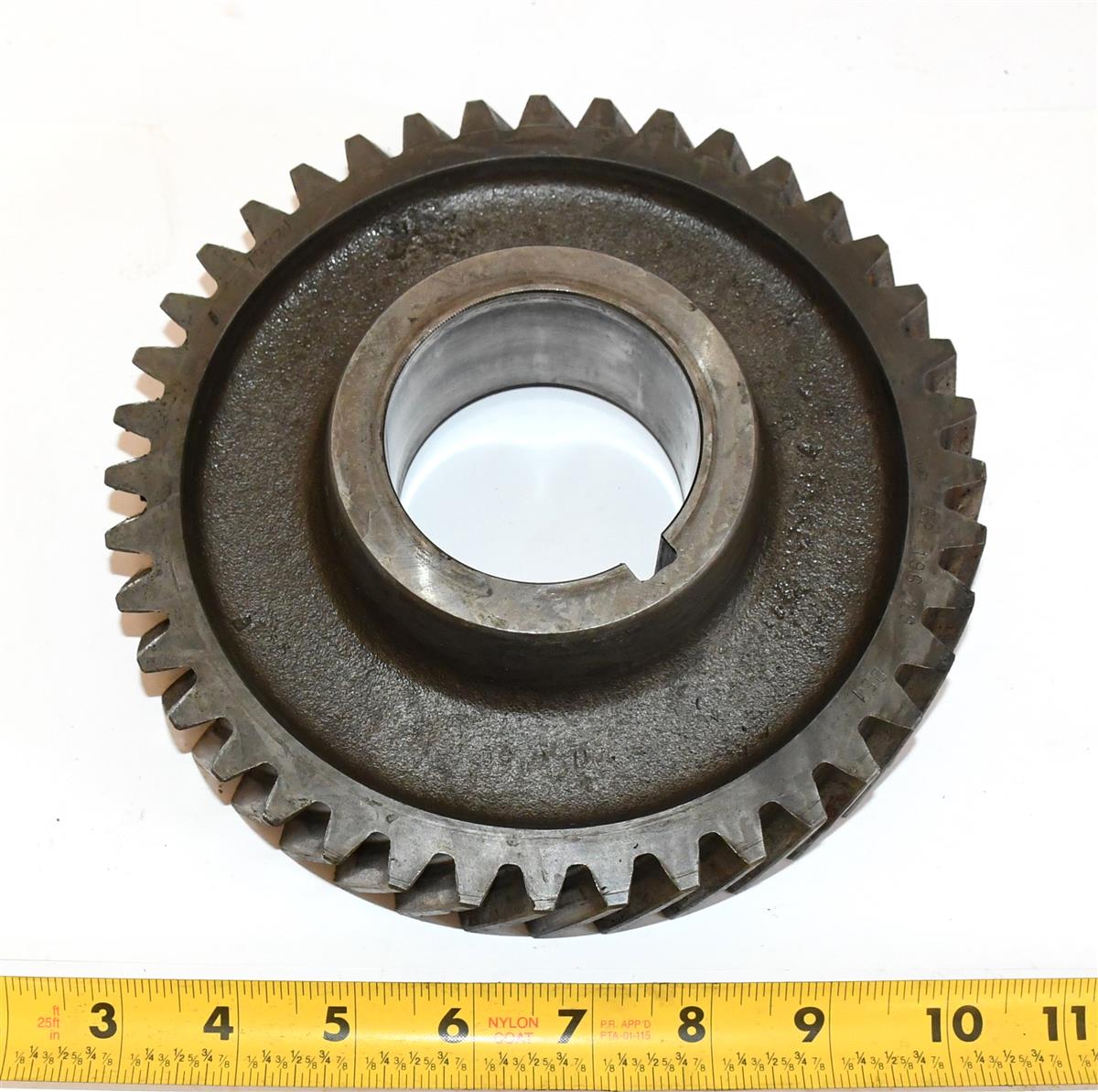

Countershaft 4th Speed Gear Spicer Model 6452 Non Overdrive Transmission 5 Speed M54A2
- Pitch Diameter: 7.428 in.
- Nominal Outside Diameter: 7.729 in.
- Helix Angle: 26.205 in.
- Face Nominal Width: 1.281 in.
- Bore Diameter: 2.622 in.
- Keyway Nominal Width: 0.375 in.
- Hub Nominal Diameter: 3.437 in.
- Pressure Angle: 17.5 degrees
- Teeth Quantity: 40
- Material: Steel
Fits
M54 and variants 5-Ton Trucks equipped with Transmission Model Spicer 6452
M39
