Exhaust Manifold Bolt and Screw Hardware Kit 6.2 and 6.5L GM Style Diesel Engine HMMWV

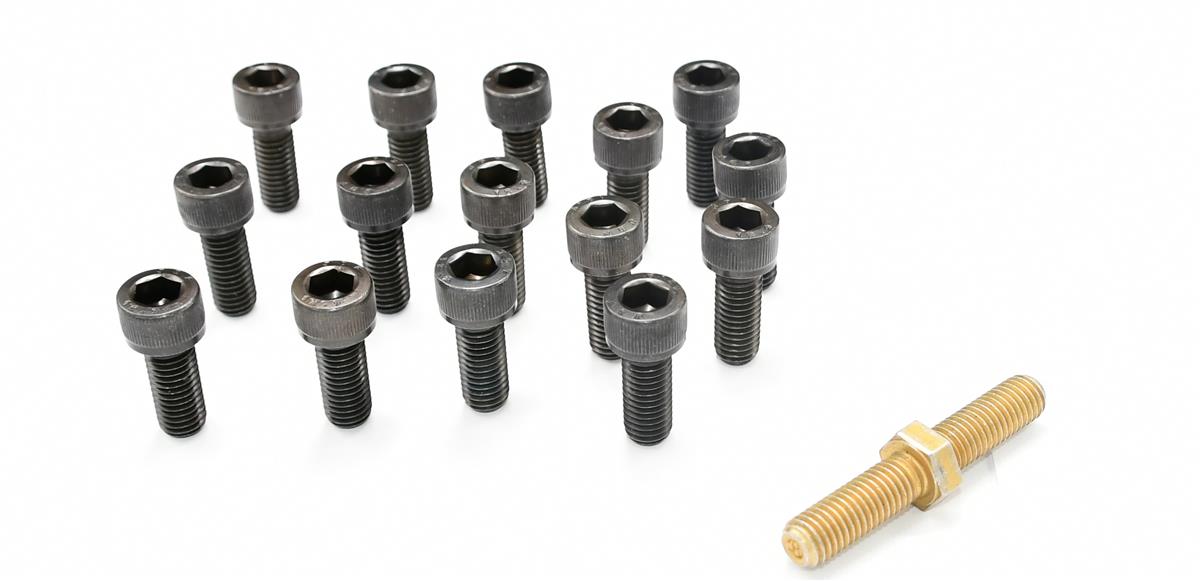

Kit Consists of 15 Socket Head Screw Caps and 1 Shouldered Stud
Diagram Shown in Pictures
Click Here For Intake Manifold 6.2 and 6.5L GM Style Diesel Engine HMMWV
Socket Head Screw Cap Part Number: 123392391
- Thread Length is 22.0 Millimeters and 25.0 Millimeters Maximum
- Fastener Length is 25.00 Millimeters
- Head Diameter is 15.57 Minimum and 16.00 Millimeters Maximum
- Head Height is 9.78 Millimeters Minimum and 10.00 Millimeters Maximum
- Hexagon Internal Drive Style
- Thread Diameter is 10.0 Millimeters
- Width Across Flats is 8.00 Millimeters
- Thread Pitch in Millimeters is 1.5
- Steel Material
Shouldered Stud Part Number: 12339406-3
- Thread Length is 3.0 Millimeters Maximum Nut Thread
- Thread Length is 3.0 Millimeters Maximum Stud Thread
- Shoulder Length is 6.17 Millimeters Minimum
- Shoulder Length is 6.63 Millimeters Maximum
- Overall Length is 64.97 Millimeters Minimum
- Overall Length is 66.63 Millimeters Maximum
- Distance Across Flats is 14.70 Millimeters Minimum
- Distance Across Flats 15.00 Millimeters Maximum
- Thread Size is 10.0 Millimeters Nut Thread
- Thread Size is 10.0 Millimeters Stud Thread
- Steel Material
Fits: HMMWV
