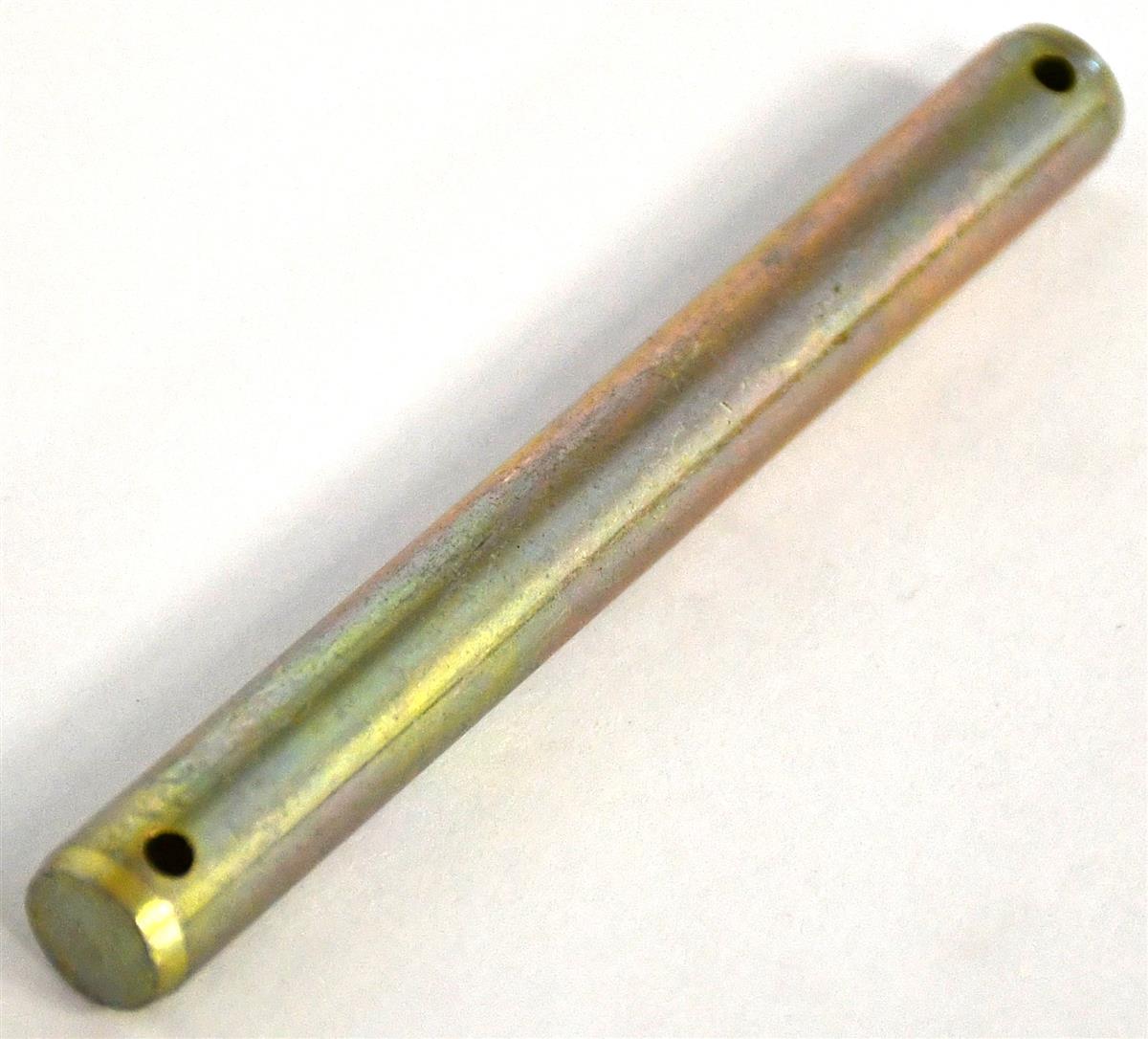

Headless Straight Pin Aircraft and Marine Application
- Hole Diameter - 0.107 Inches
- Distance From Centerline of Hole to End of Pin - 0.141 Inches Minimum And 0.172 Inches Maximum
- Center To Center Distance Between Holes - 3.157 Inches
- Pin Overall Length - 3.468 Inches Minimum And 3.478 Inches Maximum
- Pin Overall Diameter - 0.3720 Inches Minimum And 0.3750 Inches Maximum
- Material - Steel
Item #14 in Attached Diagram
Fits: Aircraft and Marine Application
LPD-17 Class Amphibious Transport Dock, General Handling Equipment, AN/UYQ-70(V) Advance Display System(ADS), Whidbey Island Class LSD, America Class LHA, Wasp Class LHD / America Class LHA, Littoral Combat Ship, Littoral Combat Ship (LCS 1), Littoral Combat Ship, (LCS 2), Vehicle, Recovery M-578, Littoral Combat Ship, Flight 0, Recovery Vehicle, Full Tracked, Howitzer, Medium, Self-Propelled
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
