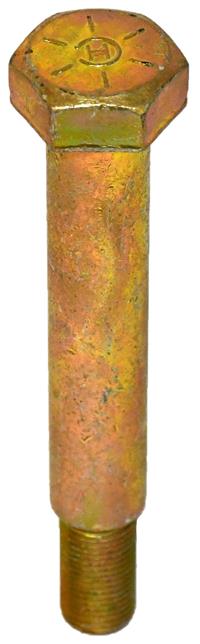

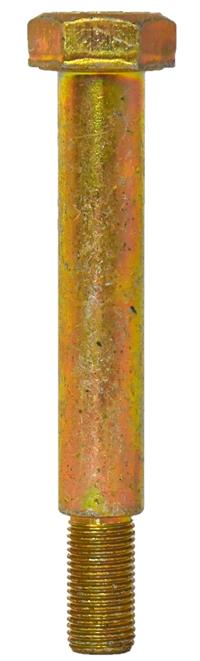

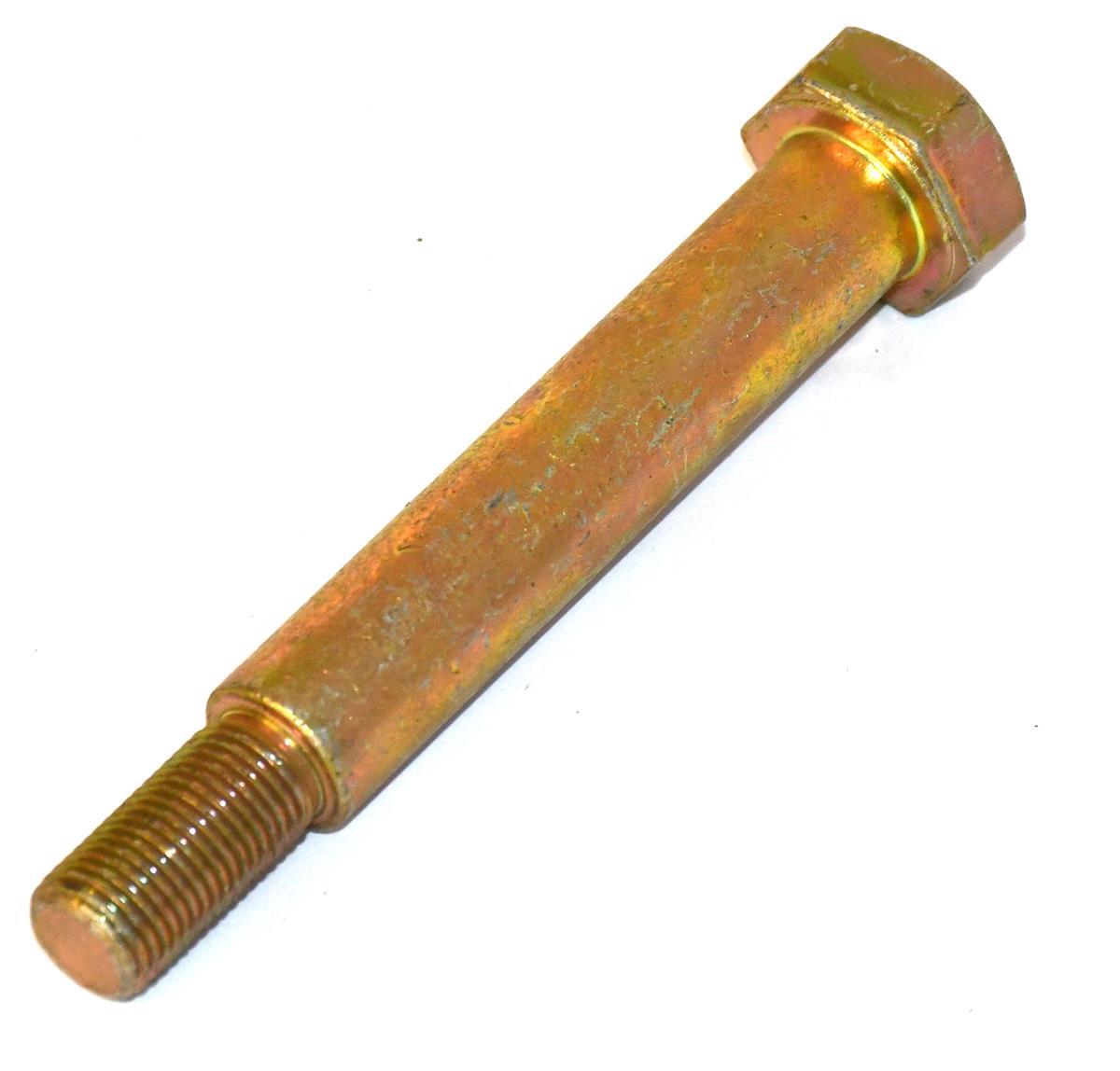

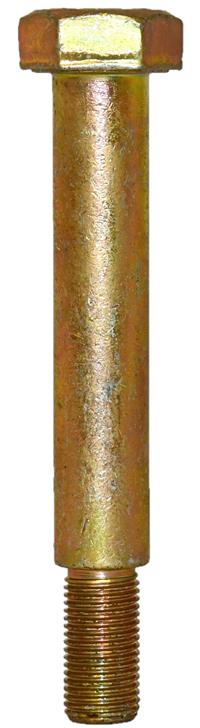

Shoulder Bolt for Cab to the Truck Frame M939 M939A1 M939A2
- Shoulder Length: 3.177 inches minimum, 3.197 inches maximum
- Fastner Length: 4.177 inches minimum, 4.197 inches maximum
- Thread Length: 0.980 inches minimum, 1.020 inches maximum
- Height: Approximate 4 1/2 inches
- Head Hight: 0.378 inches minimum, 0.403 inches maximum
- Shoulder Diameter: 0.6170 inches minimum, 0.6250 inches maximum
- Material: Steel
- Item #1 in Diagram
Fits: All M939 series 5-ton (A0, A1 & A2)
M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2 5-Ton Trucks
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
