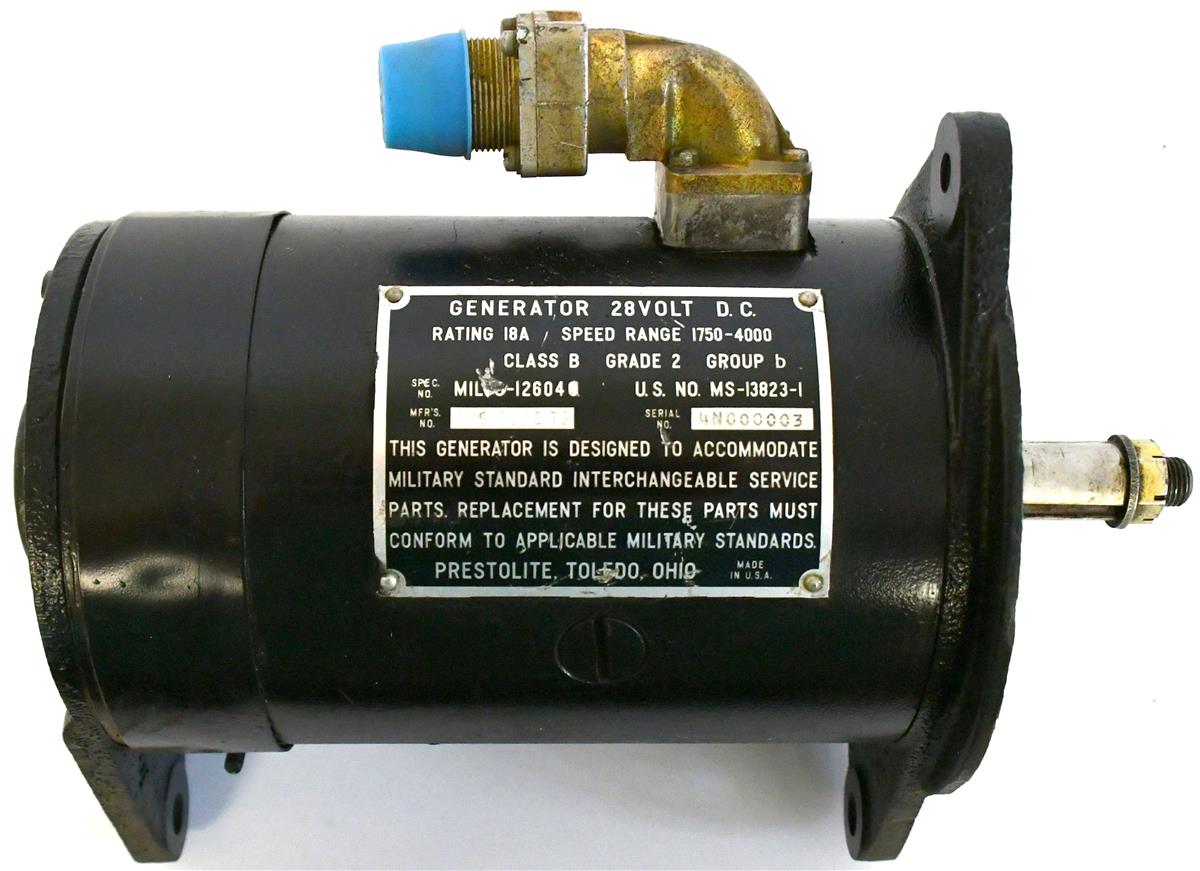

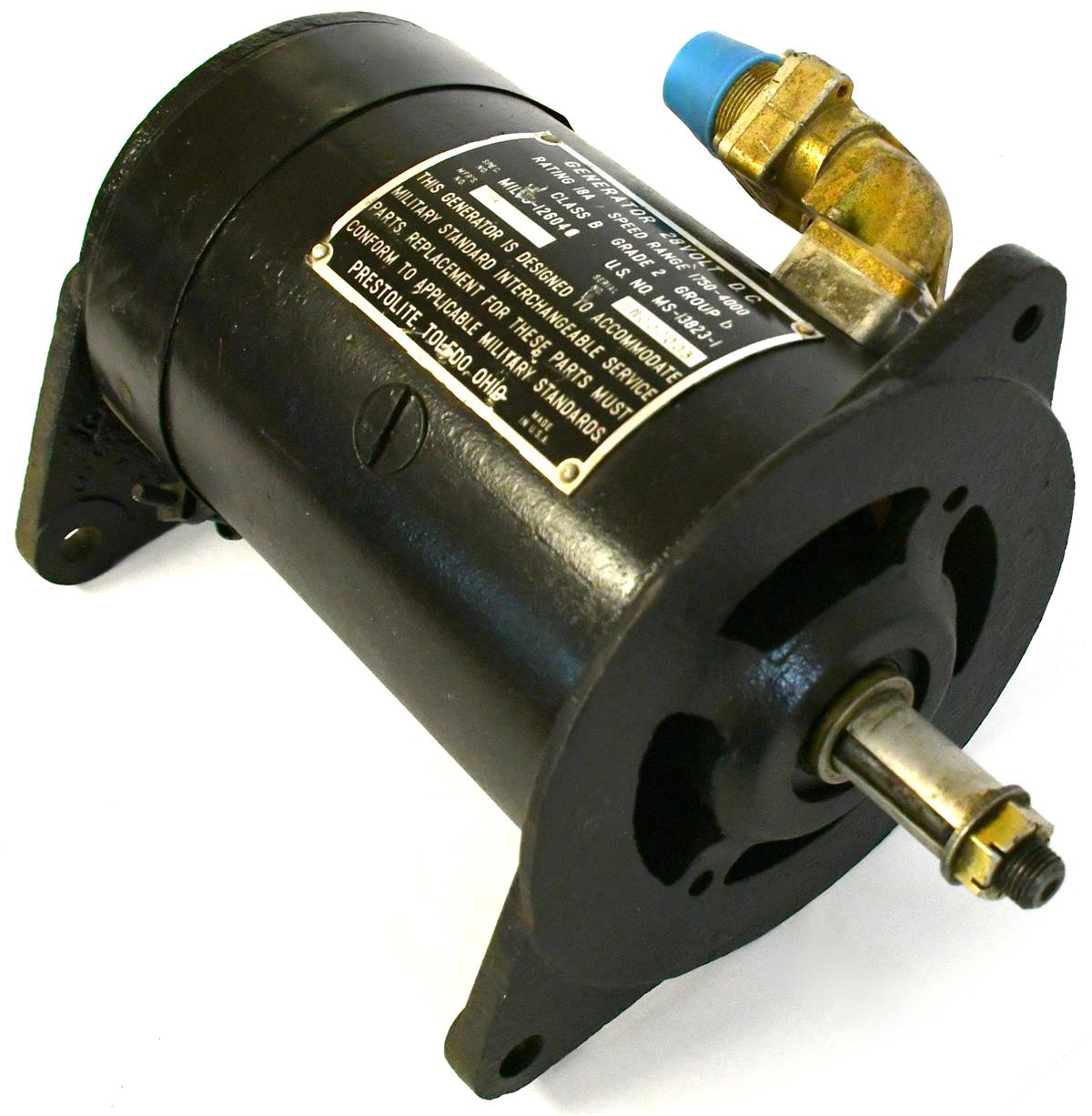

Generator 28 Volt 18 Amp Class B Grade 2 Group B
- Keyway Width - 0.125 Inches
- Voltage In Volts - 28.0
- Keyway Length - 0.625 Inches
- Distance From End to Keyway Center - 1.330 Inches Minimum And 1.390 Inches Maximum
- Thread Diameter - 0.500 Inches
- Ground Polarity Type - Negative
- Armature Minimum Speed in Rpm at Full Current Output - 1950
- Maximum Output Current Rating in Amps - 18.0
- Distance Between Shaft Center and Bottom Mounting Hole Center - 3.875 Inches
- Distance Between Shaft Center and Top Mounting Hole Center - 3.500 Inches
- Distance Between Inside Surfaces of Hinge Bracket - 7.243 Inches Minimum And 7.257 Inches Maximum
- Distance Between Outside Surfaces of Hinge Bracket - 8.103 Inches Minimum And 8.197 Inches Maximum
- Bottom Mounting Hole Diameter - 0.447 Inches Minimum And 0.459 Inches Maximum
- Maximum Rated Armature Speed In Rpm - 4000
Fits: Military Generator
