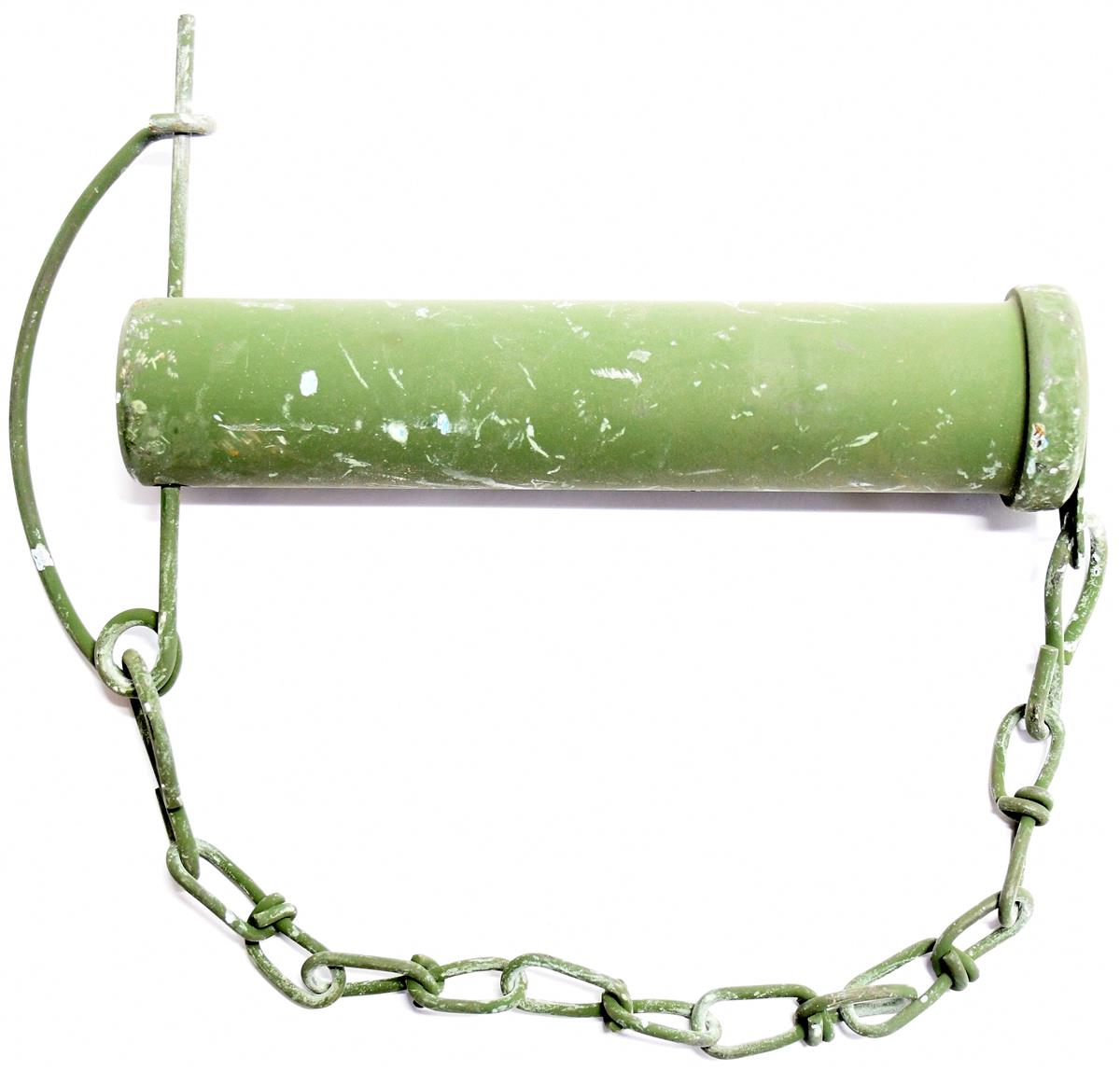

Pin with Chain Rear Suspension Trunnion Wrecker M936A1 M936A2
- Chamfer Length - 0.062 Inches
- Diameter - 1.240 Inches Minimum And 1.245 Inches Maximum
- Under Head Length - 5.750 Inches
- First Hole Diameter - 0.131 Inches Minimum And 0.137 Inches Maximum
- Distance From Centerline Of Hole To End Of Pin - 0.281 Inches
- Pin Chamfer Angle - 45.0 Degrees
- Pin Head Diameter - 1.500 Inches
- Height - 0.375 Inches
- Material - Steel
- Surface Treatment - Plastic Polyurethane Overall
Item #4 in Attached Diagram
Fits
M35, M35A1, M35A2, M35A3, M36, M36A1, M36A2, M36A3,M275, M109, M109A1, M109A3, M109A4 2 ½ Ton Trucks
M54 and variants 5-Ton Trucks
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2 5-Ton Trucks
