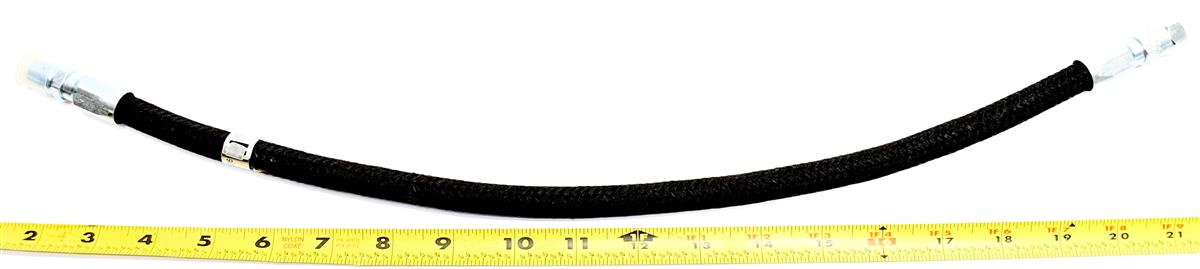

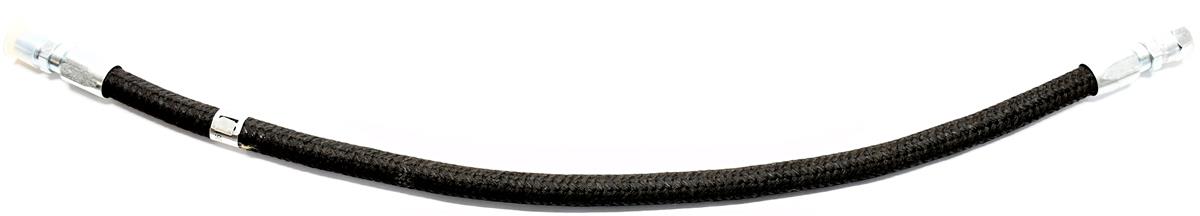

Hose Hydraulic Fan Clutch to Solenoid HMMWV
- Inside Diameter - 0.188 Inches Minimum And 0.214 Inches Maximum
- Temp Rating - -40.0 Fahrenheit And 212.0 Fahrenheit Single Response
- Outside Diameter - 0.500 Inches Minimum And 0.539 Inches Maximum
- Minimum Inside Bending Radius - 3.000 Inches
- Burst Test Pressure - 1200.0 Pounds Per Square Inch
- Layer Composition And Location - 1st Layer Molded Rubber, Synthetic And 2nd Layer Braided Textile Yarn And Outer Layer Molded Rubber, Synthetic
- Maximum Operating Pressure - 3000.0 Pounds Per Square Inch
- Nominal Thread Size - 0.250 Inches 1st End
- Nominal Thread Size - 0.438 Inches 2nd End
- Seat Angle - 30.0 Degrees 1st End
- Seat Angle - 45.0 Degrees 2nd End
- Hydrostatic Test Pressure - 6000.0 Pounds Per Square Inch
- Outer Covering Environmental Protection - Oil Resistant And Heat Resistant And Hydraulic Solution Resistant
- Inside Surface Condition - Smooth
- Measuring Method And Length - 20.000 Inches Nominal Overall
- Media For Which Designed - Hydraulic Fluid And Hydraulic Fluid, Water Base Single Response

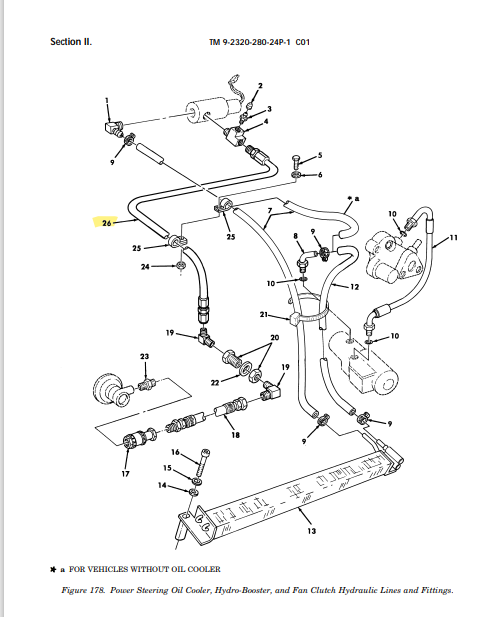

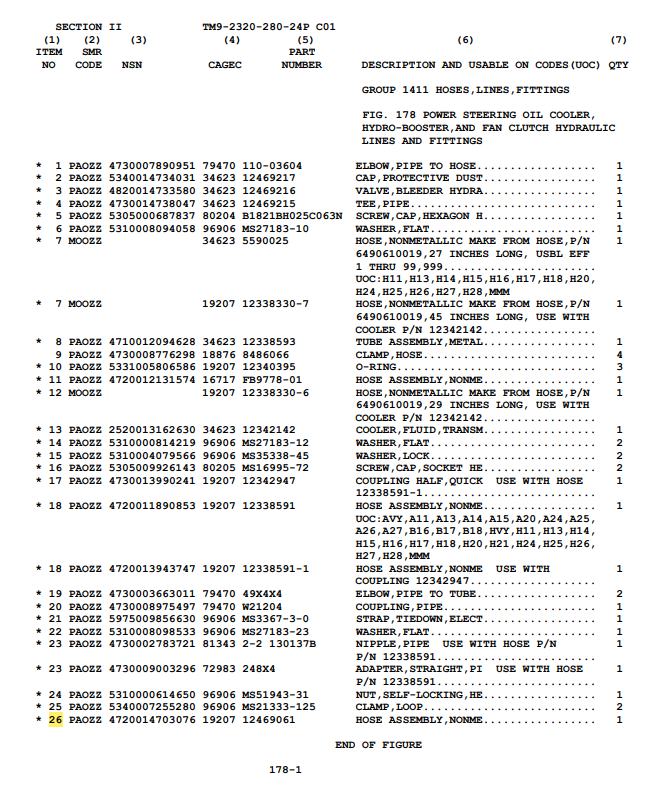

Item #26 in Parts Diagram
Fits: HMMWV Models, HUMVEE
- M1025 M1025A1 M1025A2 M1026 M1026A1 M1035 M1035A1 M1035A2 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1043A2 M1044 M1044A1 M1045 M1045A1 M1045A2 M1046 M1046A1 M1097 M1097A1 M1097A2 M1121 M1123 M966 M966A1 M996 M996A1 M997 M997A1 M997A2 M998 M998A1 M1151 M1151A1 M1167
- Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
