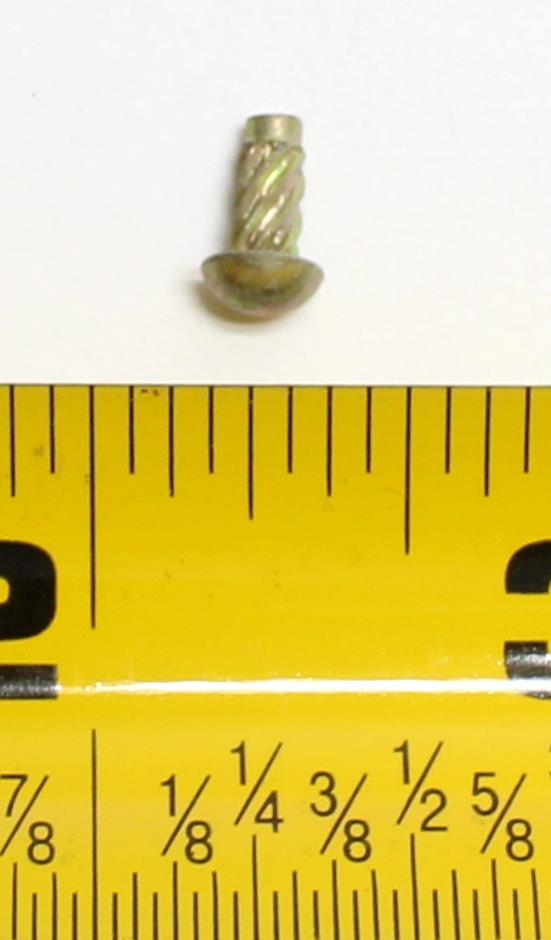

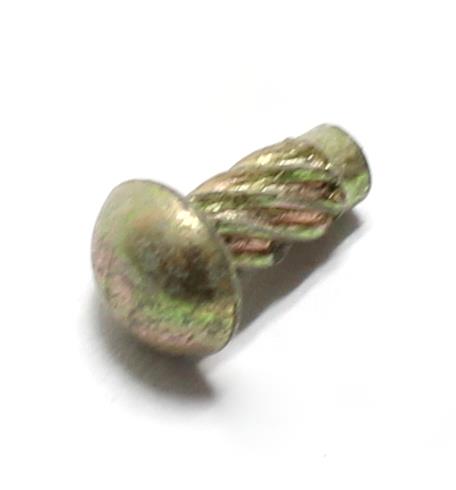

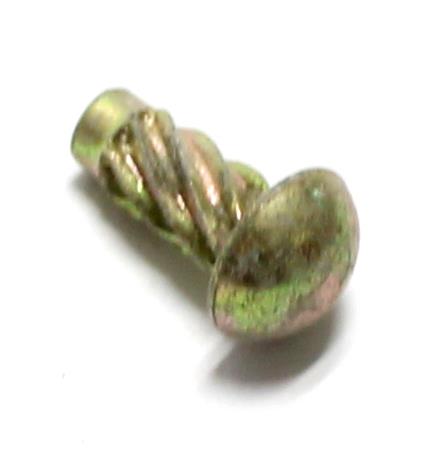

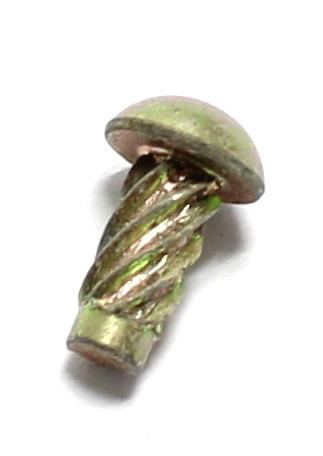

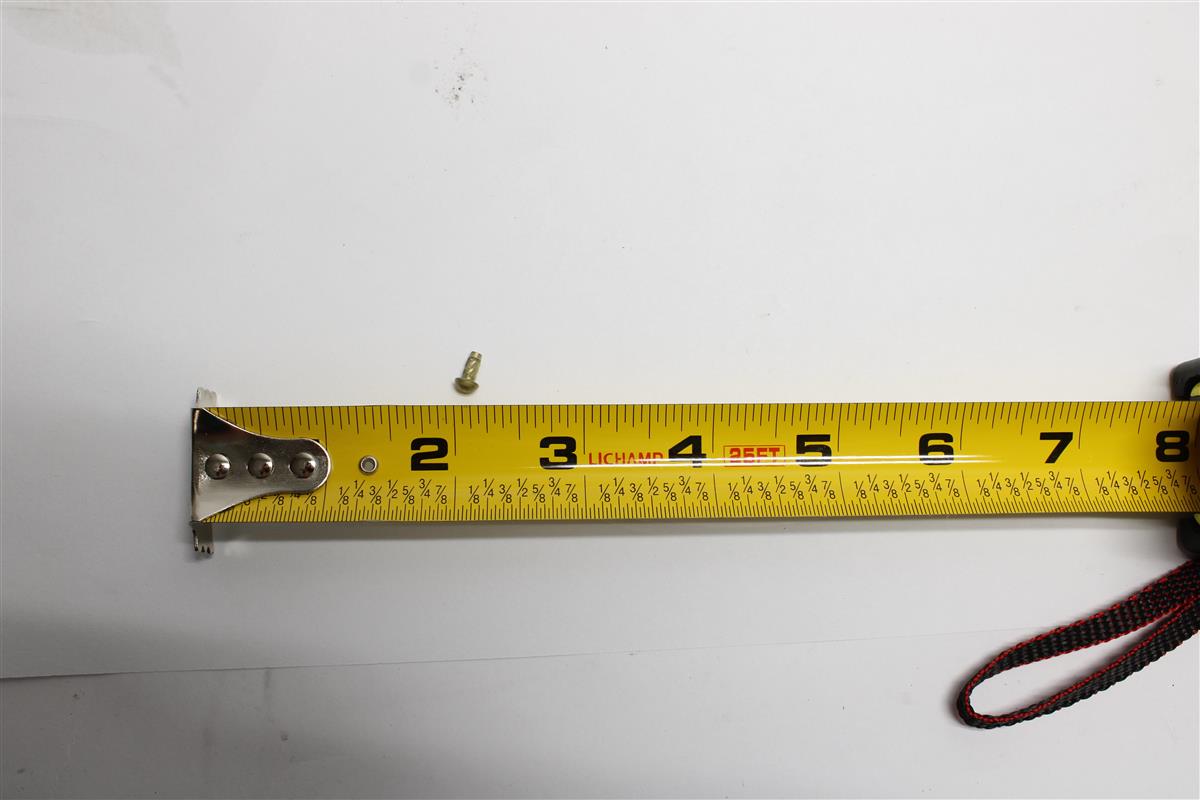

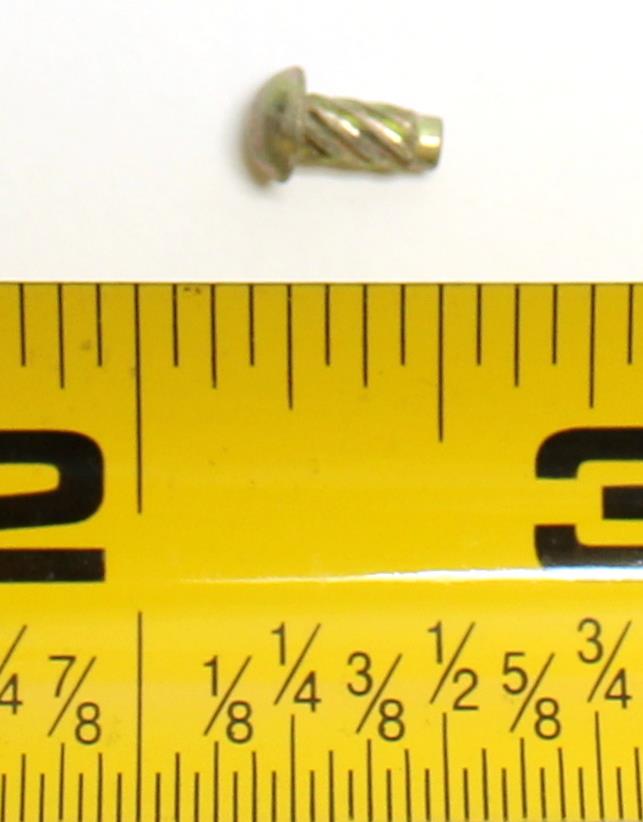

Drive Screw Contactor Box Cover Generator Model 2A016 1.5 KW 4A032 3 KW Gen-Set
- 4 Each
- Fastener Length - 0.250 Inches
- Head Style - Round
- Head Diameter - 0.193 Inches Minimum And 0.211 Inches Maximum
- Head Height - 0.075 Inches Minimum And 0.086 Inches Maximum
- Pilot Diameter - 0.092 Inches Minimum And 0.096 Inches Maximum
- Pilot Length - 0.047 Inches
- Features Provided - Casehardened
- Nonmachine Thread Style - Drive Screw (Type U)
- Nonmachine Nominal Thread Diameter - 0.114 Inches
- Material - Steel Overall
- Surface Treatment - Cadmium Overall and Chromate Overall
FITS:
Generator Model 2A016 – 1.5 KW
MEP-015A - - 60 HZ – Gasoline Engine Driven
MEP-025A - - DC – Gasoline Engine Driven
Generator Model 4A032 – 3 KW
MEP-021A – 400 HZ – Gasoline Engine Driven
MEP-026A – DC – Gasoline Engine Driven
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
