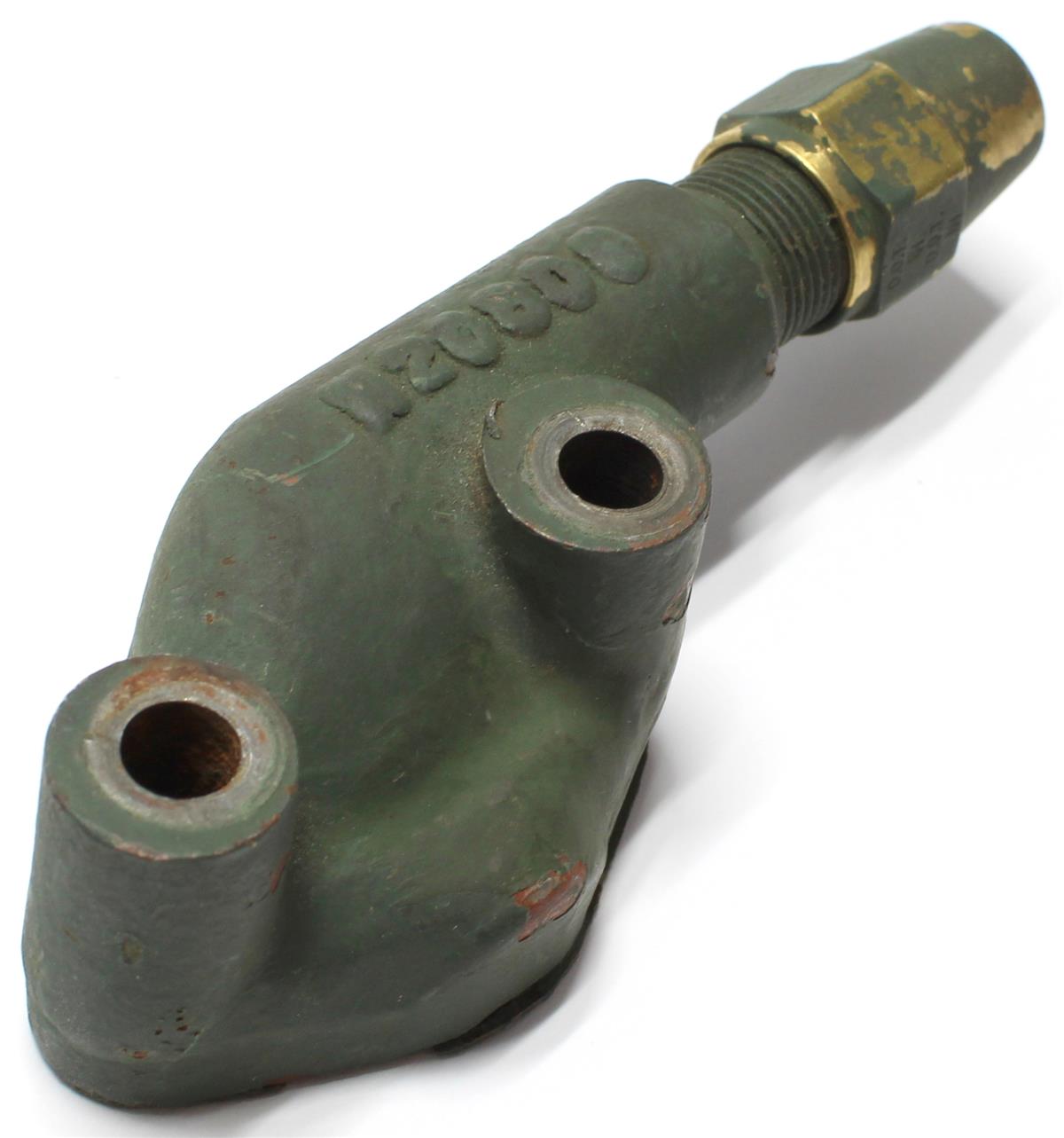

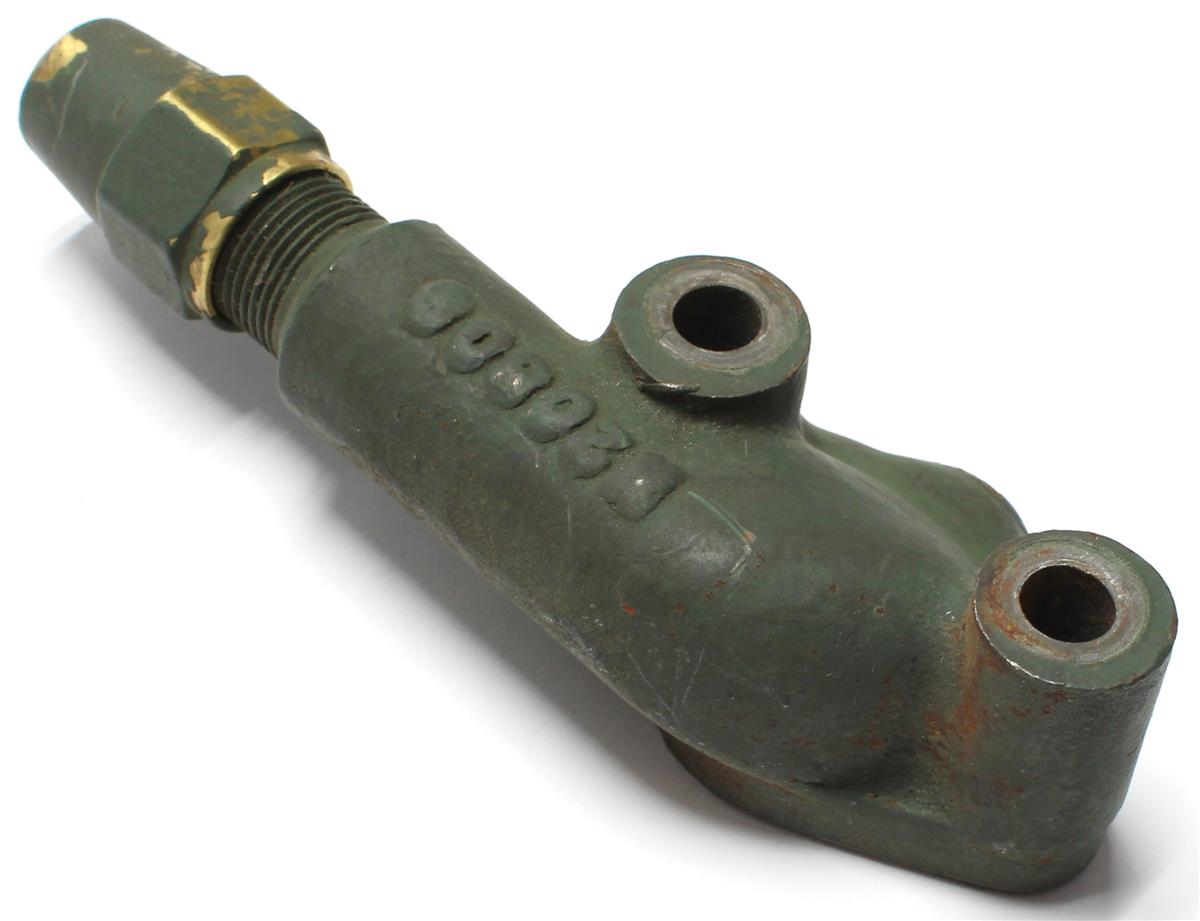

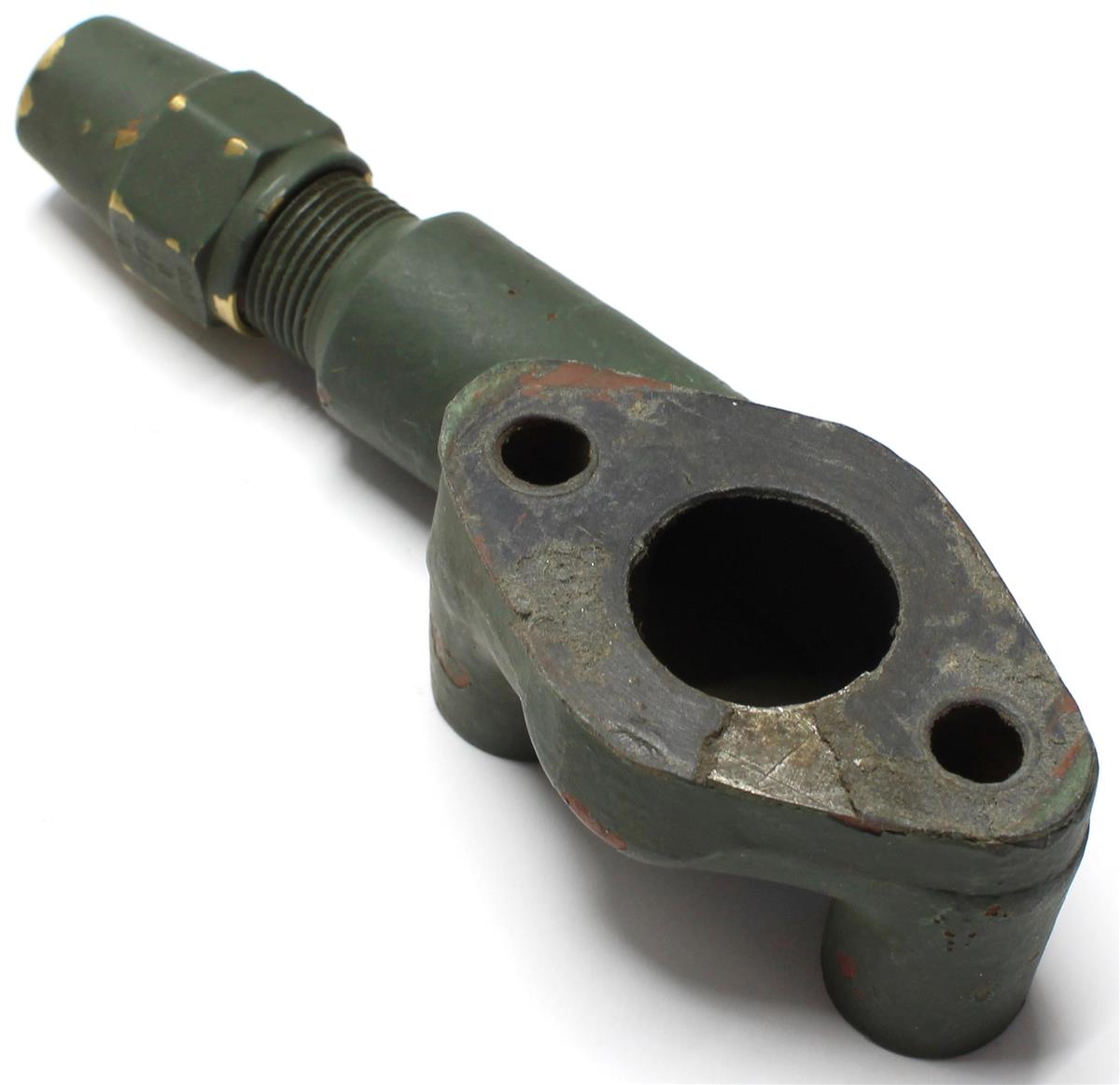

Flange from Air Compressor to Air Tank Feed Line for Multifuel Engine M54A2
-
Thread Pitch Diameters - +0.7820/+0.7950 Inches 1st End
-
Bolt Hole Quantity - 2 2nd End
-
Leg Length - 0.750 Inches 2nd End
-
Leg Length - 2.500 Inches 1st End
-
Width - 1.537 Inches 2nd End
-
Length - 2.436 Inches 2nd End
-
Thread Size - 0.812 Inches 1st End
-
Thickness - 1.320 Inches 2nd End
-
Bolt Hole Diameter - 0.344 Inches 2nd End
-
Bolt Circle Diameter - 1.750 Inches 2nd End
-
Outside Diameter Tube Accommodated - 0.500 Inches 1st End
-
Material - Steel Overall
Click Here for M35A2 and M54 Series with Multi-Fuel Engine Air Compressor, 2 Piston, Old Style NSN 4310008633155
Click Here for Air Compressor for LDS465 Multifuel Engine M54A2
Fits
5 Ton 6x6 Military Truck
M54 and variants 5-Ton Trucks
