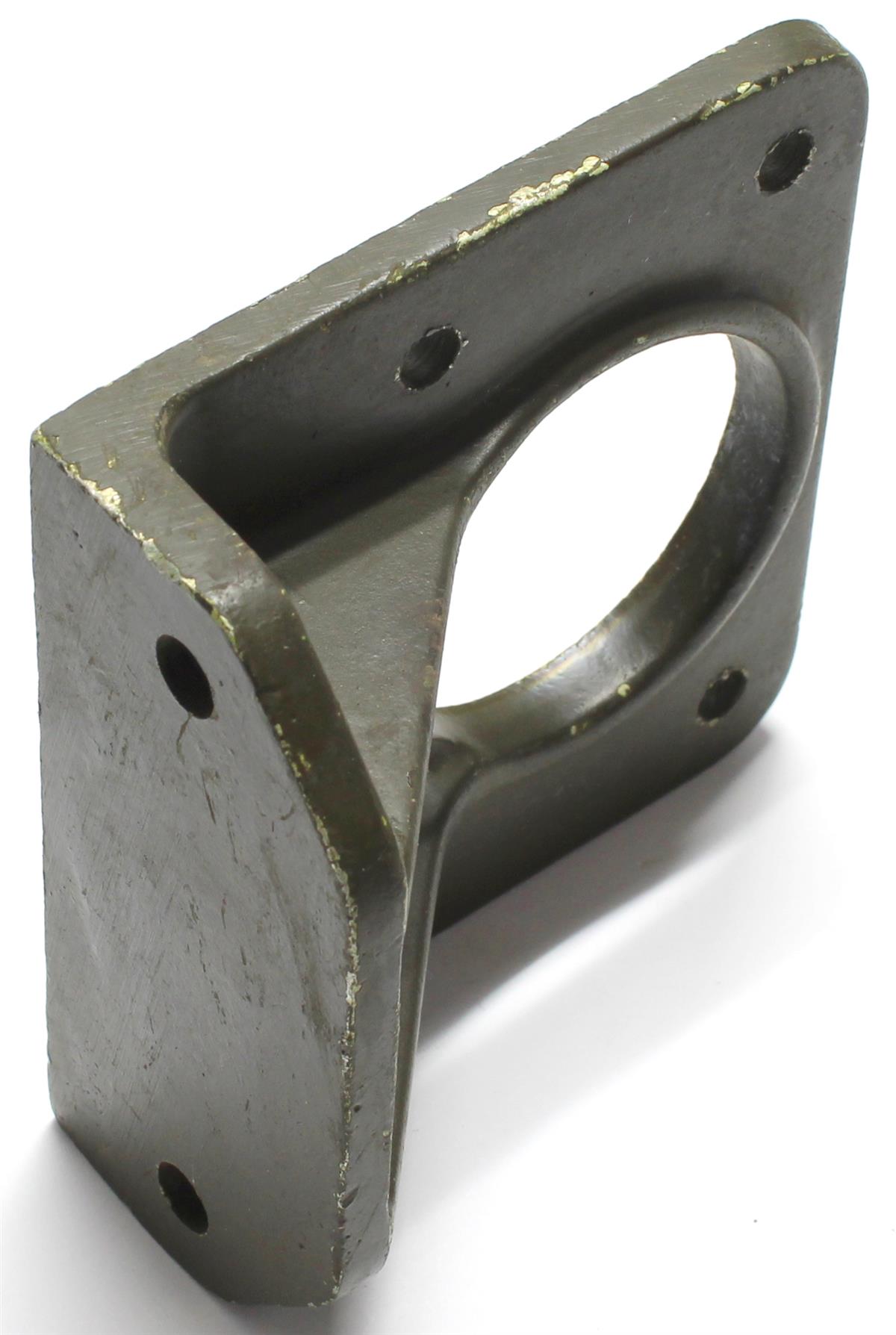

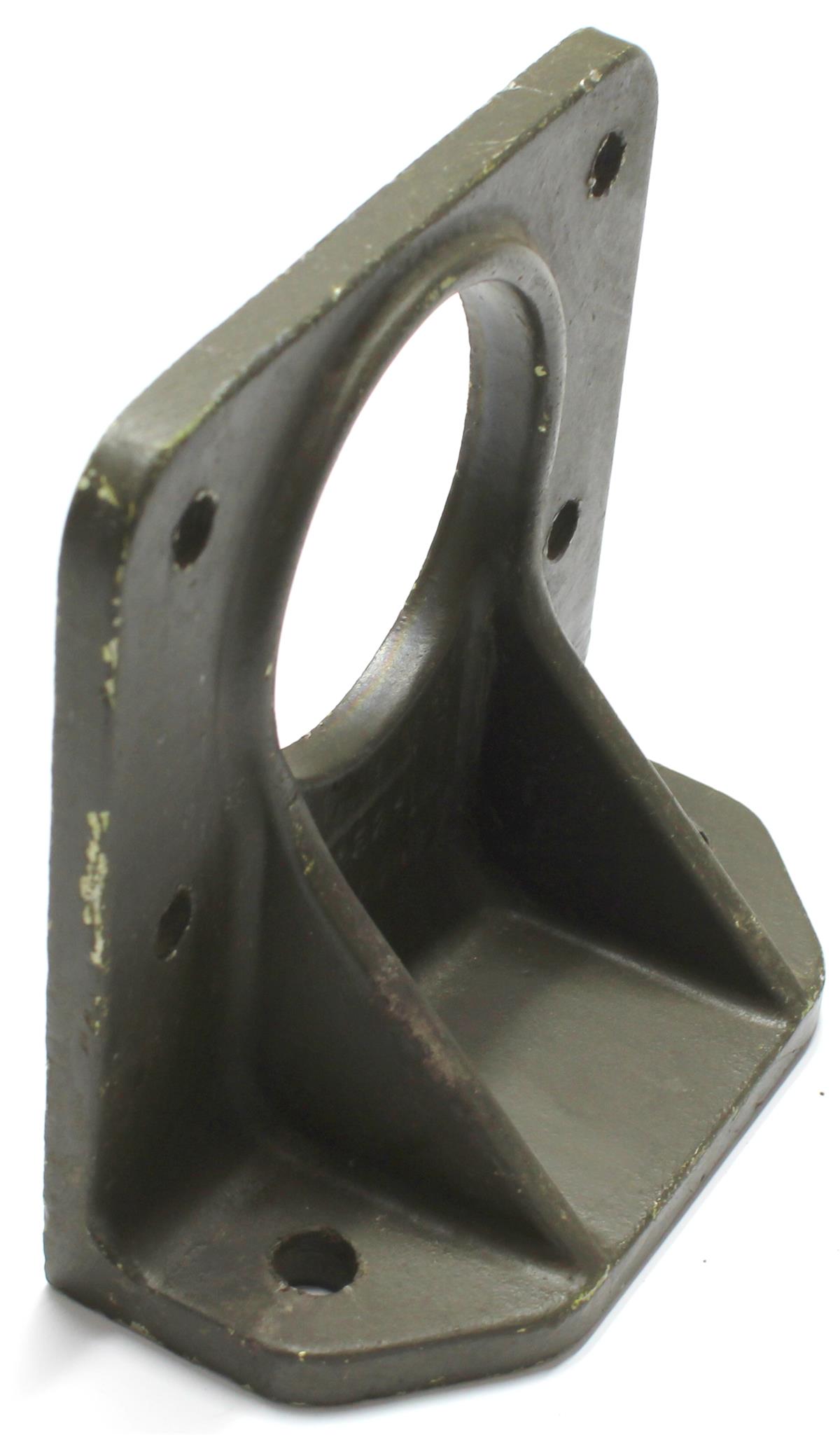

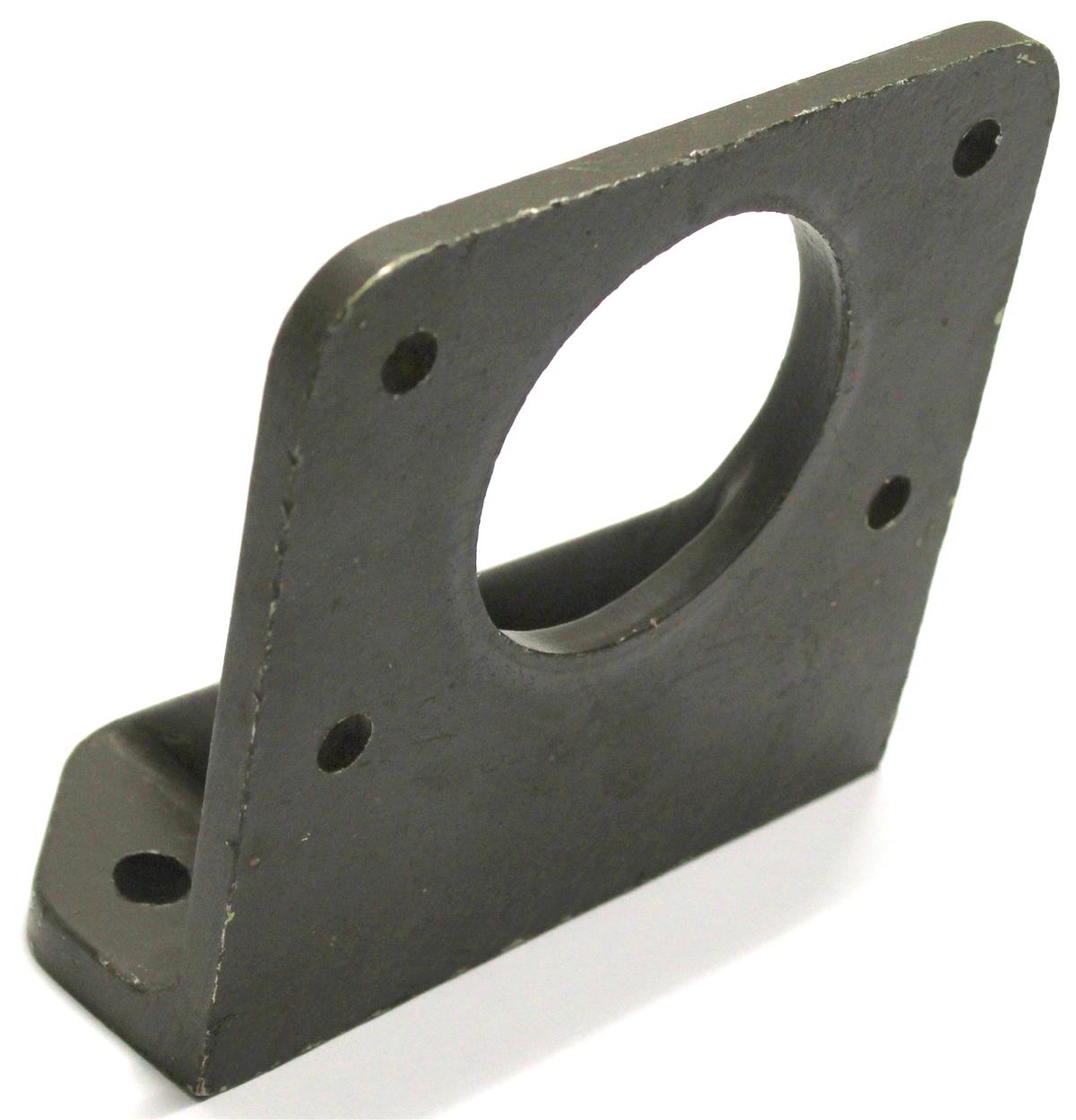

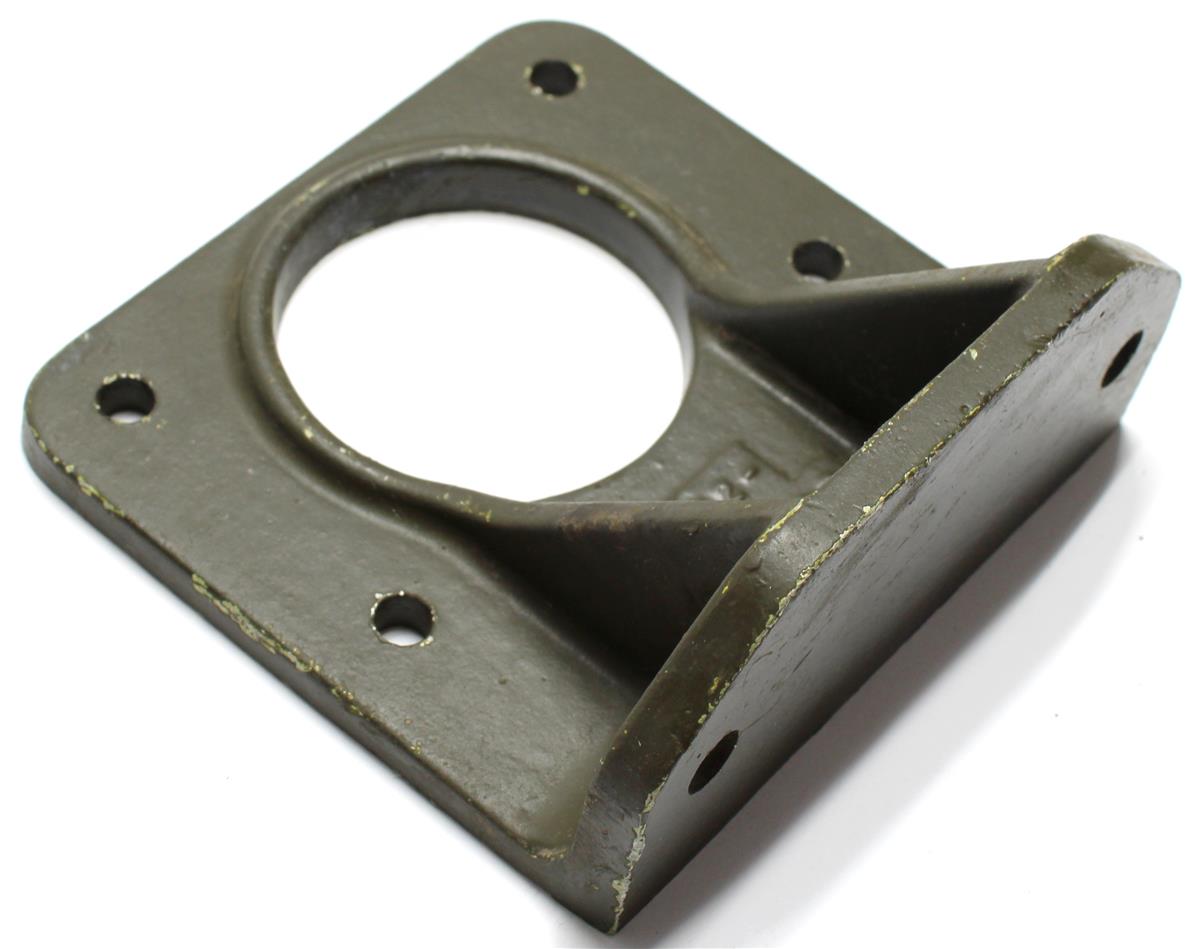

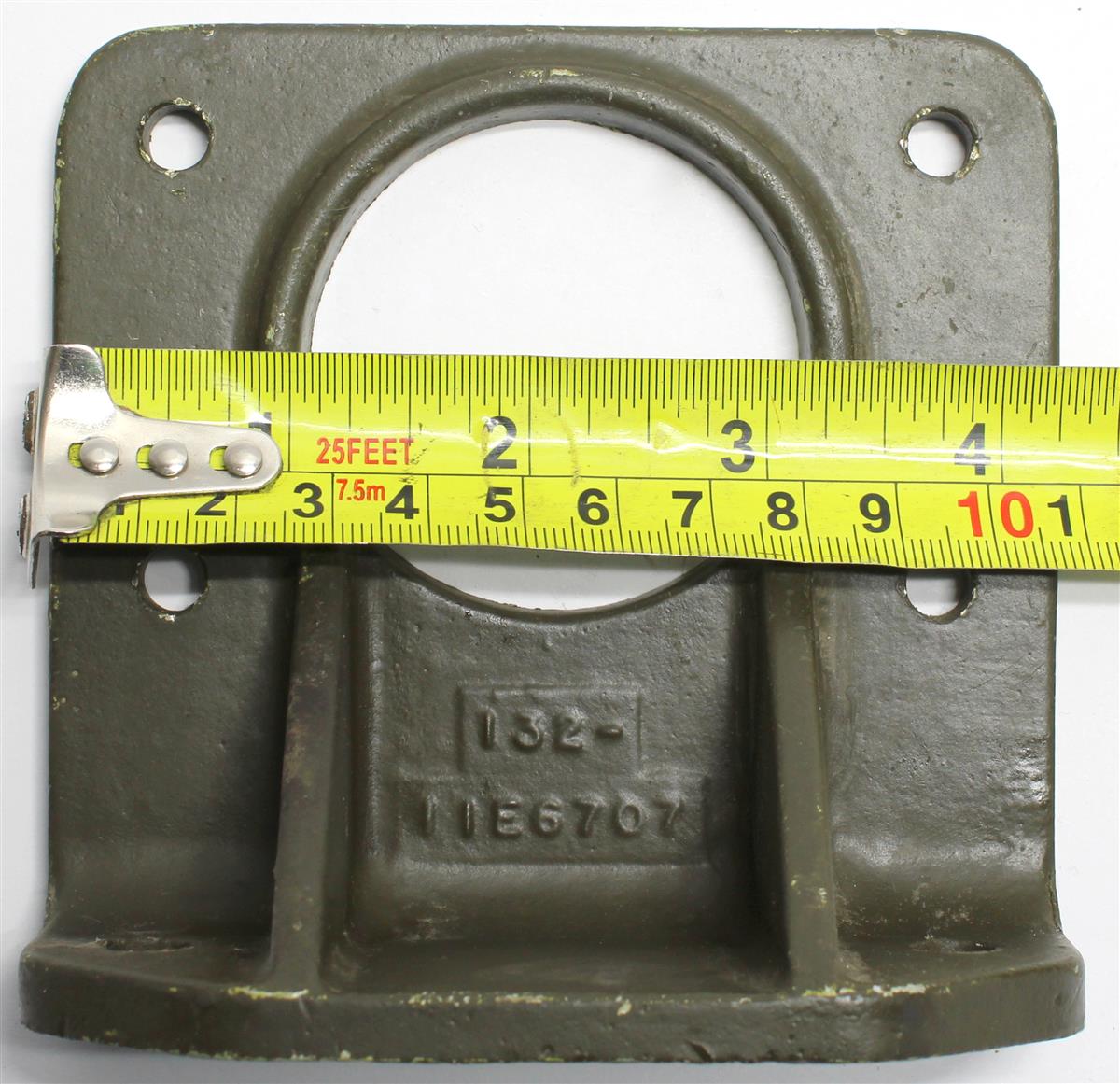

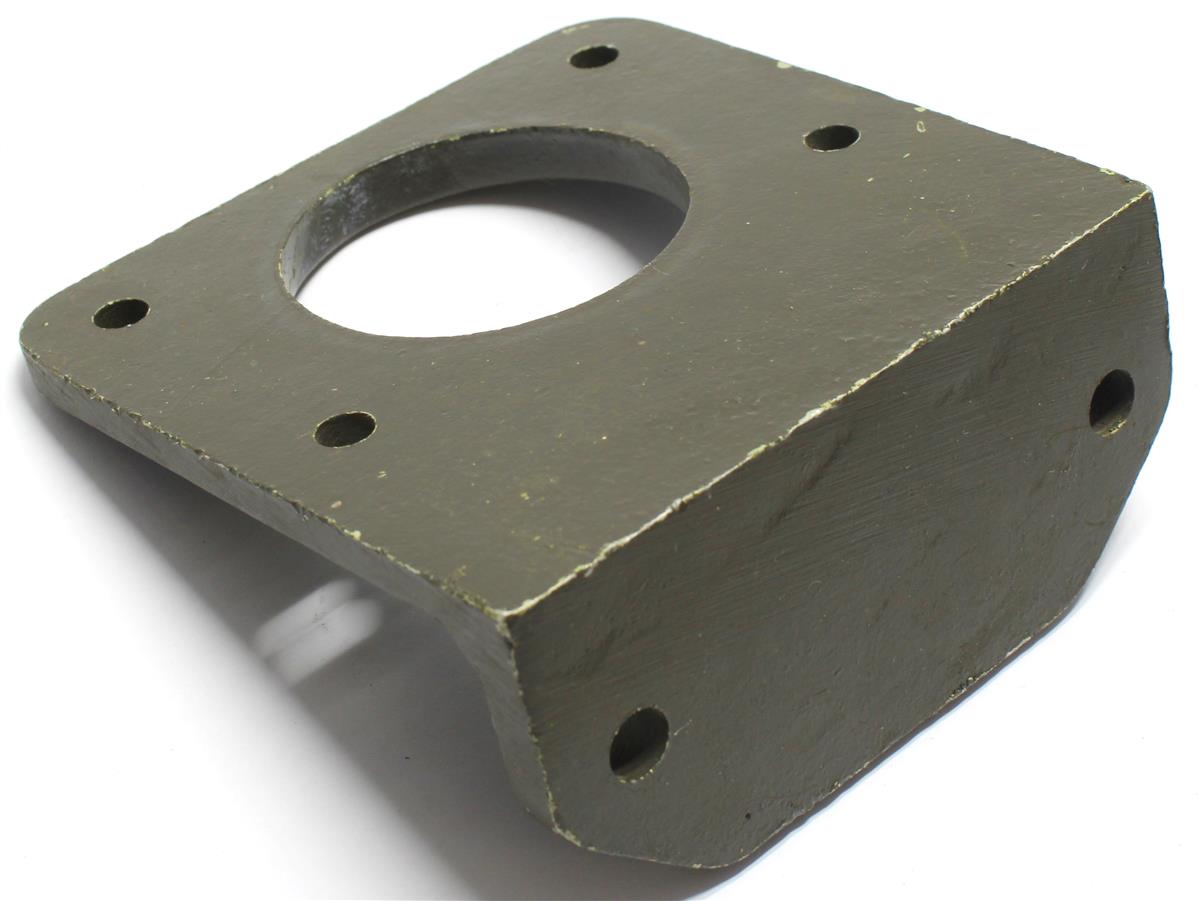

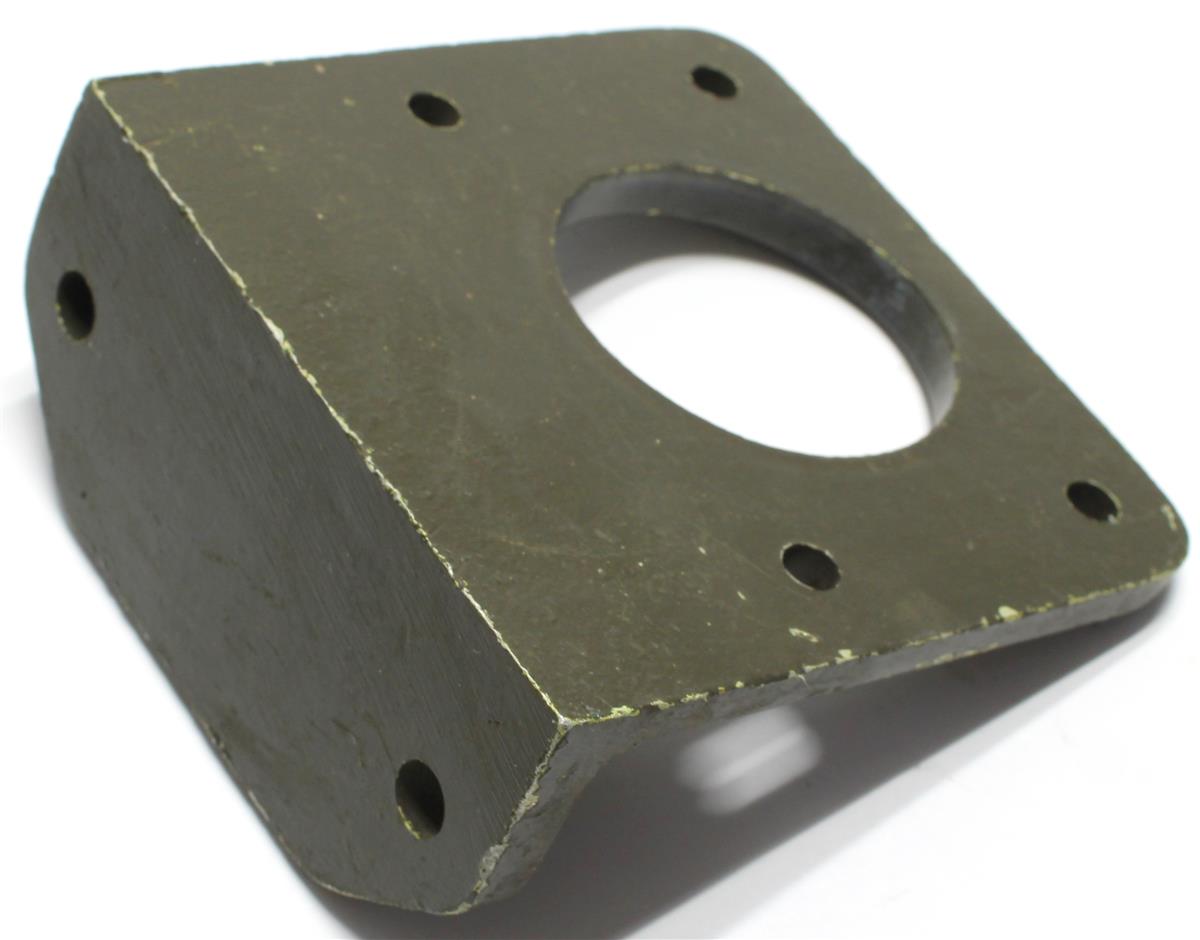

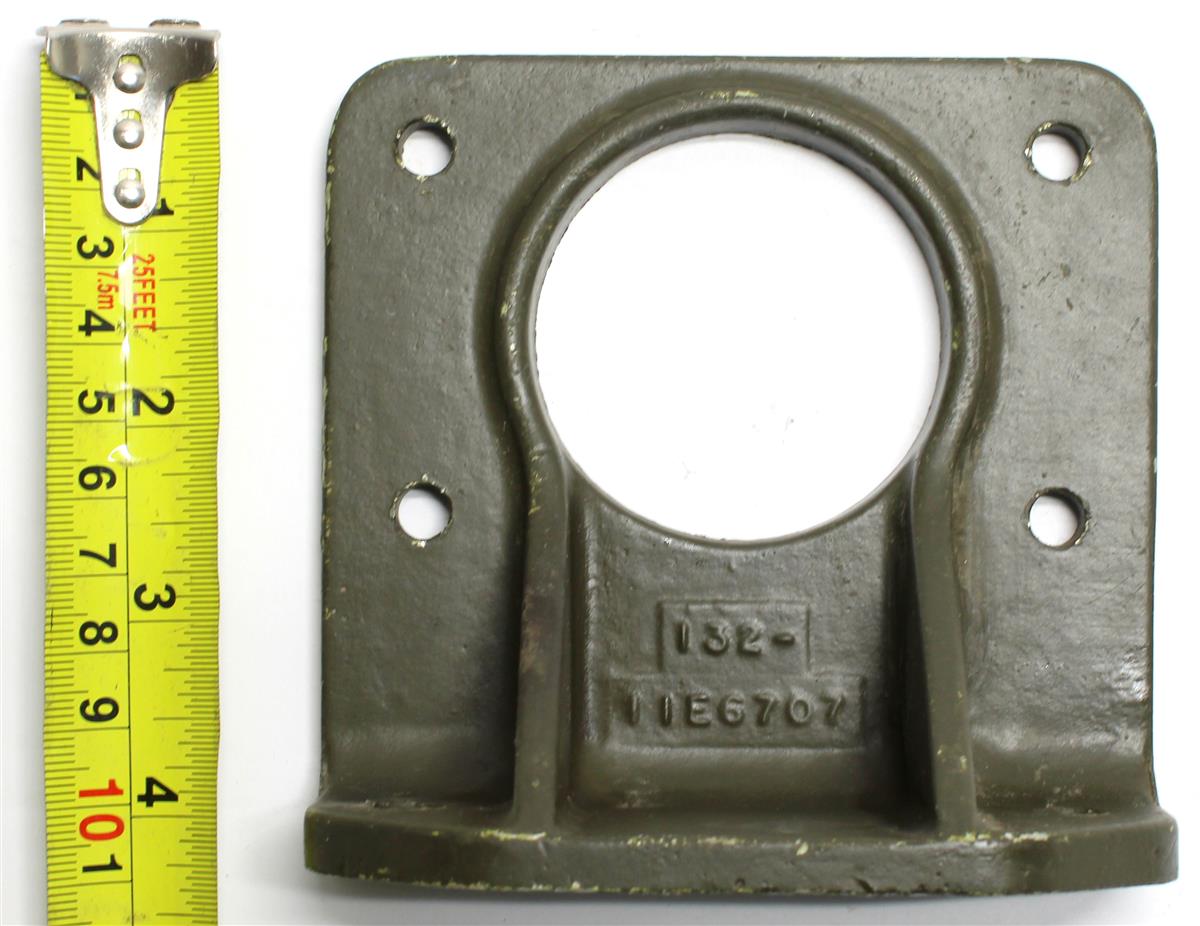

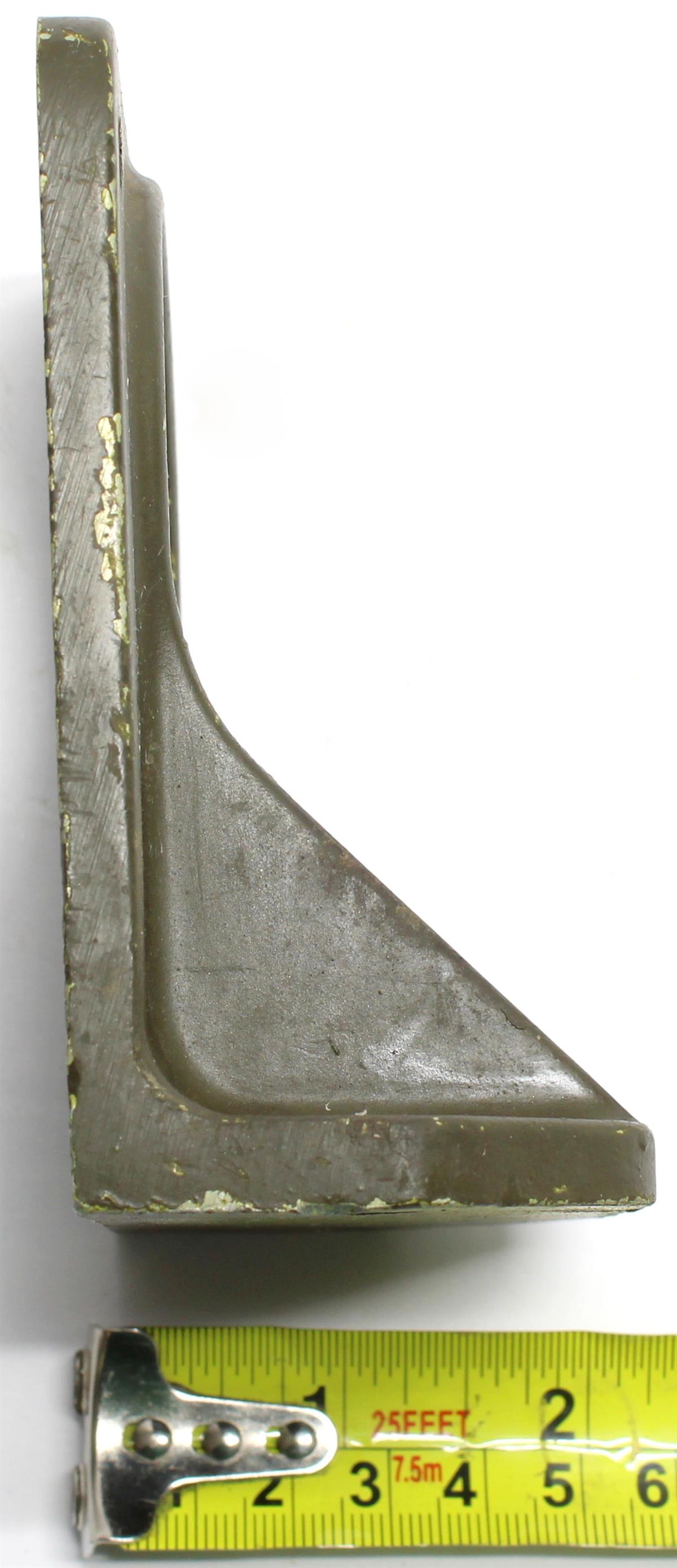

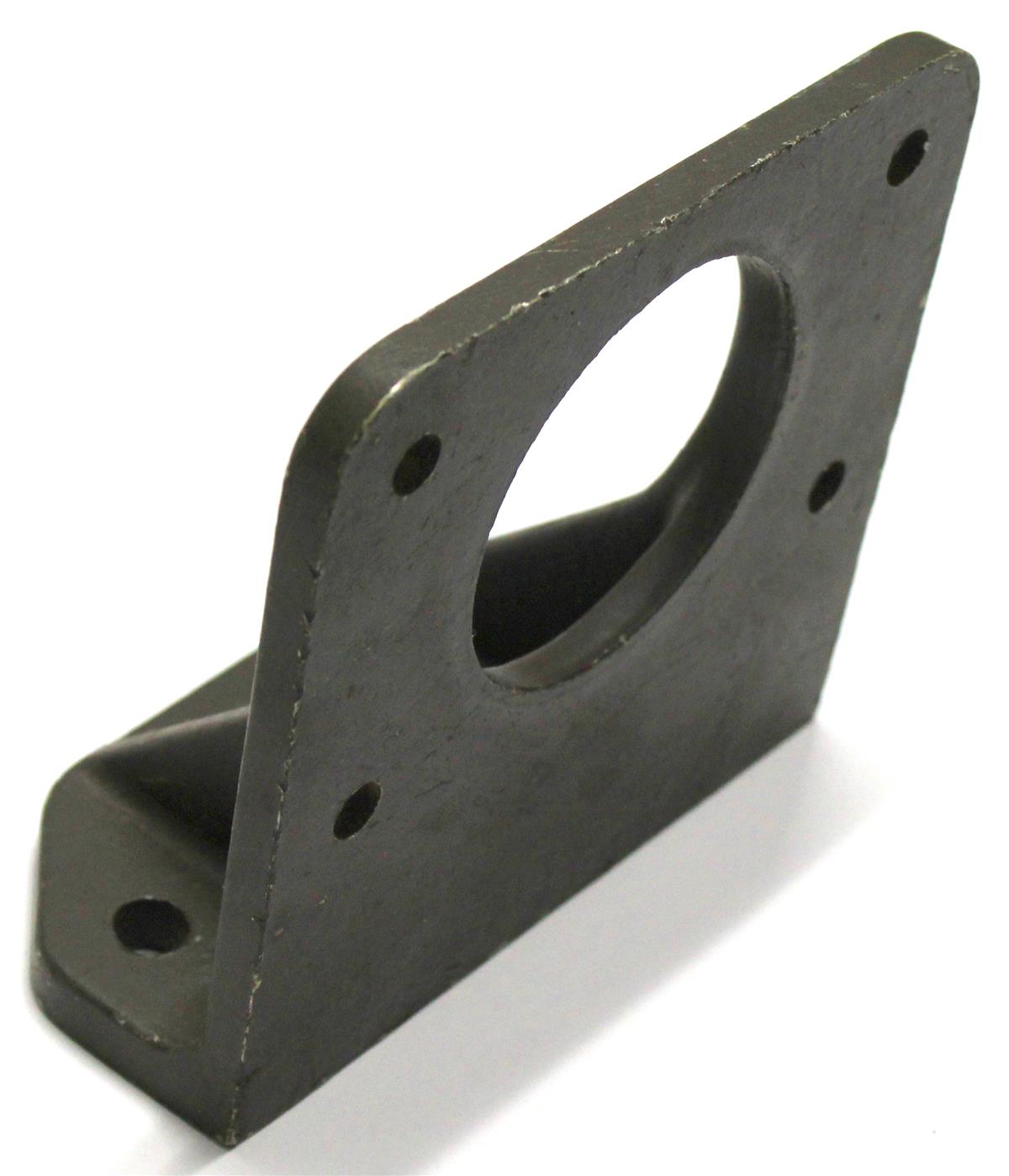

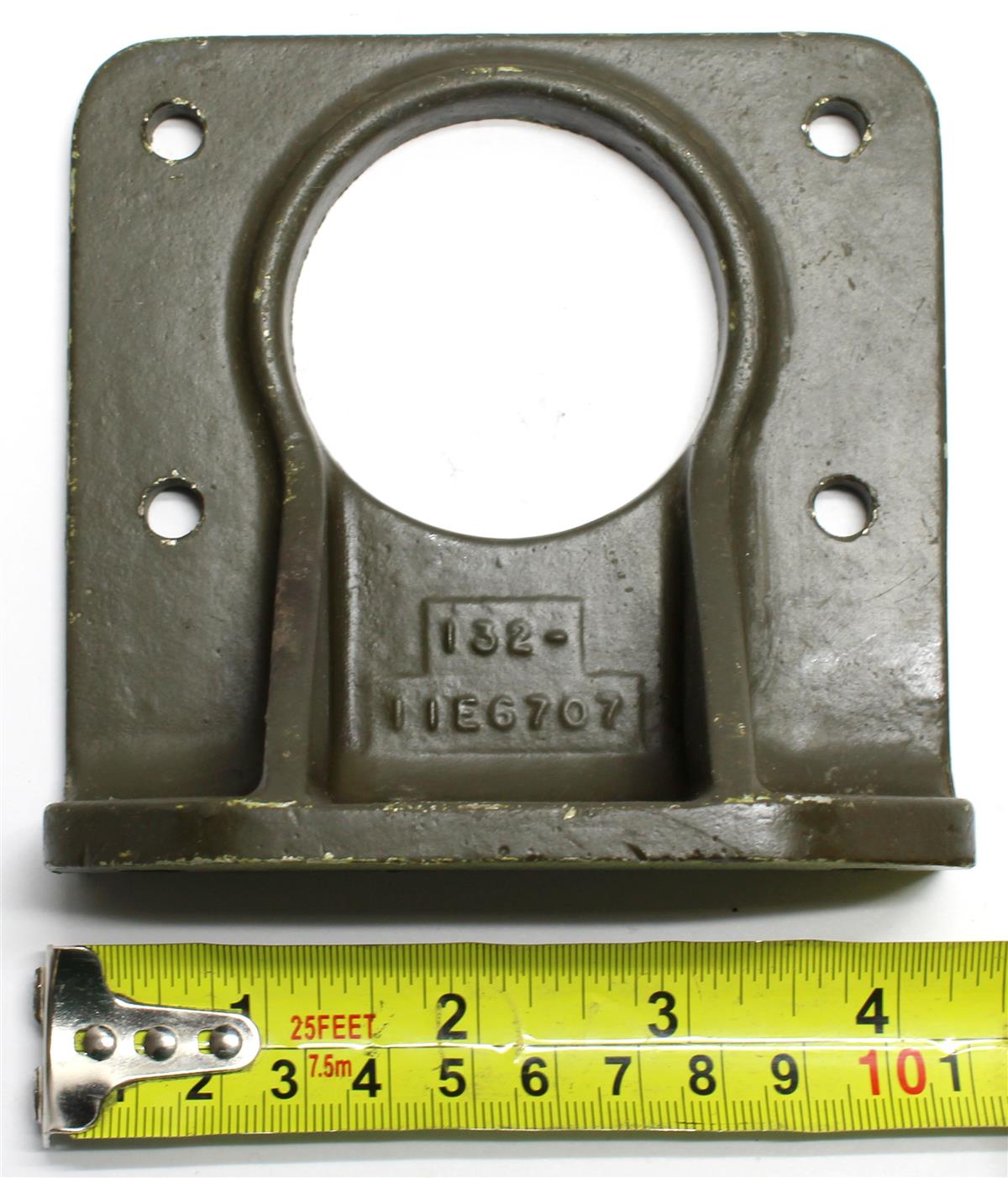

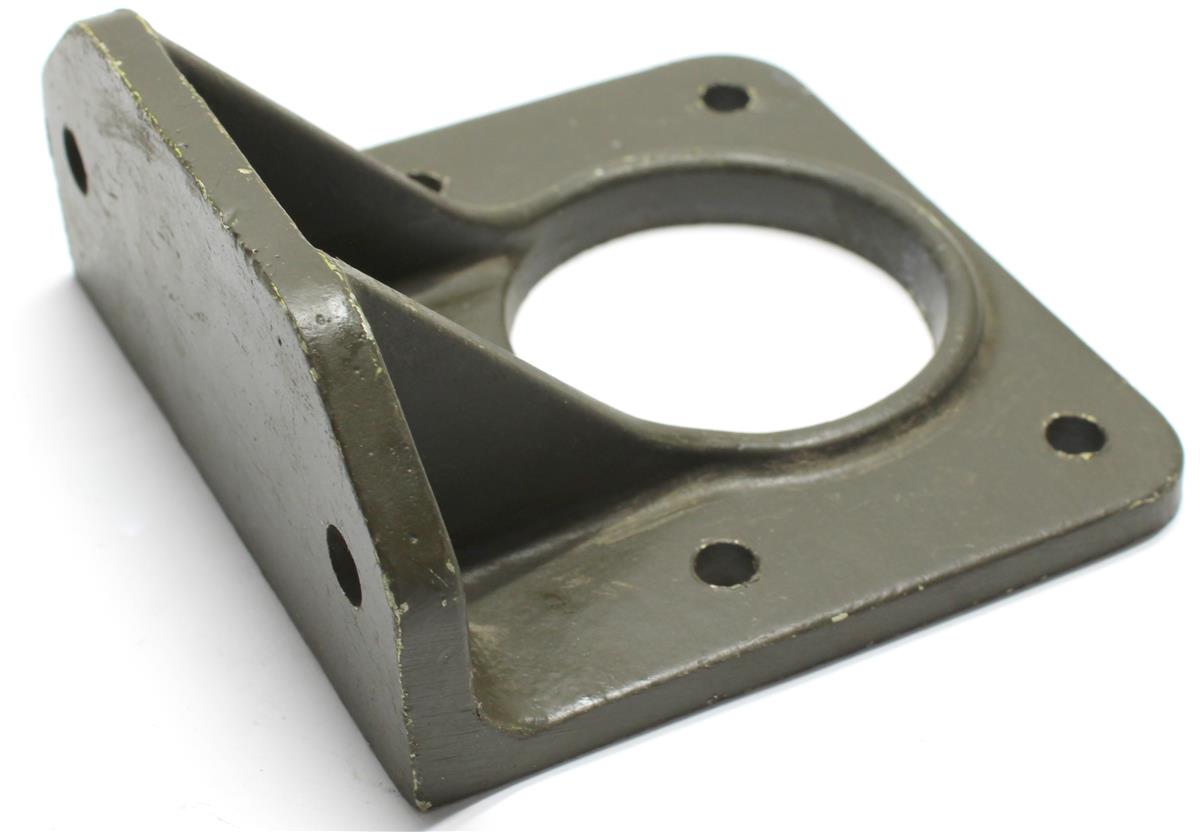

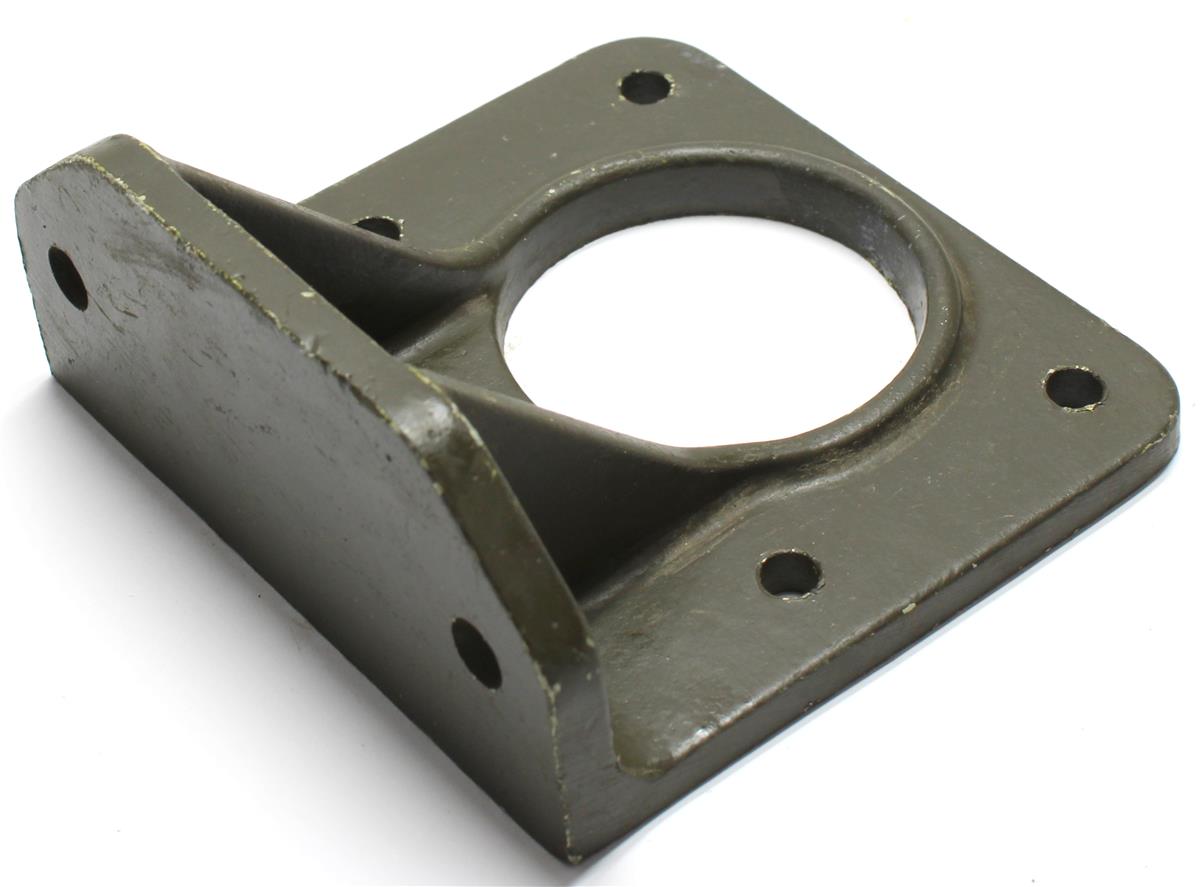

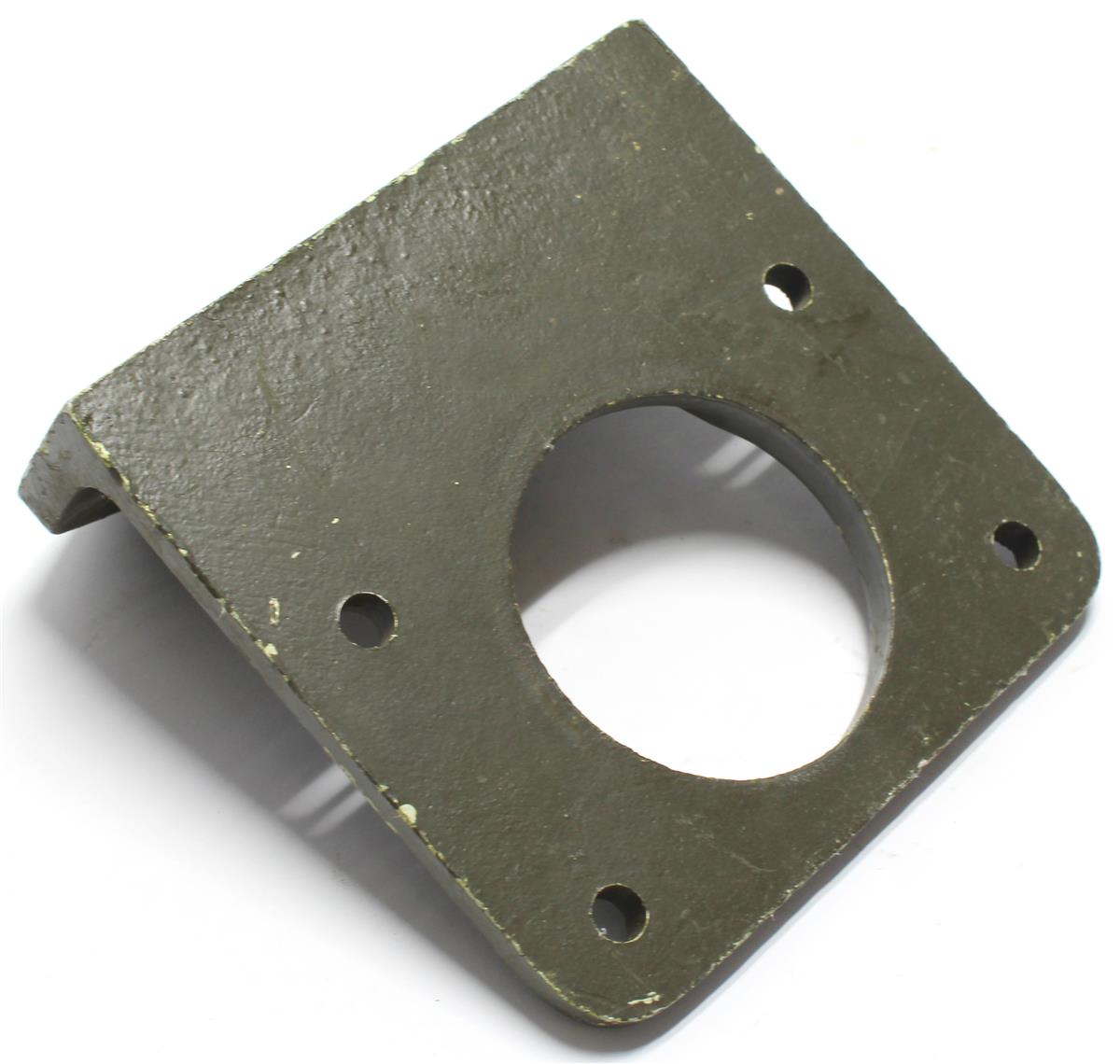

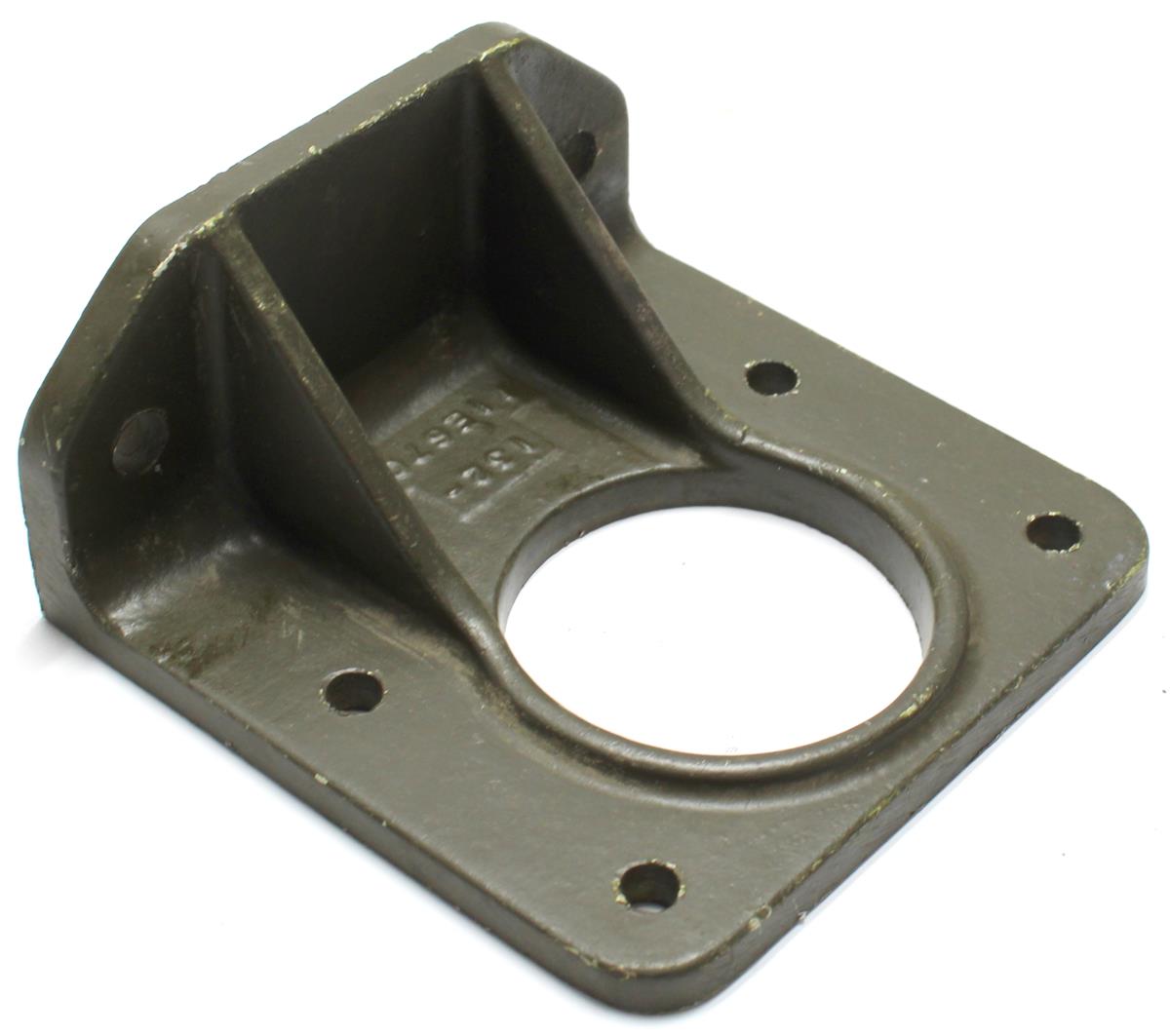

Slave Battery Jumper Receptacle Mounting Angle Bracket for 4A032 3KW 2A042 5KW 4A084 10KW Military Standard Gasoline Engine
-
First Leg Length - 2.000 Inches
-
Second Leg Length - 4.125 Inches
-
Second Leg Width - 4.250 Inches
-
First Leg Hole Diameter - 0.344 Inches
-
Second Leg Hole Diameter - 0.094 Inches
-
Second Leg Distance Between Hole Centers Along Width - 1.875 Inches
-
Second Leg Distance Between Hole Centers Along Length - 3.250 Inches
-
Second Leg Distance from Edge to Hole Center Along Width - 1.119 Inches
-
Second Leg Distance from Edge to Hole Center Along Length - 0.500 Inches
-
First Leg Thickness - 0.250 Inches
-
Second Leg Thickness - 0.375 Inches
-
First Leg Width - 2.000 Inches
-
First Leg Corner Radius - 0.500 Inches
-
First Leg Distance Between Hole Centers Along Width - 3.250 Inches
-
First Leg Distance from Edge to Hole Center Along Width - 0.500 Inches
-
First Leg Distance from Edge to Hole Center Along Length - 1.000 Inches
-
Second Leg Side Radius - 0.125 Inches
-
First Leg Hole Arrangement Style - Two Holes
-
Second Leg Hole Arrangement Style - Four Holes
-
Second Leg Relationship to First Leg - Not Identical
-
First Leg Angle - 375.0 Radians
-
Material - Aluminum
-
General Characteristics - For Sump Vent Tube Clamp
Click Here for Slave Receptacle Bracket for 2A042 5KW Military Standard Gasoline Engine
Click Here for Slave Battery Jumper Connector Bracket for 4A084 10KW Military Standard Gasoline Engine
Click Here for Slave Receptacle Bracket for 4A032 3KW 2A042 5KW 4A084 10KW Military Standard Gasoline Engine
Click Here for Slave Receptacle Electrical Connector
Click Here for Motor Starter Panel Parts Kit for 4A032 3KW Military Standard Gasoline Engine
Click Here for Slave Receptacle Electrical Lead Connector Assembly for 4A032 3KW 2A042 5KW 4A084 10KW
Click Here for Electrical Wire for 4A032 3KW 2A042 5KW 4A084 10KW Military Standard Gasoline Engine
Click Here for Electrical Wire for 4A032 3KW 2A042 5KW 4A084 10KW Military Standard Gasoline Engine
Fits:
Gen-Set 4A032 3 KW Generator
MEP-021A – 400 HZ – Gasoline Engine Driven
MEP-026A – DC – Gasoline Engine Driven
Gen-Set 2A042 5 KW Generator
MEP-017A – 60 HZ – Gasoline Engine Driven
MEP-022A – 400 HZ – Gasoline Engine Driven
Gen-Set 4A084 10 KW Generator
MEP-018A – 60 HZ – Gasoline Engine Driven
MEP-003A – 60 HZ – Diesel Engine Driven
MEP-412A – 60 HZ – Gasoline Turbine Engine Driven
MEP-112A – 400 HZ – Diesel Engine Driven
MEP-414A – DC – Gasoline Turbine Engine Driven
