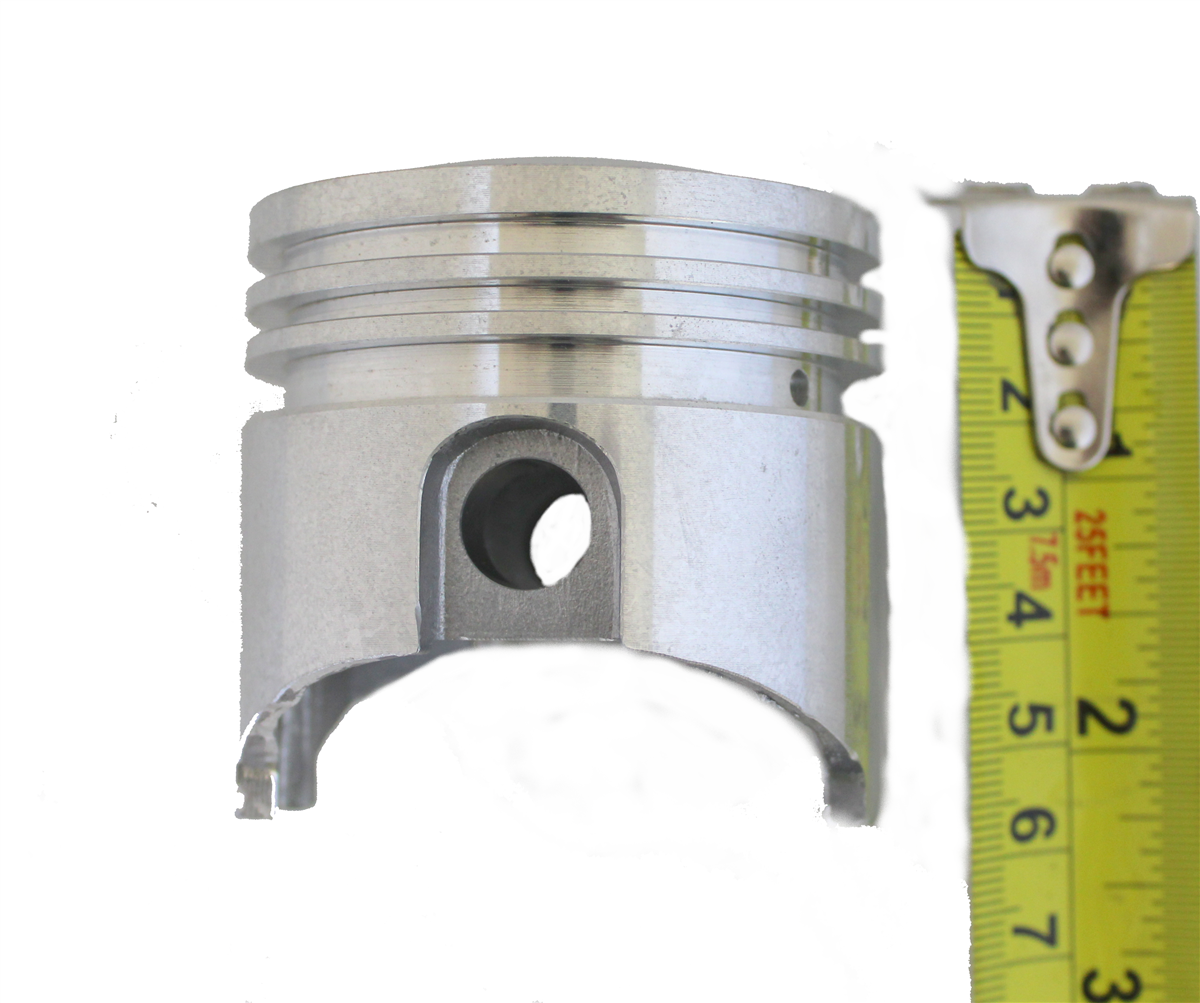

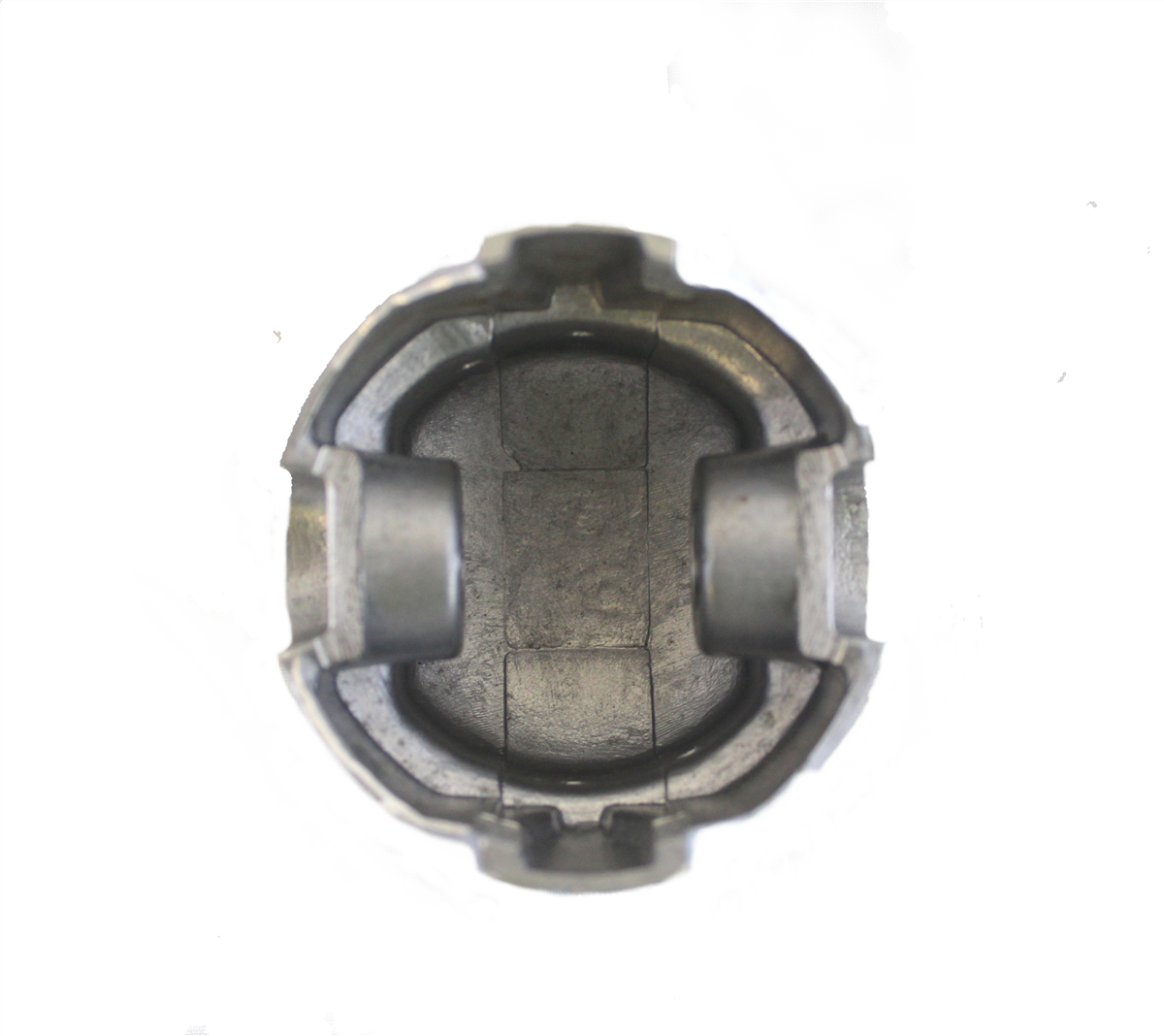

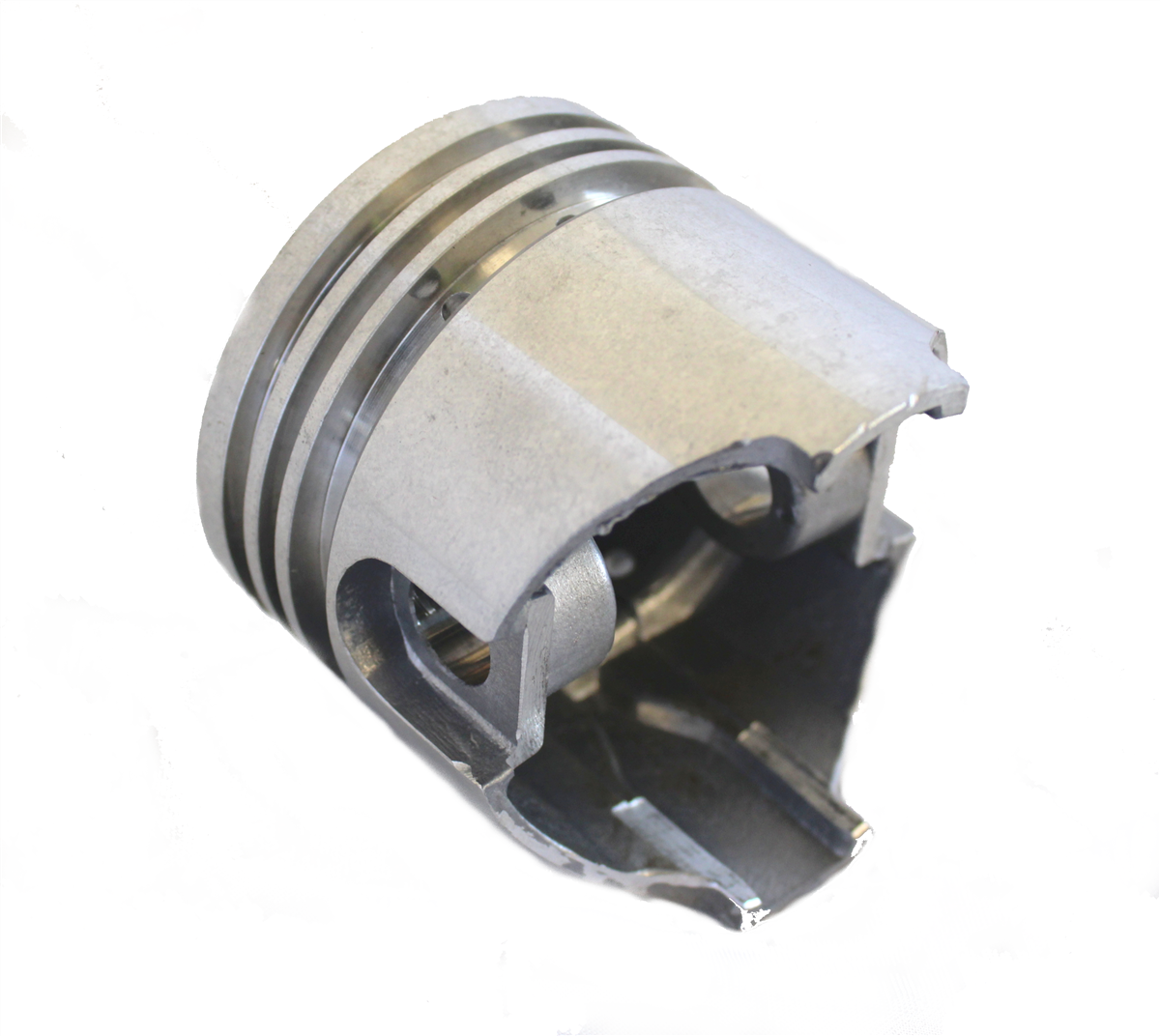

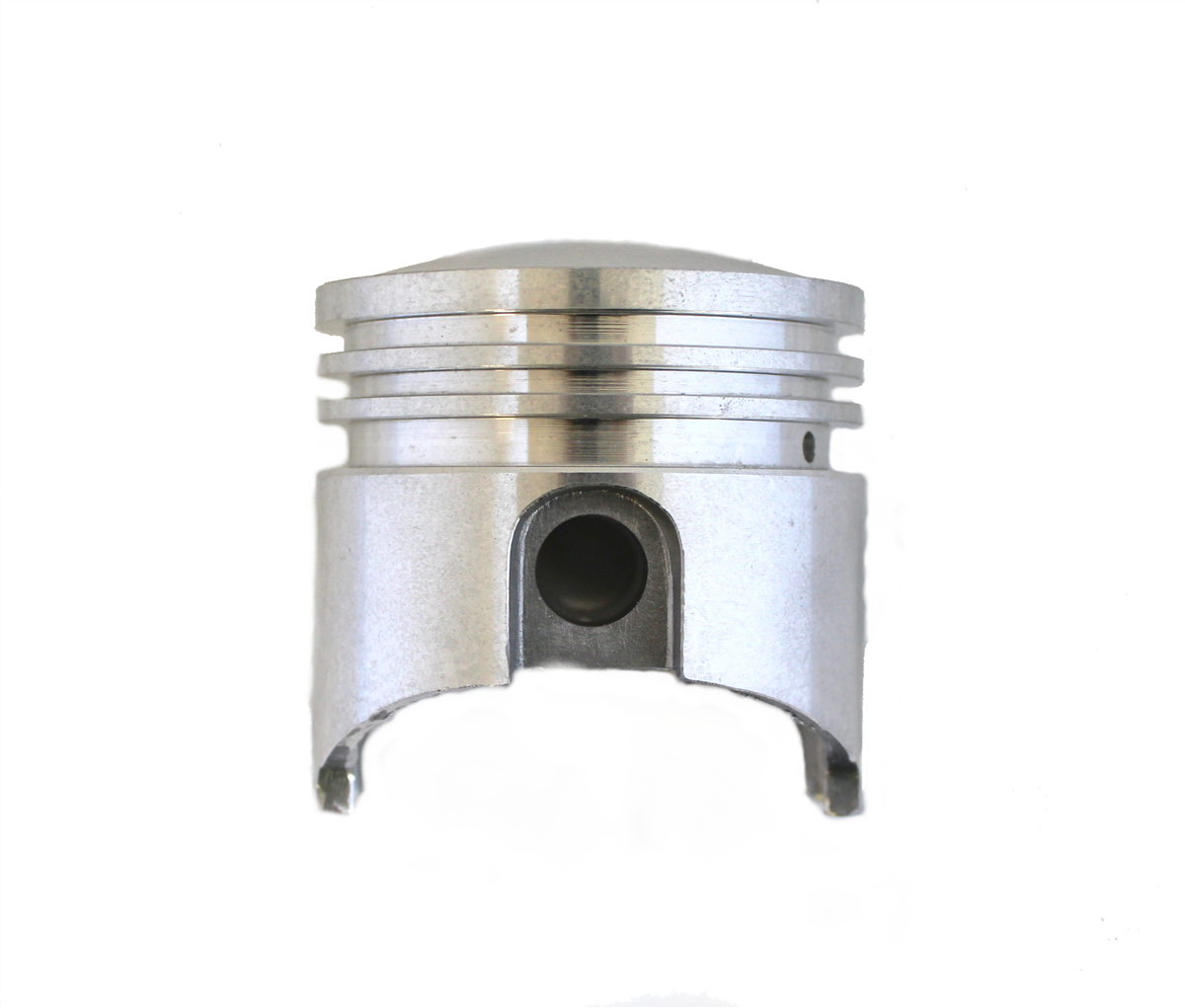

Piston Internal Combustion Military Standard Gasoline Engine 1A08 2A016 4A032

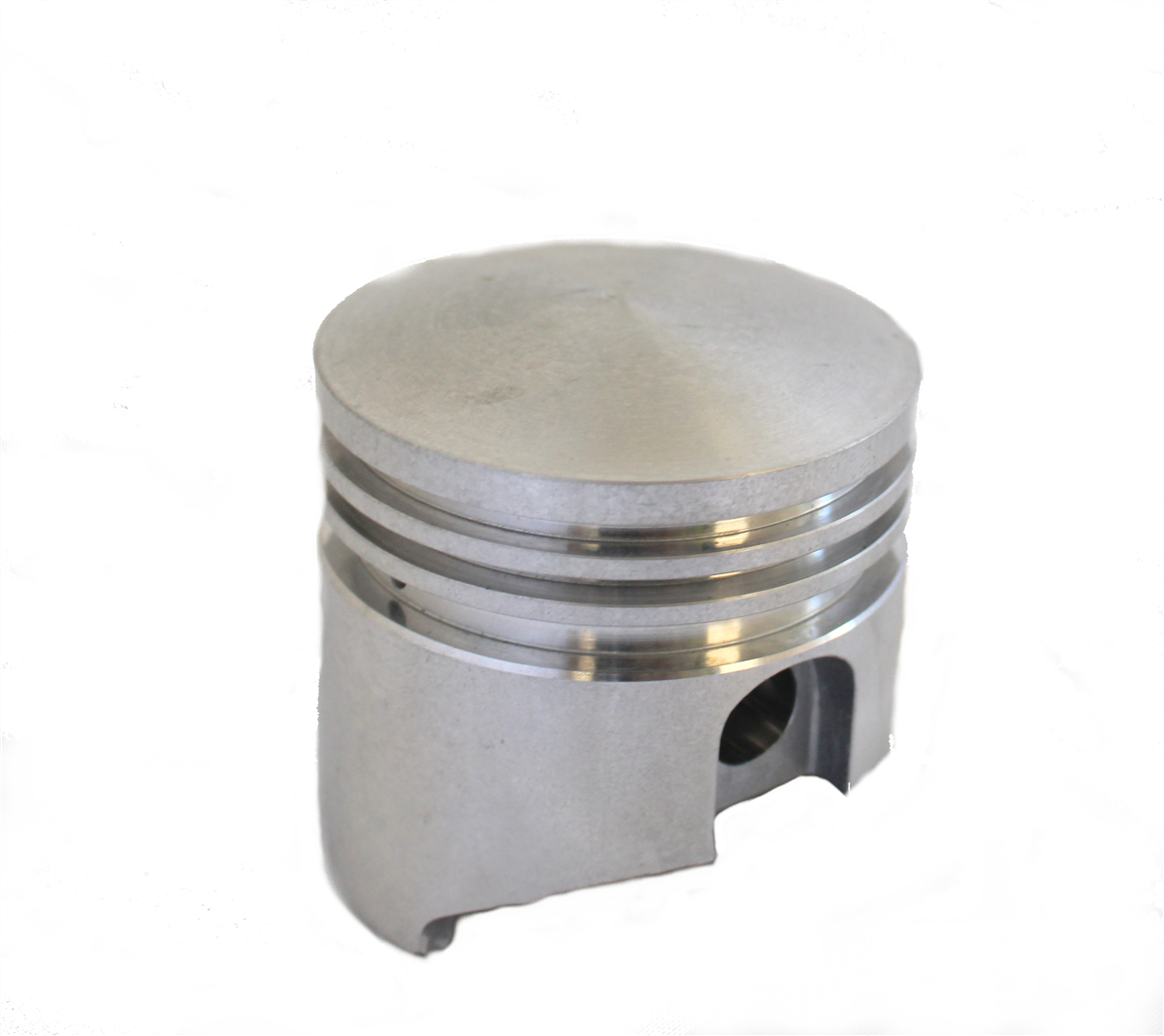

- HEAD STYLE IS DOME
- OVERALL HEIGHT 2.297 INCHES

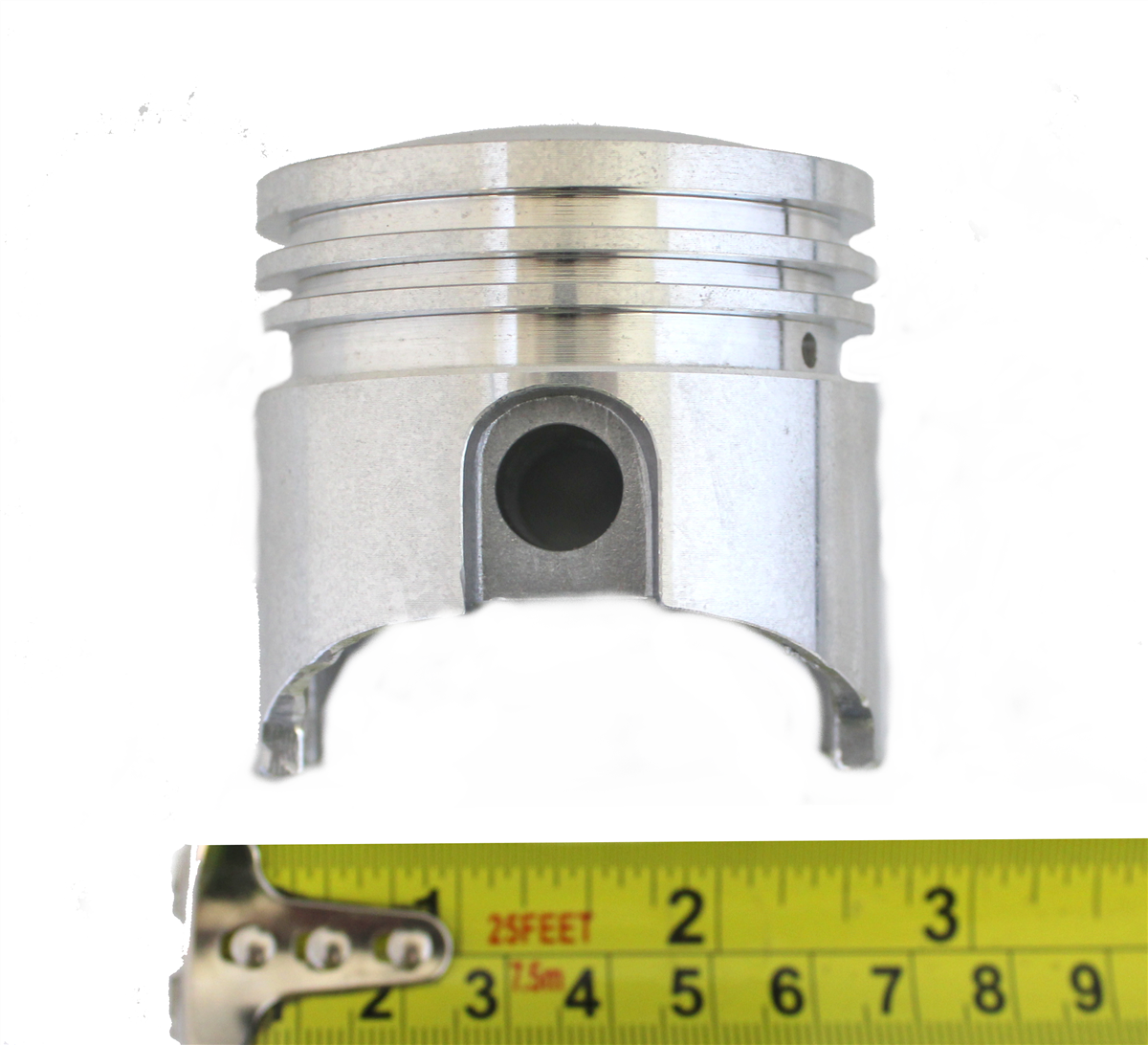

- DIAMETER 2.235 INCHES MINIMUM AND 2.250 INCHES MAXIMUM
- PINHOLE DIAMETER 0.4190 INCHES
- RING GROOVE QUANTITY IS 3
- RING GROOVE WIDTH 0.0960 INCHES MINIMUM AND 0.0970 INCHES MAXIMUM 2ND RING
- RING GROOVE WIDTH 0.1210 INCHES MINIMUM AND 0.1220 INCHES MAXIMUM 1ST RING
- RING GROOVE WIDTH 0.1880 INCHES MINIMUM AND 0.1890 INCHES MAXIMUM 3RD RING
- RING GROOVE DIAMETER 1.953 INCHES MINIMUM AND 1.963 INCHES MAXIMUM 2ND RING
- RING GROOVE DIAMETER 1.953 INCHES MINIMUM AND 1.963 INCHES MAXIMUM 3RD RING
- RING GROOVE DIAMETER 2.001 INCHES MINIMUM AND 2.011 INCHES MAXIMUM 1ST RING
- DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP 1.305 INCHES MINIMUM AND 1.315 INCHES MAXIMUM
- DISTANCE BETWEEN PIN BOSSES 0.824 INCHES MINIMUM AND 0.864 INCHES MAXIMUM
Fits:
Mechanical Mule Platform Utility Vehicle 1/2 ton 4x4 M274 M274A1 M274A2 M274A3 M274A4 M274A5
Engine models 1A08 2A016 4A032
1.5 KW Generator Gen-Set
3 KW Generator Gen-Set
