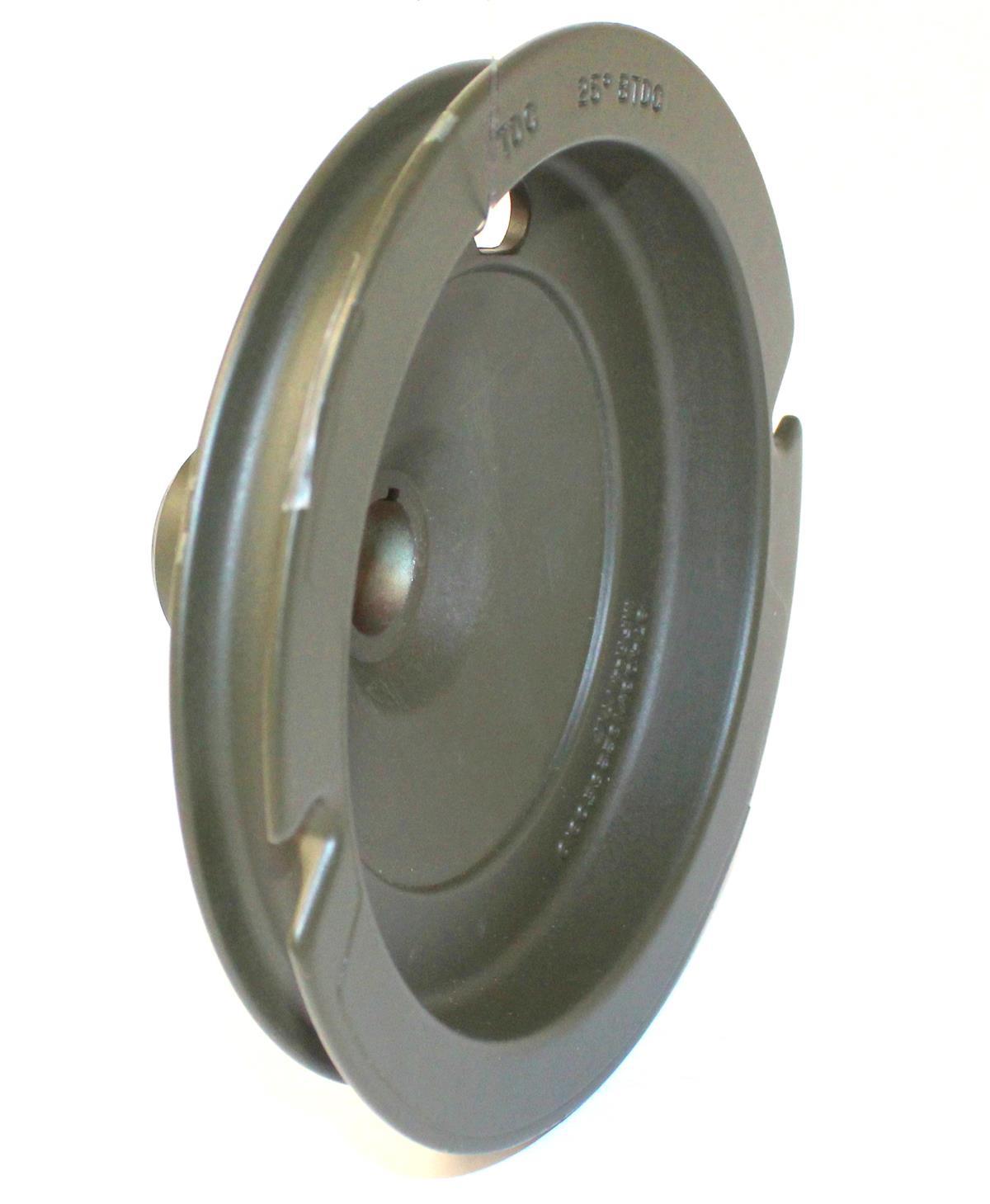

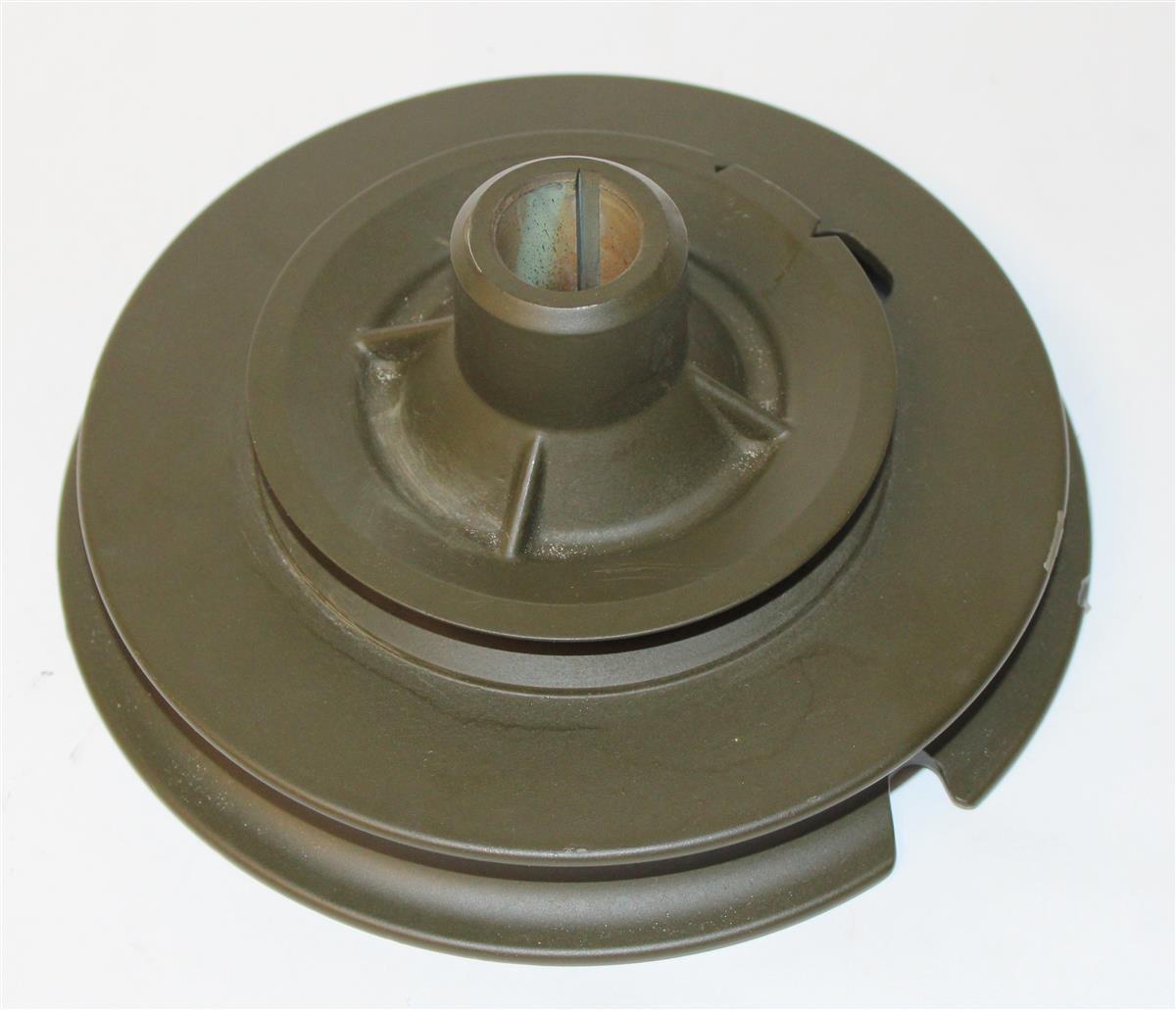

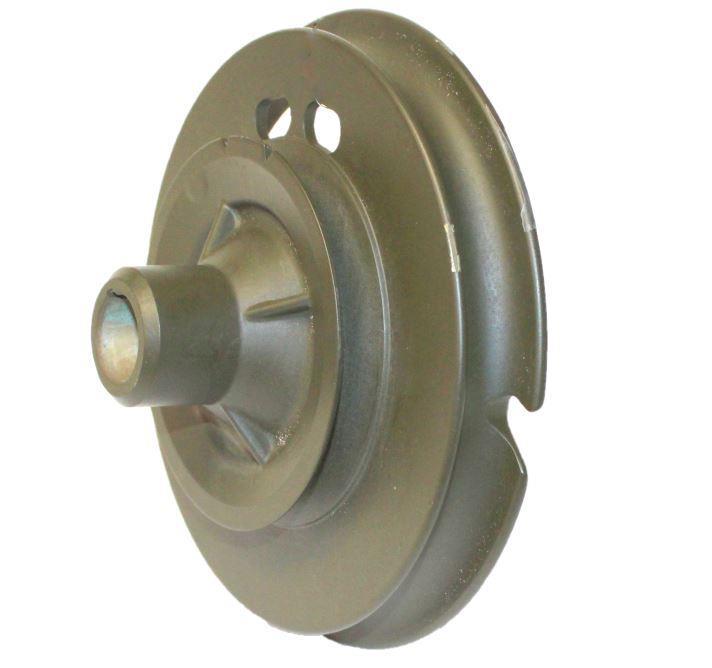

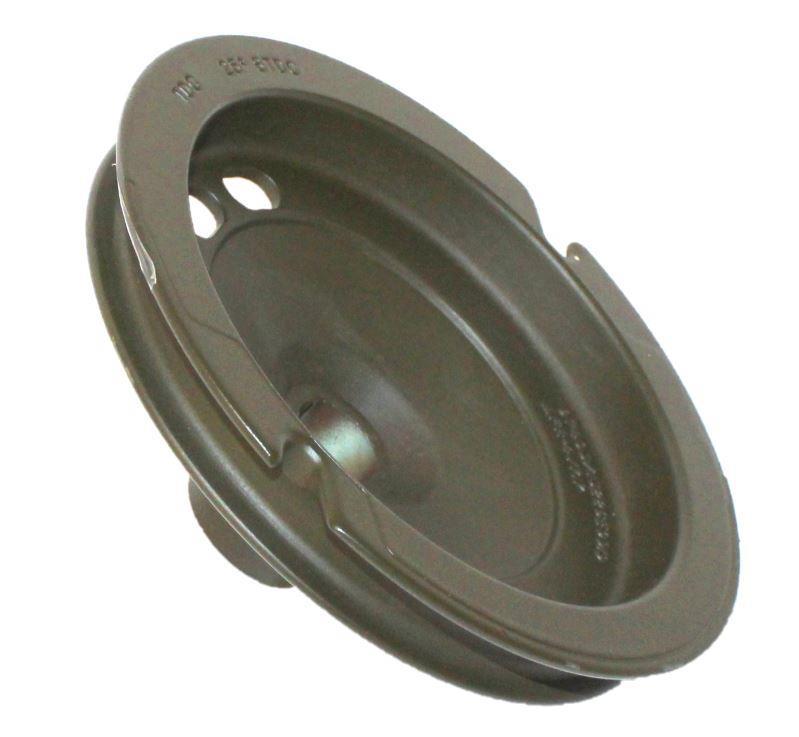

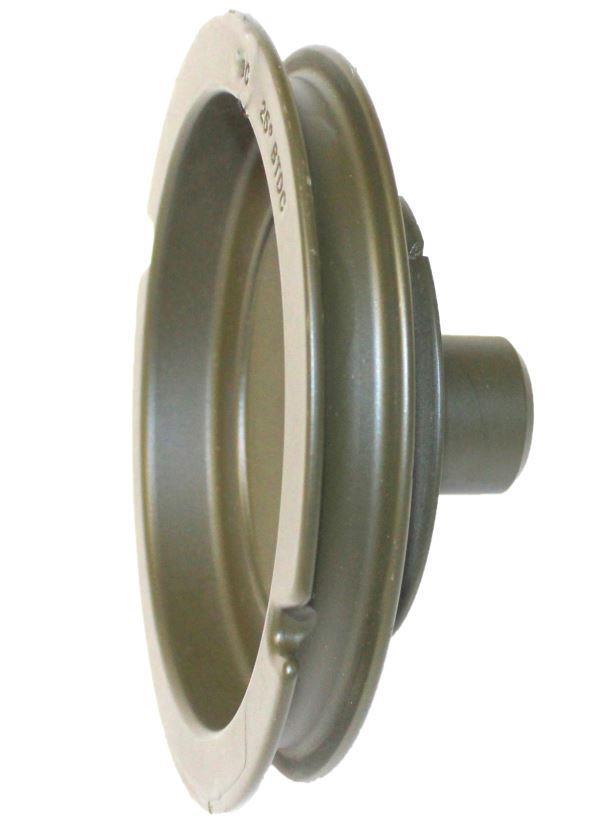

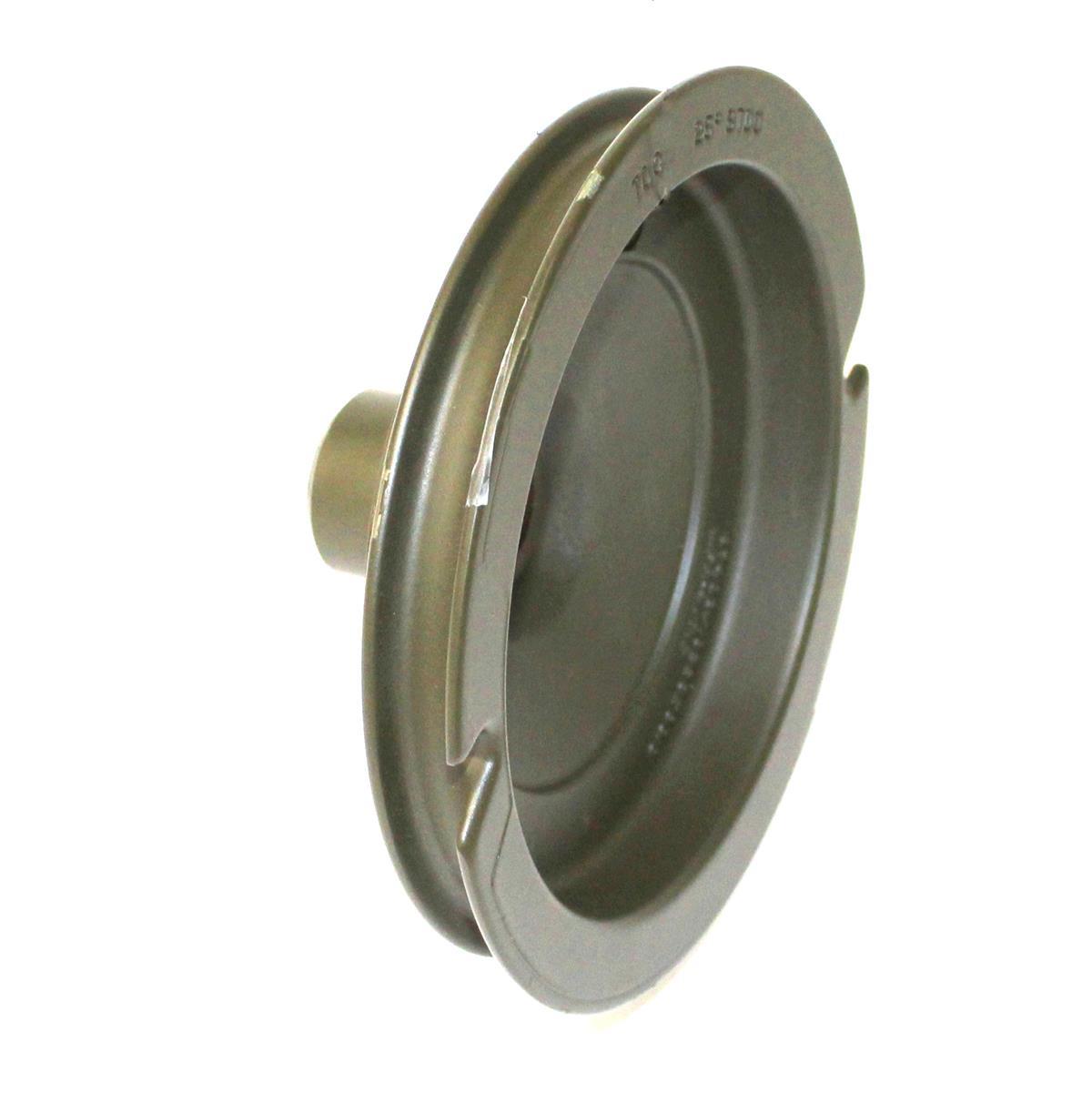

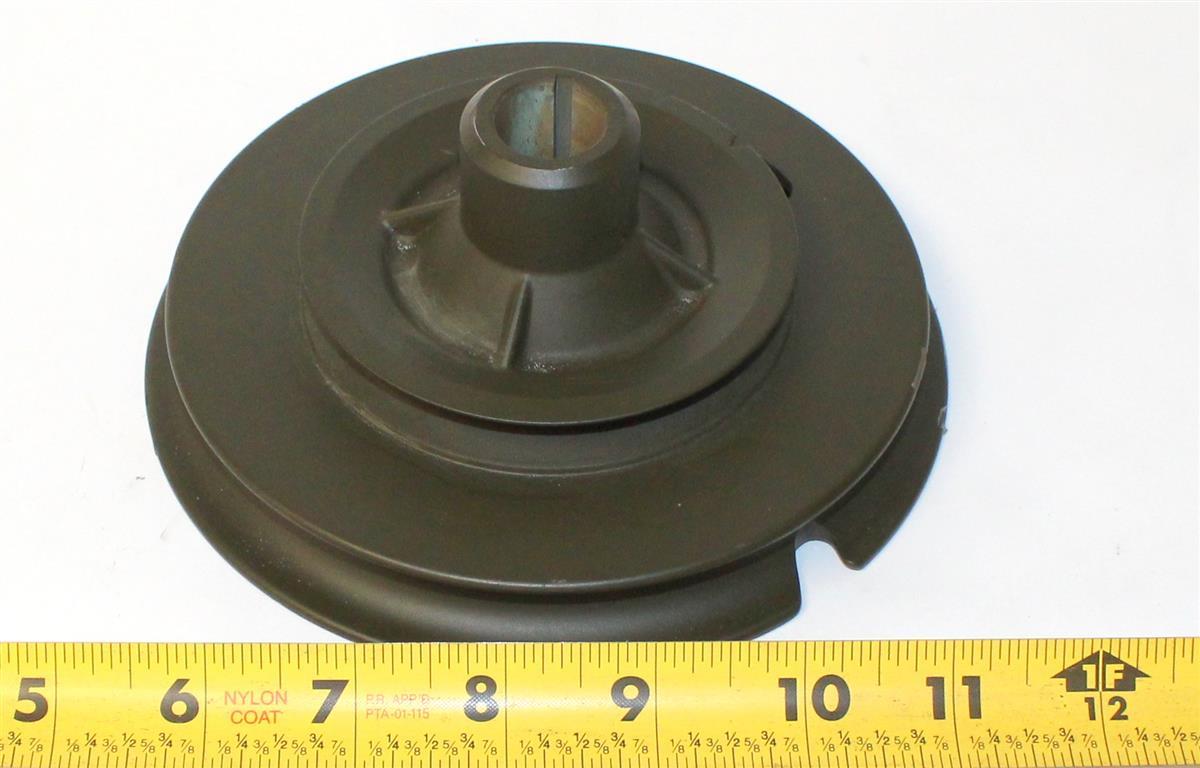

Engine Starter Rope Pulley Military Standard Engine 4A032 M274 Mechanical Mule
- Outside Diameter is 6 inches
- Diameter is 0.759 inches Minimum and 0.761 inches Maximum
- Keyway Depth is 0.065 inches Minimum and 0.067 inches Maximum
- Length is 1.188 inches
- Face Shape is Grooved
- Aluminum Material
- Rope Accommodation Diameter is 48 inches
- Hub Diameter is 1.250 inches
- Hub Projection Length is 1.156 inches One End

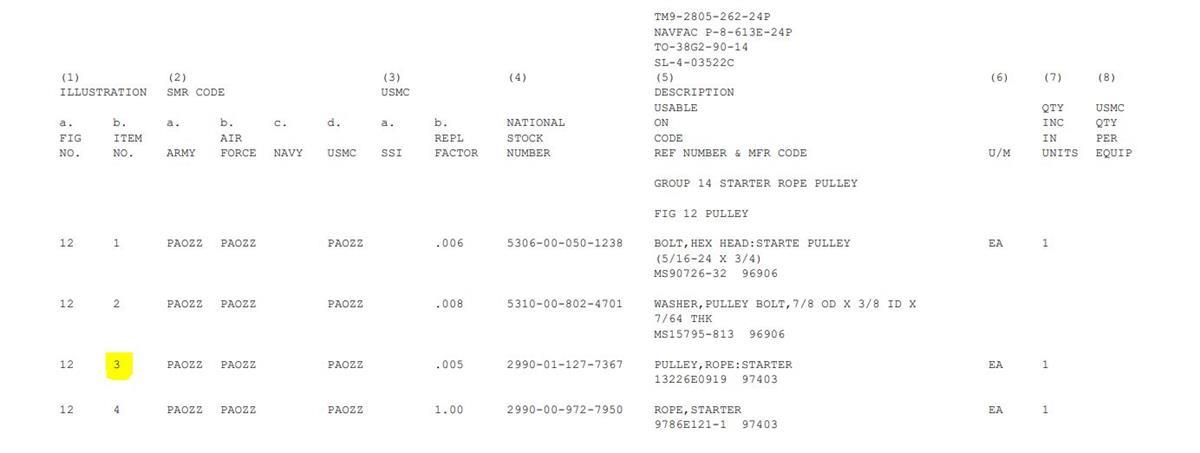

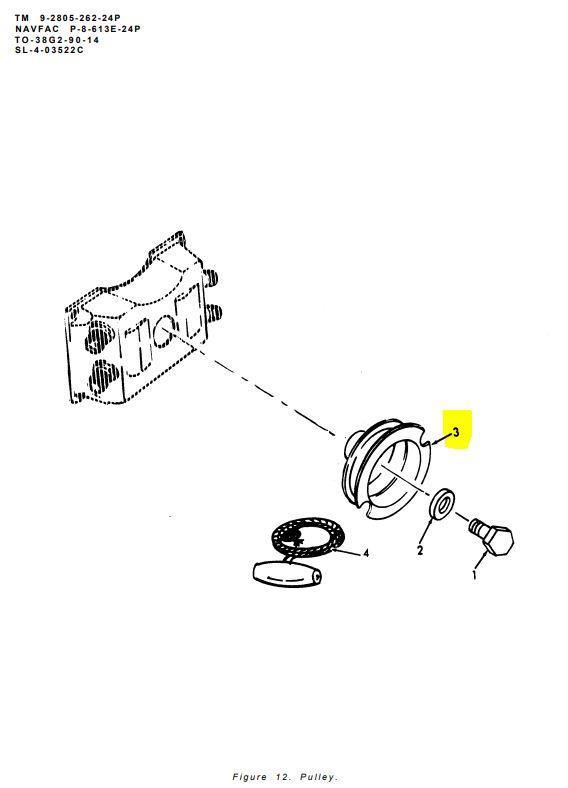

- Item Shown in Diagram
Fits:
Mechanical Mule Platform Utility Vehicle 1/2 ton 4x4 M274 M274A1 M274A2 M274A3 M274A4 M274A5
Engine model 4A032
3 KW Generator Gen-Set
