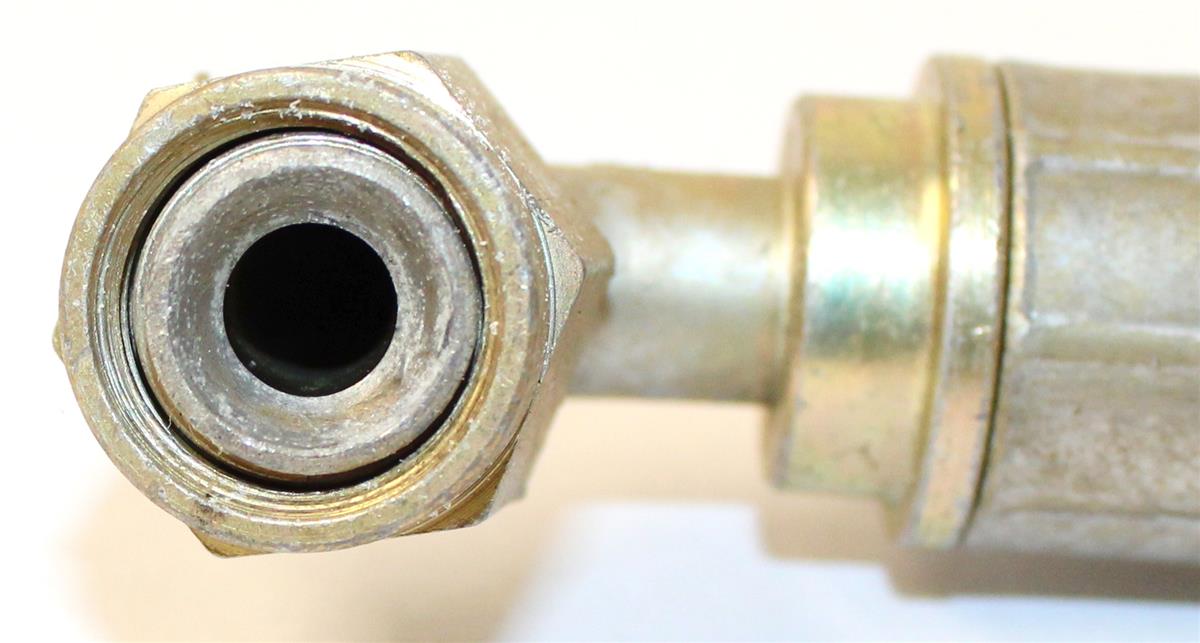

5T-2180 | Power Steering Hydraulic Hose M809 M939A1

Power Steering Hydraulic Hose M809 M939A1

• Cross-Sectional Shape Style is Round

• Thread Class is 2B 1^st End

• Thread Class is 2B 2^nd End

• Thread Direction is Right-Hand 2^nd End

• Thread Direction is Right-Hand 1^st End

• Inside Diameter is 0.375 inches

• Outside Diameter is 0.781 inches

• Minimum Inside Bending Radius is 5.000 inches

• Connection Style is Swivel Nut Flare 1^st End

• 20 inches Length

• Connection Style is Swivel Nut Flare 2^nd End

• End Connection Design is Elbow 2^nd End

• End Connection Design is Straight 1^st End

• Connection Type is Threaded Internal Tube 1^st End

• Connection Type is Threaded Internal Tube 2^nd End

• Burst Test Pressure is 16000 lbs. per square inch

• Maximum Operating Pressure is 4000 lbs. per square inch

• Nominal thread Size is 0.562 inches 2^nd End

• Nominal thread Size is 0.562 inches 1^st End

• Seat Angle is 37 Degrees 1^st End

• Seat Angle is 37 Degrees 2^nd End

• Hydrostatic Test Pressure is 8000 lbs. per square inch

• Flow Angle is 90 Degrees 2^nd End

• Inside Surface Condition is Smooth

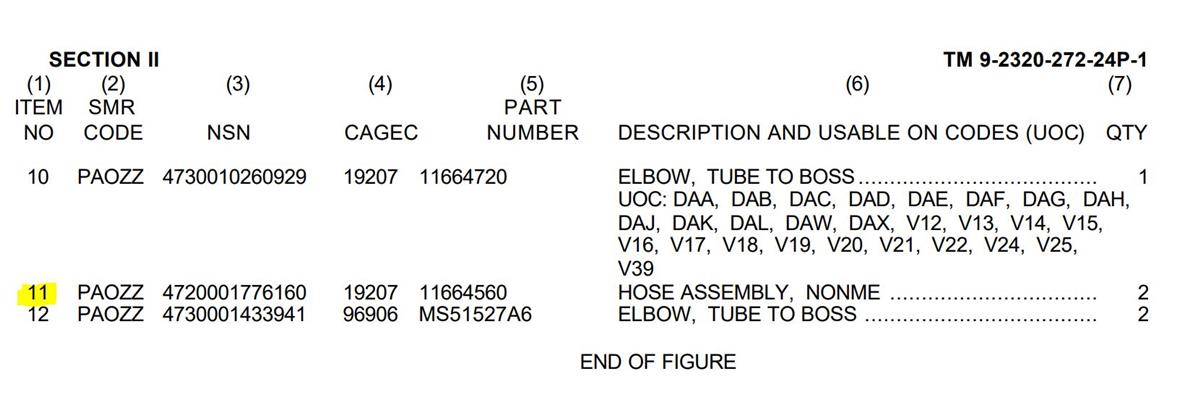

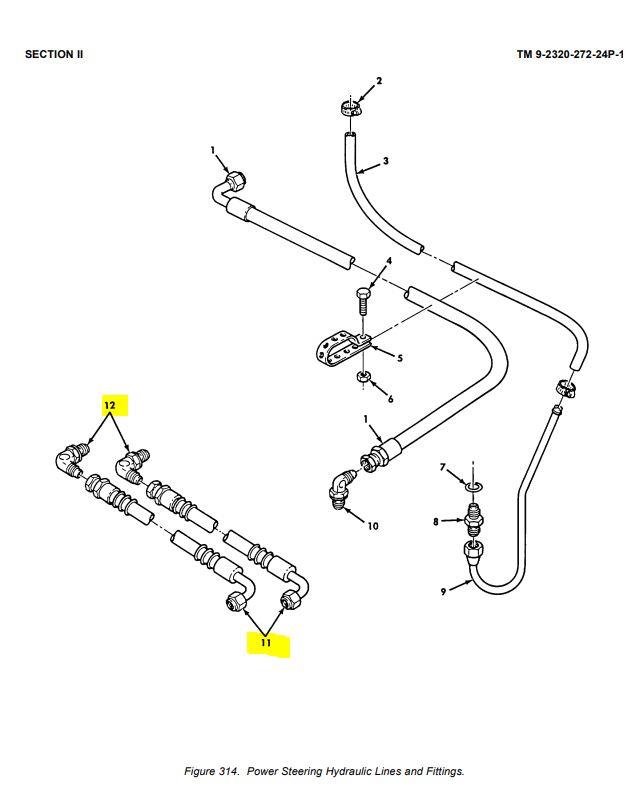

• Item number 11 in Diagram

FITS: 5 Ton 6 x 6 Military Trucks

M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks

M939, M939A1, M923, M923A1, M925, M925A1, M927, M927A1, M929, M929A1, M930, M930A1, M931, M931A1 5-Ton Trucks
