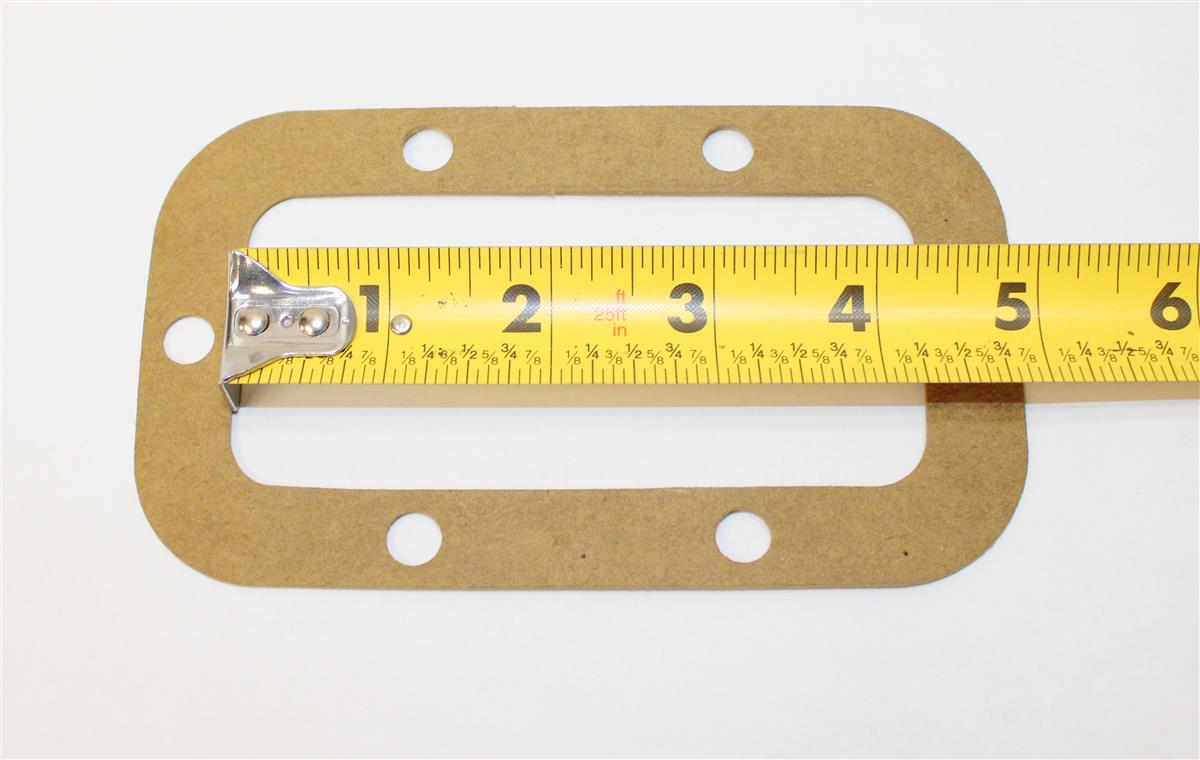

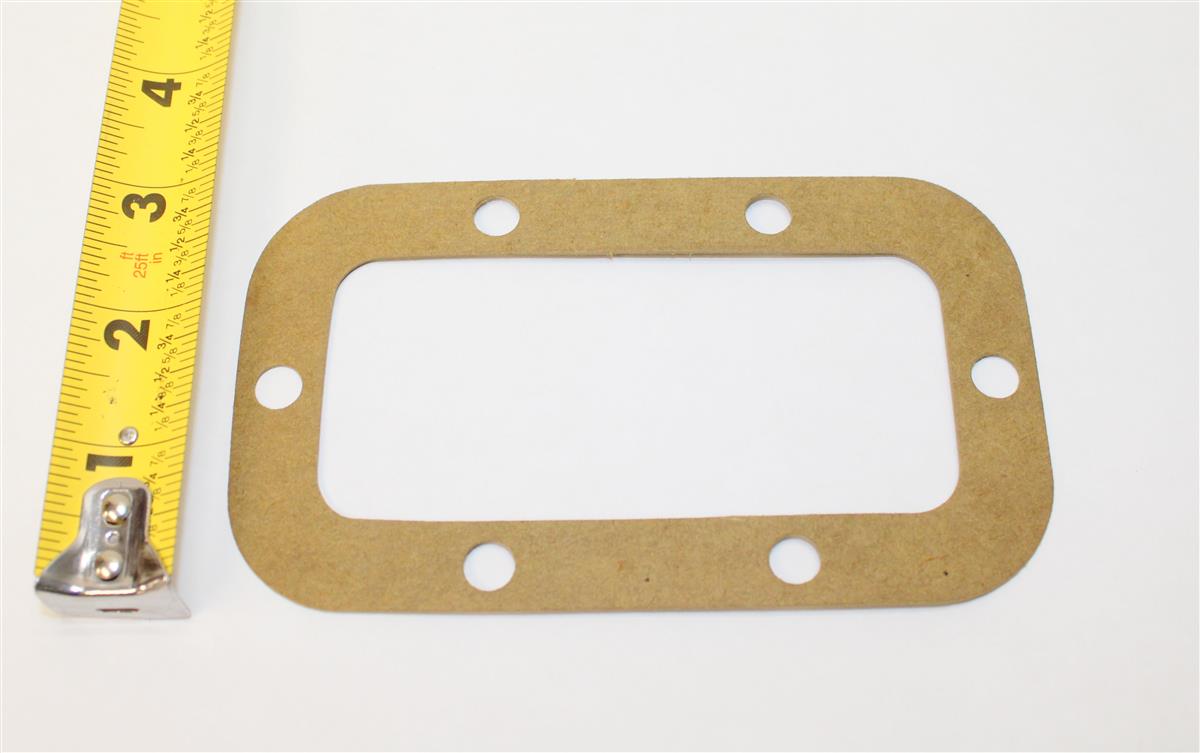

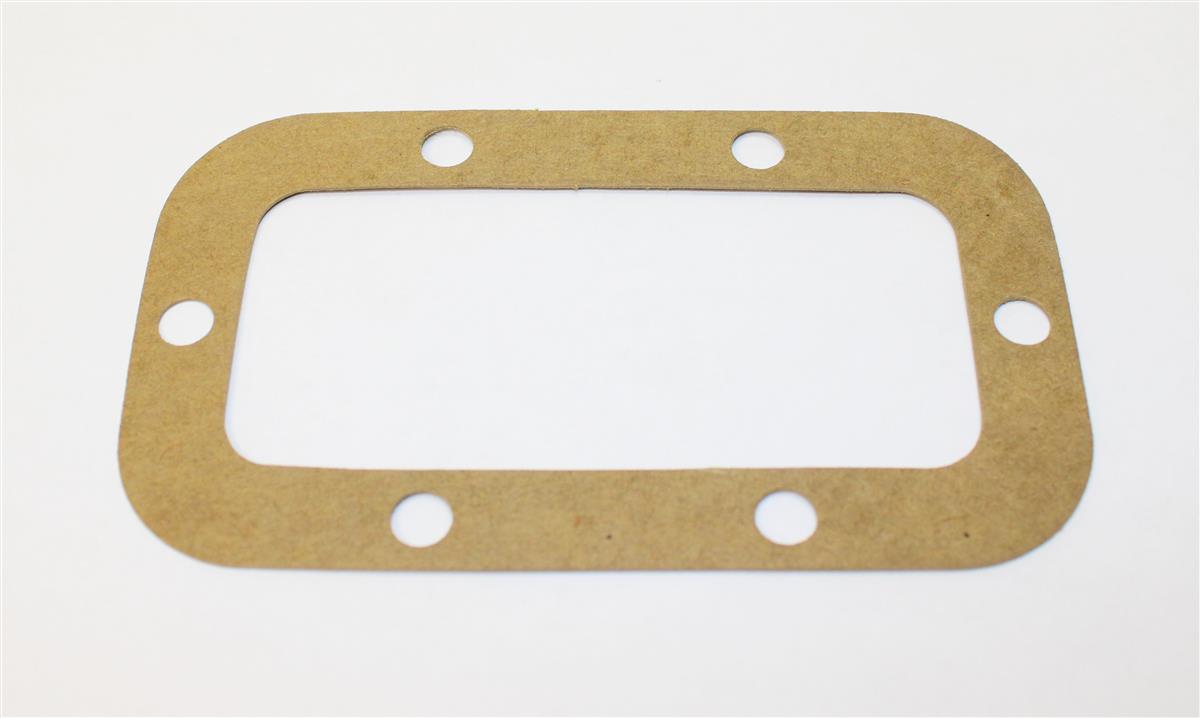

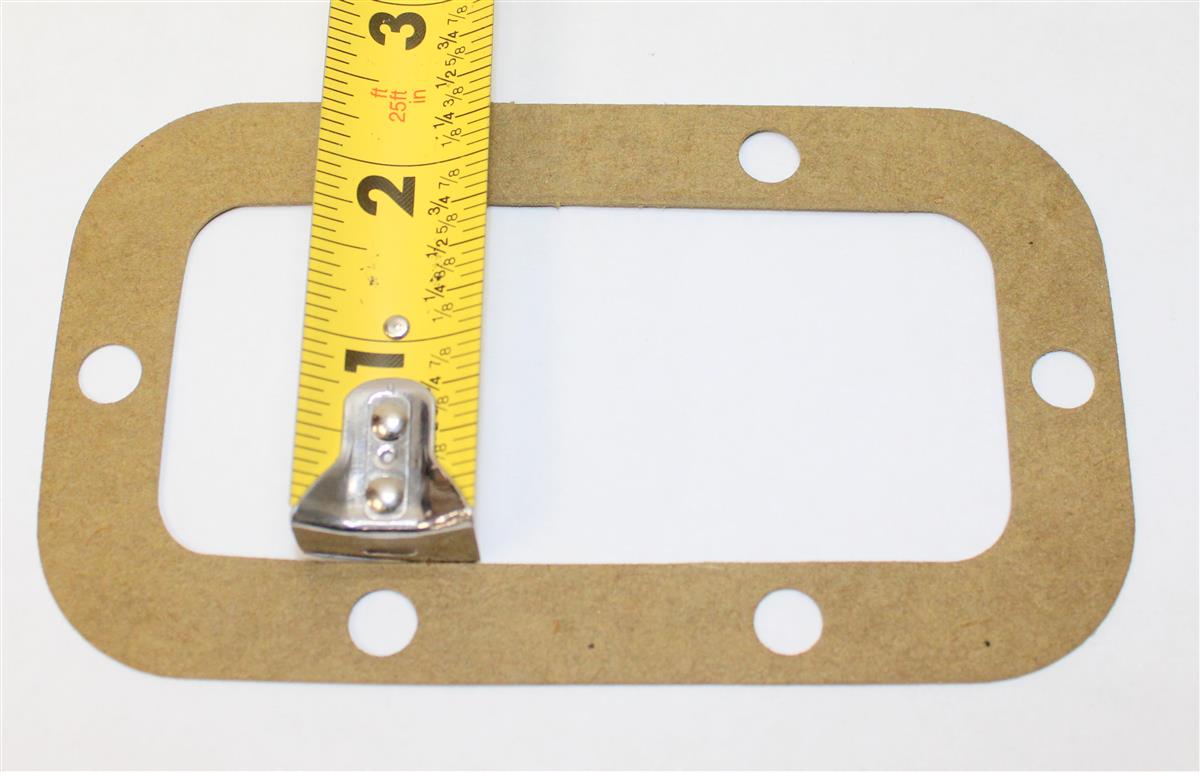

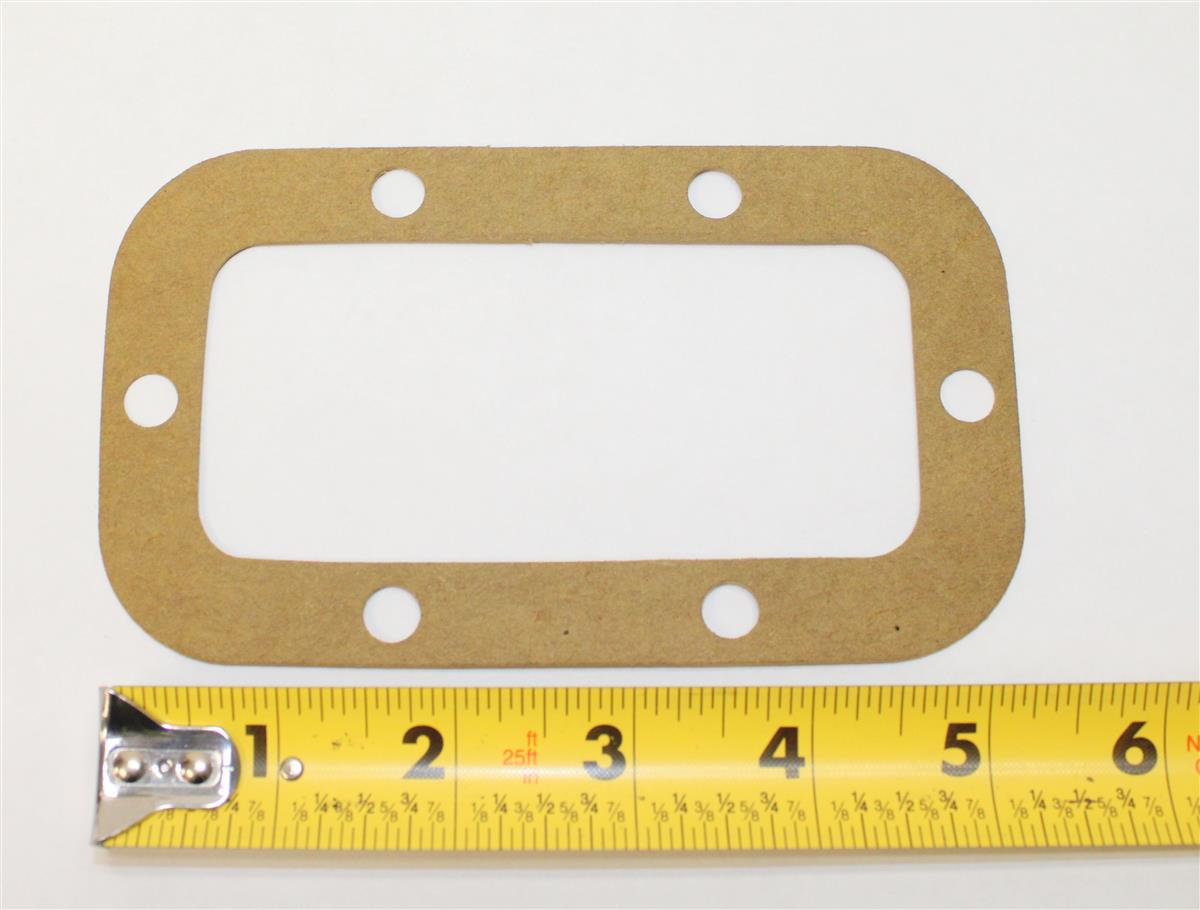

Gasket Clutch Inspection Cover M35A2 M54A2 M809
- Item Number 30 In Diagram
- Cross Sectional Shape Style - Solid Single Or Composition
- Hole Diameter - 0.344 Inches Nominal
- Overall Length - 5.625 Inches Nominal
- Overall Width - 3.250 Inches Nominal
- Inside Corner Radius - 0.375 Inches Nominal
- Outside Corner Radius - 0.938 Inches Nominal
- Aperture Width - 2.000 Inches Nominal
- Aperture Length - 4.375 Inches Nominal
- Center To Center Distance Between Bolt Holes Along Length - 2.000 Inches Nominal
- Outside Edge To Bolt Hole Center Distance Along Width - 1.625 Inches Nominal
- Cross Sectional Thickness - 0.029 Inches Minimum and 0.033 Inches Maximum
- Bolt Hole Quantity = 6
- Material - Paper Overall and Glue Overall
Fits: Deuce and a Half 6x6 Military Truck, 5 Ton 6x6 Military Truck
M35A2, M49A2, M50A2, M36A2, M109A3, M275 2 ½ Ton Trucks
M54 and variants 5-Ton Trucks
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
