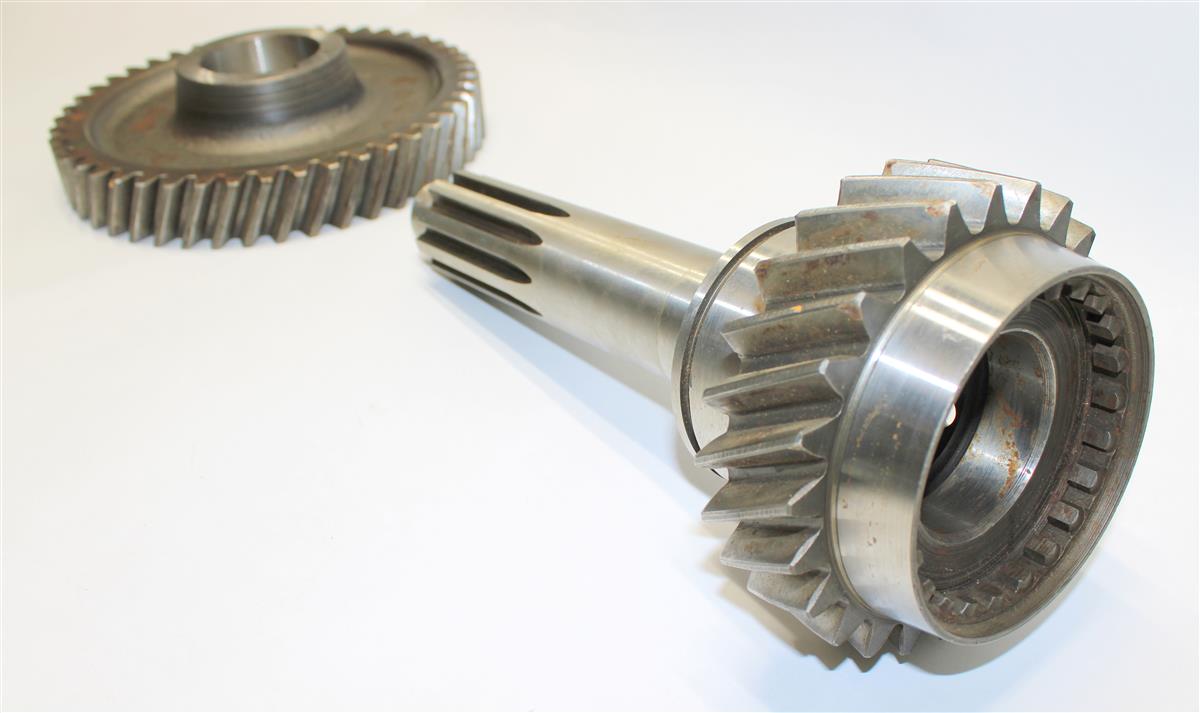

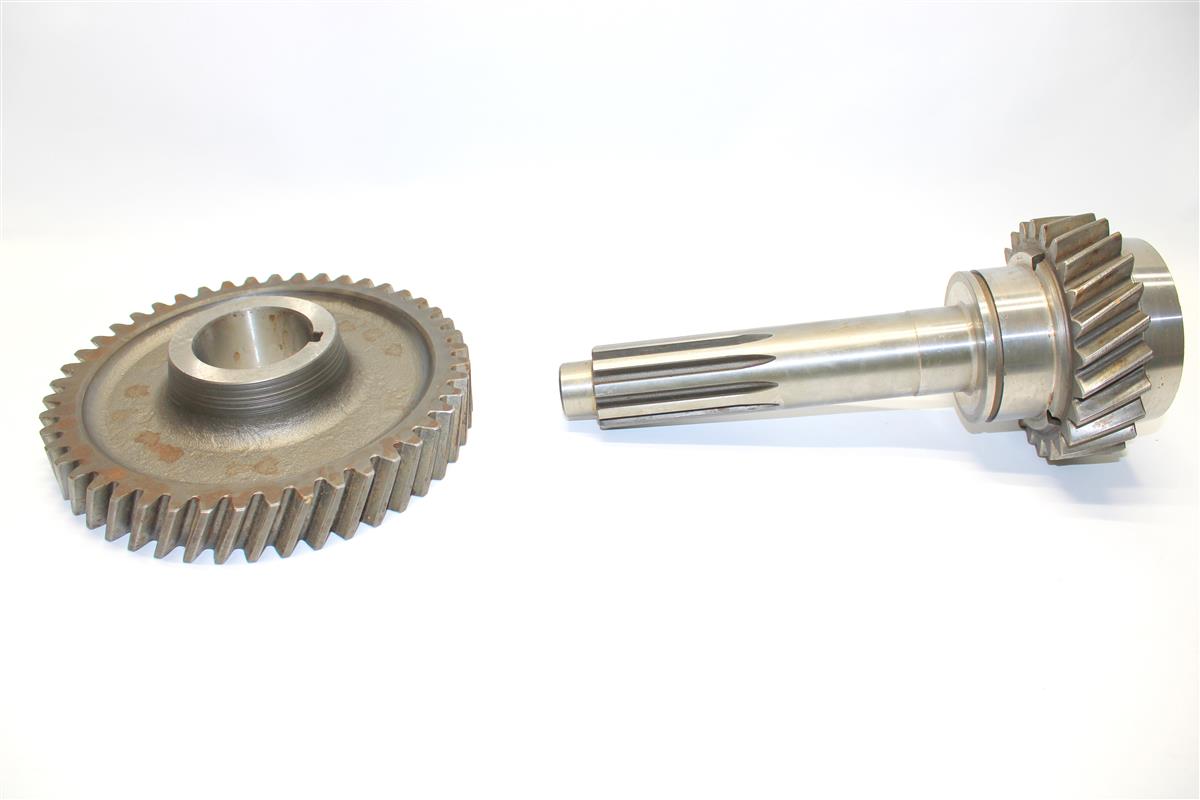

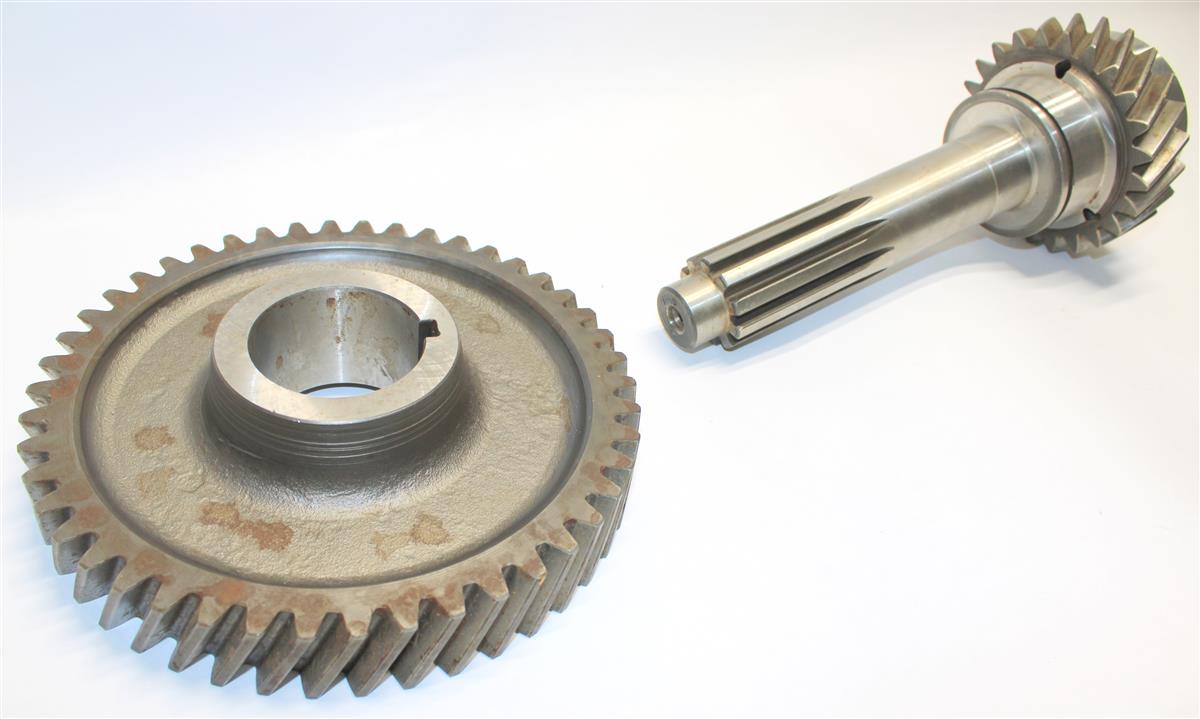

Spicer Helical Transmission Gearshaft With Helical Gear

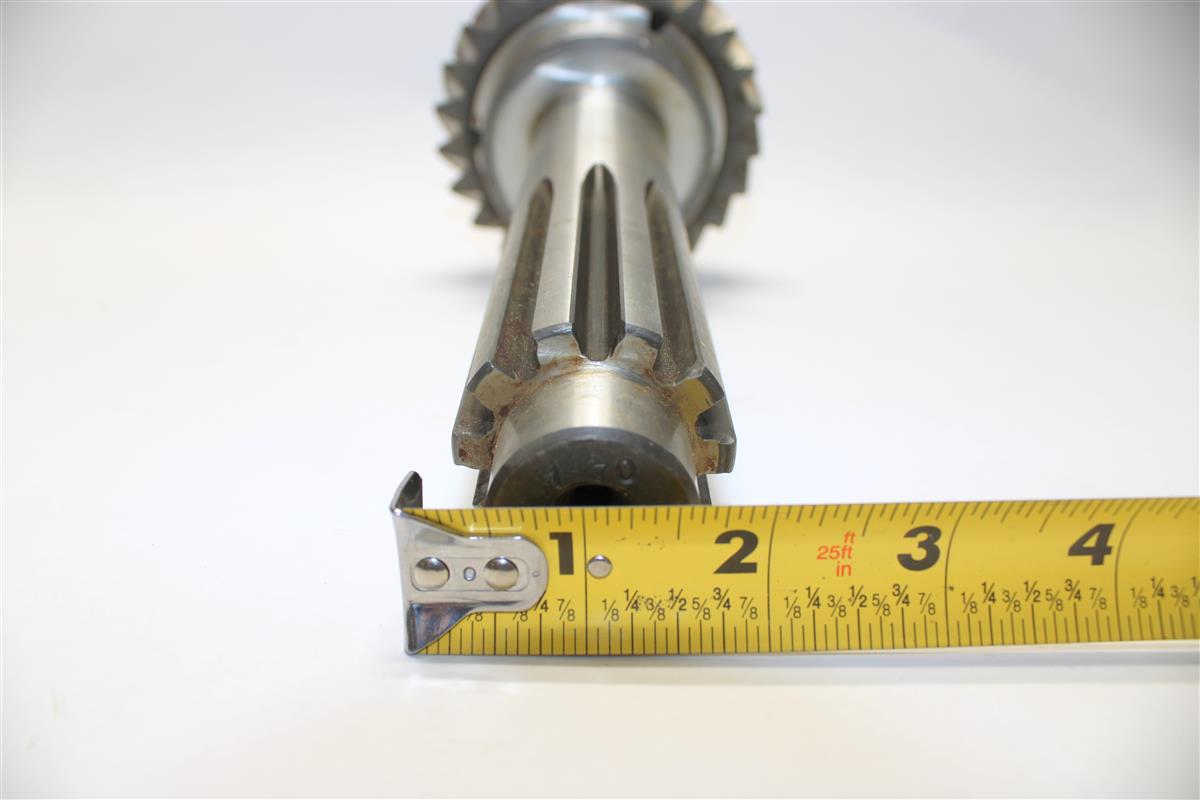

Input Gearshaft NSN: 3040-00-971-5019 - Part Numbers - 5019 62-35-35, 8712208, 3040009715019, SOAP8712208, T406-16B

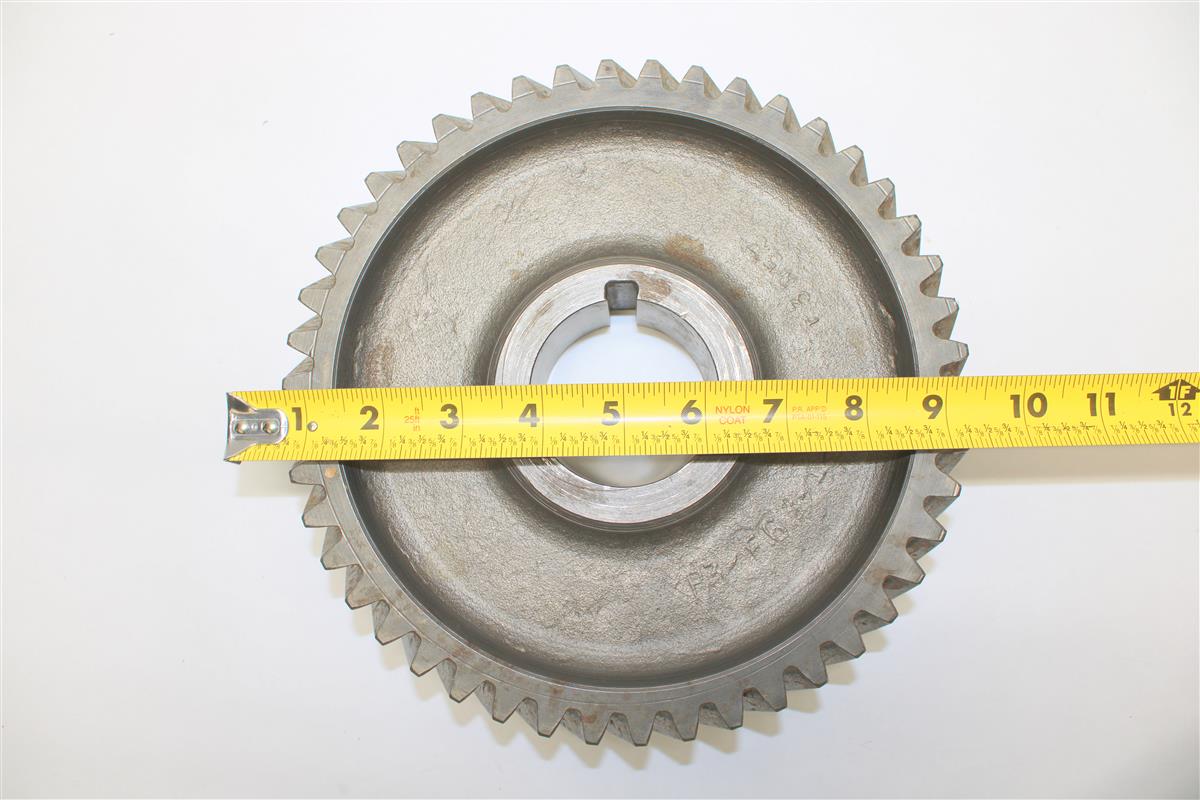

Helical Countershaft Gear NSN: 3020-00-734-7520 - Part Numbers- 100102R1, 62-1-6, 316699, KC2502

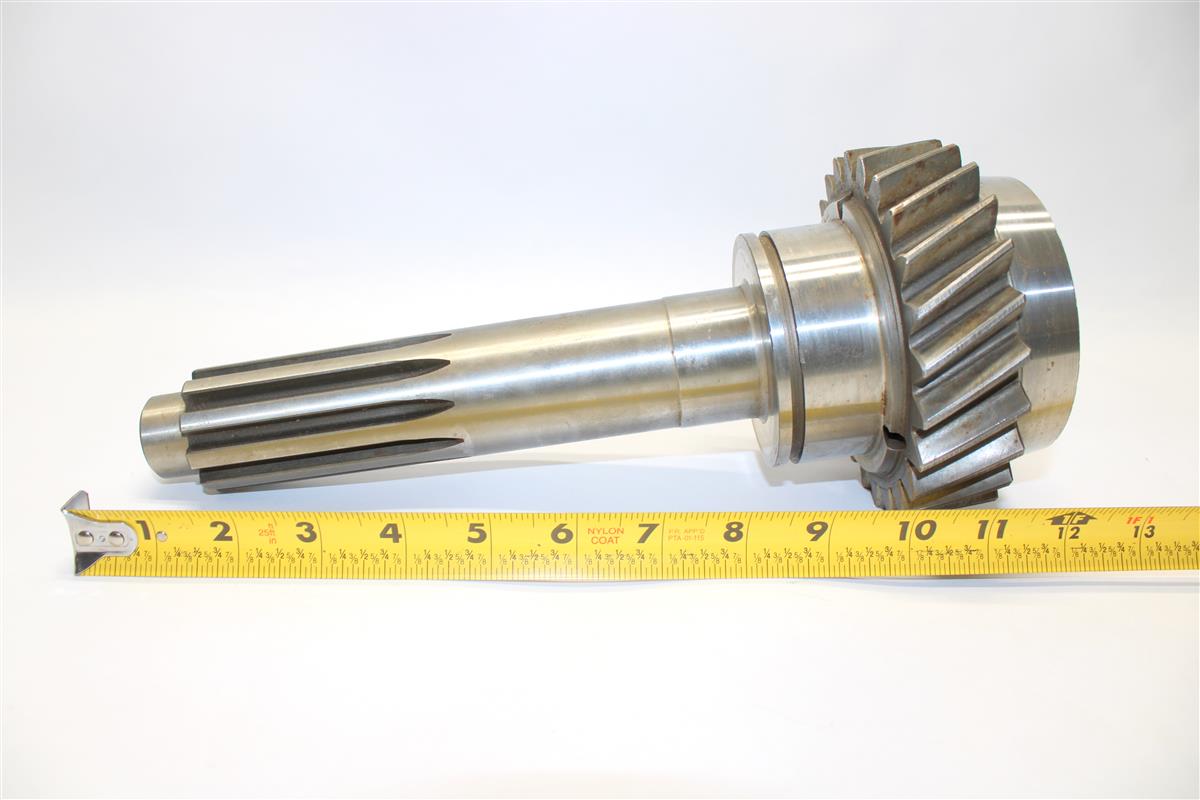

- Gear Shaft Overall Length - 11.985 Inches Nominal
- Gear Shaft Teeth Quantity - 27

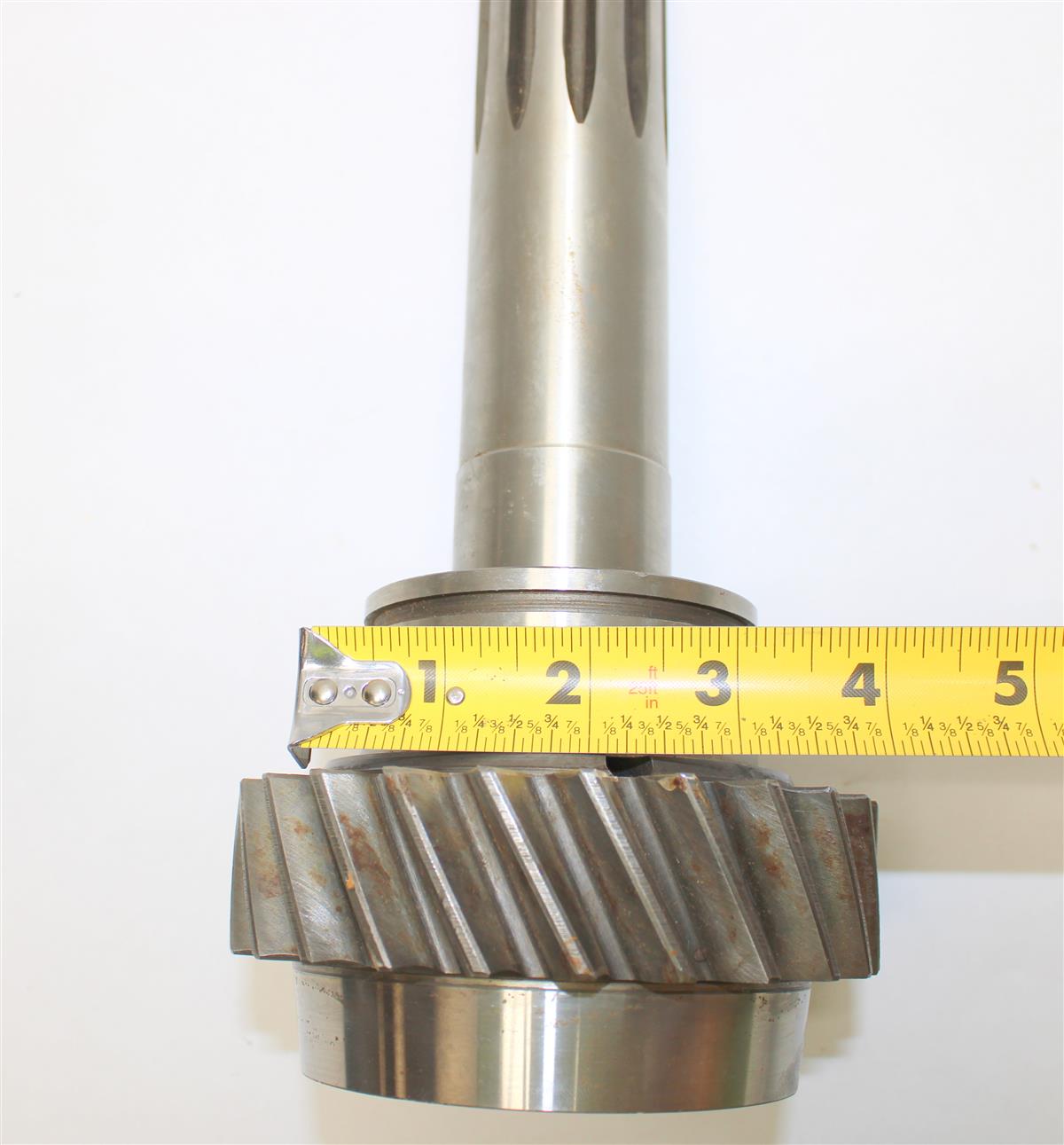

- Gear Shaft Gear Outside Diameter - 5.425 Inches Nominal
- Gear Shaft Diametral Pitch - 6

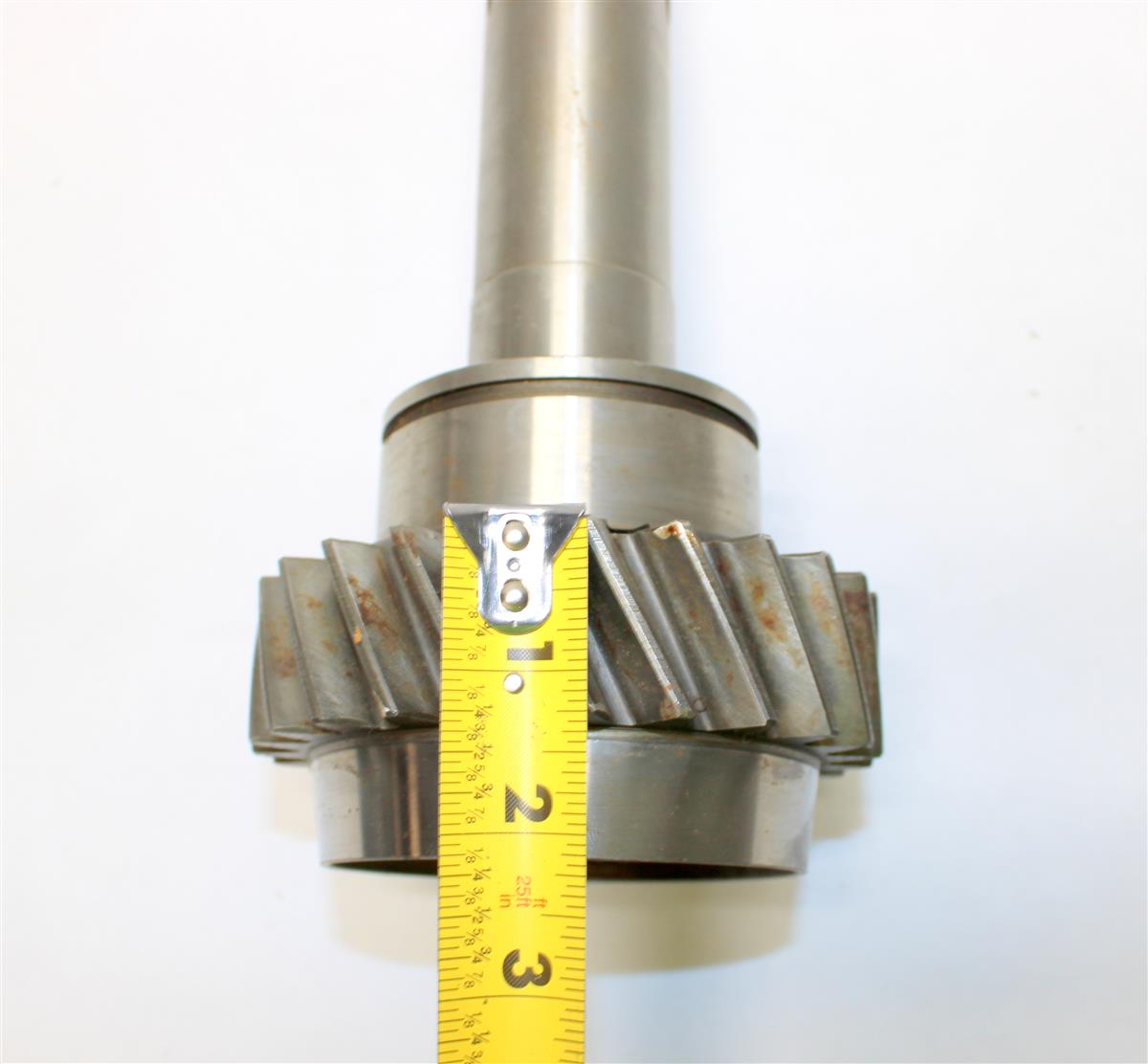

- Gear Shaft Face Width - 1.281 Inches Nominal
- Gear Shaft Tooth Direction
- Gear Shaft Pressure Angle - 17.500 Degrees
- Gear Shaft Helix Angle - 26.1811 Degrees
- Gear Shaft Material - Steel Comp 8620
5T-913 | Spicer Helical Transmission Gearshaft Spicer 6652 and 6653 M54A2 M809
Fits: 5-ton 6x6 Military Truck
M809 M813 M814 M816 M817 M818 M820 5-Ton Trucks Equipped with Manual 5 Speed Transmission
M54 and variants 5-Ton Trucks Equipped with the Manual 5 Speed Transmission.
Spicer Model 6452 or 6453

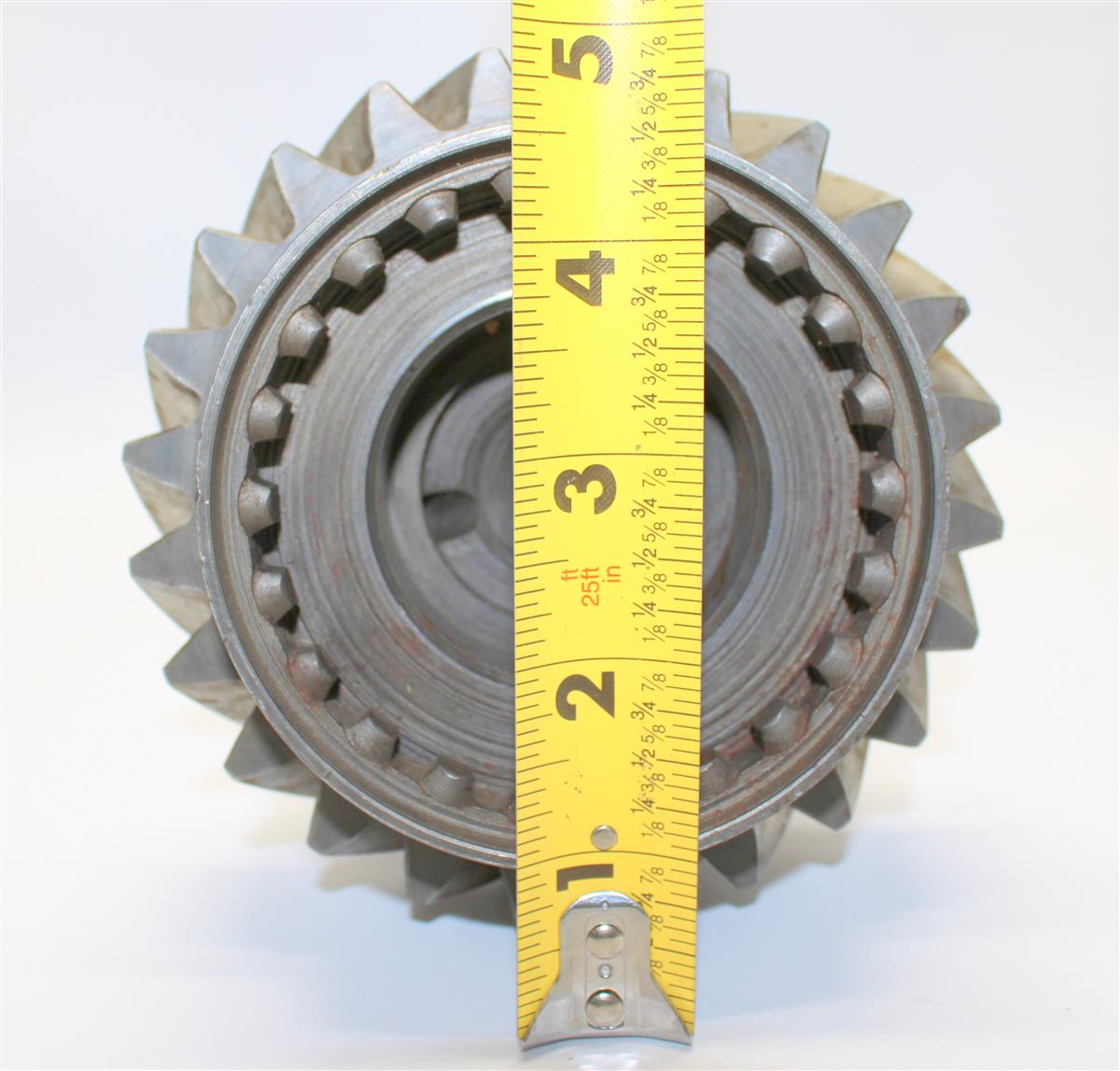

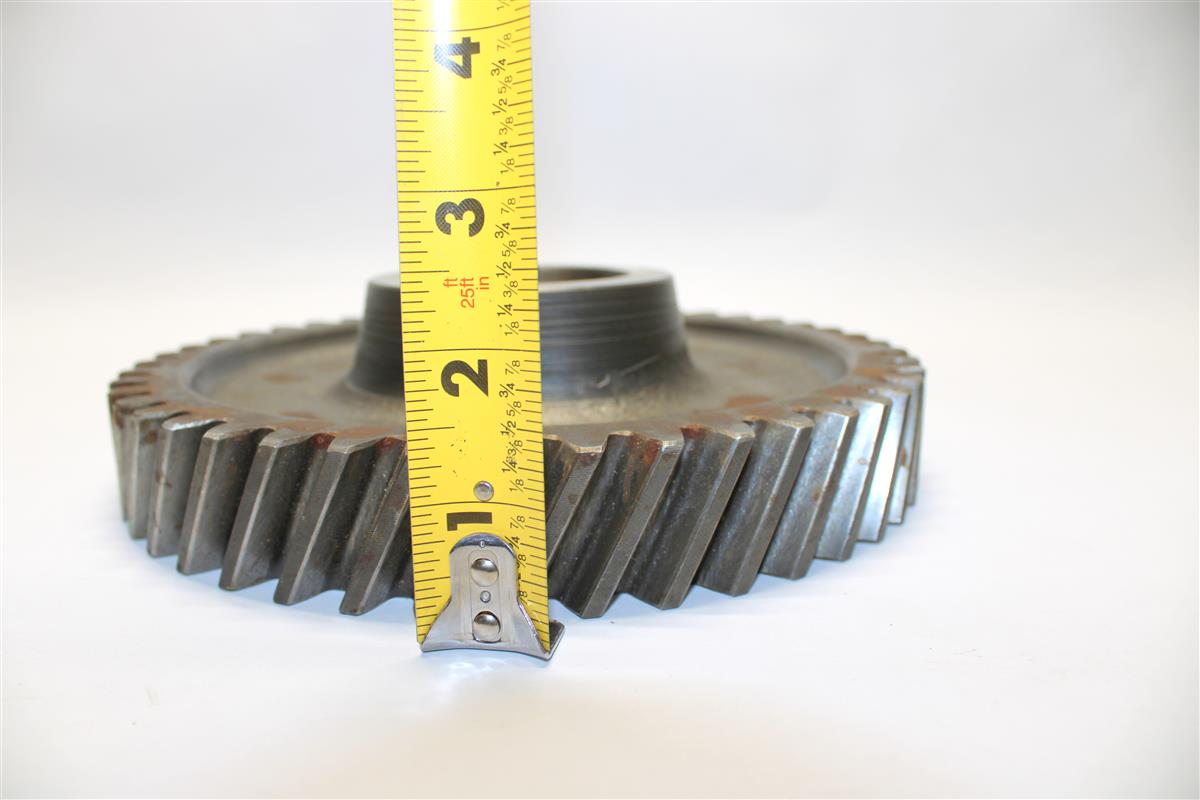

(NOTE: There are 2 different versions of this gearshaft depending on when your specific transmission was manufactured. We will need to know the diameter of your part in order to properly match a replacement)
