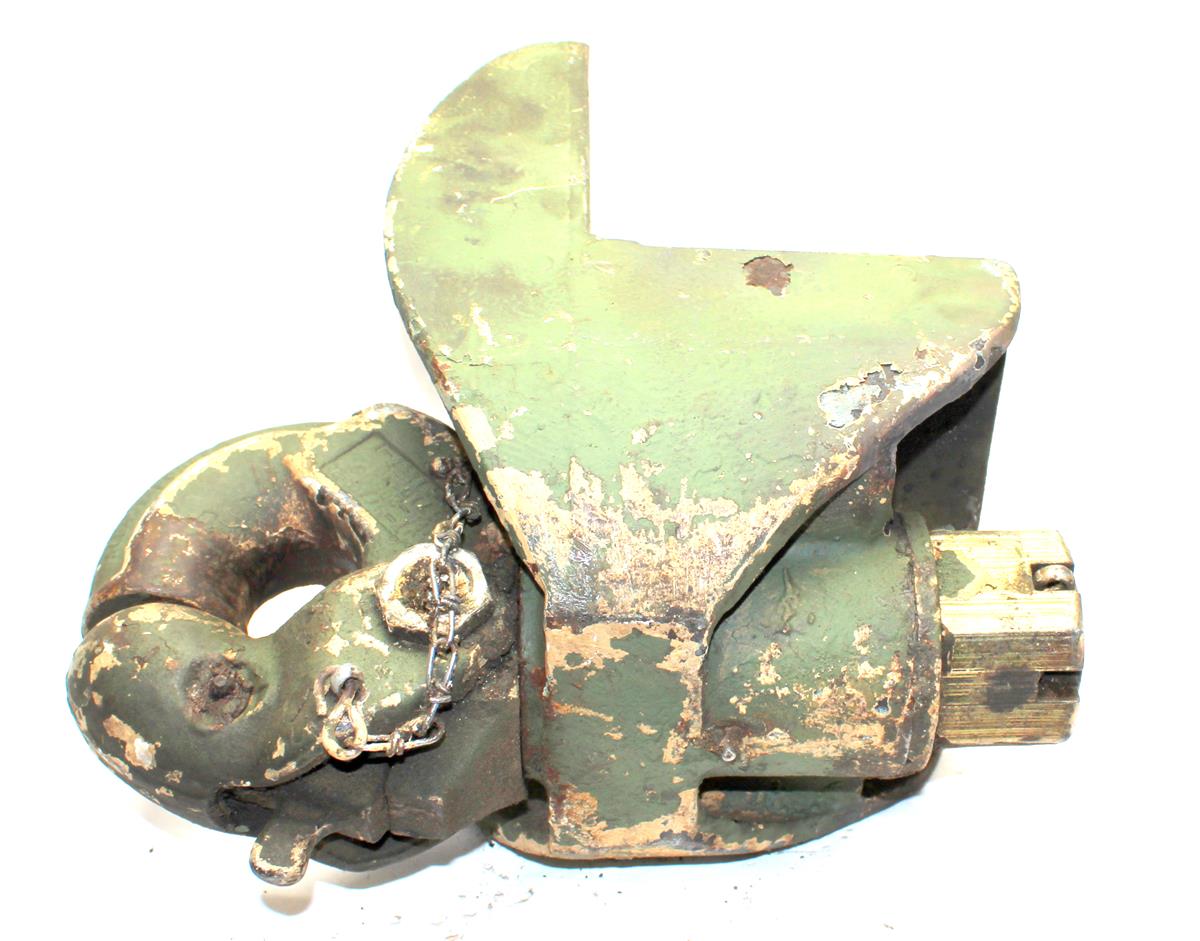

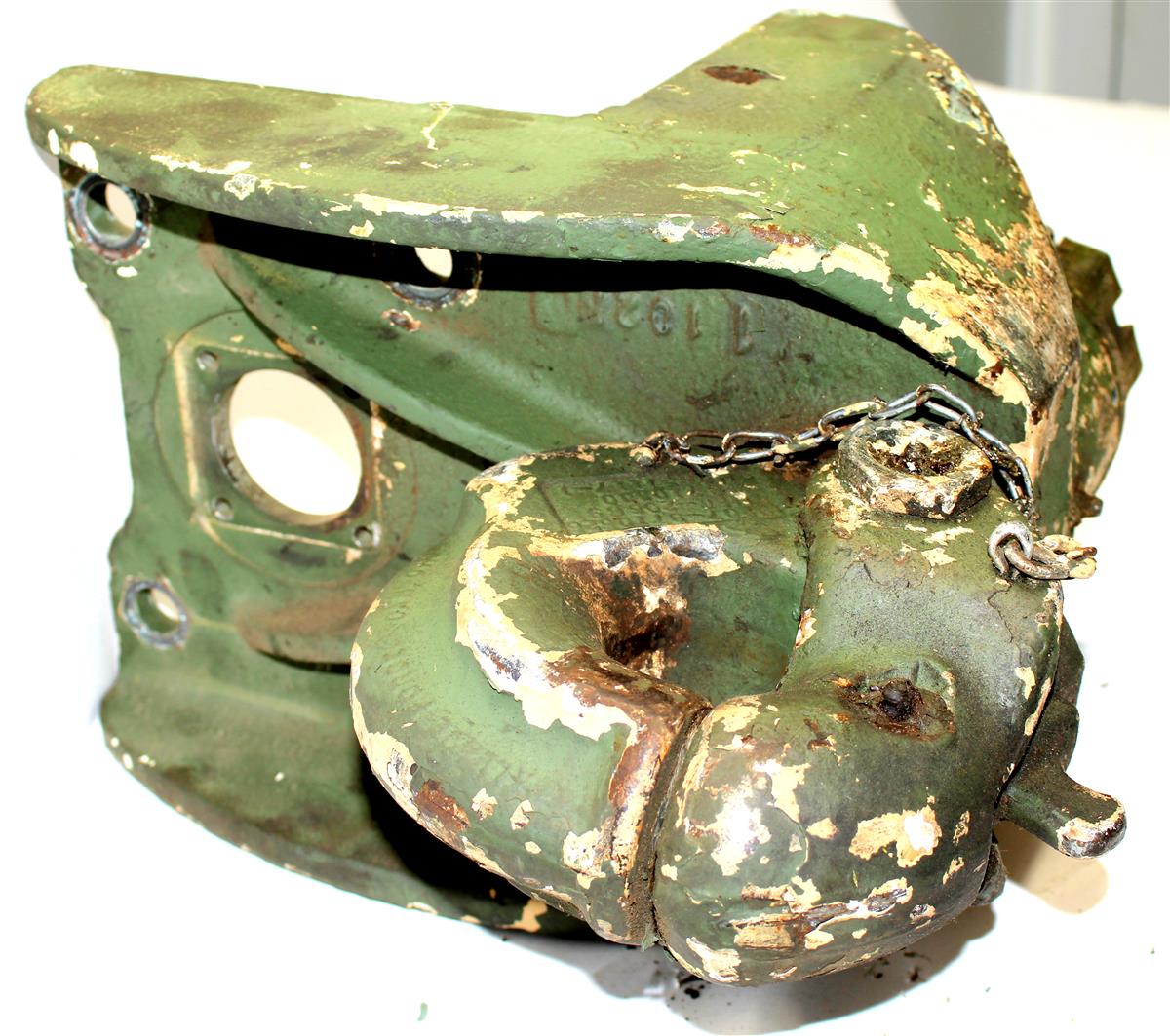

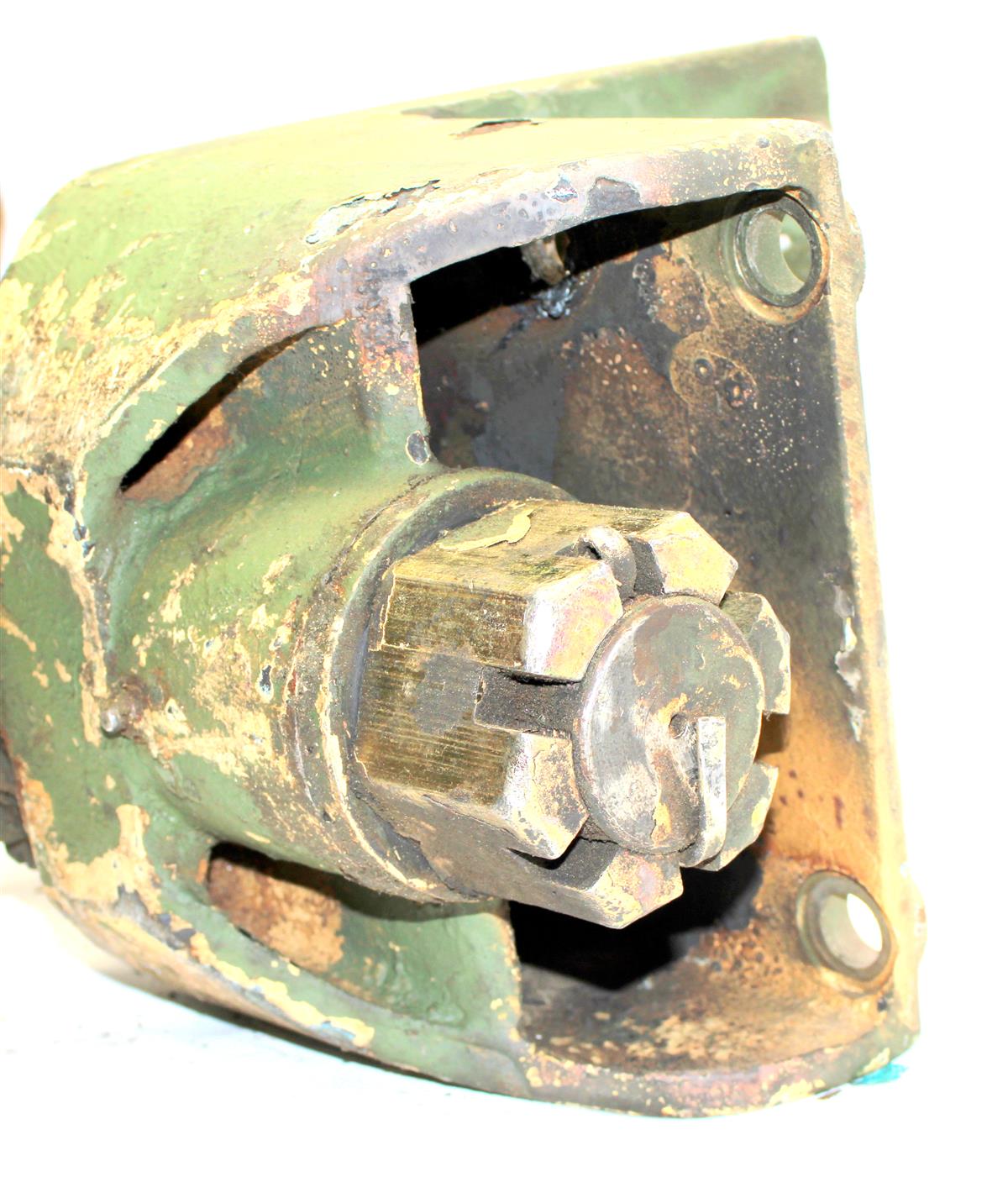

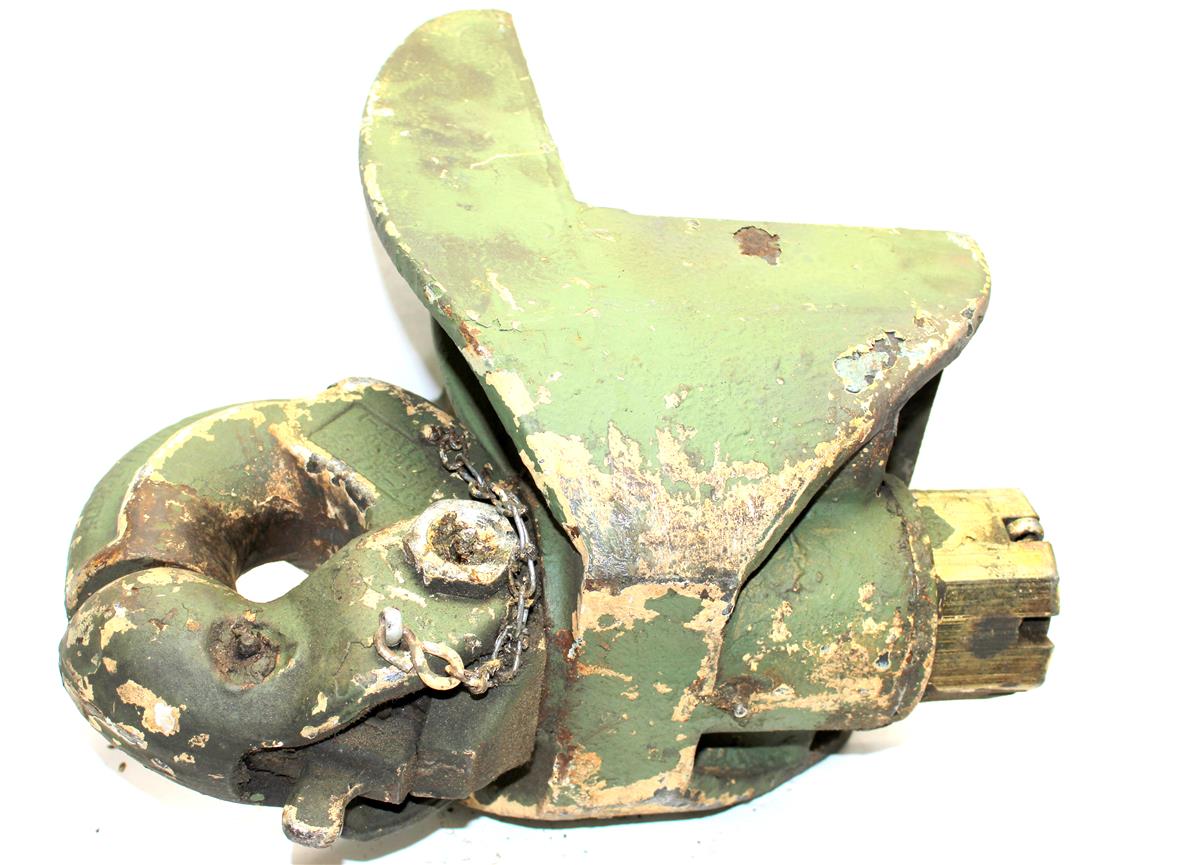

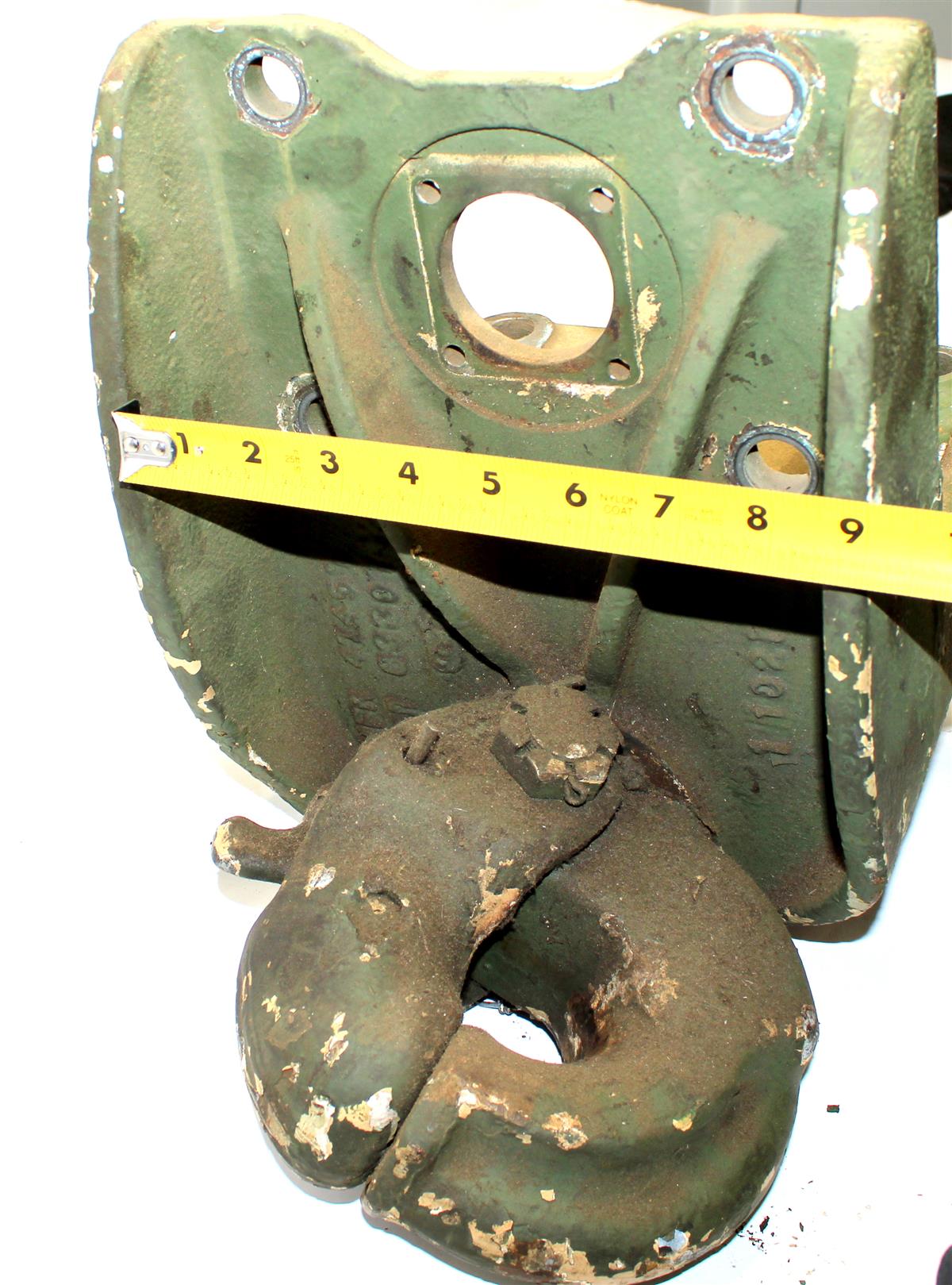

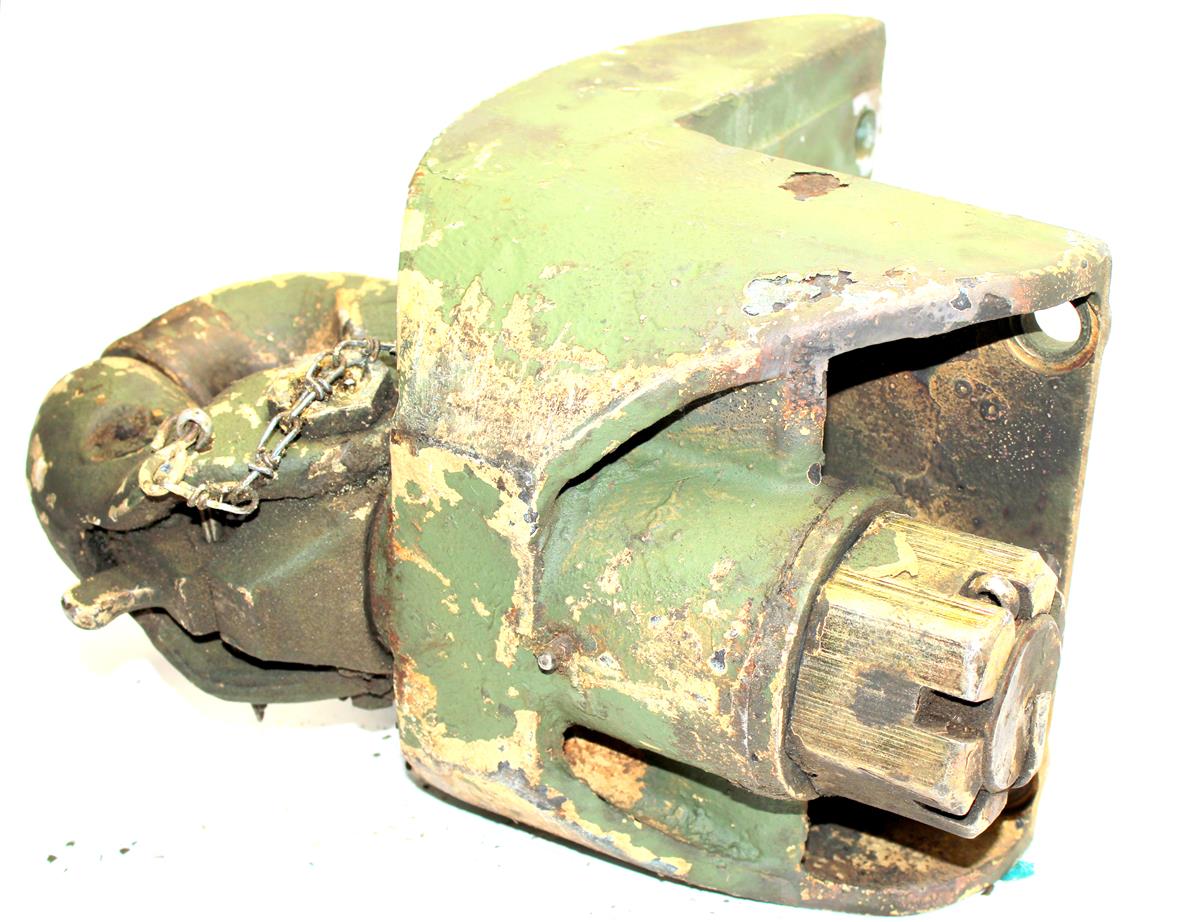

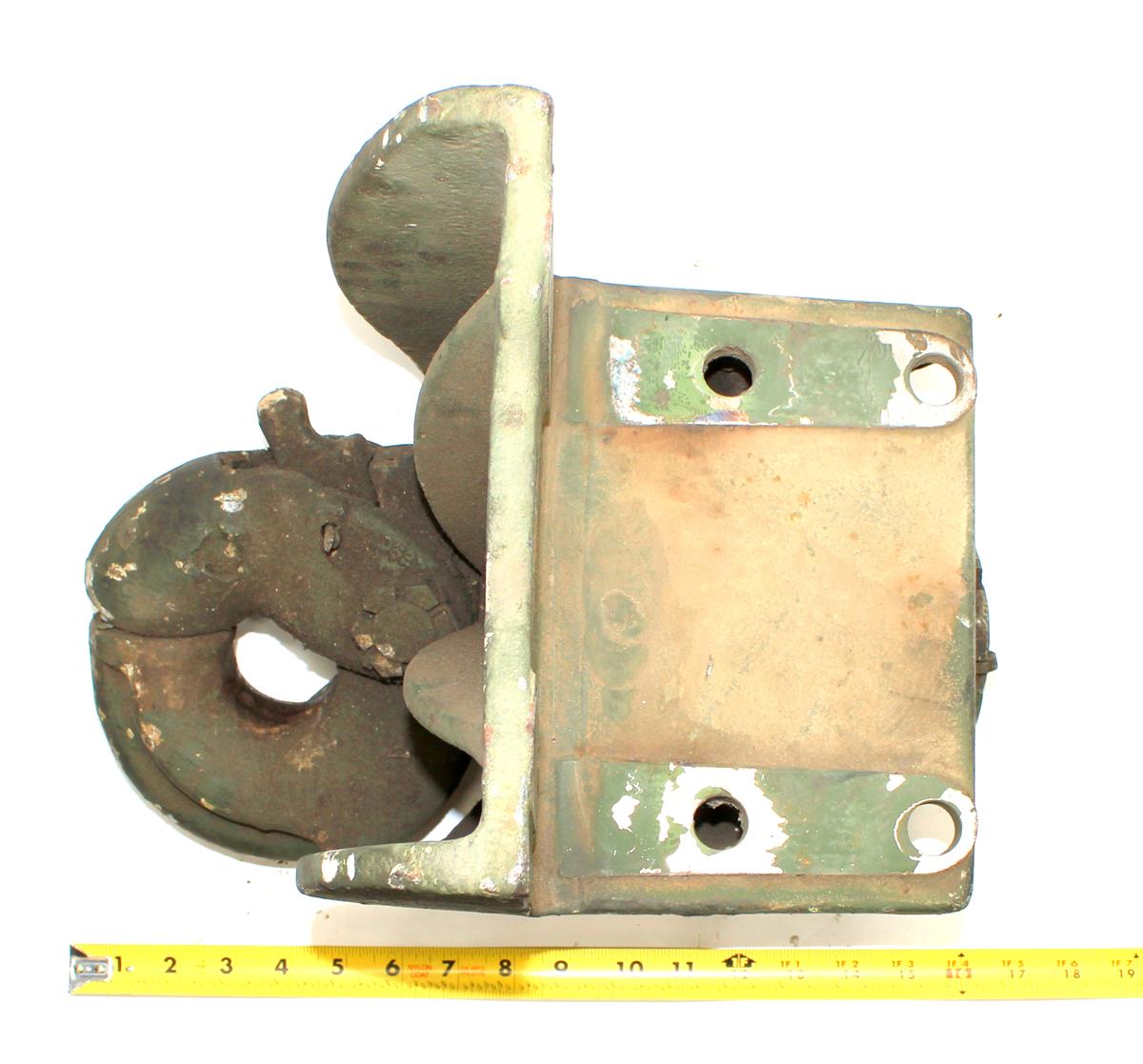

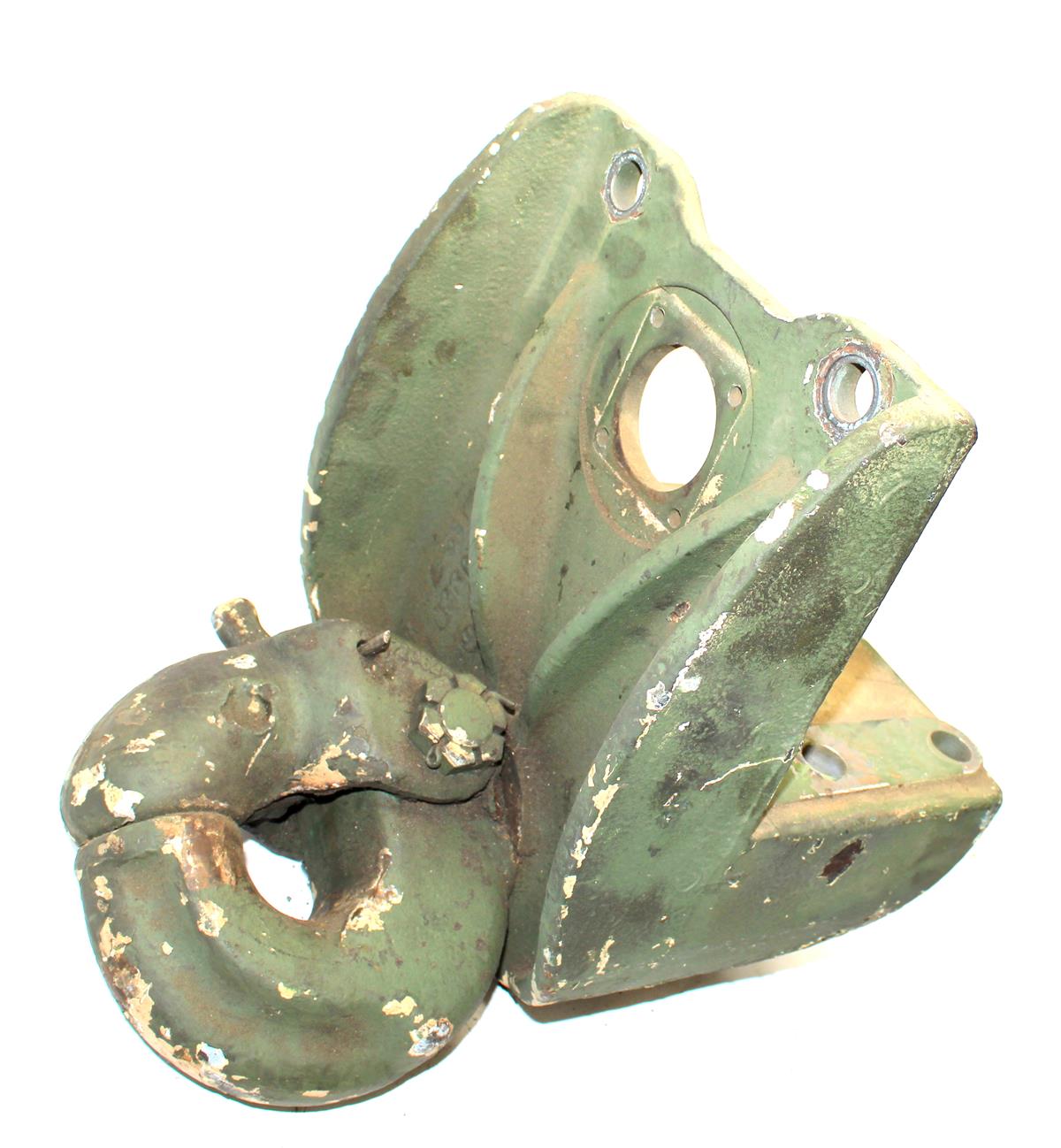

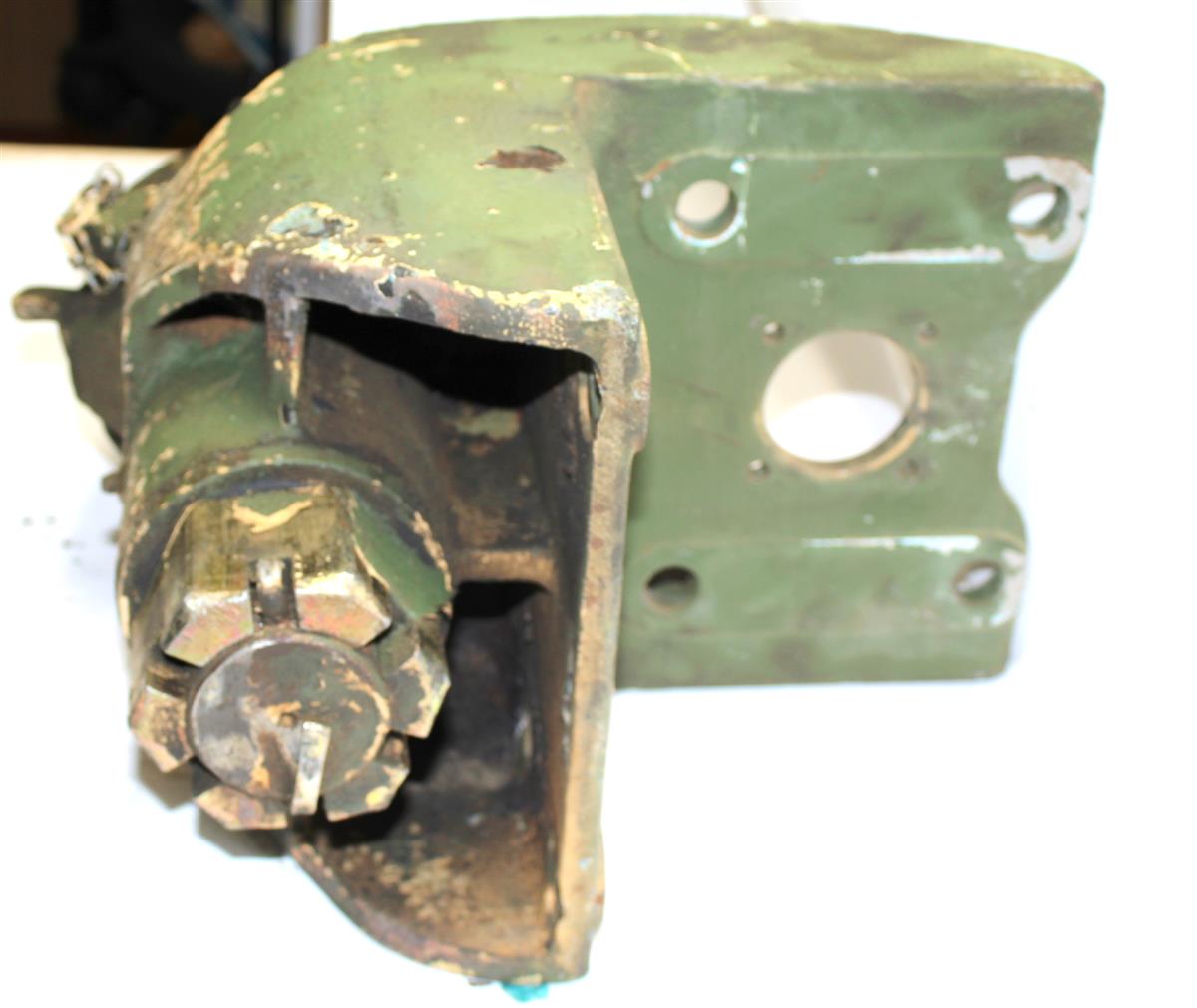

Pintle Hitch Assembly with Mounting Bracket M809 M939 M939A1 M939A2

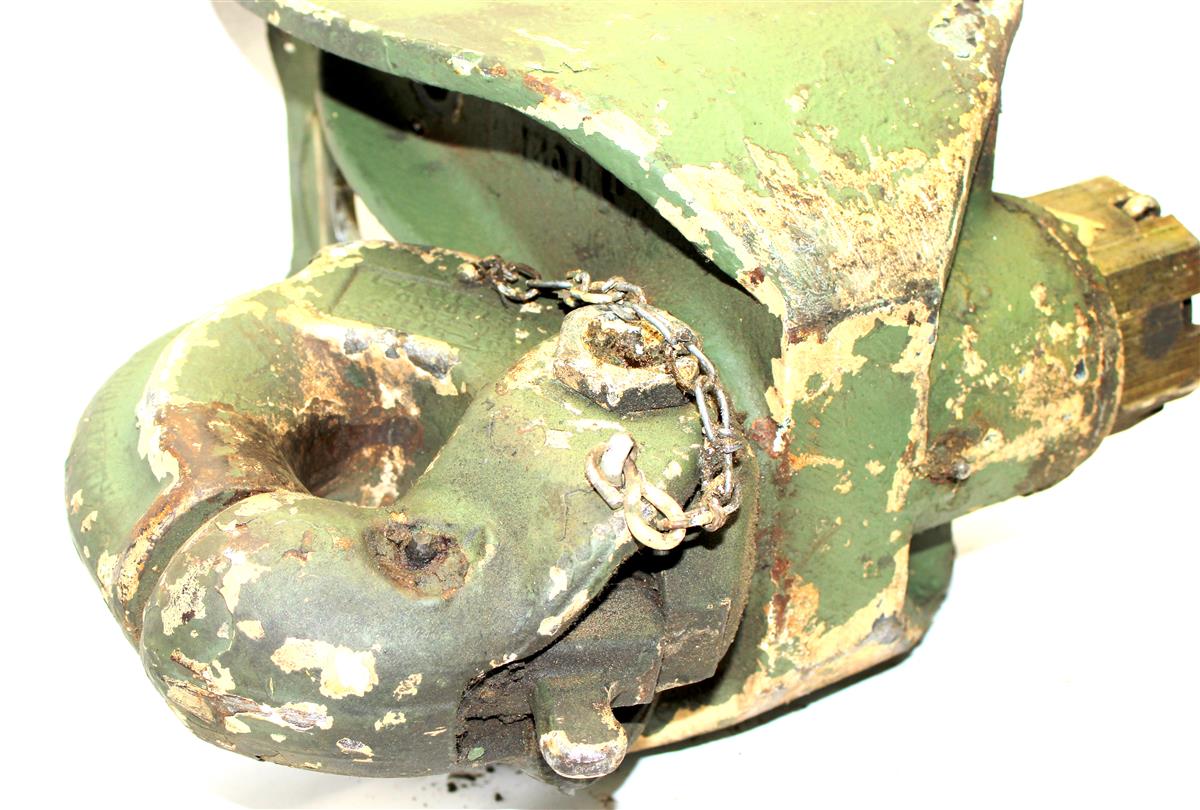

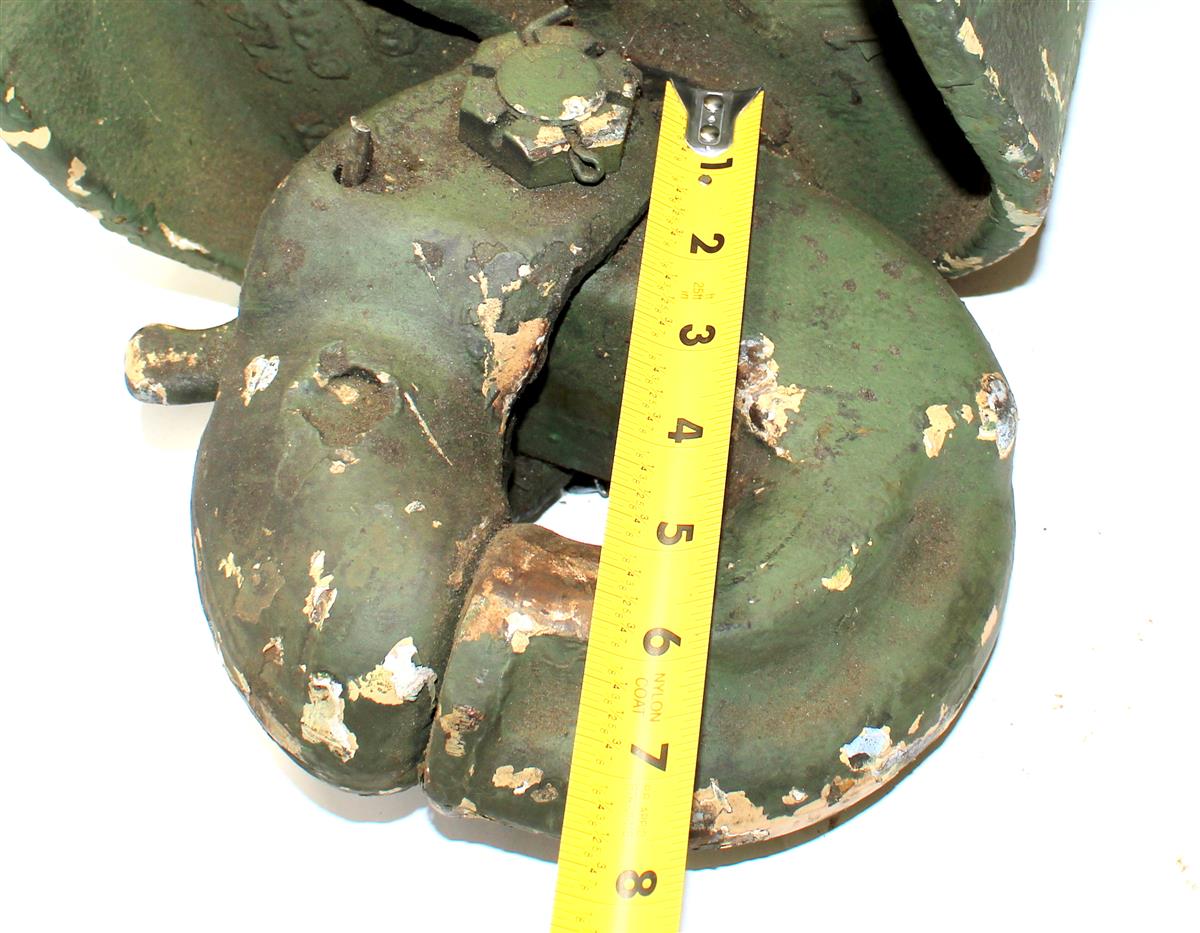

- Pintle Hook P/N 8710626 Dimensions
- Head Length 6.625 IN
- Shank Length 8.375 IN
- Hole Diameter 0.344 IN
- Shank Diameter 2.250 IN
- Thread Length 3.125 IN
- Width 2.625 IN
- Overall Length 14.281 IN
- Overall Height 7.375 IN
- Thread Size 2-1/4-12
- Shank Shoulder Diameter 2.625 IN
- Hole QTY 2
- Coupler Type Manual
- Hole Location Hook Top
- Throat Opening Size 1.812 IN

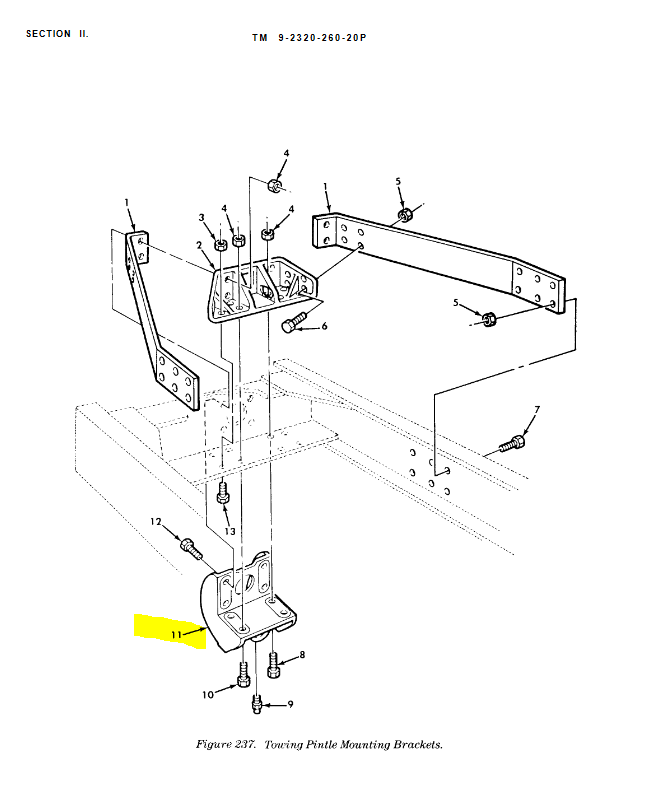

- Diagram Shown

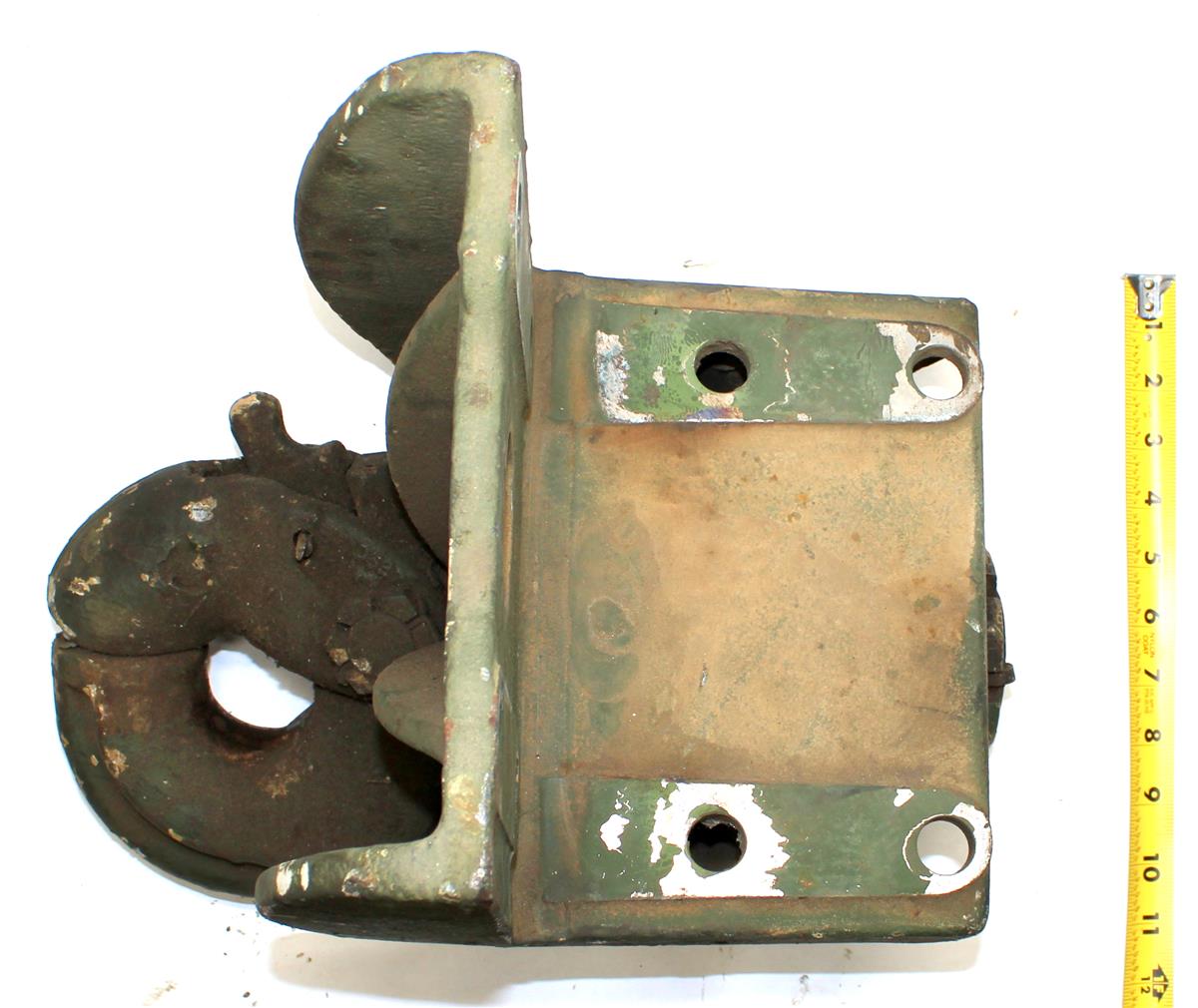

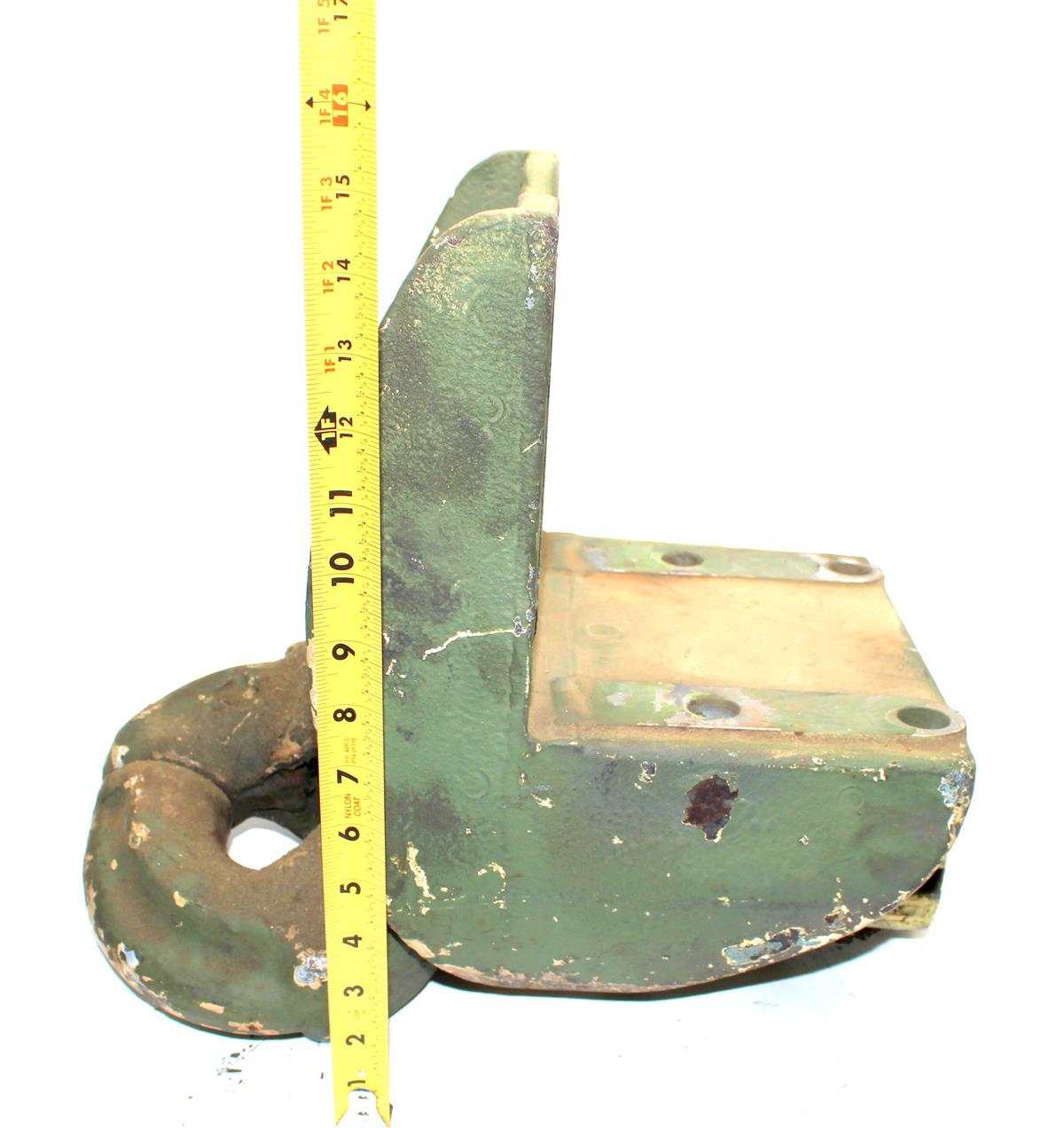

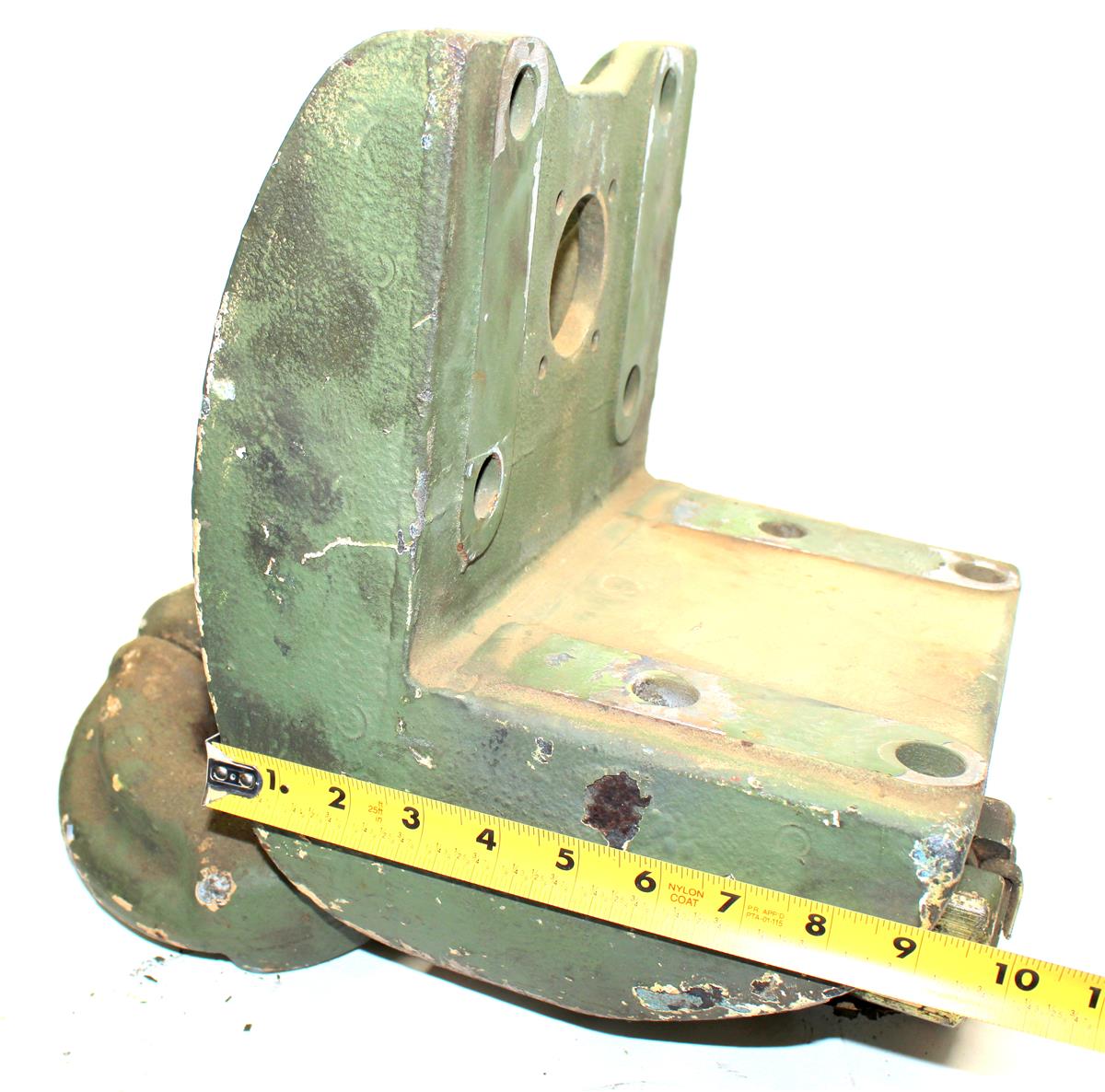

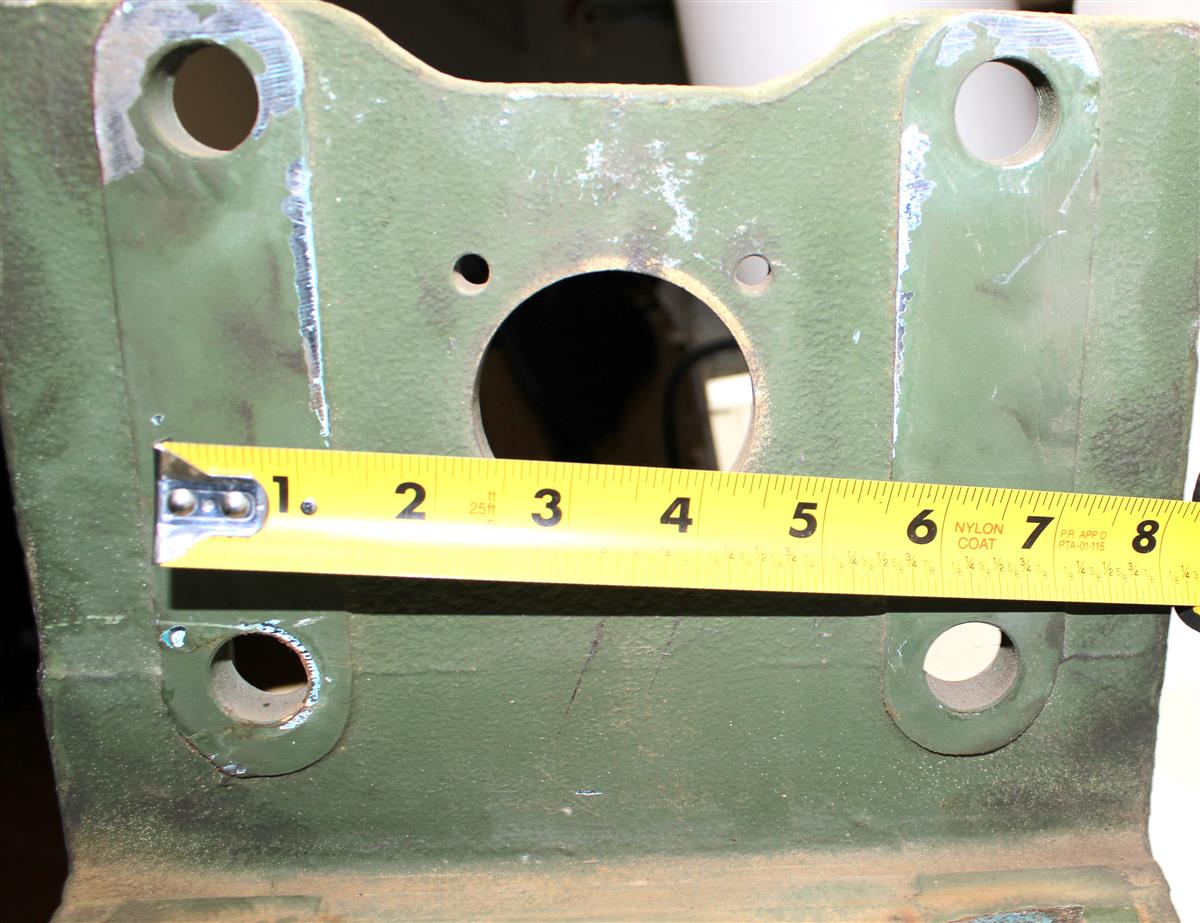

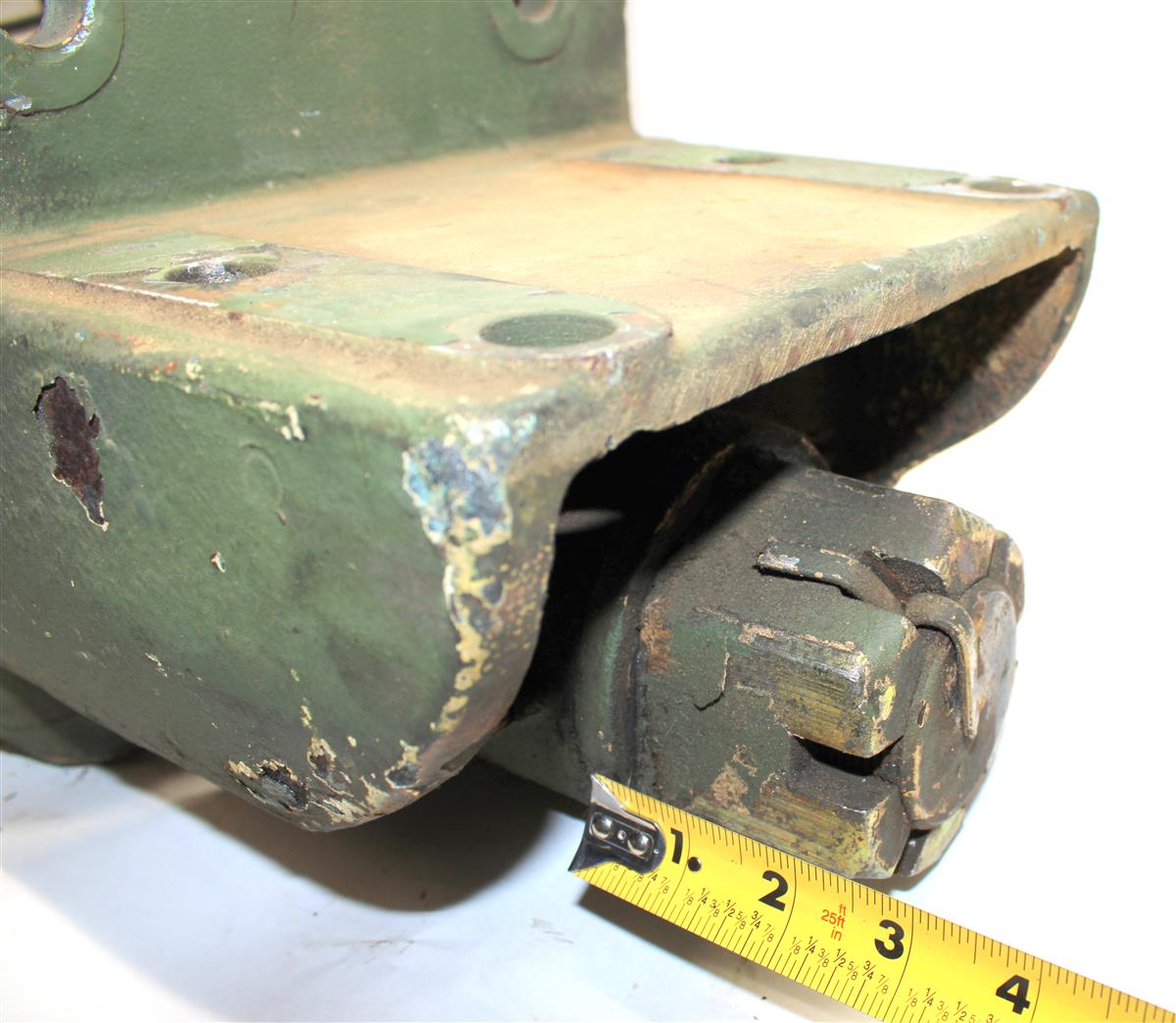

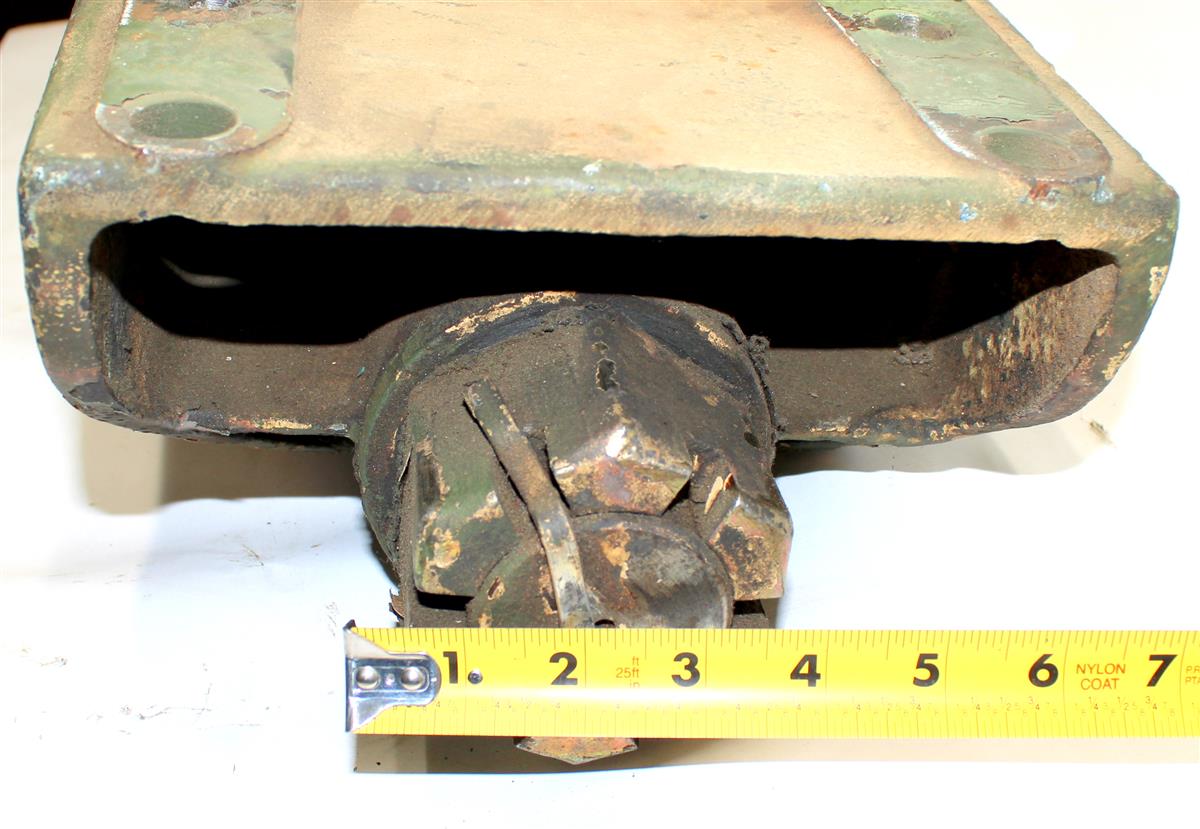

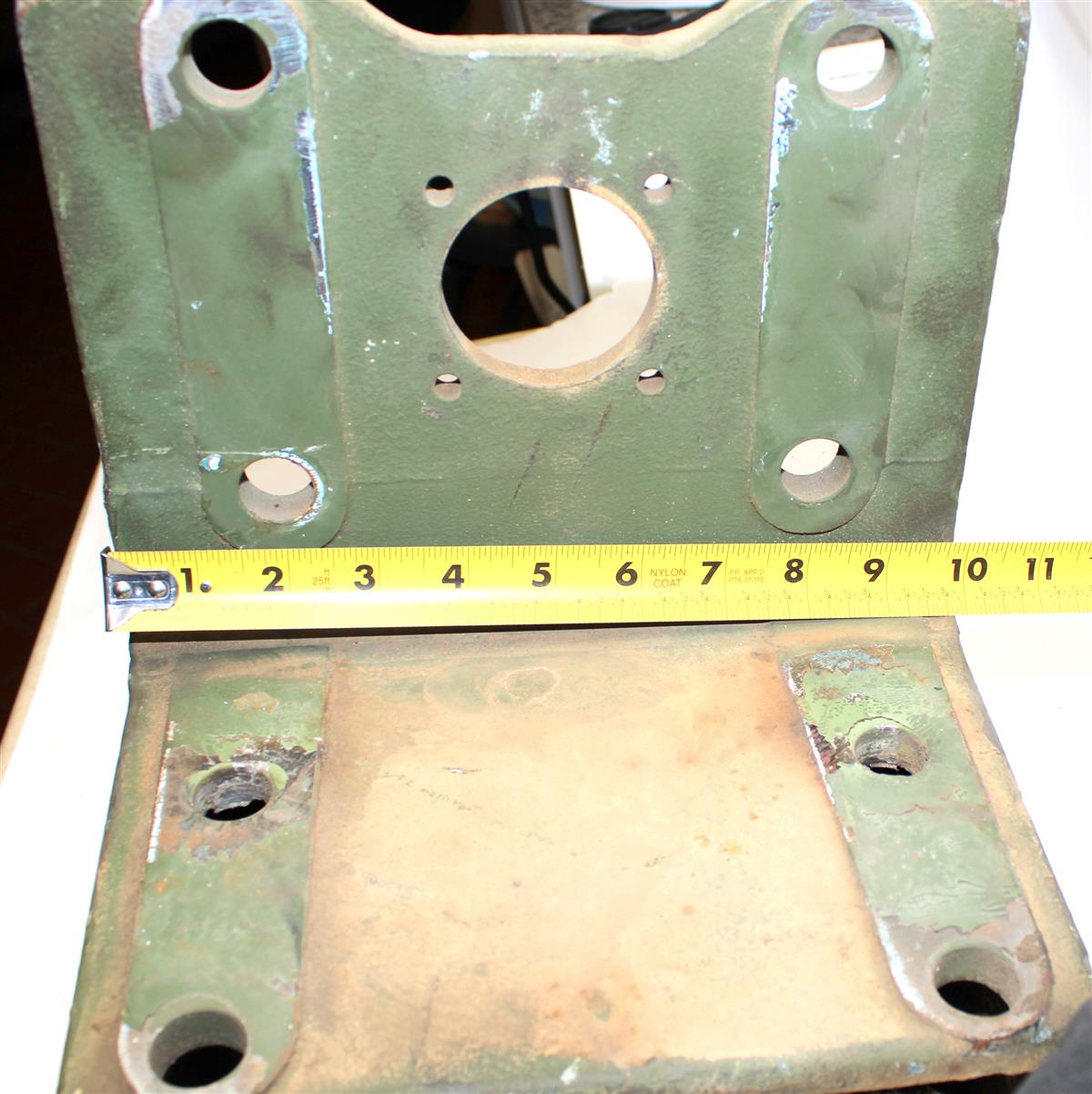

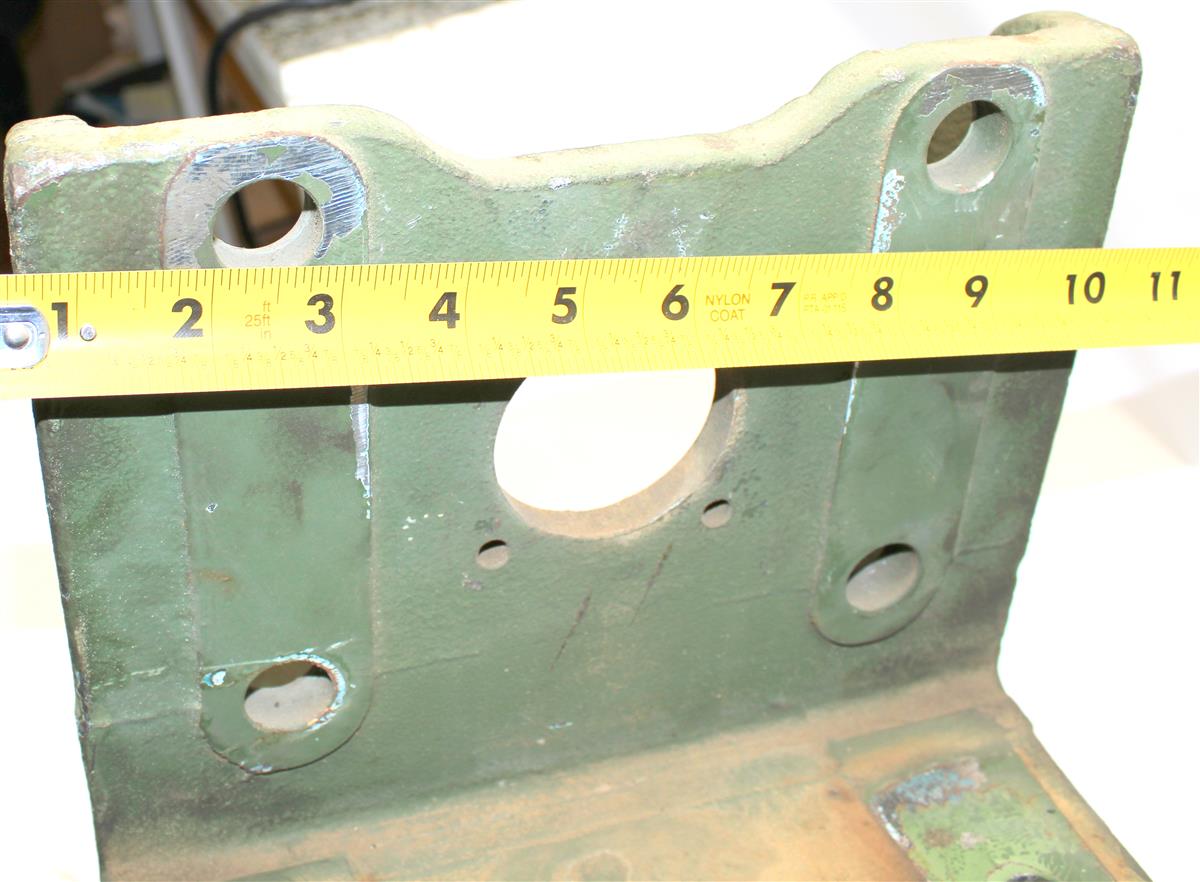

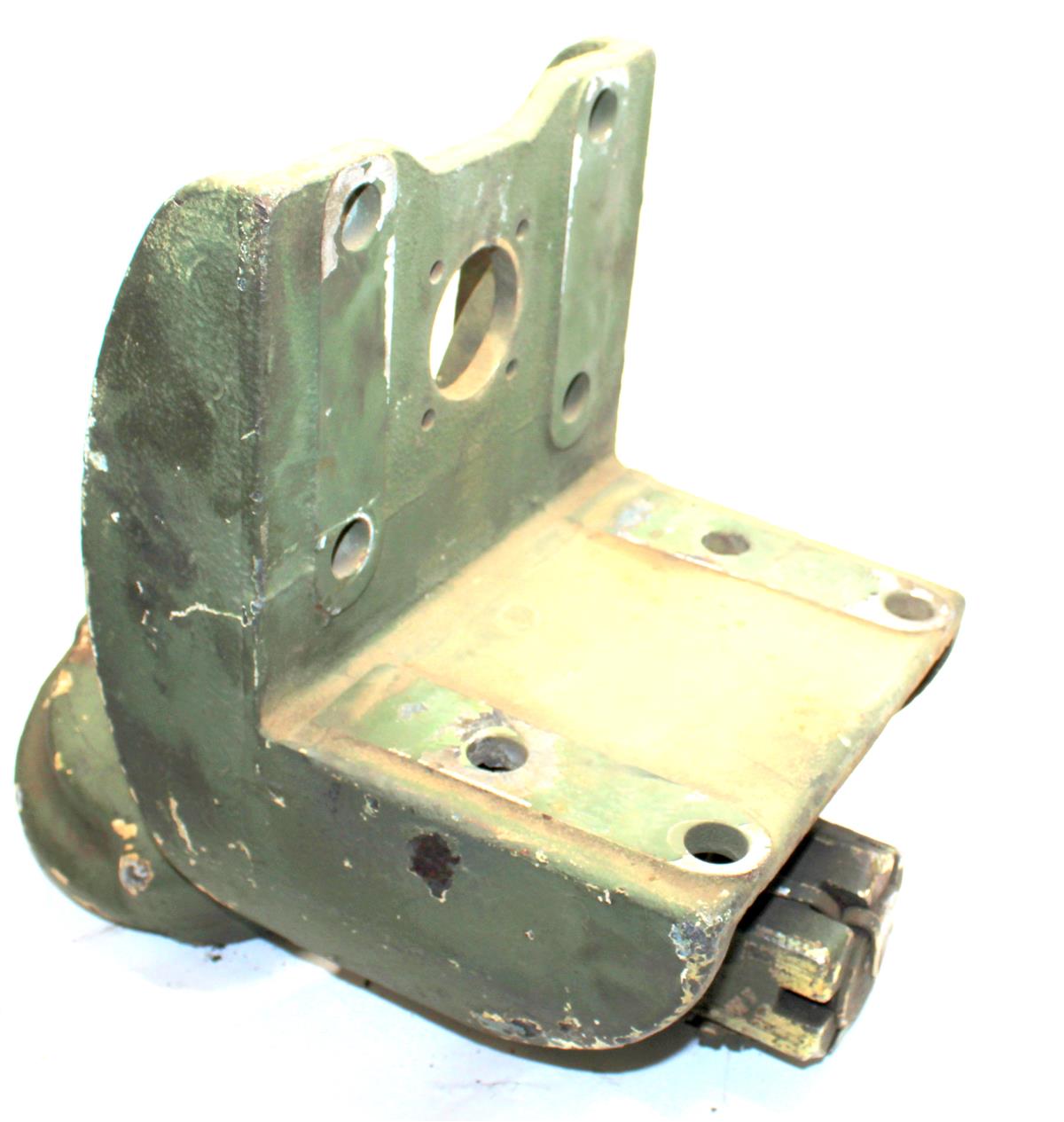

- Bracket P/N 8330742 Dimensions
- Length 9.750 IN
- Width 9.500 IN
- Height 7.250 IN
- 8 QTY Meeting Holes 0.780 IN Diameter
- Pintle Hooke Meeting Hole 2.627 IN Diameter
- ELEC Connector Hole 2.250 In Diameter
- 4 QTY ELEC Connector Meeting Holes 0.280 IN Diameter
- 1 Lubrication Fitting Hole 0.160 IN Deep 0.120 IN Diameter

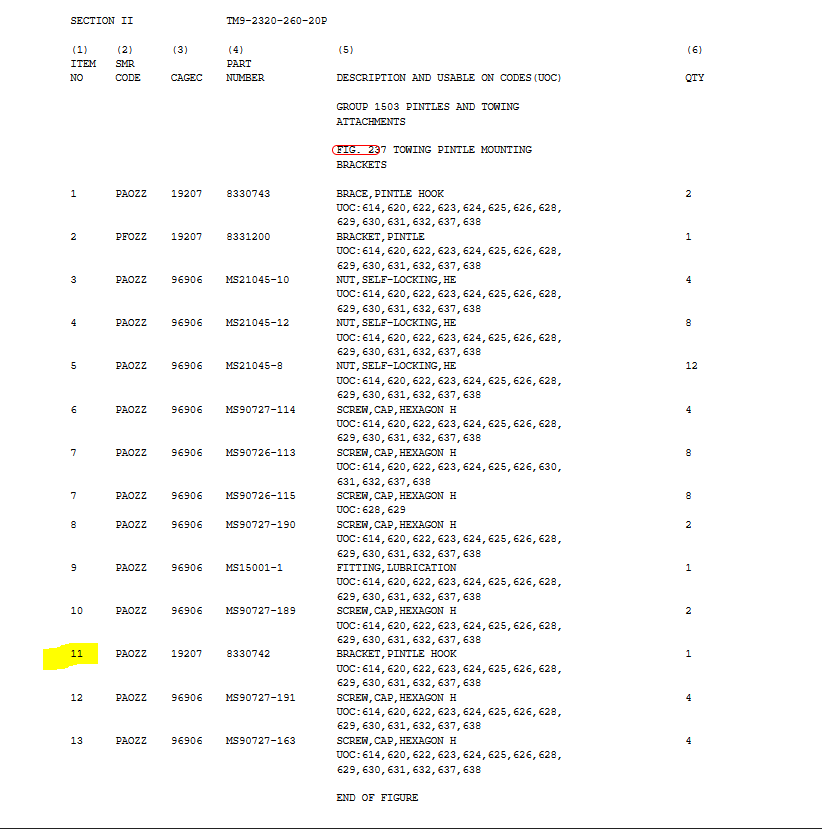

- Item NO 11 in Diagram
Fits: 5 Ton 6x6 Military Truck
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2 5-Ton Trucks
