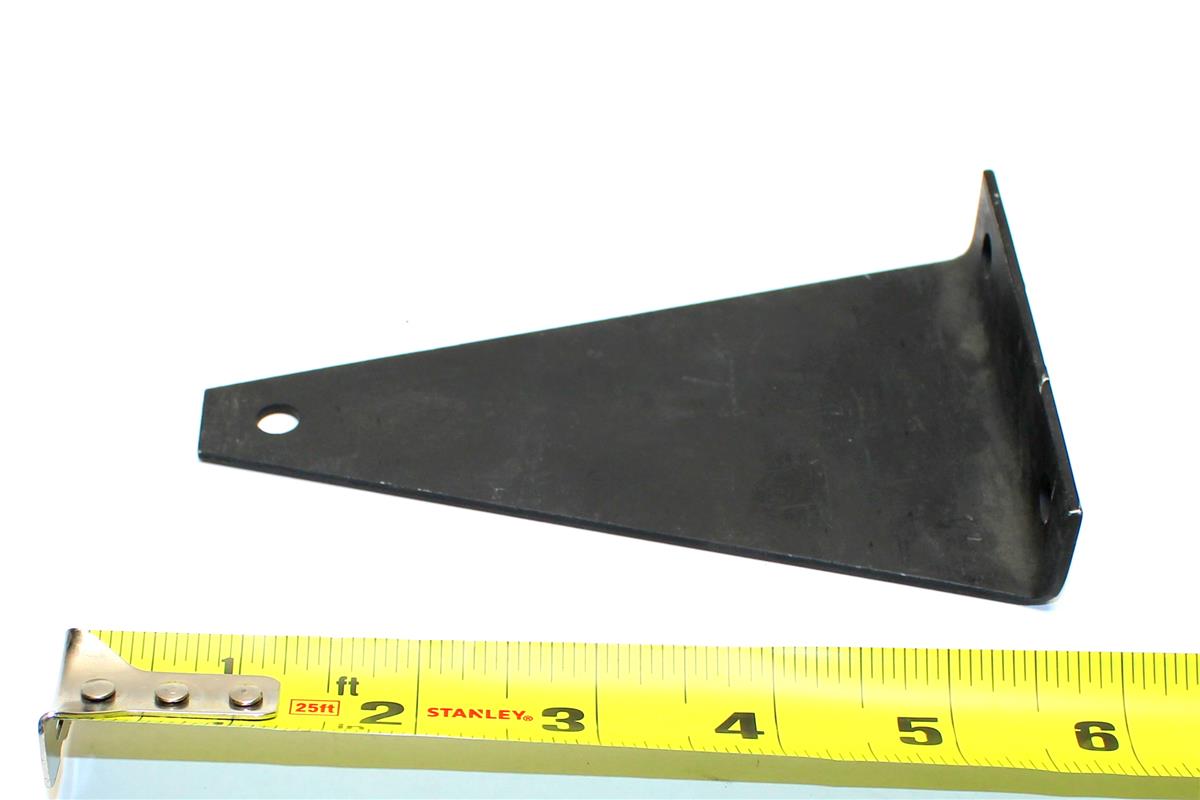

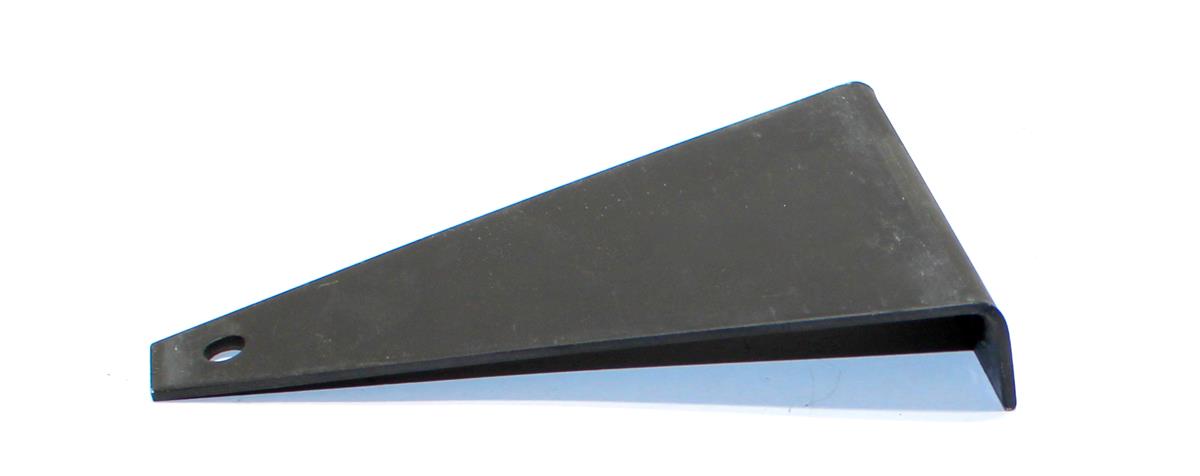

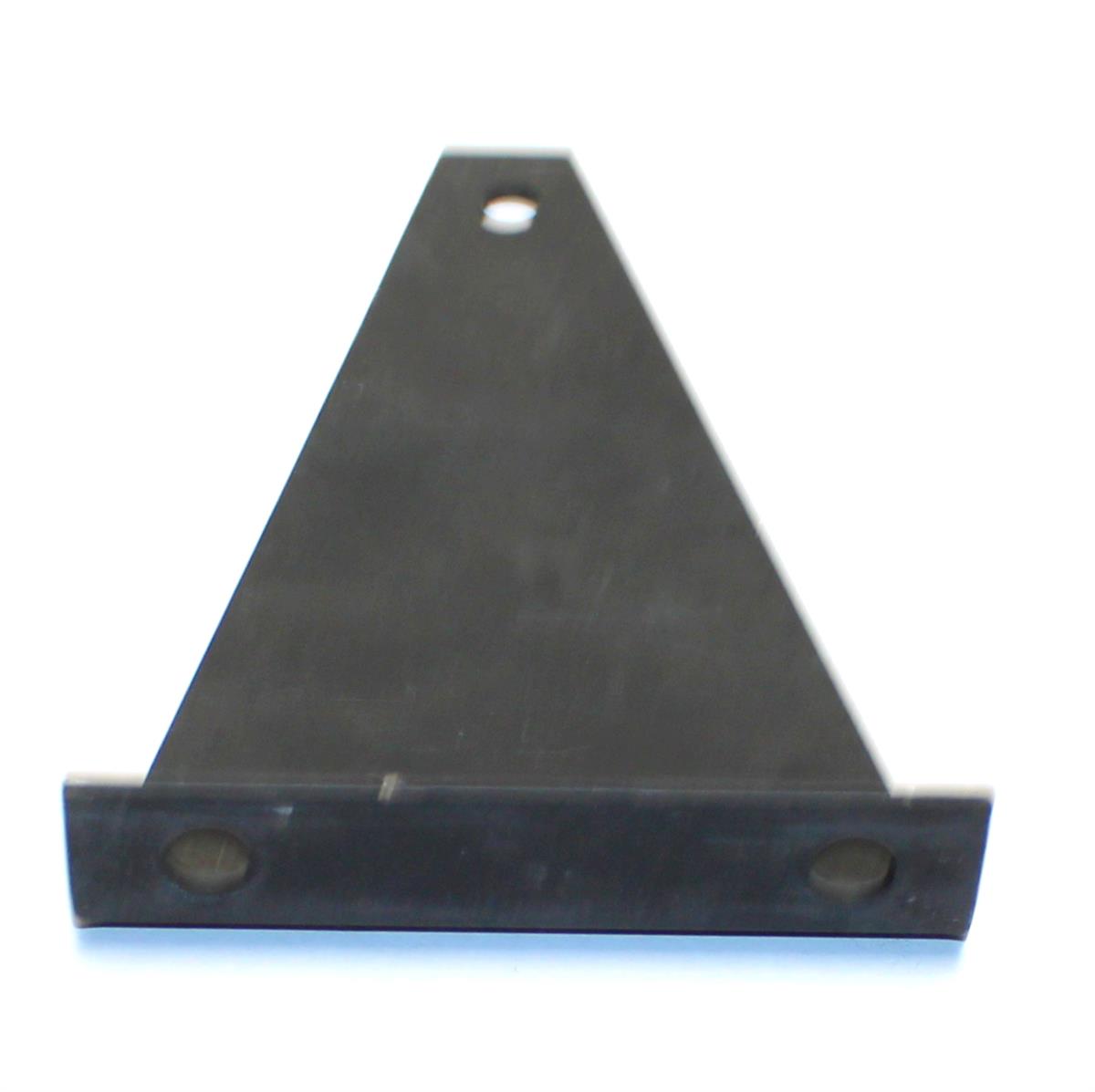

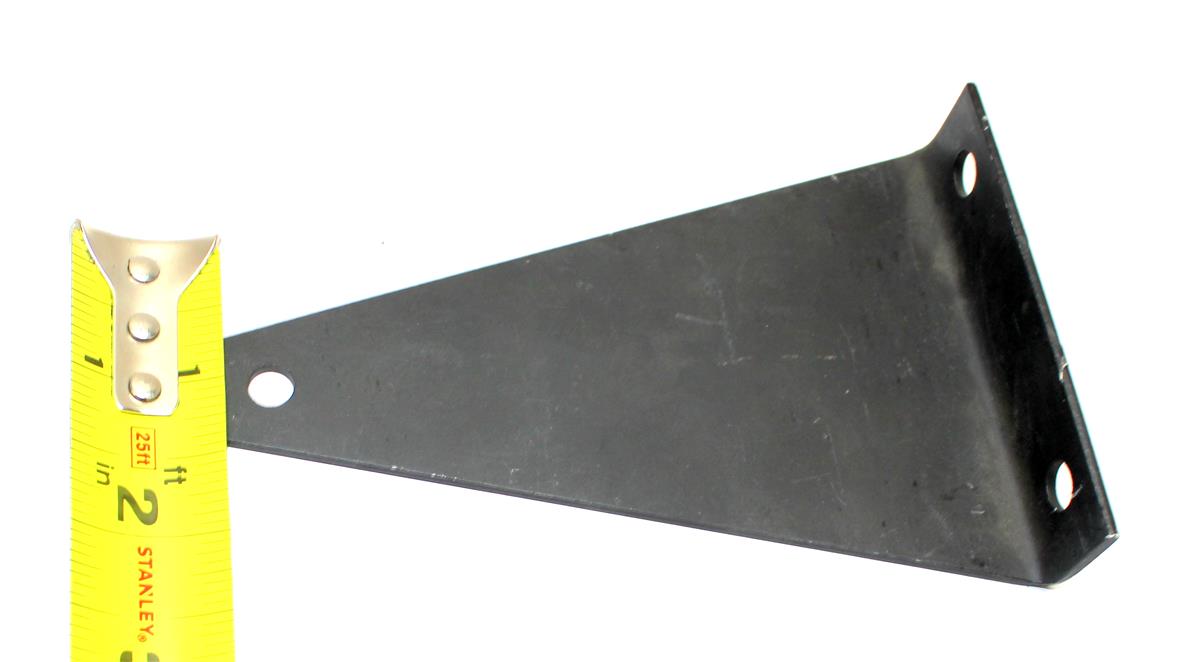

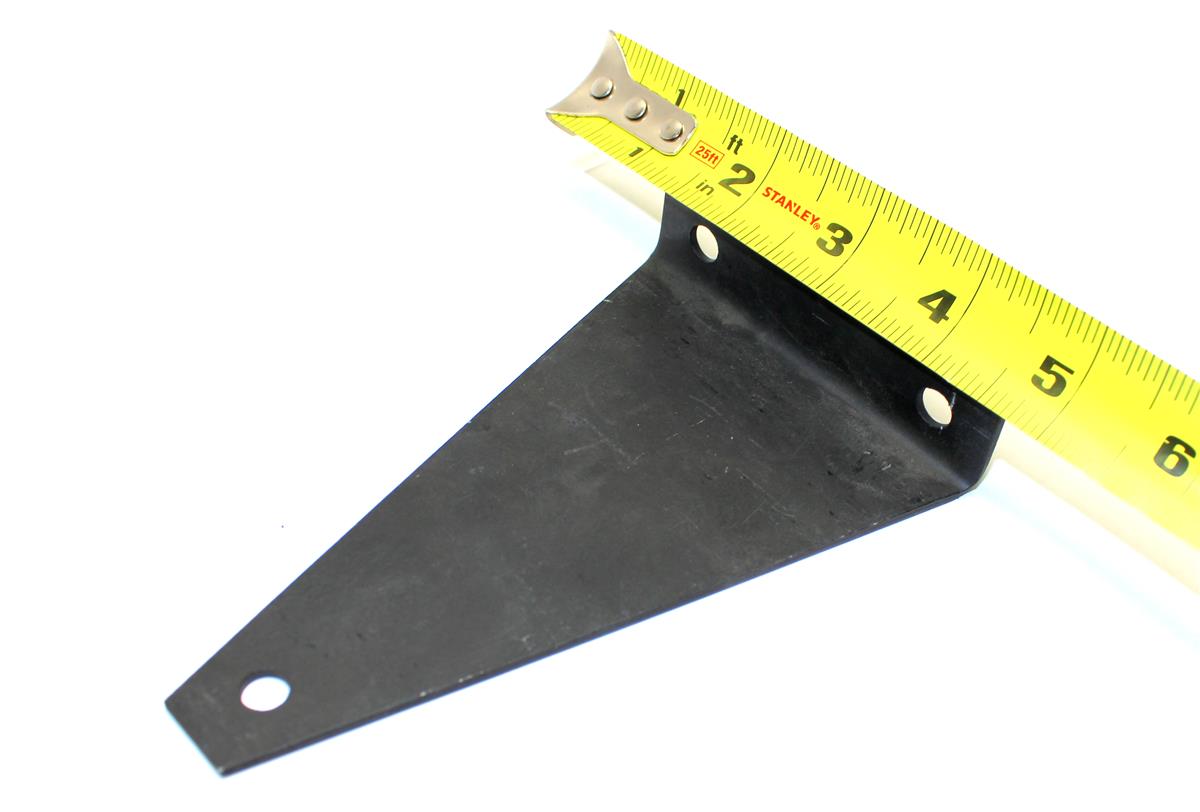

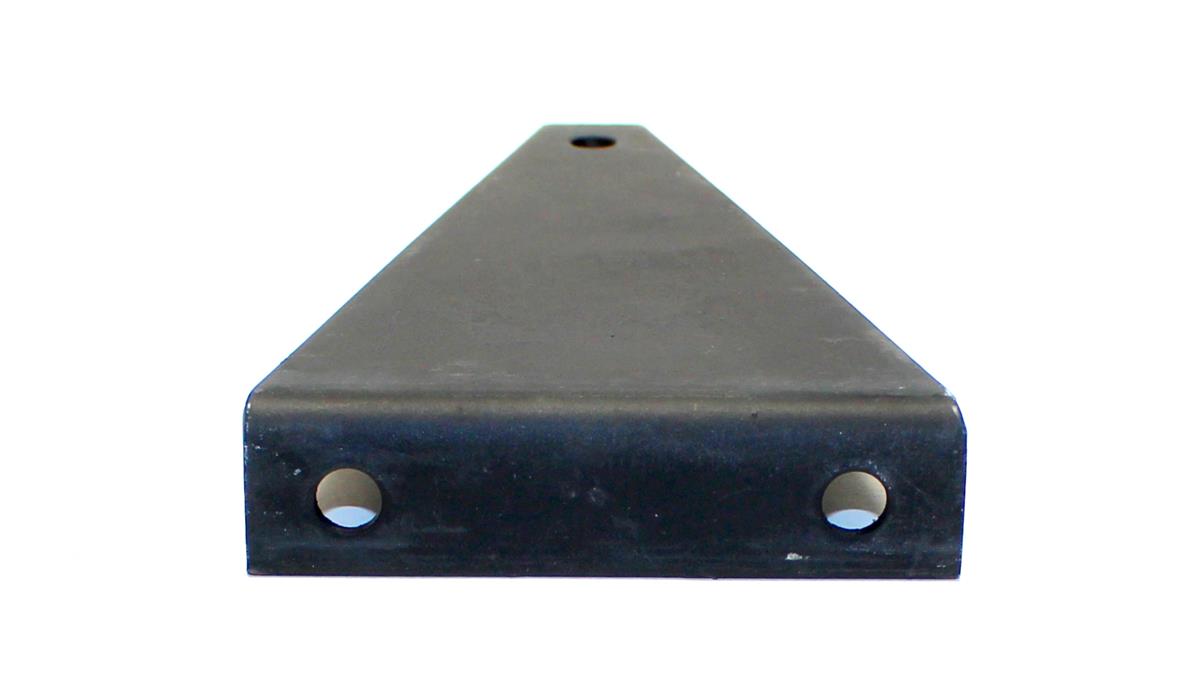

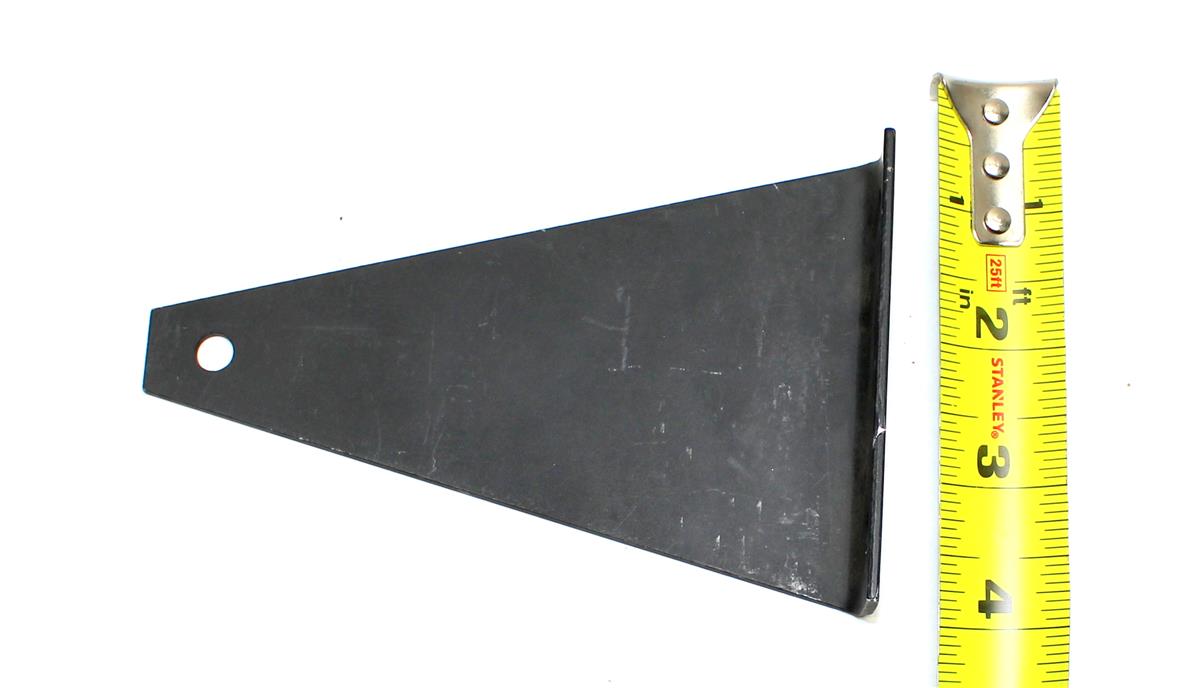

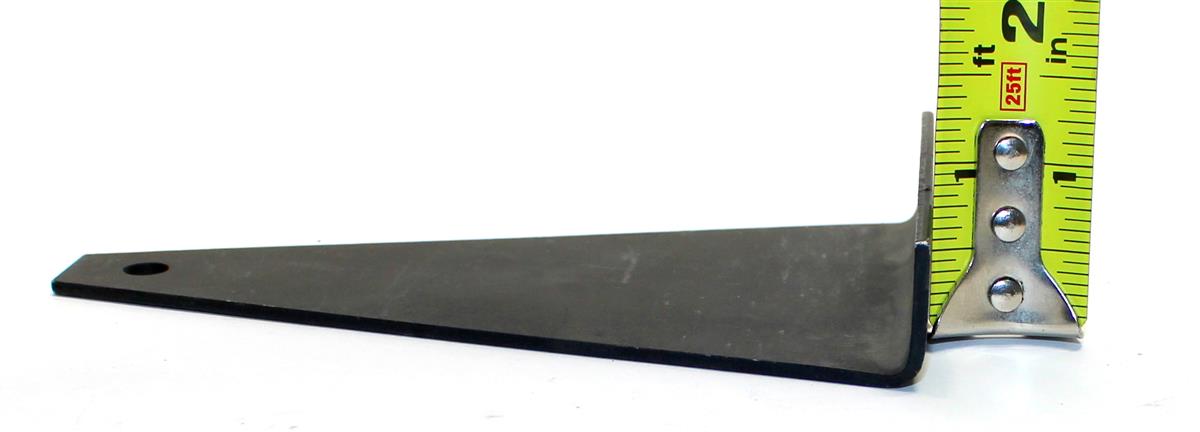

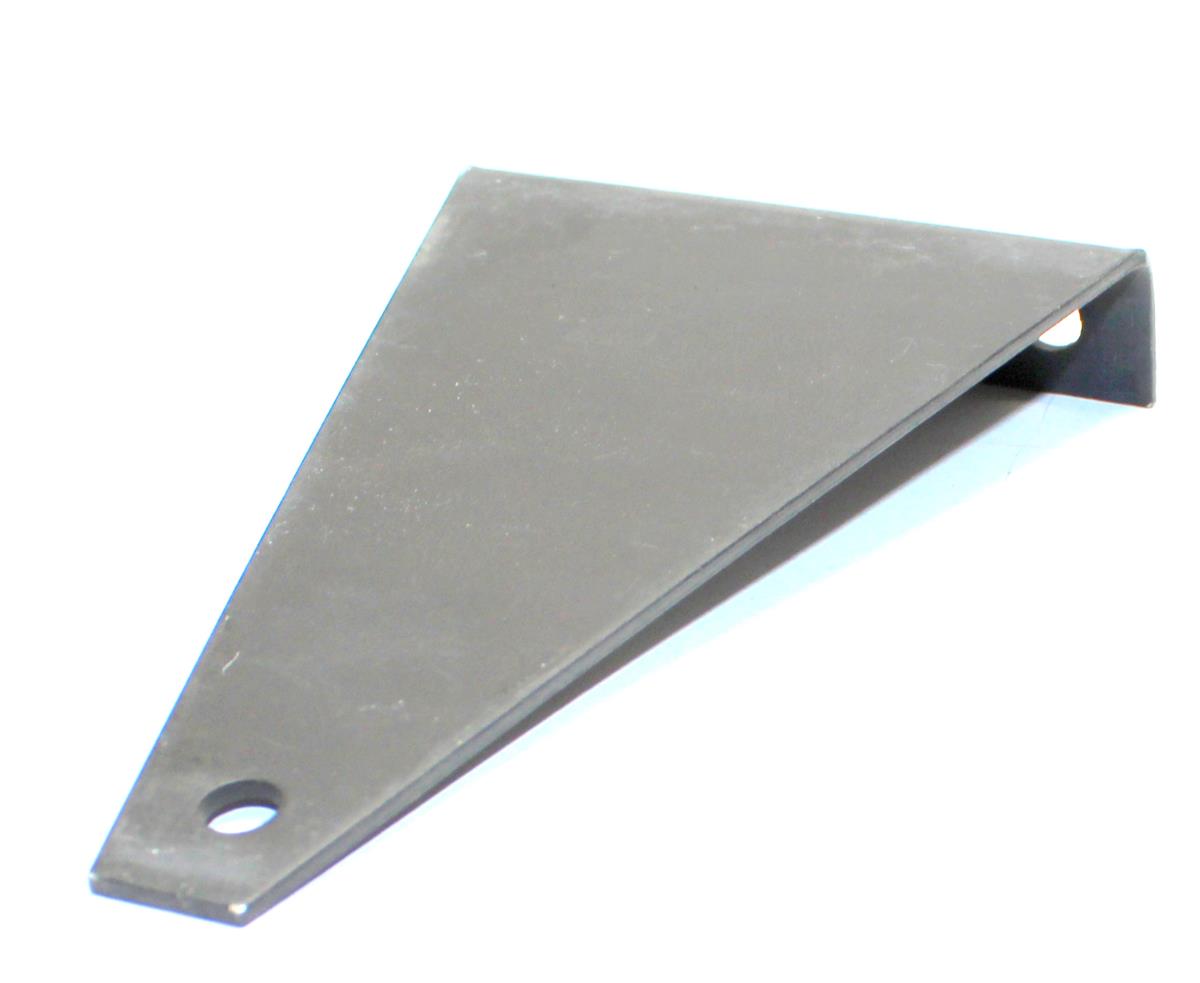

Engine Wiring Harness Angle Bracket HMMWV
- First Leg Length 5.3397 IN
- Second Leg Length 0.8397 IN
- First and Second Leg Width 3.360 IN
- Second Leg End Width 0.620 IN
- First Leg Hole Diameter 0.313 IN
- Second Leg Hole Diameter 0.281 IN
- Second Leg Distance from Edge to Hole Center Along Width 0.310 IN
- Second Leg Distance from Edge to Hole Center Along Length 0.500 IN
- First Leg Thickness 0.0897 IN
- Second Leg Thickness 0.0897 IN
- First Leg Distance between Hole Centers Along Width 2.360 IN
- First Leg Distance From Edge to Hole Center Along Width 0.500 IN
- First Leg Distance from Edge to Hole Center Along Length 0.370 IN
- First Leg Two Holes
- Second Leg One Hole
- First Leg Angle 90.0 Degrees
- Item NO 34 in Diagram
Fits: HMMWV Models
M1025 M1025A1 M1025A2 M1026 M1026A1 M1035 M1035A1 M1035A2 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1043A2 M1044 M1044A1 M1045 M1045A1 M1045A2 M1046 M1046A1 M1097 M1097A1 M1097A2 M1121 M1123 M966 M966A1 M996 M996A1 M997 M997A1 M997A2 M998 M998A1 M1151 M1151A1 M1167
Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
