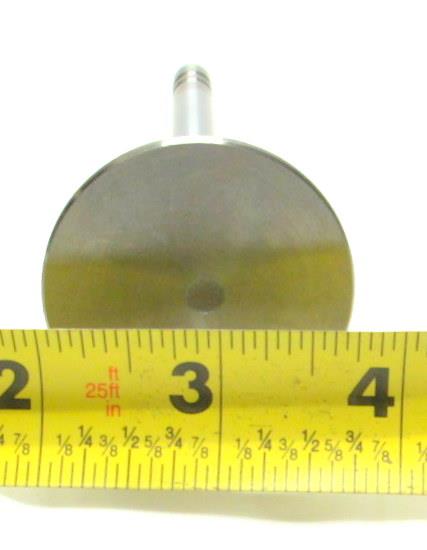

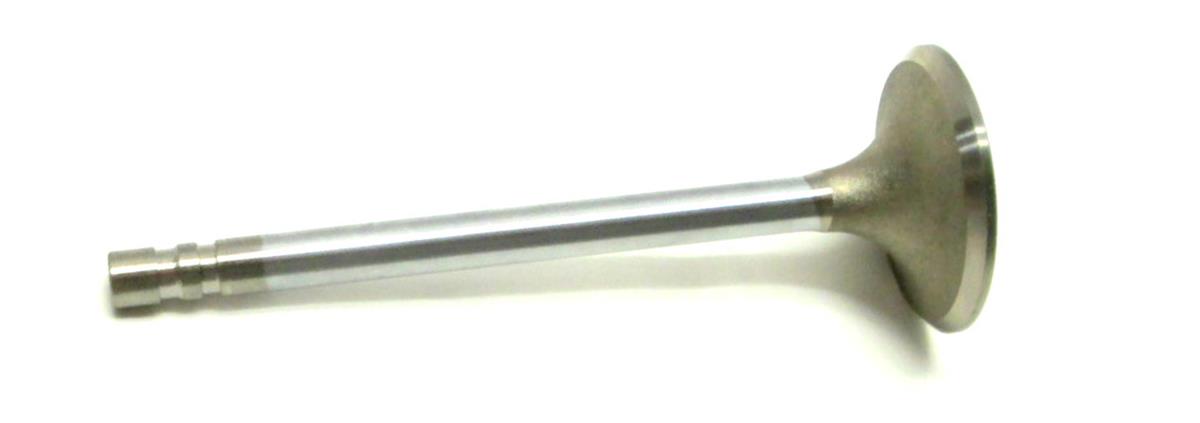

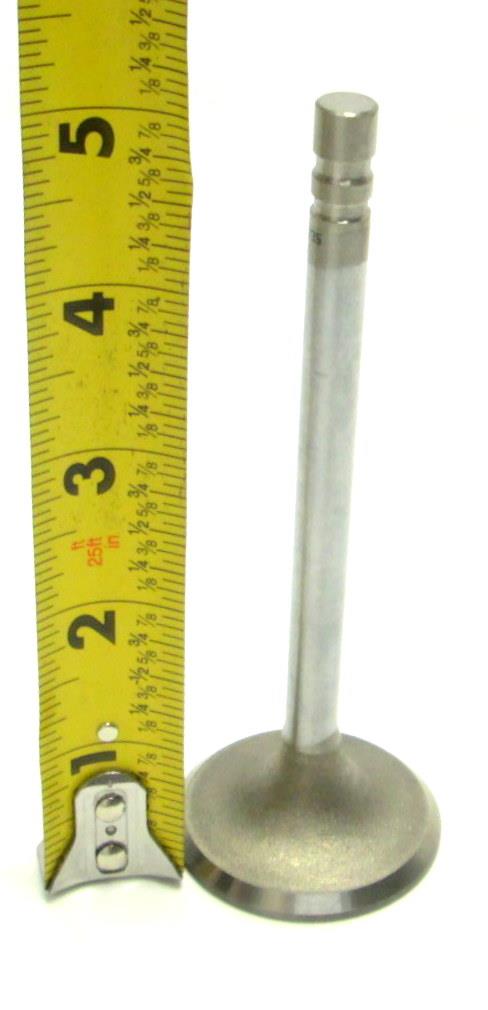

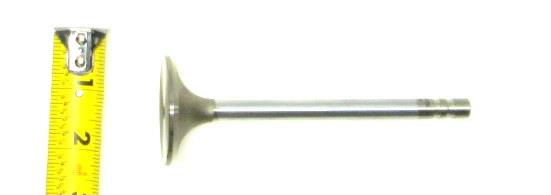

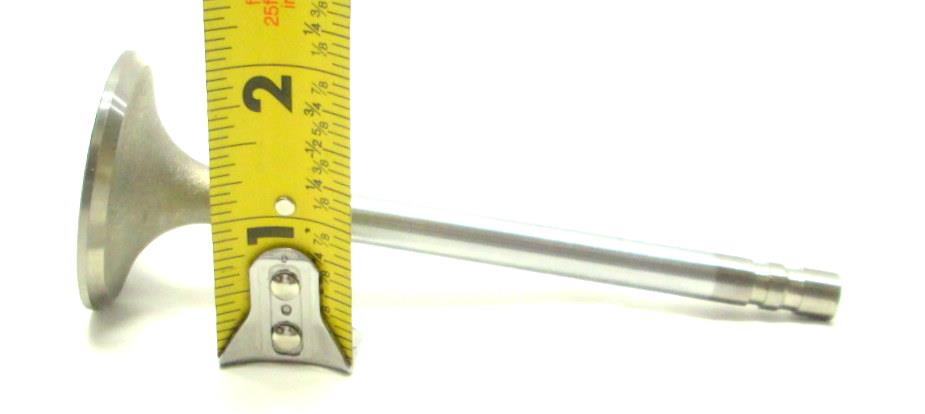

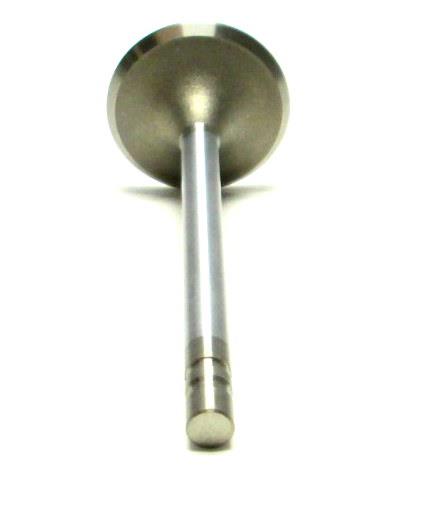

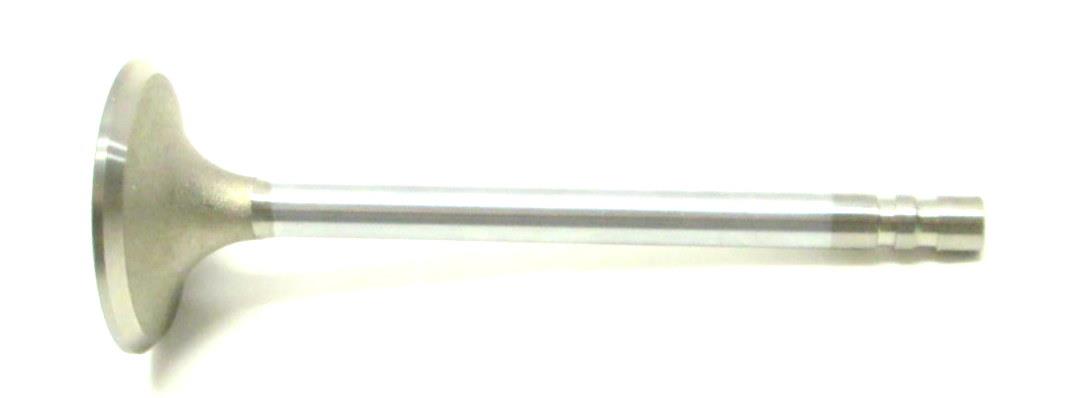

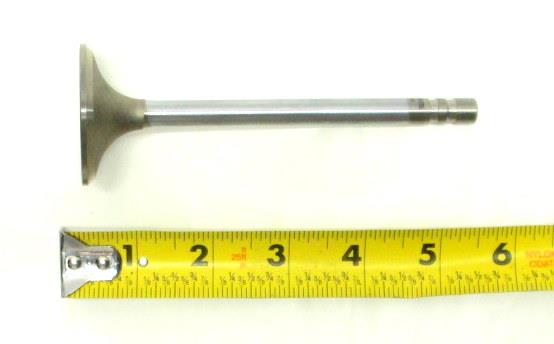

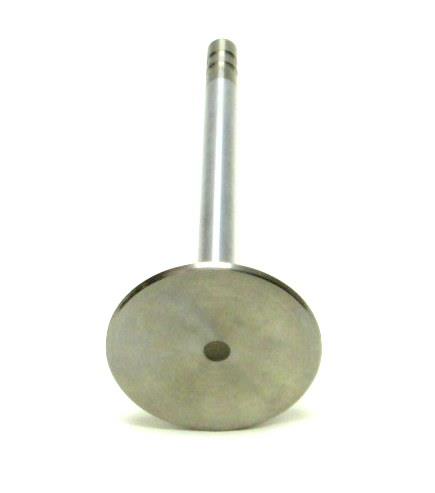

Intake Poppet Valve 6.2L 6.5L GM Diesel Engine HMMWV CUCV
0.89 MM Oversize
Head Style Flat
Head Height 4.70 MM
Chamfer Angle 20.0 Degrees
Chamfer Length 1.00 MM
Outside Diameter 47.57 MM
Minor Outside Diameter 8.67 MM
Minor Diameter Length 18.44 MM
Seat Angle 45.0 Degrees
Stem Style Double Grooved
Neck Radius 15.0 MM
Stem Length 125.23 MM
Stem Diameter 8.75 MM
Distance From First Groove to Stem End 7.00 MM MAX
Distance From Second Groove to Stem End 13.35 MM MAX
First Groove Diameter 7.60 MM
Second Groove Diameter 7.60 MM
First Groove Width 2.67 MM MAX
Second Groove Width 2.67 Major CM
Steel PACS

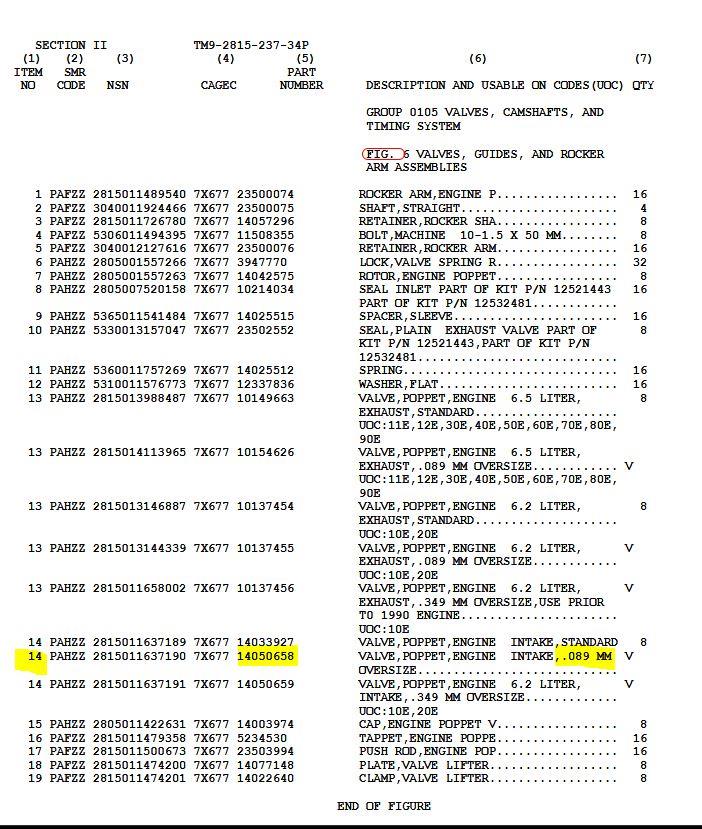

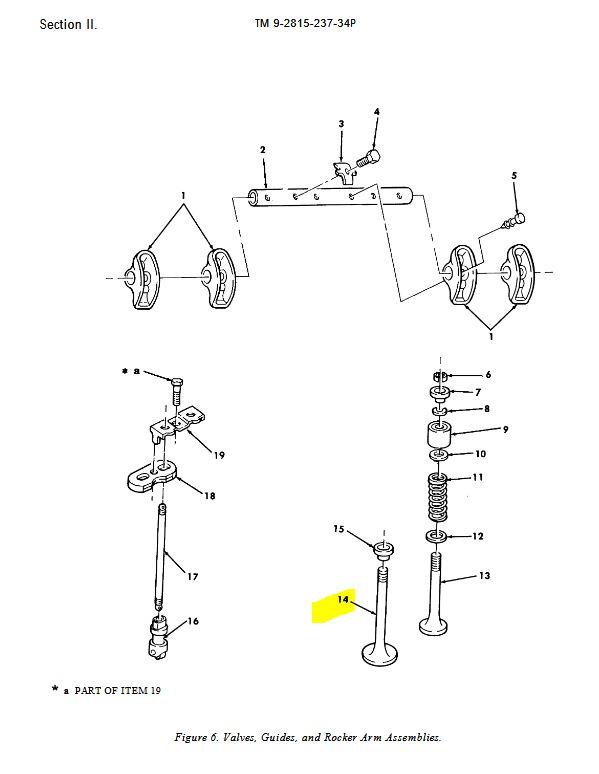

Item No 14 in Diagram
Fits: HMMWV Models, CUCV Models
M1025 M1025A1 M1025A2 M1026 M1026A1 M1035 M1035A1 M1035A2 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1043A2 M1044 M1044A1 M1045 M1045A1 M1045A2 M1046 M1046A1 M1097 M1097A1 M1097A2 M1121 M1123 M966 M966A1 M996 M996A1 M997 M997A1 M997A2 M998 M998A1 M1151 M1151A1 M1167
Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
M1008, M1008A1, M1009, M1010, M1028, M1028A1, M1028A2, M1028A3, M1028A2. M1031
